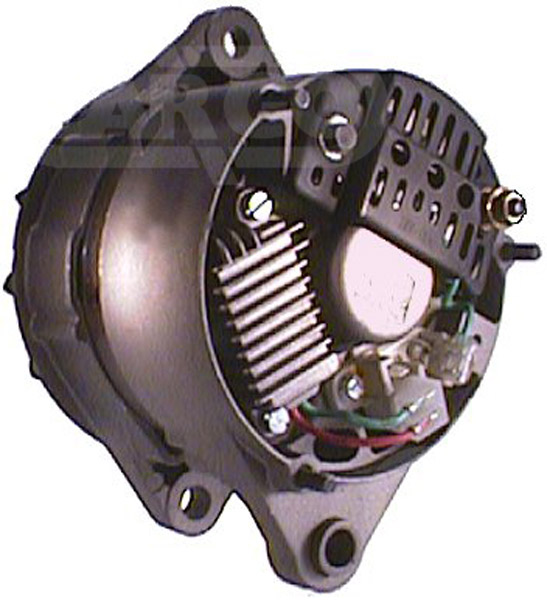

111138 - Alternator (111138)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 45,
Bracket Hole: 12.60, Belt. adj. bracket hole 11.20,
Width/Holder Arm: 17.00, Belt. adj. brackethole pos. 60,
Mount. Bracket Dist.: 63.00,
Pulley Dia.: 73.40,
Pulley Dist.: 46.35,
Grooves/Pulley: 1,
Radius: 84.00,
Radius: 81.00,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL_NA,
Blower: EF, Pulley P,
Total Length: 167.00

Electrical specifications (Alternator)
Voltage 14
Amp 45

Physical specifications (Alternator)
D Bracket hole 12.60
G Belt. adj. bracket hole 11.20
B Width/holder arm 17.00
E Belt. adj. brackethole pos. 60
C Mount. bracket dist. 63.00
H Pulley dia. 73.40
A Pulley dist. 46.35
i Grooves/pulley 1
j Radius 84.00
j Radius 81.00
k B+ position M6
n Rotation CR
o Regulator plug PL_NA
R Total length 167.00

Further information (Alternator)
Blower EF
Pulley P

Replacing
0120489132 BOSCH
0120489133 BOSCH
0120489672 BOSCH
0120489673 BOSCH
0120489740 BOSCH
0120489741 BOSCH
0120489920 BOSCH
0120489921 BOSCH
19025045 REMY (DELCO)
4382200 FIAT

UNISTART Price: £111.28

Sorry, this item is out of stock.

The 111138 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Fiat, Passenger Car EU 131 1.4 Gasoline 1980 11 1984 01 51 70 1367 4 131C1.000 Mirafiori 131
Fiat, Passenger Car EU 131 1.6 Gasoline 1974 10 1981 09 55 75 1585 4 131A1.000 1600 131
Fiat, Passenger Car EU 131 1.6 Gasoline 1976 11 1984 12 63 85 1585 4 131C2.000 1600 131
Fiat, Passenger Car EU 131 1.6 Gasoline 1979 03 1982 03 72 98 1585 4 131B1.000 Super Mirafiori 131
Fiat, Passenger Car EU 132 1.8 Gasoline 1972 04 1974 01 77 105 1756 4 132B1.000 1800 Special 132
Fiat, Passenger Car EU 132 1.7 Gasoline 1975 11 1977 01 82 112 1756 4 132B1.000 1700 132
Fiat, Passenger Car EU 131 1.3 Gasoline 1974 10 1981 09 40 54 1297 4 131A6.000 Mirafiori 131
Fiat, Passenger Car EU 131 1.3 Gasoline 1978 03 1980 12 57 78 1297 4 131B.000 Super Mirafiori 131
Fiat, Passenger Car EU 131 2 Gasoline 1981 01 1984 12 83 113 1995 4 131C4.000 2000 Super 131
Fiat, Passenger Car EU 131 1.6 Gasoline 1975 03 1978 12 55 75 1585 4 131A1.000 Estate Panorama 131
Fiat, Passenger Car EU Argenta 2 Gasoline 1984 06 1985 07 99 135 1995 4 2000 Volumax Argenta
Fiat, Passenger Car EU 131 1.6 Gasoline 1979 12 1981 12 72 97 1585 4 131C3.000 Estate Panorama Super 131
Fiat, Passenger Car EU 131 1.4 Gasoline 1980 11 1984 01 51 70 1367 4 131C.000 Mirafiori 131
Fiat, Passenger Car EU 131 1.6 Gasoline 1980 11 1985 04 63 85 1585 4 131C2.000 Estate 1600 Panorama 131
Fiat, Passenger Car EU Argenta 2 Gasoline 1981 06 1986 07 90 122 1995 4 i.e. 132C3.000 2000 Argenta
Fiat, Passenger Car EU 132 1.6 Gasoline 1977 05 1982 09 65 88 1585 4 132C.000 1600 132
Fiat, Passenger Car EU 132 1.6 Gasoline 1977 03 1981 12 66 90 1585 4 132C6.000 1600 132
Fiat, Passenger Car EU 132 2 Gasoline 1980 01 1982 12 90 122 1995 4 i.e. 132C3.000 2000 132
Fiat, Passenger Car EU Argenta 1.6 Gasoline 1981 04 1985 12 72 98 1585 4 132D.000 1600 Argenta
Fiat, Passenger Car EU 131 1.3 Gasoline 1975 03 1978 12 40 54 1297 4 131A6.000 Estate Panorama Mirafiori 131
Fiat, Passenger Car EU 131 1.4 Gasoline 1981 04 1983 12 55 75 1367 4 131C1.000 Super Mirafiori 131
Fiat, Passenger Car EU Argenta 1.6 Gasoline 1981 04 1985 12 66 90 1585 4 i.e. 1600 Argenta
Fiat, Passenger Car EU 131 1.6 Gasoline 1978 03 1984 01 71 97 1585 4 131C3.000 1600 Super 131
Fiat, Passenger Car EU 131 2 Gasoline 1978 06 1981 12 85 115 1995 4 131B2.000 2000 Racing 131
Fiat, Passenger Car EU Argenta 2 Gasoline 1978 06 1985 12 83 113 1995 4 132C2.000 2000 Argenta
Fiat, Passenger Car EU 132 1.8 Gasoline 1974 04 1975 12 79 107 1756 4 132B1.000 1800 GLS 132
Fiat, Passenger Car EU 132 1.6 Gasoline 1976 01 1982 12 72 98 1585 4 132C.000 1600 132
Fiat, Passenger Car EU 131 1.4 Gasoline 1981 11 1984 01 51 70 1367 4 131C.000 Estate Mirafiori 131
Fiat, Passenger Car EU 131 1.4 Gasoline 1981 11 1984 01 51 70 1367 4 131C1.000 Estate Mirafiori 131
Fiat, Passenger Car EU 132 2 Gasoline 1977 05 1981 06 82 112 1995 4 132C2.000 2000 132
Fiat, Passenger Car EU 132 1.6 Gasoline 1972 04 1976 01 72 98 1592 4 132BBOAO 1600 132
Fiat, Passenger Car EU 131 1.3 Gasoline 1975 03 1982 03 48 65 1297 4 131A.000 Estate Mirafiori Panorama 131
Seat, Passenger Car EU Ibiza 1.7 Diesel 1990 08 1993 05 42 57 1714 4 Diesel 022A.5000 Hatchback Ibiza
Seat, Passenger Car EU Ronda 1.2 Gasoline 1983 08 1985 05 47 64 1193 4 124B6.000 Hatchback Ronda
Seat, Passenger Car EU Malaga 1.7 Diesel 1985 05 1993 12 40 54 1714 4 Diesel 022A.5000 Malaga
Seat, Passenger Car EU Ibiza 1.7 Diesel 1984 06 1993 05 40 54 1714 4 Diesel 022A.5000 Hatchback Ibiza
Seat, Passenger Car EU Malaga 1.5 Gasoline 1986 10 1993 12 66 90 1461 4 i 021D.2000 Malaga
Seat, Passenger Car EU Malaga 1.2 Gasoline 1989 12 1993 12 52 71 1193 4 i 021C.1000 Malaga
Seat, Passenger Car EU 132 1.8 Gasoline 1973 05 1980 12 77 105 1756 4 132
Seat, Passenger Car EU Ronda 1.4 Gasoline 1982 06 1988 11 54 73 1438 4 124B7.000 Hatchback Ronda
Seat, Passenger Car EU Ronda 1.7 Diesel 1982 06 1986 12 40 54 1714 4 Diesel 022A.5000 Hatchback Ronda
Seat, Passenger Car EU Malaga 1.7 Diesel 1990 05 1993 12 42 57 1714 4 Diesel 022A.5000 Malaga
Seat, Passenger Car EU Marbella 0.9 Gasoline 1996 11 1998 10 30 41 899 4 08NCB Hatchback Marbella
