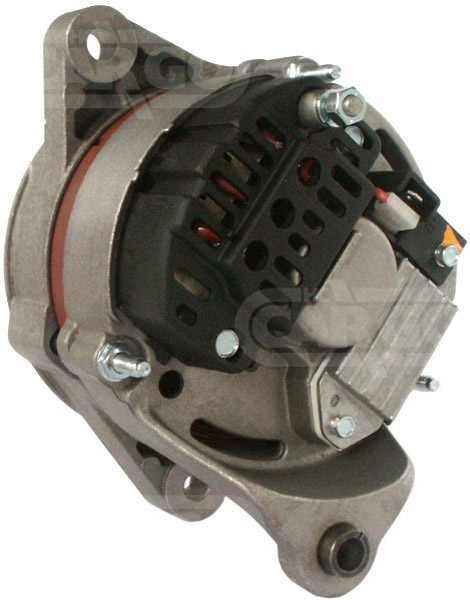

111148 - Alternator (111148)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 65,
Bracket Hole: 10.30, Belt. adj. bracket hole 11.00,
Width/Holder Arm: 23.00, Belt. adj. brackethole pos. 5,
Mount. Bracket Dist.: 73.00,
Pulley Dia.: 68.25,
Pulley Dist.: 52.25,
Grooves/Pulley: 1,
Radius: 79.45,
Radius: 87.80,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL_NA,
Blower: w/o, Pulley P,
Total Length: 165.50

Electrical specifications (Alternator)
Voltage 14
Amp 65

Physical specifications (Alternator)
D Bracket hole 10.30
G Belt. adj. bracket hole 11.00
B Width/holder arm 23.00
E Belt. adj. brackethole pos. 5
C Mount. bracket dist. 73.00
H Pulley dia. 68.25
A Pulley dist. 52.25
i Grooves/pulley 1
j Radius 79.45
j Radius 87.80
k B+ position M6
n Rotation CR
o Regulator plug PL_NA
R Total length 165.50

Further information (Alternator)
Blower w/o
Pulley P

Replacing
0120488140 BOSCH
0120488207 BOSCH
0120488235 BOSCH
0120488275 BOSCH
0120489128 BOSCH
0120489129 BOSCH
0120489263 BOSCH
0120489348 BOSCH
0120489400 BOSCH
0120489942 BOSCH

UNISTART Price: £81.90

Sorry, this item is out of stock.

The 111148 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Fiat, Passenger Car EU Tipo 1.4 Gasoline 1989 05 1995 04 51 70 1372 4 i.e. 160A1.046 Hatchback Tipo
Fiat, Passenger Car EU Regata 1.5 Gasoline 1985 07 1989 07 55 75 1498 4 i.e. 149C1.000 Regata
Fiat, Passenger Car EU Ritmo 1.5 Gasoline 1980 01 1989 07 63 86 1498 4 138A4.000 Convertible Bertone Ritmo
Fiat, Passenger Car EU Ritmo 1.5 Gasoline 1983 03 1986 12 60 82 1498 4 138B3.000 Convertible Bertone Ritmo
Fiat, Passenger Car EU Ritmo 1.5 Gasoline 1985 09 1988 12 55 75 1498 4 138C2.048 Hatchback Ritmo
Fiat, Passenger Car EU Tempra 1.4 Gasoline 1991 03 1996 08 57 78 1372 4 i.e. 159A2.000 Tempra
Fiat, Passenger Car EU Ritmo 1.3 Gasoline 1981 01 1982 09 55 75 1301 4 138A3.000 Hatchback Ritmo
Fiat, Passenger Car EU Ritmo 1.5 Gasoline 1983 03 1987 05 55 75 1498 4 i.e. 138C2.048 Hatchback Ritmo
Fiat, Passenger Car EU Tipo 1.4 Gasoline 1987 07 1989 12 52 71 1372 4 160A1.000 Hatchback Selecta Tipo
Fiat, Passenger Car EU Tipo 1.6 Gasoline 1990 07 1993 01 57 78 1581 4 i.e. 159A3.046 Hatchback Tipo
Fiat, Passenger Car EU Regata 1.3 Gasoline 1983 09 1989 07 48 65 1301 4 149A3.000 ES Regata
Fiat, Passenger Car EU Regata 1.5 Gasoline 1984 09 1989 07 55 75 1498 4 i.e. 138C3.048 Estate Regata
Fiat, Passenger Car EU Uno 1.5 Gasoline 1985 10 1993 12 55 75 1499 4 i.e. 138C2.048 Hatchback Uno
Fiat, Passenger Car EU Regata 1.5 Gasoline 1983 12 1987 12 55 75 1498 4 i.e. 138C3.048 Regata
Fiat, Passenger Car EU Ritmo 1.5 Gasoline 1985 08 1987 05 58 79 1498 4 149A5.000 Hatchback Ritmo
Fiat, Passenger Car EU Regata 1.5 Gasoline 1984 01 1989 04 60 82 1498 4 138B3.000 Estate Regata
Fiat, Passenger Car EU Ritmo 1.5 Gasoline 1983 03 1987 05 55 75 1498 4 i.e. 149C1.000 Hatchback Ritmo
Fiat, Passenger Car EU Tipo 1.4 Gasoline 1987 07 1989 12 52 71 1372 4 160A1.048 Hatchback Selecta Tipo
Fiat, Passenger Car EU Regata 1.5 Gasoline 1985 07 1989 07 55 75 1498 4 i.e. 138C2.048 Regata
Fiat, Passenger Car EU Uno 1.3 Gasoline 1985 04 1989 08 77 105 1301 4 i.e. Turbo 146A2.000 Hatchback Uno
Fiat, Passenger Car EU Ritmo 1.5 Gasoline 1985 09 1988 12 55 75 1498 4 149C1.000 Hatchback Ritmo
Fiat, Passenger Car EU Regata 1.6 Gasoline 1983 10 1990 06 60 82 1585 4 149A.000 Regata
Fiat, Passenger Car EU Fiorino 1.5 Gasoline 1988 05 1993 12 55 75 1499 4 i.e. 149C1.000 Van Fiorino
Fiat, Passenger Car EU Ritmo 1.5 Gasoline 1983 01 1987 12 60 82 1498 4 138B3.000 Hatchback Ritmo
Fiat, Passenger Car EU Regata 1.3 Gasoline 1983 09 1989 07 48 65 1301 4 149A7.000 ES Regata
Fiat, Passenger Car EU Regata 1.5 Gasoline 1984 09 1989 07 55 75 1498 4 i.e. 138B3.048 Estate Regata
Fiat, Passenger Car EU Uno 1.3 Gasoline 1987 01 1987 12 73 99 1301 4 i.e. Turbo 146A2.146 Hatchback Uno
Fiat, Passenger Car EU Uno 1.3 Gasoline 1989 09 1991 03 74 101 1301 4 i.e. Turbo 146A2.246 Hatchback Uno
Fiat, Passenger Car EU Fiorino 1.5 Gasoline 1988 01 1993 08 55 75 1499 4 149C1.000 Van Fiorino
Fiat, Passenger Car EU Elba 1.5 Gasoline 1992 01 1996 12 49 67 1497 4 149C1.000 Estate Elba
Fiat, Passenger Car EU Uno 1.4 Gasoline 1989 12 1996 12 87 118 1372 4 i.e. Turbo 146A8.000 Hatchback Uno
Fiat, Passenger Car EU Uno 1.4 Gasoline 1989 09 1992 10 52 71 1372 4 160A1.048 Hatchback S Uno
Fiat, Passenger Car EU Regata 1.5 Gasoline 1985 05 1987 12 58 79 1498 4 149A5.000 Regata
Fiat, Passenger Car EU Regata 1.5 Gasoline 1983 09 1985 04 60 82 1498 4 138B3.000 Super Regata
Fiat, Passenger Car EU Uno 1.5 Gasoline 1985 10 1993 12 55 75 1499 4 i.e. 149C1.000 Hatchback Uno
Fiat, Passenger Car EU Regata 1.5 Gasoline 1983 12 1987 12 55 75 1498 4 i.e. 138B3.048 Regata
Fiat, Passenger Car EU Regata 1.3 Gasoline 1983 09 1986 07 50 68 1301 4 138B2.000 Regata
Fiat, Passenger Car EU Regata 1.5 Gasoline 1986 12 1989 07 55 75 1498 4 138C2.048 Estate Regata
Fiat, Passenger Car EU Ritmo 1.5 Gasoline 1985 09 1988 12 55 75 1498 4 138A2.000 Hatchback Ritmo
Lancia, Passenger Car EU Prisma 1.5 Gasoline 1983 01 1986 04 63 86 1498 4 831A1.000 Prisma
Lancia, Passenger Car EU Delta 1.5 Gasoline 1979 09 1992 12 63 86 1498 4 831A1.000 Hatchback Delta
Lancia, Passenger Car EU Prisma 1.5 Gasoline 1985 09 1992 02 55 75 1498 4 831B1.048 Prisma
Lancia, Passenger Car EU Y 1.3 Gasoline 1989 02 1995 12 53 72 1297 4 i.e. 156B.000 Hatchback Fire Y10
Lancia, Passenger Car EU Prisma 1.6 Gasoline 1982 12 1986 04 77 105 1585 4 831A4.000 Prisma
Lancia, Passenger Car EU Delta 1.5 Gasoline 1979 09 1992 12 63 86 1498 4 831B1.000 Hatchback Delta
Lancia, Passenger Car EU Prisma 1.5 Gasoline 1986 08 1992 02 59 80 1498 4 831B1.000 Prisma
Lancia, Passenger Car EU Prisma 1.5 Gasoline 1985 09 1992 02 55 75 1498 4 138C2.048 Prisma
Lancia, Passenger Car EU Y 1.3 Gasoline 1989 02 1995 12 53 72 1297 4 i.e. 146A5.046 Hatchback Fire Y10
Fiat, Passenger cars US Strada 1.5 Gasoline 1981 01 1982 01 0 0 1498 L4 Strada
Fiat, Passenger cars US X-1/9 1.5 Gasoline 1981 01 1983 01 0 0 1498 L4 X-1/9
Fiat, Passenger cars US Strada 1.5 Gasoline 1981 01 1982 01 0 0 1498 L4 Custom Strada
