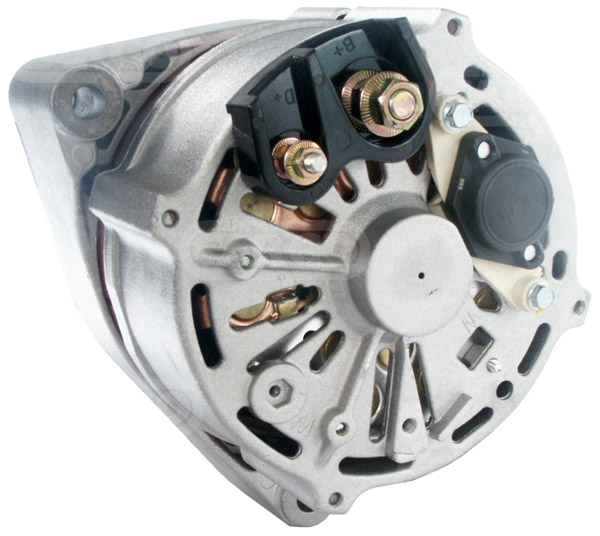

111149 - Alternator (111149)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 80,
Bracket Hole: 10.30, Belt. adj. bracket hole 10.30,
Width/Holder Arm: 56.00, Belt. adj. brackethole pos. 10,
Pulley Dia.: 69.00,
Pulley Dist.: 77.00,
Grooves/Pulley: 1,
Radius: 90.00,
Radius: 90.00,
B+ Position: M8,
Rotation: CR,
Regulator Plug: or plug PL_NA,
Blower: EF, Pulley P,
Total Length: 176.75

Electrical specifications (Alternator)
Voltage 14
Amp 80

Physical specifications (Alternator)
D Bracket hole 10.30
G Belt. adj. bracket hole 10.30
B Width/holder arm 56.00
E Belt. adj. brackethole pos. 10
H Pulley dia. 69.00
A Pulley dist. 77.00
i Grooves/pulley 1
j Radius 90.00
j Radius 90.00
k B+ position M8
n Rotation CR
o Regulator plug PL_NA
R Total length 176.75

Further information (Alternator)
Blower EF
Pulley P

Replacing
0061546402 MERCEDES BENZ
0061546502 MERCEDES BENZ
0061547302 MERCEDES BENZ
0071540602 MERCEDES BENZ
0071545802 MERCEDES BENZ
0081547602 MERCEDES BENZ
0120469583 BOSCH
0120469584 BOSCH
0120469588 BOSCH
0120469589 BOSCH

UNISTART Price: £180.81

Sorry, this item is out of stock.

The 111149 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Mercedes-Benz, Passenger Car EU 280 2.7 Gasoline 1979 12 1985 07 115 156 2746 6 M110.924 280 S
Mercedes-Benz, Passenger Car EU 300 3 Gasoline 1990 06 - 128 174 2960 6 M103.987 300 GE
Mercedes-Benz, Passenger Car EU 380 3.8 Gasoline 1979 12 1985 08 150 204 3839 8 M116.963 380 SE
Mercedes-Benz, Passenger Car EU 420 4.2 Gasoline 1985 10 1987 12 160 218 4196 8 M116.965 420 SE
Mercedes-Benz, Passenger Car EU 420 4.2 Gasoline 1985 10 1987 12 160 218 4196 8 M116.965 420 SEL
Mercedes-Benz, Passenger Car EU 420 4.2 Gasoline 1985 10 1991 06 165 224 4196 8 M116.965 420 SE
Mercedes-Benz, Passenger Car EU 500 5 Gasoline 1979 12 1985 08 170 231 4973 8 M117.963 500 SEL
Mercedes-Benz, Passenger Car EU 500 4.9 Gasoline 1979 12 1985 08 177 241 4973 8 M117.963 500 SE
Mercedes-Benz, Passenger Car EU 500 4.9 Gasoline 1981 10 1985 08 170 231 4973 8 M117.963 Coupe 500 SEC
Mercedes-Benz, Passenger Car EU 500 5 Gasoline 1985 09 1991 06 195 265 4973 8 M117.965 Coupe 500 SEC
Mercedes-Benz, Passenger Car EU 300 3 Gasoline 1993 06 1995 06 132 180 2960 6 M103.985 4 Matic E 300
Mercedes-Benz, Passenger Car EU 100 2.4 Diesel 1990 12 1996 02 55 75 2399 4 Diesel OM616.963 Van 100
Mercedes-Benz, Passenger Car EU 4t 2.3 Diesel 1988 11 1995 06 58 79 2299 4 Diesel OM601.940 Platform / Chassis 408
Mercedes-Benz, Passenger Car EU T1 2.3 Gasoline 1989 01 1995 12 77 105 2299 4 M102.945 Van T1
Mercedes-Benz, Passenger Car EU 100 Bus 2.4 Diesel 1988 02 1992 05 53 72 2399 4 Diesel OM616.963 Bus 100 Bus
Mercedes-Benz, Passenger Car EU 100 2.4 Diesel 1990 12 1996 02 55 75 2399 4 Diesel OM616 Bus 100
Mercedes-Benz, Passenger Car EU 420 4.2 Gasoline 1985 10 1991 06 150 204 4196 8 M116.965 420 SEL
Mercedes-Benz, Passenger Car EU 500 5 Gasoline 1979 12 1985 08 177 241 4973 8 M117.961 500 SEL
Mercedes-Benz, Passenger Car EU 500 5 Gasoline 1979 12 1985 08 177 241 4973 8 M117.963 500 SEL
Mercedes-Benz, Passenger Car EU 500 5 Gasoline 1985 09 1991 06 180 245 4973 8 M117.965 500 SEL
Mercedes-Benz, Passenger Car EU 500 4.9 Gasoline 1987 09 1991 06 195 265 4973 8 M117.965 500 SE
Mercedes-Benz, Passenger Car EU 560 5.5 Gasoline 1985 10 1991 06 220 300 5547 8 M117.968 560 SEL
Mercedes-Benz, Passenger Car EU 560 5.5 Gasoline 1985 10 1991 06 220 300 5547 8 M117.968 560 SE
Mercedes-Benz, Passenger Car EU 500 5 Gasoline 1989 06 1991 06 185 252 4973 8 M117.965 500 SEL
Mercedes-Benz, Passenger Car EU 500 4.9 Gasoline 1986 01 1989 08 180 245 4973 8 M117.960 Convertible 500 SL
Mercedes-Benz, Passenger Car EU 560 5.5 Gasoline 1985 10 1987 12 200 272 5547 8 M117.968 Coupe 560 SEC
Mercedes-Benz, Passenger Car EU 100 Bus 2.4 Diesel 1988 02 1992 05 53 72 2399 4 Diesel OM616.963 Van 100 Bus
Mercedes-Benz, Passenger Car EU 100 2.4 Diesel 1990 12 1996 02 55 75 2399 4 Diesel OM616.963 Platform / Chassis 100
Mercedes-Benz, Passenger Car EU 5t 2.3 Diesel 1989 03 1994 12 58 79 2299 4 Diesel OM601.941 Dump Truck 508
Mercedes-Benz, Passenger Car EU 5t 2.3 Gasoline 1986 04 1994 12 70 95 2299 4 M102.946 Twin Cab 510
Mercedes-Benz, Passenger Car EU 4t 2.3 Diesel 1988 11 1995 06 58 79 2299 4 Diesel OM601.940 Twin Cab 408
Mercedes-Benz, Passenger Car EU 4t 2.3 Gasoline 1982 08 1995 06 70 95 2298 4 M102.942 Platform / Chassis 410
Mercedes-Benz, Passenger Car EU 5t 2.3 Gasoline 1986 04 1994 12 70 95 2299 4 M102.946 Platform / Chassis 510
Mercedes-Benz, Passenger Car EU 100 Bus 2.4 Diesel 1990 12 1996 02 55 75 2399 4 Diesel OM616.963 Bus 100 Bus
Mercedes-Benz, Passenger Car EU 280 2.7 Gasoline 1979 10 1985 07 136 185 2746 6 M110.987 280 SE
Mercedes-Benz, Passenger Car EU 420 4.2 Gasoline 1985 10 1991 06 165 224 4196 8 M116.965 420 SEL
Mercedes-Benz, Passenger Car EU 500 5 Gasoline 1987 09 1991 06 185 252 4973 8 M117.965 500 SE
Mercedes-Benz, Passenger Car EU 500 5 Gasoline 1987 09 1991 06 185 252 4973 8 M117.965 500 SEL
Mercedes-Benz, Passenger Car EU 380 3.8 Gasoline 1980 09 1985 08 150 204 3839 8 M116.962 Convertible 380 SL
Mercedes-Benz, Passenger Car EU 380 3.8 Gasoline 1981 10 1985 07 150 204 3839 8 M116.963 Coupe 380 SEC
Mercedes-Benz, Passenger Car EU 420 4.2 Gasoline 1985 10 1991 06 150 204 4196 8 M116.965 Coupe 420 SEC
Mercedes-Benz, Passenger Car EU 420 4.2 Gasoline 1985 10 1987 12 160 218 4196 8 M116.965 Coupe 420 SEC
Mercedes-Benz, Passenger Car EU 500 4.9 Gasoline 1985 09 1991 06 180 245 4973 8 M117.965 Coupe 500 SEC
Mercedes-Benz, Passenger Car EU 500 4.9 Gasoline 1987 08 1991 06 185 252 4973 8 M117.965 Coupe 500 SEC
Mercedes-Benz, Passenger Car EU 560 5.5 Gasoline 1985 10 1991 06 205 279 5547 8 M117.968 Coupe 560 SEC
Mercedes-Benz, Passenger Car EU 500 5 Gasoline 1989 06 1991 06 185 252 4973 8 M117.965 Coupe 500 SEC
Mercedes-Benz, Passenger Car EU 4t 2.3 Gasoline 1982 08 1995 06 70 95 2298 4 M102.945 Platform / Chassis 410
Mercedes-Benz, Passenger Car EU 280 2.7 Gasoline 1979 10 1985 07 136 185 2746 6 M110.989 280 SE
Mercedes-Benz, Passenger Car EU 280 2.7 Gasoline 1979 10 1985 07 136 185 2746 6 M110.987 280 SEL
Mercedes-Benz, Passenger Car EU 280 2.7 Gasoline 1979 10 1985 07 136 185 2746 6 M110.989 280 SEL
Mercedes-Benz, Passenger Car EU 380 3.8 Gasoline 1981 01 1986 12 160 218 3839 8 M116.961 380 SEL
Mercedes-Benz, Passenger Car EU 380 3.8 Gasoline 1979 12 1985 08 150 204 3839 8 M116.963 380 SEL
Mercedes-Benz, Passenger Car EU 420 4.2 Gasoline 1985 10 1987 12 170 231 4196 8 M116.965 420 SEL
Mercedes-Benz, Passenger Car EU 500 5 Gasoline 1985 09 1991 06 164 223 4973 8 M117.965 500 SEL
Mercedes-Benz, Passenger Car EU 500 5 Gasoline 1979 12 1985 08 170 231 4973 8 M117.961 500 SEL
Mercedes-Benz, Passenger Car EU 500 4.9 Gasoline 1979 12 1985 08 177 241 4973 8 M117.961 500 SE
Mercedes-Benz, Passenger Car EU 500 5 Gasoline 1987 09 1991 06 195 265 4973 8 M117.965 500 SEL
Mercedes-Benz, Passenger Car EU 500 5 Gasoline 1989 06 1991 06 185 252 4973 8 M117.965 500 SE
Mercedes-Benz, Passenger Car EU 500 4.9 Gasoline 1980 05 1985 12 170 231 4973 8 M117.960 Convertible 500 SL
Mercedes-Benz, Passenger Car EU 420 4.2 Gasoline 1985 10 1991 06 165 224 4196 8 M116.965 Coupe 420 SEC
Mercedes-Benz, Passenger Car EU 560 5.5 Gasoline 1985 10 1989 12 220 300 5547 8 M117.968 Coupe 560 SEC
Mercedes-Benz, Passenger Car EU 100 2.4 Diesel 1990 12 1994 12 41 56 2399 4 Diesel OM616 Bus 100
Mercedes-Benz, Passenger Car EU T1 2.3 Gasoline 1982 01 1994 12 70 95 2299 4 M102.942 Platform / Chassis T1
Mercedes-Benz, Passenger Car EU 500 5 Gasoline 1993 09 - 177 241 4973 8 M117.965 G 500 E
Mercedes-Benz, Passenger Car EU 5t 2.3 Diesel 1989 03 1994 12 58 79 2299 4 Diesel OM601.941 Twin Cab 508
Mercedes-Benz, Passenger Car EU 4t 2.3 Gasoline 1982 08 1995 06 70 95 2298 4 M102.942 Twin Cab 410
Mercedes-Benz, Passenger Car EU 4t 2.3 Gasoline 1982 08 1995 06 70 95 2298 4 M102.945 Twin Cab 410
Mercedes-Benz, Passenger Car EU 280 2.7 Gasoline 1979 12 1985 07 115 156 2746 6 M110.926 280 S
Mercedes-Benz, Passenger Car EU 380 3.8 Gasoline 1981 01 1986 12 160 218 3839 8 M116.961 380 SE
Mercedes-Benz, Passenger Car EU 420 4.2 Gasoline 1985 10 1991 06 150 204 4196 8 M116.965 420 SE
Mercedes-Benz, Passenger Car EU 420 4.2 Gasoline 1985 10 1987 12 170 231 4196 8 M116.965 420 SE
Mercedes-Benz, Passenger Car EU 500 4.9 Gasoline 1985 09 1991 06 164 223 4973 8 M117.965 500 SE
Mercedes-Benz, Passenger Car EU 500 4.9 Gasoline 1979 12 1985 08 170 231 4973 8 M117.961 500 SE
Mercedes-Benz, Passenger Car EU 500 4.9 Gasoline 1979 12 1985 08 170 231 4973 8 M117.963 500 SE
Mercedes-Benz, Passenger Car EU 500 5 Gasoline 1985 09 1991 06 180 245 4973 8 M117.965 500 SE
Mercedes-Benz, Passenger Car EU 560 5.5 Gasoline 1985 10 1991 06 178 242 5547 8 M117.968 560 SEL
Mercedes-Benz, Passenger Car EU 560 5.5 Gasoline 1985 10 1987 12 200 272 5547 8 M117.968 560 SEL
Mercedes-Benz, Passenger Car EU 560 5.5 Gasoline 1987 08 1991 06 205 279 5547 8 M117.968 560 SEL
Mercedes-Benz, Passenger Car EU 500 4.9 Gasoline 1985 10 1991 06 164 223 4973 8 M117.965 Coupe 500 SEC
Mercedes-Benz, Passenger Car EU 560 5.5 Gasoline 1985 10 1991 06 178 242 5547 8 M117.968 Coupe 560 SEC
Mercedes-Benz, Passenger Car EU 210 2.3 Gasoline 1989 05 1996 02 77 105 2298 4 M102.945 Van 210
Mercedes-Benz, Passenger Car EU 100 2.4 Diesel 1988 02 1992 05 53 72 2399 4 Diesel OM616.963 Platform / Chassis 100
Mercedes-Benz, Passenger cars US 300 3 Gasoline 1986 01 1992 01 0 0 2962 L6 300 E
Mercedes-Benz, Passenger cars US 190 2.5 Diesel 1986 01 1989 01 0 0 2497 L5 190 D
Mercedes-Benz, Passenger cars US 300 2.5 Diesel 1990 01 1993 01 0 0 2497 L5 Turbo 300 D
Mercedes-Benz, Passenger cars US 500 5 Gasoline 1984 01 1985 01 0 0 4973 V8 500 SEC
Mercedes-Benz, Passenger cars US 560 5.6 Gasoline 1990 01 1991 01 0 0 5547 V8 560 SEC
Mercedes-Benz, Passenger cars US 560 5.6 Gasoline 1986 01 1989 01 0 0 5547 V8 560 SL
Mercedes-Benz, Passenger cars US 190 2.3 Gasoline 1986 01 1993 01 0 0 2299 L4 190 E
Mercedes-Benz, Passenger cars US 190 2.6 Gasoline 1987 01 1993 01 0 0 2599 L6 190 E
Mercedes-Benz, Passenger cars US 560 5.6 Gasoline 1986 01 1989 01 0 0 5547 V8 560 SEL
Mercedes-Benz, Passenger cars US 260 2.6 Gasoline 1987 01 1989 01 0 0 2599 L6 260 E
Mercedes-Benz, Passenger cars US 300 3 Diesel 1987 01 - 0 0 2998 L6 Turbo 300 D
Mercedes-Benz, Passenger cars US 300 3 Diesel 1987 01 1987 01 0 0 2998 L6 Turbo 300 DT
Mercedes-Benz, Passenger cars US 300 3 Diesel 1986 01 1987 01 0 0 2998 L6 Turbo 300 SDL
Mercedes-Benz, Passenger cars US 380 3.8 Gasoline 1982 01 1983 01 0 0 3839 V8 380 SEC
Mercedes-Benz, Passenger cars US 420 4.2 Gasoline 1986 01 1991 01 0 0 4196 V8 420 SEL
Mercedes-Benz, Passenger cars US 560 5.6 Gasoline 1990 01 1991 01 0 0 5547 V8 560 SEL
Mercedes-Benz, Passenger cars US 190 2.5 Diesel 1987 01 1987 01 0 0 2497 L5 Turbo 190 DT
Mercedes-Benz, Passenger cars US 190 2.3 Gasoline 1986 01 1987 01 0 0 2299 L4 190 E-16
Mercedes-Benz, Passenger cars US 300 3 Gasoline 1988 01 1992 01 0 0 2962 L6 300 CE
Mercedes-Benz, Passenger cars US 300 3 Gasoline 1988 01 1991 01 0 0 2962 L6 300 SE
Mercedes-Benz, Passenger cars US 300 3 Gasoline 1988 01 1991 01 0 0 2962 L6 300 SEL
Mercedes-Benz, Passenger cars US 300 3 Gasoline 1988 01 1992 01 0 0 2962 L6 300 TE
Mercedes-Benz, Passenger cars US 380 3.8 Gasoline 1984 01 1985 01 0 0 3839 V8 380 SE
Mercedes-Benz, Passenger cars US 560 5.6 Gasoline 1986 01 1989 01 0 0 5547 V8 560 SEC
