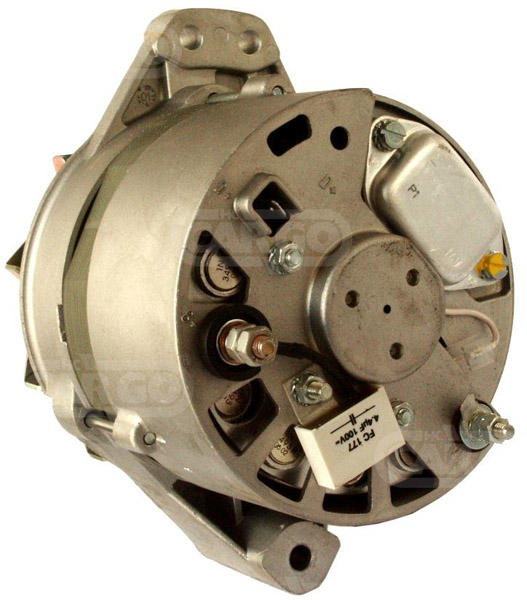

111168 - Alternator (111168)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 55, Terminal W,
Bracket Hole: 8.20, Belt. adj. bracket hole 8.20,
Width/Holder Arm: 56.00, Belt. adj. brackethole pos. 57, Belt. adj. brackethole pos. 60,
Pulley Dia.: 72.00,
Pulley Dist.: 84.00,
Grooves/Pulley: 1,
Radius: 85.75,
Radius: 88.00,
Radius: 87.50,
B+ Position: M6,
Rotation: ACR,
Regulator Plug: or plug PL_NA,
Blower: EF, Pulley P, Belt. adj. bracket hole 8.20,
Total Length: 169.00, Source Magneton

Electrical specifications (Alternator)
Voltage 14
Amp 55
Terminal W

Physical specifications (Alternator)
D Bracket hole 8.20
G Belt. adj. bracket hole 8.20
B Width/holder arm 56.00
E Belt. adj. brackethole pos. 57
E Belt. adj. brackethole pos. 60
H Pulley dia. 72.00
A Pulley dist. 84.00
i Grooves/pulley 1
j Radius 85.75
j Radius 88.00
j Radius 87.50
k B+ position M6
n Rotation ACR
o Regulator plug PL_NA
G Belt. adj. bracket hole 8.20
R Total length 169.00
Source Magneton

Further information (Alternator)
Blower EF
Pulley P

Replacing
0120488203 BOSCH
0120489123 BOSCH
0120489124 BOSCH
0120489125 BOSCH
0120489947 BOSCH
0120489948 BOSCH
0120489950 BOSCH
0120489951 BOSCH
0120489952 BOSCH
051 REMY (DELCO)

UNISTART Price: £91.74

Sorry, this item is out of stock.

The 111168 - Alternator is shown in: Brands > 5 Star , Automotive > Starters & Alternators , Agriculture > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Opel, Passenger Car EU Kadett 1.8 Gasoline 1983 02 1984 08 85 115 1796 4 GT/E 18E Hatchback Kadett D
Opel, Passenger Car EU Kadett 1.8 Gasoline 1985 06 1991 08 66 90 1796 4 i S18NV Hatchback Kadett E
Opel, Passenger Car EU Kadett 1.8 Gasoline 1987 09 1991 08 62 84 1798 4 S E18NV Kadett E
Opel, Passenger Car EU Rekord 1.8 Gasoline 1985 05 1986 08 74 100 1796 4 C18NV Rekord E
Opel, Passenger Car EU Omega 1.8 Gasoline 1986 09 1994 03 85 115 1796 4 i 18SEH Omega A
Opel, Passenger Car EU Ascona 1.6 Gasoline 1981 09 1986 08 66 90 1598 4 S 16SH Ascona C
Opel, Passenger Car EU Ascona 1.8 Gasoline 1987 09 1988 08 62 84 1796 4 E18NV Ascona C
Opel, Passenger Car EU Ascona 1.8 Gasoline 1982 09 1986 08 85 115 1796 4 i 18E Ascona C
Opel, Passenger Car EU Astra 1.7 Diesel 1992 03 1992 09 42 57 1700 4 Diesel 17D Astra F
Opel, Passenger Car EU Kadett 1.8 Gasoline 1984 09 1986 08 85 115 1796 4 i 18E Estate Kadett E
Opel, Passenger Car EU Rekord 1.8 Gasoline 1982 11 1986 08 55 75 1796 4 18N Rekord E
Opel, Passenger Car EU Rekord 1.8 Gasoline 1982 11 1986 08 66 90 1796 4 S 18S Rekord E
Opel, Passenger Car EU Omega 1.8 Gasoline 1986 09 1994 03 66 90 1796 4 S 18SV Omega A
Opel, Passenger Car EU Omega 2 Gasoline 1986 09 1994 03 90 122 1998 4 i 20SE Omega A
Opel, Passenger Car EU Omega 1.8 Gasoline 1986 09 1987 08 60 82 1796 4 18NV Estate Omega A
Opel, Passenger Car EU Omega 2 Gasoline 1986 09 1994 03 90 122 1998 4 i 20SE Estate Omega A
Opel, Passenger Car EU Ascona 1.8 Gasoline 1985 01 1986 08 74 100 1796 4 i C18NE Hatchback Ascona C
Opel, Passenger Car EU Ascona 1.8 Gasoline 1982 09 1986 08 85 115 1796 4 i 18E Hatchback Ascona C
Opel, Passenger Car EU Kadett 1.6 Gasoline 1981 09 1984 08 66 90 1598 4 S 16SH Estate Kadett D
Opel, Passenger Car EU Kadett 1.8 Gasoline 1985 10 1986 08 74 100 1796 4 E C18NE Hatchback Kadett E
Opel, Passenger Car EU Kadett 2 Gasoline 1987 03 1991 08 85 115 1998 4 i C20NE Kadett E
Opel, Passenger Car EU Kadett 2 Gasoline 1987 09 1991 08 85 115 1998 4 i C20NE Estate Kadett E
Opel, Passenger Car EU Kadett 2 Gasoline 1986 10 1993 02 85 116 1998 4 i C20NE Convertible Kadett E
Opel, Passenger Car EU Ascona 2 Gasoline 1986 09 1988 08 85 116 1998 4 i C20NE Ascona C
Opel, Passenger Car EU Kadett 1.6 Gasoline 1986 09 1993 06 66 90 1598 4 16SH Van Kadett E
Opel, Passenger Car EU Ascona 2 Gasoline 1987 03 1988 08 95 130 1998 4 GTi 20SEH Hatchback Ascona C
Opel, Passenger Car EU Vectra 1.7 Diesel 1988 10 1992 09 42 57 1700 4 Diesel 17D Vectra A
Opel, Passenger Car EU Rekord 1.8 Gasoline 1982 11 1986 08 55 75 1796 4 18N Estate Rekord E
Opel, Passenger Car EU Omega 1.8 Gasoline 1986 09 1987 08 60 82 1796 4 18NV Omega A
Opel, Passenger Car EU Omega 1.8 Gasoline 1987 09 1994 03 65 88 1796 4 E18NVR Omega A
Opel, Passenger Car EU Omega 2 Gasoline 1986 09 1994 03 85 115 1998 4 i C20NE Omega A
Opel, Passenger Car EU Omega 1.8 Gasoline 1987 09 1994 03 65 88 1796 4 E18NVR Estate Omega A
Opel, Passenger Car EU Ascona 1.8 Gasoline 1985 01 1986 08 74 100 1796 4 E C18NE Ascona C
Opel, Passenger Car EU Ascona 2 Gasoline 1986 09 1988 08 85 115 1998 4 i 20NE Hatchback Ascona C
Opel, Passenger Car EU Kadett 1.6 Gasoline 1981 09 1984 08 66 90 1598 4 S 16SH Hatchback Kadett D
Opel, Passenger Car EU Kadett 1.8 Gasoline 1987 09 1991 08 62 84 1796 4 S E18NV Hatchback Kadett E
Opel, Passenger Car EU Kadett 1.6 Gasoline 1984 09 1986 08 66 90 1598 4 S 16SH Kadett E
Opel, Passenger Car EU Kadett 1.8 Gasoline 1985 10 1986 08 74 100 1796 4 i C18NE Kadett E
Opel, Passenger Car EU Kadett 2 Gasoline 1987 03 1991 08 85 115 1998 4 i 20NE Kadett E
Opel, Passenger Car EU Kadett 1.7 Diesel 1989 02 1991 08 42 57 1700 4 Diesel 17D Kadett E
Opel, Passenger Car EU Kadett 1.6 Gasoline 1984 09 1986 08 66 90 1598 4 S 16SH Estate Kadett E
Opel, Passenger Car EU Kadett 1.8 Gasoline 1985 10 1986 08 74 100 1796 4 C18NE Estate Kadett E
Opel, Passenger Car EU Kadett 2 Gasoline 1986 09 1991 08 85 115 1998 4 GSi C20NE Hatchback Kadett E
Opel, Passenger Car EU Kadett 1.8 Gasoline 1984 09 1986 08 85 115 1796 4 i 18E Kadett E
Opel, Passenger Car EU Kadett 1.8 Gasoline 1988 12 1991 08 82 112 1796 4 18SE Estate Kadett E
Opel, Passenger Car EU Rekord 1.8 Gasoline 1985 05 1986 08 74 100 1796 4 E C18NV Estate Rekord E
Opel, Passenger Car EU Omega 1.8 Gasoline 1986 09 1994 03 85 115 1796 4 i 18SEH Estate Omega A
Opel, Passenger Car EU Manta 1.8 Gasoline 1982 07 1987 08 66 90 1796 4 S 18S Coupe Manta B
Opel, Passenger Car EU Ascona 1.6 Gasoline 1981 09 1987 09 55 75 1598 4 16N Ascona C
Opel, Passenger Car EU Ascona 1.6 Gasoline 1981 09 1986 08 66 90 1598 4 S 16SH Hatchback Ascona C
Opel, Passenger Car EU Ascona 1.8 Gasoline 1985 01 1986 08 74 100 1796 4 S18NV Hatchback Ascona C
Opel, Passenger Car EU Ascona 2 Gasoline 1986 09 1988 08 85 115 1998 4 i 20NE Ascona C
Opel, Passenger Car EU Ascona 2 Gasoline 1987 03 1988 08 95 130 1998 4 i 20SEH Ascona C
Opel, Passenger Car EU Kadett 1.6 Gasoline 1984 09 1986 08 66 90 1598 4 S 16SH Hatchback Kadett E
Opel, Passenger Car EU Kadett 1.8 Gasoline 1987 09 1991 08 62 84 1796 4 S E18NV Estate Kadett E
Opel, Passenger Car EU Kadett 2 Gasoline 1987 09 1991 08 85 115 1998 4 i 20NE Estate Kadett E
Opel, Passenger Car EU Kadett 2 Gasoline 1986 10 1993 02 85 115 1998 4 i 20NE Convertible Kadett E
Opel, Passenger Car EU Rekord 1.8 Gasoline 1982 11 1986 08 66 90 1796 4 S 18S Estate Rekord E
Opel, Passenger Car EU Omega 1.8 Gasoline 1986 09 1994 03 66 90 1796 4 S 18SV Estate Omega A
Opel, Passenger Car EU Omega 2 Gasoline 1986 09 1994 03 85 115 1998 4 i C20NE Estate Omega A
Opel, Passenger Car EU Manta 1.8 Gasoline 1982 07 1987 08 66 90 1796 4 S 18S Manta B
Opel, Passenger Car EU Ascona 1.6 Gasoline 1981 09 1988 08 55 75 1598 4 16N Hatchback Ascona C
Opel, Passenger Car EU Ascona 1.8 Gasoline 1987 09 1988 08 62 84 1796 4 E18NV Hatchback Ascona C
Opel, Passenger Car EU Ascona 1.8 Gasoline 1985 01 1986 08 74 100 1796 4 S18NV Ascona C
Opel, Passenger Car EU Kadett 1.8 Gasoline 1987 09 1991 08 62 84 1796 4 S S18NV Hatchback Kadett E
Opel, Passenger Car EU Kadett 1.8 Gasoline 1985 06 1991 08 66 90 1796 4 i C18NT Hatchback Kadett E
Opel, Passenger Car EU Kadett 1.8 Gasoline 1990 09 1991 08 66 90 1796 4 i C18NT Kadett E
Opel, Passenger Car EU Kadett 1.8 Gasoline 1985 06 1991 08 66 90 1796 4 i C18NT Estate Kadett E
Opel, Passenger Car EU Ascona 2 Gasoline 1986 09 1988 08 85 116 1998 4 i C20NE Hatchback Ascona C
Opel, Passenger Car EU Kadett 1.8 Gasoline 1984 08 1992 09 66 90 1796 4 i C18NT Van Kadett E
Vauxhall, Passenger Car EU Carlton 1.8 Gasoline 1982 12 1986 08 65 88 1796 4 S 18S Carlton
Vauxhall, Passenger Car EU Cavalier 1.7 Diesel 1988 09 1992 09 42 57 1699 4 Diesel 17D Cavalier
Vauxhall, Passenger Car EU Cavalier 1.6 Gasoline 1986 08 1988 08 55 75 1598 4 i C16NZ Cavalier
Vauxhall, Passenger Car EU Carlton 1.8 Gasoline 1982 11 1986 08 66 90 1796 4 S 18S Estate Carlton MK
Vauxhall, Passenger Car EU Astra 1.6 Diesel 1984 09 1989 12 40 54 1598 4 Diesel 16DA Hatchback Astra E
Vauxhall, Passenger Car EU Astra 1.8 Gasoline 1984 09 1991 08 82 112 1796 4 18E Hatchback GTE Astra E
Vauxhall, Passenger Car EU Belmont 1.6 Gasoline 1985 09 1991 08 66 90 1598 4 16SH Belmont
Vauxhall, Passenger Car EU Carlton 2 Gasoline 1986 09 1994 03 85 115 1998 4 C20NE Carlton
Vauxhall, Passenger Car EU Carlton 2 Gasoline 1990 09 1994 03 73 99 1998 4 C20NEJ Carlton
Vauxhall, Passenger Car EU Astra 1.8 Gasoline 1983 03 1986 08 85 115 1796 4 18E Hatchback GTE Astra D
Vauxhall, Passenger Car EU Cavalier 1.8 Gasoline 1981 09 1986 08 82 112 1796 4 i 18SE Estate Cavalier
Vauxhall, Passenger Car EU Cavalier 1.6 Gasoline 1981 09 1988 08 66 90 1598 4 S 16SH Hatchback Cavalier
Vauxhall, Passenger Car EU Cavalier 1.8 Gasoline 1981 09 1988 08 85 115 1796 4 i 18E Cavalier
Vauxhall, Passenger Car EU Carlton 2 Gasoline 1990 09 1994 03 73 99 1998 4 i C20NEJ Estate Carlton
Vauxhall, Passenger Car EU Belmont 1.8 Gasoline 1985 09 1991 08 85 115 1796 4 i 18SE Belmont
Vauxhall, Passenger Car EU Cavalier 1.8 Gasoline 1981 09 1988 08 82 112 1796 4 i 18SE Hatchback Cavalier
Vauxhall, Passenger Car EU Carlton 2 Gasoline 1990 09 1994 03 74 100 1998 4 C20NEF Carlton
Vauxhall, Passenger Car EU Carlton 1.8 Gasoline 1986 09 1994 03 66 90 1796 4 S 18SV Estate Carlton
Vauxhall, Passenger Car EU Carlton 1.8 Gasoline 1986 09 1987 08 60 82 1796 4 18NV Estate Carlton
Vauxhall, Passenger Car EU Carlton 2 Gasoline 1986 09 1994 03 85 115 1998 4 C20NE Estate Carlton
Vauxhall, Passenger Car EU Carlton 2 Gasoline 1983 01 1984 12 81 110 1979 4 i 20E Carlton
Vauxhall, Passenger Car EU Astra 1.7 Diesel 1989 01 1991 08 42 57 1699 4 Diesel 17DR Hatchback Astra E
Vauxhall, Passenger Car EU Astra 1.8 Gasoline 1984 09 1991 08 82 112 1796 4 18SE Hatchback GTE Astra E
Vauxhall, Passenger Car EU Belmont 1.8 Gasoline 1985 09 1991 08 85 115 1796 4 i 18E Belmont
Vauxhall, Passenger Car EU Cavalier 1.6 Gasoline 1981 09 1988 08 66 90 1598 4 S 16SH Cavalier
Vauxhall, Passenger Car EU Cavalier 1.6 Gasoline 1983 10 1988 08 66 90 1598 4 16SH Estate Cavalier
Vauxhall, Passenger Car EU Cavalier 1.8 Gasoline 1981 09 1986 08 82 112 1796 4 i 18E Estate Cavalier
Vauxhall, Passenger Car EU Cavalier 1.8 Gasoline 1981 09 1988 08 85 115 1796 4 i 18E Hatchback Cavalier
Vauxhall, Passenger Car EU Carlton 1.8 Gasoline 1986 09 1987 08 60 82 1796 4 18NV Carlton
Vauxhall, Passenger Car EU Carlton 2 Gasoline 1990 09 1994 03 74 100 1998 4 C20NEF Estate Carlton
Ferrari, Agricultural 40 1.6 Diesel 1991 04 - 26 36 1551 3 Diesel LDW1503 40 WDT
