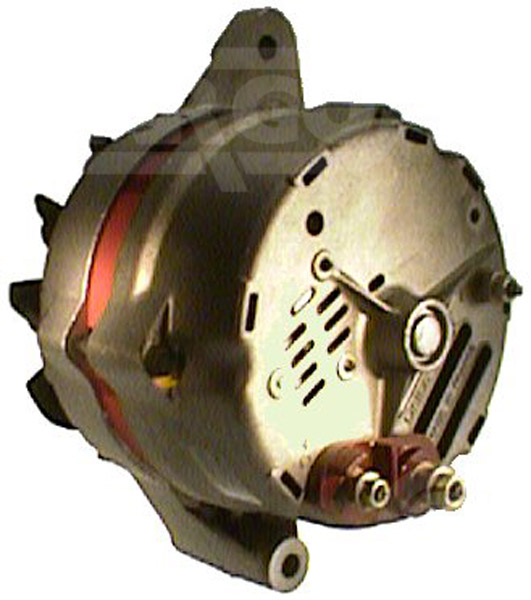

111169 - Alternator (111169)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 70,
Bracket Hole: 8.30, Belt. adj. bracket hole 8.50,
Width/Holder Arm: 56.00, Belt. adj. brackethole pos. 57,
Pulley Dia.: 75.90,
Pulley Dist.: >85,
Grooves/Pulley: 1,
Radius: 85.50,
Radius: 86.00,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL_NA,
Blower: EF, Pulley P,
Total Length: 169.50

Electrical specifications (Alternator)
Voltage 14
Amp 70

Physical specifications (Alternator)
D Bracket hole 8.30
G Belt. adj. bracket hole 8.50
B Width/holder arm 56.00
E Belt. adj. brackethole pos. 57
H Pulley dia. 75.90
A Pulley dist. >85
i Grooves/pulley 1
j Radius 85.50
j Radius 86.00
k B+ position M6
n Rotation CR
o Regulator plug PL_NA
R Total length 169.50

Further information (Alternator)
Blower EF
Pulley P

Replacing
0120488172 BOSCH
0120488173 BOSCH
0120488192 BOSCH
0120488193 BOSCH
1101551 REMY (DELCO)
120 REMY (DELCO)
1204070 OPEL
1204087 OPEL
1204105 OPEL
121 REMY (DELCO)

UNISTART Price: £89.00

Sorry, this item is out of stock.

The 111169 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Opel, Passenger Car EU Kadett 1.6 Gasoline 1986 09 1991 08 60 82 1598 4 S 16SV Hatchback Kadett E
Opel, Passenger Car EU Kadett 1.6 Gasoline 1986 09 1991 08 60 82 1598 4 S 16SV Kadett E
Opel, Passenger Car EU Kadett 1.8 Gasoline 1987 09 1991 08 62 84 1798 4 S E18NV Kadett E
Opel, Passenger Car EU Vectra 1.8 Gasoline 1990 03 1995 11 66 90 1796 4 i C18NZ Hatchback Vectra A
Opel, Passenger Car EU Omega 1.8 Gasoline 1986 09 1994 03 85 115 1796 4 i 18SEH Omega A
Opel, Passenger Car EU Calibra 2 Gasoline 1990 06 1997 07 85 115 1998 4 i C20NE Coupe 4x4 Calibra A
Opel, Passenger Car EU Astra 2 Gasoline 1993 03 1994 10 85 115 1998 4 i C20NE Convertible Astra F
Opel, Passenger Car EU Astra 2 Gasoline 1992 03 1998 09 85 115 1998 4 i C20NE Astra F
Opel, Passenger Car EU Astra 2 Gasoline 1991 09 1994 07 85 115 1998 4 i C20NE Estate Astra F
Opel, Passenger Car EU Omega 1.8 Gasoline 1986 11 1988 09 63 86 1796 4 18SV Omega A
Opel, Passenger Car EU Calibra 2 Gasoline 1990 06 1997 07 85 115 1998 4 i C20NE Coupe Calibra A
Opel, Passenger Car EU Calibra 2 Gasoline 1990 06 1994 02 110 150 1998 4 i 16V C20XE Coupe Calibra A
Opel, Passenger Car EU Astra 1.8 Gasoline 1991 09 1998 01 66 90 1796 4 i C18NZ Estate Astra F
Opel, Passenger Car EU Vectra 2 Gasoline 1988 04 1989 09 74 100 1998 4 i C20NEF Hatchback Vectra A
Opel, Passenger Car EU Vectra 2 Gasoline 1988 09 1990 10 85 115 1998 4 i 20NE Hatchback Vectra A
Opel, Passenger Car EU Vectra 2 Gasoline 1988 09 1992 09 95 129 1998 4 i 20SEH Vectra A
Opel, Passenger Car EU Vectra 2 Gasoline 1989 01 1992 09 95 129 1998 4 i 20SEH 4x4 Vectra A
Opel, Passenger Car EU Omega 1.8 Gasoline 1986 09 1994 03 66 90 1796 4 S 18SV Omega A
Opel, Passenger Car EU Omega 2 Gasoline 1986 09 1994 03 90 122 1998 4 i 20SE Omega A
Opel, Passenger Car EU Omega 2 Gasoline 1986 09 1994 03 90 122 1998 4 i 20SE Estate Omega A
Opel, Passenger Car EU Kadett 2 Gasoline 1987 03 1991 08 85 115 1998 4 i C20NE Kadett E
Opel, Passenger Car EU Kadett 2 Gasoline 1987 09 1991 08 85 115 1998 4 i C20NE Estate Kadett E
Opel, Passenger Car EU Kadett 1.6 Gasoline 1986 09 1991 12 60 82 1598 4 16SV Van Combo Kadett E
Opel, Passenger Car EU Kadett 2 Gasoline 1986 10 1993 02 85 116 1998 4 i C20NE Convertible Kadett E
Opel, Passenger Car EU Vectra 2 Gasoline 1988 09 1989 09 74 100 1998 4 i C20NEF Vectra A
Opel, Passenger Car EU Vectra 2 Gasoline 1988 09 1995 11 95 129 1998 4 GTi 20SEH Hatchback Vectra A
Opel, Passenger Car EU Vectra 1.8 Gasoline 1990 03 1995 11 66 90 1796 4 i C18NZ Vectra A
Opel, Passenger Car EU Vectra 2 Gasoline 1989 01 1990 10 110 150 1998 4 i 16V 20XEJ 2000 4WD Vectra A
Opel, Passenger Car EU Omega 1.8 Gasoline 1987 09 1994 03 65 88 1796 4 E18NVR Omega A
Opel, Passenger Car EU Omega 2 Gasoline 1986 09 1994 03 85 115 1998 4 i C20NE Omega A
Opel, Passenger Car EU Omega 1.8 Gasoline 1987 09 1994 03 65 88 1796 4 E18NVR Estate Omega A
Opel, Passenger Car EU Kadett 1.8 Gasoline 1987 09 1991 08 62 84 1796 4 S E18NV Hatchback Kadett E
Opel, Passenger Car EU Kadett 1.8 Gasoline 1985 06 1991 08 66 90 1796 4 i C18NZ Hatchback Kadett E
Opel, Passenger Car EU Kadett 2 Gasoline 1987 03 1991 08 85 115 1998 4 i 20NE Kadett E
Opel, Passenger Car EU Kadett 2 Gasoline 1986 09 1991 08 85 115 1998 4 GSi C20NE Hatchback Kadett E
Opel, Passenger Car EU Vectra 2 Gasoline 1988 09 1995 11 85 116 1998 4 i C20NE Vectra A
Opel, Passenger Car EU Vectra 2 Gasoline 1989 01 1995 11 85 116 1998 4 i C20NE 4x4 Vectra A
Opel, Passenger Car EU Vectra 2 Gasoline 1988 09 1995 11 85 116 1998 4 i C20NE Hatchback Vectra A
Opel, Passenger Car EU Vectra 2 Gasoline 1990 02 1995 11 110 150 1998 4 16V C20XE 2000 GT 4x4 Vectra A
Opel, Passenger Car EU Vectra 1.8 Gasoline 1988 09 1990 10 66 90 1796 4 i 18SV Hatchback Vectra A
Opel, Passenger Car EU Calibra 2 Gasoline 1990 06 1994 02 110 150 1998 4 i 16V C20XE Coupe 4x4 Calibra A
Opel, Passenger Car EU Astra 1.8 Gasoline 1991 09 1998 01 66 90 1796 4 i C18NZ Hatchback Astra F
Opel, Passenger Car EU Frontera 2 Gasoline 1992 03 1998 10 85 115 1998 4 i C20NE Convertible Sport Frontera A
Opel, Passenger Car EU Vectra 1.8 Gasoline 1989 01 1989 07 65 88 1796 4 S E18NVR 4x4 Vectra A
Opel, Passenger Car EU Vectra 2 Gasoline 1988 09 1990 10 85 115 1998 4 i 20NE Vectra A
Opel, Passenger Car EU Vectra 2 Gasoline 1989 01 1990 10 85 115 1998 4 i 20NE 4x4 Vectra A
Opel, Passenger Car EU Omega 2 Gasoline 1990 09 1994 03 74 100 1998 4 i C20NEF Omega A
Opel, Passenger Car EU Omega 2 Gasoline 1990 09 1994 03 73 99 1998 4 i C20NEJ Omega A
Opel, Passenger Car EU Omega 1.8 Gasoline 1986 09 1994 03 85 115 1796 4 i 18SEH Estate Omega A
Opel, Passenger Car EU Omega 2 Gasoline 1990 09 1994 03 74 100 1998 4 i C20NEF Estate Omega A
Opel, Passenger Car EU Omega 2 Gasoline 1990 09 1994 03 73 99 1998 4 i C20NEJ Estate Omega A
Opel, Passenger Car EU Kadett 1.8 Gasoline 1987 09 1991 08 62 84 1796 4 S E18NV Estate Kadett E
Opel, Passenger Car EU Kadett 2 Gasoline 1987 09 1991 08 85 115 1998 4 i 20NE Estate Kadett E
Opel, Passenger Car EU Kadett 2 Gasoline 1986 10 1993 02 85 115 1998 4 i 20NE Convertible Kadett E
Opel, Passenger Car EU Astra 1.8 Gasoline 1992 03 1998 09 66 90 1796 4 i C18NZ Astra F
Opel, Passenger Car EU Astra 2 Gasoline 1991 09 1998 01 85 115 1998 4 i C20NE Hatchback Astra F
Opel, Passenger Car EU Kadett 1.8 Gasoline 1987 09 1991 08 62 84 1796 4 S S18NV Hatchback Kadett E
Opel, Passenger Car EU Vectra 2 Gasoline 1989 01 1994 06 110 150 1998 4 i 16V 20XEJ 2000 GT Vectra A
Opel, Passenger Car EU Vectra 2 Gasoline 1989 02 1990 10 110 150 1998 4 i 16V 20XEJ Hatchback Vectra A
Opel, Passenger Car EU Omega 1.8 Gasoline 1986 09 1994 03 66 90 1796 4 S 18SV Estate Omega A
Opel, Passenger Car EU Omega 2 Gasoline 1986 09 1994 03 85 115 1998 4 i C20NE Estate Omega A
Opel, Passenger Car EU Kadett 1.8 Gasoline 1990 09 1991 08 60 90 1796 4 i C18NZ Kadett E
Opel, Passenger Car EU Kadett 1.6 Gasoline 1986 09 1991 08 60 82 1598 4 16SV Estate Kadett E
Opel, Passenger Car EU Kadett 1.8 Gasoline 1985 06 1991 08 66 90 1796 4 i C18NZ Estate Kadett E
Opel, Passenger Car EU Vectra 1.8 Gasoline 1989 09 1990 10 66 90 1796 4 S 18SV Vectra A
Opel, Passenger Car EU Vectra 2 Gasoline 1990 02 1995 11 110 150 1998 4 16V C20XE 2000 GT Vectra A
Vauxhall, Passenger Car EU Cavalier 2 Gasoline 1988 09 1992 09 95 129 1998 4 i 20SEH 4x4 Cavalier
Vauxhall, Passenger Car EU Calibra 2 Gasoline 1990 06 1997 07 85 115 1998 4 i C20NE Coupe 4x4 Calibra A
Vauxhall, Passenger Car EU Cavalier 1.3 Gasoline 1981 09 1988 08 44 60 1297 4 13N Cavalier
Vauxhall, Passenger Car EU Calibra 2 Gasoline 1990 06 1997 07 85 115 1998 4 i C20NE Coupe Calibra A
Vauxhall, Passenger Car EU Astra 2 Gasoline 1991 01 1993 08 85 115 1998 4 i C20NE Convertible Astra MK II
Vauxhall, Passenger Car EU Cavalier 2 Gasoline 1991 01 1992 10 85 115 1998 4 i 20NE 4x4 Cavalier
Vauxhall, Passenger Car EU Cavalier 1.8 Gasoline 1989 09 1992 08 65 88 1796 4 E18NVR Cavalier
Vauxhall, Passenger Car EU Astra 2 Gasoline 1991 09 1998 02 85 115 1998 4 i C20NE Estate Astra F
Vauxhall, Passenger Car EU Cavalier 1.8 Gasoline 1988 09 1990 10 66 90 1796 4 C18NZ Hatchback Cavalier
Vauxhall, Passenger Car EU Carlton 2 Gasoline 1986 09 1994 03 85 115 1998 4 C20NE Carlton
Vauxhall, Passenger Car EU Frontera 2 Gasoline 1992 03 1998 10 85 115 1998 4 i C20NE Convertible 4x4 Sport Frontera A
Vauxhall, Passenger Car EU Cavalier 1.8 Gasoline 1990 03 1995 11 66 90 1796 4 i C18NZ Hatchback Cavalier
Vauxhall, Passenger Car EU Cavalier 2 Gasoline 1990 09 1995 11 85 115 1998 4 i C20NE Hatchback Cavalier
Vauxhall, Passenger Car EU Astra 1.8 Gasoline 1991 09 1998 02 66 90 1796 4 C18NZ Convertible Astra MK III
Vauxhall, Passenger Car EU Cavalier 2 Gasoline 1986 09 1987 08 74 101 1979 4 Hatchback Cavalier Mk II
Vauxhall, Passenger Car EU Cavalier 2 Gasoline 1979 01 1981 01 74 100 1979 4 20S Cavalier
Vauxhall, Passenger Car EU Astra 2 Gasoline 1986 09 1991 08 95 129 1998 4 20SEH Hatchback GTE Astra E
Vauxhall, Passenger Car EU Carlton 1.8 Gasoline 1987 09 1994 03 65 88 1796 4 E18NVR Estate Carlton
Vauxhall, Passenger Car EU Cavalier 1.8 Gasoline 1988 09 1992 10 66 90 1796 4 C18NZ Cavalier
Vauxhall, Passenger Car EU Cavalier 2 Gasoline 1988 09 1992 09 95 129 1998 4 i 20SEH Cavalier
Vauxhall, Passenger Car EU Carlton 2 Gasoline 1990 09 1994 03 73 99 1998 4 i C20NEJ Estate Carlton
Vauxhall, Passenger Car EU Cavalier 2 Gasoline 1991 01 1992 10 85 115 1998 4 i 20NE Hatchback 4x4 Cavalier
Vauxhall, Passenger Car EU Cavalier 2 Gasoline 1986 08 1987 08 81 110 1979 4 Cavalier Mk II
Vauxhall, Passenger Car EU Carlton 1.8 Gasoline 1986 09 1994 03 66 90 1796 4 S 18SV Carlton
Vauxhall, Passenger Car EU Carlton 2 Gasoline 1990 09 1994 03 74 100 1998 4 C20NEF Carlton
Vauxhall, Passenger Car EU Carlton 1.8 Gasoline 1986 09 1987 08 60 82 1796 4 18NV Estate Carlton
Vauxhall, Passenger Car EU Carlton 1.8 Gasoline 1986 09 1994 03 66 90 1796 4 S 18SV Estate Carlton
Vauxhall, Passenger Car EU Carlton 2 Gasoline 1986 09 1994 03 85 115 1998 4 C20NE Estate Carlton
Vauxhall, Passenger Car EU Cavalier 2 Gasoline 1988 09 1992 10 85 115 1998 4 i 20NE Hatchback Cavalier
Vauxhall, Passenger Car EU Cavalier 1.8 Gasoline 1990 03 1995 11 66 90 1796 4 i C18NZ Cavalier
Vauxhall, Passenger Car EU Cavalier 2 Gasoline 1990 09 1995 11 85 115 1998 4 i C20NE Cavalier
Vauxhall, Passenger Car EU Astra 1.8 Gasoline 1991 09 1998 02 66 90 1796 4 i C18NZ Hatchback Astra F
Vauxhall, Passenger Car EU Astra 2 Gasoline 1991 09 1998 02 85 115 1998 4 i C20NE Hatchback Astra F
Vauxhall, Passenger Car EU Cavalier 2 Gasoline 1988 09 1990 10 85 115 1998 4 i 20NE Cavalier
Vauxhall, Passenger Car EU Cavalier 1.8 Gasoline 1988 09 1992 10 66 90 1796 4 18SV Cavalier
Vauxhall, Passenger Car EU Cavalier 1.8 Gasoline 1988 09 1990 10 66 90 1796 4 18SV Hatchback Cavalier
Vauxhall, Passenger Car EU Cavalier 2 Gasoline 1988 09 1992 09 95 129 1998 4 i 20SEH Hatchback Cavalier
Vauxhall, Passenger Car EU Carlton 1.8 Gasoline 1986 09 1987 08 60 82 1796 4 18NV Carlton
Vauxhall, Passenger Car EU Carlton 2 Gasoline 1990 09 1994 03 74 100 1998 4 C20NEF Estate Carlton
Vauxhall, Passenger Car EU Cavalier 2 Gasoline 1988 09 1992 09 95 129 1998 4 i 20SEH Hatchback 4x4 Cavalier
Vauxhall, Passenger Car EU Cavalier 2 Gasoline 1986 09 1987 08 74 101 1979 4 Cavalier Mk II
Vauxhall, Passenger Car EU Cavalier 2 Gasoline 1986 09 1987 08 81 110 1979 4 Hatchback Cavalier Mk II
