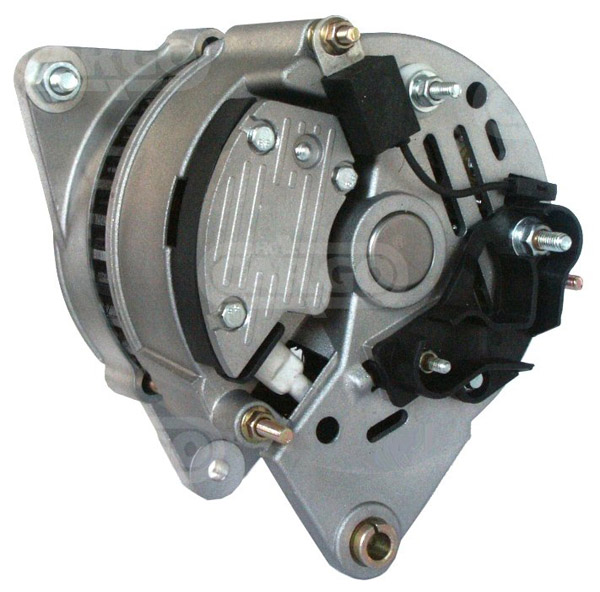

111176 - Alternator (111176)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 75, Terminal W,
Bracket Hole: 8.30, Belt. adj. bracket hole M8,
Width/Holder Arm: 11.25, Belt. adj. brackethole pos. 10,
Mount. Bracket Dist.: 81.65,
Radius: 86.50,
Radius: 83.25,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL_NA,
Blower: w/o, Pulley w/o, Remarks As HC-CARGO 114795, but w/o pulley.,
Total Length: 166.50
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 75 | |||
| Terminal | W | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 8.30 | |||
| G | Belt. adj. bracket hole M8 | |||
| B | Width/holder arm 11.25 | |||
| E | Belt. adj. brackethole pos. 10 | |||
| C | Mount. bracket dist. 81.65 | |||
| j | Radius 86.50 | |||
| j | Radius 83.25 | |||
| k | B+ position M6 | |||
| n | Rotation CR | |||
| o | Regulator plug PL_NA | |||
| R | Total length 166.50 | |||
Further information (Alternator) | ||||
| Blower | w/o | |||
| Pulley | w/o | |||
| Remarks | As HC-CARGO 114795, but w/o pulley. | |||
Replacing | ||||
| 11.201.824 | ISKRA | |||
| 11.201.890 | ISKRA | |||
| 111570 | CARGO | |||
| 1659058 | FORD | |||
| 24207 | LUCAS | |||
| 24207a | LUCAS | |||
| 24217 | LUCAS | |||
| 24217a | LUCAS | |||
| 24217B | LUCAS | |||
| 24217E | LUCAS | |||
UNISTART Price: £64.75
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ford, Passenger Car EU | Escort | 1.6 | Diesel | 1986 01 | 1989 01 | 40 | 54 | 1608 | 4 | Diesel | LTC | Estate | Escort | |
| Ford, Passenger Car EU | Fiesta | 1.6 | Gasoline | 1989 01 | 1994 01 | 65 | 88 | 1597 | 4 | LUH | Hatchback | Fiesta | ||
| Ford, Passenger Car EU | Fiesta | 1.4 | Gasoline | 1987 02 | 1989 02 | 54 | 73 | 1392 | 4 | FUD | Hatchback | Fiesta | ||
| Ford, Passenger Car EU | Fiesta | 1.4 | Gasoline | 1989 03 | 1995 12 | 54 | 73 | 1391 | 4 | FUJ | Hatchback | Fiesta | ||
| Ford, Passenger Car EU | Escort | 1.6 | Diesel | 1986 01 | 1989 01 | 40 | 54 | 1608 | 4 | Diesel | LTC | Hatchback | Escort | |
| Ford, Passenger Car EU | Fiesta | 1.6 | Gasoline | 1990 03 | 1992 10 | 96 | 131 | 1598 | 4 | Turbo | LHA | Hatchback | Fiesta | |
| Ford, Passenger Car EU | Fiesta | 1.4 | Gasoline | 1989 03 | 1995 12 | 54 | 73 | 1391 | 4 | FUG | Hatchback | Fiesta | ||
| Ford, Passenger Car EU | Fiesta | 1.6 | Gasoline | 1989 03 | 1993 03 | 76 | 103 | 1598 | 4 | LJD | Hatchback | XR2i | Fiesta | |
| Ford, Passenger Car EU | Fiesta | 1.4 | Gasoline | 1989 03 | 1995 12 | 52 | 71 | 1391 | 4 | F6E | Hatchback | Fiesta | ||
| Ford, Passenger Car EU | Fiesta | 1.4 | Gasoline | 1989 03 | 1995 12 | 54 | 73 | 1391 | 4 | F4A | Hatchback | Fiesta | ||
| Ford, Passenger Car EU | Fiesta | 1.6 | Gasoline | 1989 03 | 1994 01 | 81 | 110 | 1597 | 4 | LJC | Hatchback | XR2i | Fiesta | |
| Land Rover, Passenger Car EU | Defender | 2.5 | Diesel | 1990 09 | 1998 12 | 83 | 113 | 2495 | 4 | TDi | 23L | 90, 110 | Defender | |
| Land Rover, Passenger Car EU | Defender | 2.5 | Diesel | 1990 09 | - | 83 | 113 | 2495 | 4 | TDi | 23L | Convertible | 90 | Defender |
| Land Rover, Passenger Car EU | Range Rover | 2.4 | Diesel | 1986 04 | 1990 12 | 78 | 106 | 2376 | 4 | Diesel | 11A | Range Rover | ||
| Land Rover, Passenger Car EU | Range Rover | 2.5 | Diesel | 1994 08 | 2002 03 | 83 | 113 | 2496 | 4 | Diesel | 14L | Range Rover | ||
| Rover, Passenger Car EU | Montego | 1.6 | Gasoline | 1990 10 | 1992 09 | 61 | 83 | 1598 | 4 | 16HL | Montego | |||
| Rover, Passenger Car EU | Montego | 1.6 | Gasoline | 1990 10 | 1992 09 | 61 | 83 | 1598 | 4 | 16HL | Estate | Montego |
