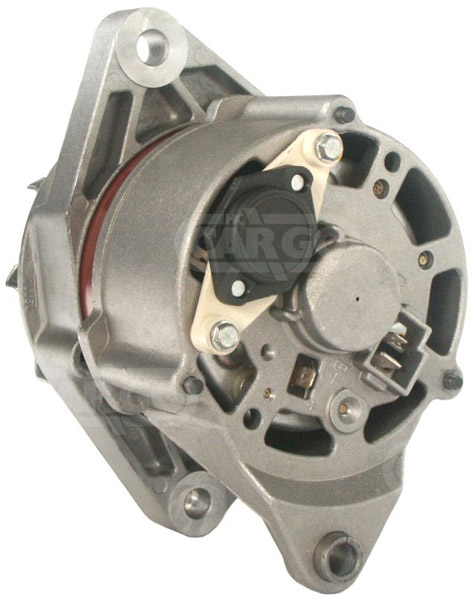

111180 - Alternator (111180)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 33,
Bracket Hole: 10.25, Belt. adj. bracket hole 10.00,
Width/Holder Arm: 25.00, Belt. adj. brackethole pos. 5,
Mount. Bracket Dist.: 74.00,
Pulley Dia.: 72.70,
Pulley Dist.: 49.00,
Grooves/Pulley: 1,
Radius: 79.90,
Radius: 85.40,
B+ Position: 9.40,
Rotation: CR,
Regulator Plug: or plug PL29,
Blower: EF, Pulley P
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 33 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 10.25 | |||
| G | Belt. adj. bracket hole 10.00 | |||
| B | Width/holder arm 25.00 | |||
| E | Belt. adj. brackethole pos. 5 | |||
| C | Mount. bracket dist. 74.00 | |||
| H | Pulley dia. 72.70 | |||
| A | Pulley dist. 49.00 | |||
| i | Grooves/pulley 1 | |||
| j | Radius 79.90 | |||
| j | Radius 85.40 | |||
| k | B+ position 9.40 | |||
| n | Rotation CR | |||
| o | Regulator plug PL29 | |||
Further information (Alternator) | ||||
| Blower | EF | |||
| Pulley | P | |||
Replacing | ||||
| 0120339515 | BOSCH | |||
| 0120339516 | BOSCH | |||
| 0120339527 | BOSCH | |||
| 0120339528 | BOSCH | |||
| 10590 | EFEL | |||
| 11.201.017 | ISKRA | |||
| 11.201.037 | ISKRA | |||
| 11.201.783 | ISKRA | |||
| 19025042 | REMY (DELCO) | |||
| 19025063 | REMY (DELCO) | |||
UNISTART Price: £121.38
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Fiat, Passenger Car EU | 127 | 1 | Gasoline | 1977 04 | 1986 12 | 37 | 50 | 1049 | 4 | 127A.000 | Hatchback | 127 | ||
| Fiat, Passenger Car EU | 128 | 1.3 | Gasoline | 1972 03 | 1979 12 | 55 | 75 | 1290 | 4 | 128AC.000 | Coupe | 1300 | 128 | |
| Fiat, Passenger Car EU | 128 | 1.1 | Gasoline | - | 1984 12 | 40 | 55 | 1116 | 4 | 128A.000 | 1100 | 128 | ||
| Fiat, Passenger Car EU | 128 | 1.3 | Gasoline | 1974 08 | 1984 12 | 44 | 60 | 1290 | 4 | 128A1.000 | 1300 Sport | 128 | ||
| Fiat, Passenger Car EU | 128 | 1.1 | Gasoline | 1972 03 | 1981 02 | 47 | 64 | 1116 | 4 | 128AC5.000 | Coupe | 1100 | 128 | |
| Fiat, Passenger Car EU | 128 | 1.1 | Gasoline | 1975 02 | 1981 02 | 33 | 45 | 1116 | 4 | 128A.048 | Estate | 1100 | 128 | |
| Fiat, Passenger Car EU | 128 | 1.3 | Gasoline | 1974 12 | 1982 10 | 44 | 60 | 1290 | 4 | 128A1.000 | Estate | 1300 | 128 | |
| Fiat, Passenger Car EU | 128 | 1.1 | Gasoline | 1975 02 | 1981 09 | 33 | 45 | 1116 | 4 | 128A.048 | 1100 | 128 | ||
| Fiat, Passenger Car EU | 128 | 1.1 | Gasoline | 1975 08 | 1981 02 | 48 | 65 | 1116 | 4 | 128AC5.000 | Coupe | 1100 | 128 | |
| Fiat, Passenger Car EU | 128 | 1.3 | Gasoline | 1975 06 | 1979 12 | 54 | 73 | 1290 | 4 | 128AC.000 | Coupe | 1300 Berlinetta | 128 | |
| Fiat, Passenger Car EU | Fiorino | 1.05 | Gasoline | 1980 01 | 1987 12 | 37 | 50 | 1049 | 4 | 127A.000 | Van | Fiorino | ||
| Fiat, Passenger Car EU | 127 | 1 | Gasoline | 1977 01 | 1986 12 | 37 | 50 | 1049 | 4 | 127A.000 | Estate | Panorama | 127 | |
| Fiat, Passenger Car EU | 128 | 1.1 | Gasoline | - | 1982 10 | 40 | 55 | 1116 | 4 | 128A.000 | Estate | 1100 | 128 | |
| Fiat, Passenger Car EU | 127 | 1 | Gasoline | 1978 07 | 1982 02 | 51 | 70 | 1049 | 4 | 127A1.000 | Hatchback | Sport | 127 | |
| Lamborghini, Agricultural | C | 2.8 | Diesel | 1987 06 | 2000 12 | 0 | 0 | 2827 | 3 | Diesel | 100.3P | C 554 | ||
| Lamborghini, Agricultural | 400 Series | - | - | 0 | 0 | 0 | Various Models | |||||||
| Lamborghini, Agricultural | 500 Series | - | - | 0 | 0 | 0 | Various Models | |||||||
| Lamborghini, Agricultural | 600 Series | - | - | 0 | 0 | 0 | Various Models | |||||||
| Lamborghini, Agricultural | 1300 Series | - | - | 0 | 0 | 0 | Various Models | |||||||
| Lamborghini, Agricultural | 1500 Series | - | - | 0 | 0 | 0 | Various Models | |||||||
| Lamborghini, Agricultural | R | 2.7 | Diesel | 1983 03 | 1995 12 | 0 | 0 | 2715 | 3 | Diesel | 983L | R 513 | ||
| Lamborghini, Agricultural | R Series | - | - | 0 | 0 | 0 | Various Models | |||||||
| Lamborghini, Agricultural | 1100 Series | - | - | 0 | 0 | 0 | Various Models | |||||||
| Lamborghini, Agricultural | C Series | - | - | 0 | 0 | 0 | Various Models | |||||||
| Lamborghini, Agricultural | C | 2.8 | Diesel | 1987 06 | 2000 12 | 0 | 0 | 2827 | 3 | Diesel | 100.3P | C 554 | ||
| Lamborghini, Agricultural | R | 2.7 | Diesel | 1983 03 | 1995 12 | 0 | 0 | 2715 | 3 | Diesel | 983L | R 513 |
