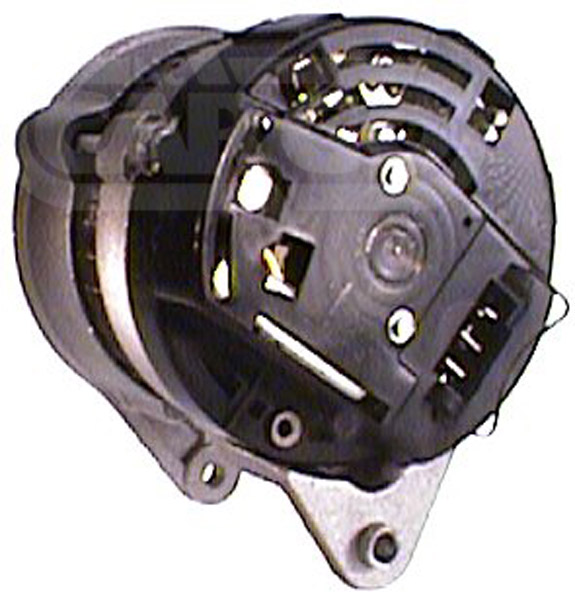

111185 - Alternator (111185)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 43,
Bracket Hole: 8.20, Belt. adj. bracket hole M8,
Width/Holder Arm: 9.80, Belt. adj. brackethole pos. 50,
Mount. Bracket Dist.: 81.00,
Radius: 81.25,
Radius: 83.00,
Rotation: CR,
Regulator Plug: or plug PL22,
Blower: IF, Pulley w/o,
Total Length: 169.50, Info For pulley w/ 17.00 mm bore use bushing: HC-CARGO 134894., Source Lucas
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 43 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 8.20 | |||
| G | Belt. adj. bracket hole M8 | |||
| B | Width/holder arm 9.80 | |||
| E | Belt. adj. brackethole pos. 50 | |||
| C | Mount. bracket dist. 81.00 | |||
| j | Radius 81.25 | |||
| j | Radius 83.00 | |||
| n | Rotation CR | |||
| o | Regulator plug PL22 | |||
| R | Total length 169.50 | |||
| Source | Lucas | |||
Further information (Alternator) | ||||
| Blower | IF | |||
| Pulley | w/o | |||
| Info | For pulley w/ 17.00 mm bore use bushing: HC-CARGO 134894. | |||
Replacing | ||||
| 23573 | LUCAS | |||
| 23573a | LUCAS | |||
| 23573b | LUCAS | |||
| 23573d | LUCAS | |||
| 23617 | LUCAS | |||
| 23617a | LUCAS | |||
| 23617b | LUCAS | |||
| 23617d | LUCAS | |||
| 23622 | LUCAS | |||
| 23622a | LUCAS | |||
UNISTART Price: £45.00
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Case, Agricultural | 400 Series | 1972 01 | - | 0 | 0 | 0 | 454 | |||||||
| Case, Agricultural | 400 Series | Gasoline | 1982 01 | - | 0 | 0 | 0 | 485 | ||||||
| Case, Agricultural | 500 Series | Gasoline | 1982 01 | - | 0 | 0 | 0 | 584 | ||||||
| Case, Agricultural | 600 Series | Gasoline | 1982 01 | - | 0 | 0 | 0 | 684 | ||||||
| Case, Agricultural | 600 Series | Gasoline | 1982 01 | - | 0 | 0 | 0 | 685 | ||||||
| Case, Agricultural | 500 Series | 1972 01 | - | 0 | 0 | 0 | 574 | |||||||
| Case, Agricultural | 500 Series | Gasoline | 1982 01 | - | 0 | 0 | 0 | 585 | ||||||
| Case, Agricultural | 700 Series | Gasoline | 1982 01 | - | 0 | 0 | 0 | 784 | ||||||
| Case, Agricultural | 1000 Series | 1983 01 | - | 0 | 0 | 0 | 1190 | |||||||
| Case, Agricultural | 1000 Series | 1984 01 | - | 0 | 0 | 0 | 1394 | |||||||
| Case, Agricultural | 600 Series | - | - | 0 | 0 | 0 | L | 685 | ||||||
| Case, Agricultural | 900 Series | - | - | 0 | 0 | 0 | 995 | |||||||
| Case, Agricultural | 1000 Series | - | - | 0 | 0 | 0 | 1390 | |||||||
| Case, Agricultural | 400 Series | Gasoline | 1982 01 | - | 0 | 0 | 0 | 484 | ||||||
| Case, Agricultural | 700 Series | Gasoline | 1982 01 | - | 0 | 0 | 0 | 785 | ||||||
| Case, Agricultural | 800 Series | 1972 01 | 1983 01 | 0 | 0 | 0 | 885 | |||||||
| Case, Agricultural | 1000 Series | 1984 01 | - | 0 | 0 | 0 | 1494 | |||||||
| Case, Agricultural | 900 Series | - | - | 0 | 0 | 0 | 996 | |||||||
| Case, Agricultural | 400 Series | Diesel | 1989 01 | 1993 01 | 0 | 0 | 0 | 3 | 485 | |||||
| Case, Agricultural | 400 Series | Gasoline | 1982 01 | - | 0 | 0 | 0 | 475 | ||||||
| Case, Agricultural | 1000 Series | 1984 01 | - | 0 | 0 | 0 | 1490 | |||||||
| Case, Agricultural | 1000 Series | 1984 01 | - | 0 | 0 | 0 | 1690 | |||||||
| Case, Agricultural | 900 Series | - | - | 0 | 0 | 0 | 990 | |||||||
| Case, Agricultural | 1000 Series | - | - | 0 | 0 | 0 | 1194 | |||||||
| Case, Agricultural | 1000 Series | - | - | 0 | 0 | 0 | 1290 | |||||||
| Case, Agricultural | 1000 Series | - | - | 0 | 0 | 0 | 1394 | |||||||
| Case, Agricultural | 600 Series | 1972 01 | - | 0 | 0 | 0 | 674 | |||||||
| Case, Agricultural | 400 Series | - | - | 0 | 0 | 0 | 474 | |||||||
| Austin, Passenger Car EU | Mini | 1 | Gasoline | - | 1984 09 | 26 | 35 | 999 | 4 | A | Hatchback | 1000 | Mini | |
| Austin, Passenger Car EU | Allegro | 1.3 | Gasoline | 1973 05 | 1982 03 | 40 | 54 | 1275 | 4 | 12H | Hatchback | Allegro | ||
| Austin, Passenger Car EU | Allegro | 1.5 | Gasoline | 1973 05 | 1982 03 | 50 | 68 | 1485 | 4 | 14H | Hatchback | Allegro | ||
| Austin, Passenger Car EU | Metro | 1.3 | Gasoline | 1980 10 | 1983 12 | 46 | 63 | 1275 | 4 | 12HL | Hatchback | Metro | ||
| Austin, Passenger Car EU | Metro | 1 | Gasoline | 1980 10 | 1990 04 | 35 | 48 | 999 | 4 | 99HA65P | Hatchback | Metro | ||
| Austin, Passenger Car EU | Metro | 1.3 | Gasoline | 1980 10 | 1990 04 | 44 | 60 | 1275 | 4 | 12H | Hatchback | Metro | ||
| Austin, Passenger Car EU | Metro | 1.3 | Gasoline | 1980 10 | 1990 04 | 51 | 69 | 1275 | 4 | 12HA83AA | Hatchback | Metro | ||
| Austin, Passenger Car EU | Princess | 2.2 | Gasoline | 1978 10 | 1982 10 | 82 | 112 | 2224 | 6 | 22H | Hatchback | 2200 | Princess | |
| Austin, Passenger Car EU | Princess | 1.8 | Gasoline | 1976 04 | 1978 09 | 60 | 82 | 1798 | 4 | 18H | 1800 | Princess | ||
| Austin, Passenger Car EU | Allegro | 1 | Gasoline | 1980 01 | 1983 10 | 33 | 45 | 998 | 4 | 99H | Hatchback | Allegro | ||
| Austin, Passenger Car EU | Allegro | 1.3 | Gasoline | 1979 01 | 1983 10 | 46 | 63 | 1275 | 4 | 12H | Hatchback | Allegro | ||
| Austin, Passenger Car EU | Allegro | 1.7 | Gasoline | 1979 08 | 1982 03 | 50 | 68 | 1697 | 4 | Estate | Allegro | |||
| Austin, Passenger Car EU | Princess | 2.2 | Gasoline | 1976 04 | 1978 09 | 81 | 110 | 2227 | 6 | 22H | 2200 | Princess | ||
| Austin, Passenger Car EU | Princess | 2 | Gasoline | 1978 10 | 1982 10 | 69 | 94 | 1994 | 4 | 20H | Hatchback | 2000 | Princess | |
| Austin, Passenger Car EU | Mini | 1 | Gasoline | - | 1984 09 | 29 | 39 | 999 | 4 | 99H | Hatchback | 1000 | Mini | |
| Austin, Passenger Car EU | Mini | 1 | Gasoline | 1982 08 | 1993 06 | 31 | 42 | 998 | 4 | 99HA53P | Hatchback | 1000 Mayfair Sport | Mini | |
| Austin, Passenger Car EU | Metro | 1 | Gasoline | 1980 10 | 1990 04 | 30 | 41 | 999 | 4 | 99H | Hatchback | Metro | ||
| Austin, Passenger Car EU | Metro | 1 | Gasoline | 1980 10 | 1990 04 | 33 | 45 | 999 | 4 | 99H | Hatchback | Metro | ||
| Austin, Passenger Car EU | Metro | 1.3 | Gasoline | 1980 10 | 1985 12 | 52 | 71 | 1271 | 4 | 12H996AA | Hatchback | Metro | ||
| Austin, Passenger Car EU | Allegro | 1.1 | Gasoline | 1973 05 | 1981 10 | 33 | 45 | 1098 | 4 | 10H | Hatchback | Allegro | ||
| Austin, Passenger Car EU | Princess | 1.7 | Gasoline | 1978 10 | 1982 10 | 65 | 88 | 1698 | 4 | 17HL | Hatchback | 1700 | Princess | |
| Ford, Agricultural | 2000 Series | - | - | 0 | 0 | 0 | 2600 | |||||||
| Ford, Agricultural | 7000 Series | - | - | 0 | 0 | 0 | 7600 | |||||||
| Ford, Agricultural | 8000 Series | - | - | 0 | 0 | 0 | 8700 | |||||||
| Ford, Agricultural | 8000 Series | Diesel | 1975 01 | 1976 12 | 0 | 0 | 0 | 401CID | 8600 | |||||
| Ford, Agricultural | 9000 Series | Diesel | 1977 01 | 1979 01 | 0 | 0 | 0 | 9700 | ||||||
| Ford, Agricultural | 3000 Series | Diesel | 1975 01 | 1981 12 | 0 | 0 | 0 | 175CID | 3600 | |||||
| Ford, Agricultural | 7000 Series | - | - | 0 | 0 | 0 | 7700 | |||||||
| Ford, Agricultural | 4000 Series | Diesel | 1975 01 | 1981 12 | 0 | 0 | 0 | 183CID | 4100 | |||||
| Ford, Agricultural | 4000 Series | Diesel | 1975 01 | 1978 12 | 0 | 0 | 0 | 201CID | 4600 | |||||
| Ford, Agricultural | 6000 Series | Diesel | 1975 01 | 1981 01 | 0 | 0 | 0 | 256CID | 6600 | |||||
| Ford, Passenger Car EU | Escort | 1.3 | Gasoline | 1974 12 | 1980 08 | 42 | 57 | 1298 | 4 | J2 | Escort | |||
| Ford, Passenger Car EU | Escort | 1.3 | Gasoline | 1974 12 | 1980 08 | 51 | 70 | 1298 | 4 | J3 | Escort | |||
| Ford, Passenger Car EU | Escort | 1.3 | Gasoline | 1976 08 | 1981 07 | 40 | 54 | 1293 | 4 | J1 | Estate | Escort | ||
| Ford, Passenger Car EU | Escort | 1.3 | Gasoline | 1979 03 | 1980 08 | 44 | 60 | 1298 | 4 | J2 | Escort | |||
| Ford, Passenger Car EU | Transit | 2.4 | Diesel | 1977 11 | 1985 09 | 46 | 62 | 2358 | 4 | Diesel | 4AA | Platform / Chassis | Transit | |
| Ford, Passenger Car EU | Escort | 1.1 | Gasoline | 1974 12 | 1980 08 | 32 | 45 | 1098 | 4 | G1 | Escort | |||
| Ford, Passenger Car EU | Escort | 1.1 | Gasoline | 1974 12 | 1980 08 | 35 | 48 | 1098 | 4 | G2 | Escort | |||
| Ford, Passenger Car EU | Escort | 1.3 | Gasoline | 1975 04 | 1979 01 | 40 | 54 | 1298 | 4 | KL13H | Estate | Escort | ||
| Ford, Passenger Car EU | Escort | 1.1 | Gasoline | 1975 06 | 1980 08 | 34 | 46 | 1098 | 4 | G1 | Escort | |||
| Ford, Passenger Car EU | Escort | 1.3 | Gasoline | 1974 12 | 1980 08 | 40 | 54 | 1298 | 4 | J1F | Escort |
