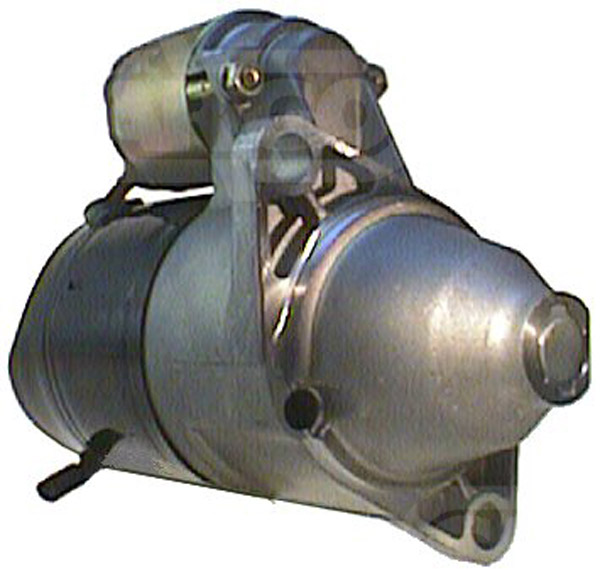

111189 - Starter (111189)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 12, kW 0.8, Mount. flange 73.90, Drive dist. 20.00, Dist./back 172.55, Dist./front 57.40, No. of teeth 9, B+ M8, Gear type DD, Dist. 114.75,
Rotation: CR, No./mount. holes 2 (0),
Drive Type: Steel,
Total Length: 231.50, Oil sealed No, Waterproof No

Electrical specifications (Starter)
Voltage 12
kW 0.8

Physical specifications (Starter)
A Mount. flange 73.90
B Drive dist. 20.00
F Dist./back 172.55
G Dist./front 57.40
H No. of teeth 9
I B+ M8
N Gear type DD
O Dist. 114.75
P Rotation CR
R Total length 231.50

Further information (Starter)
No./mount. holes 2 (0)
Drive type Steel
Oil sealed No
Waterproof No

Replacing
128000-8130 DENSO
28100-23800-71 TOYOTA

UNISTART Price: £128.22

Sorry, this item is out of stock.

The 111189 - Starter is shown in: Starters & Alternators > Starters , Industrial > Starters.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Toyota, Fork Lift 5FG 1989 01 - 0 0 0 5FG10
Toyota, Fork Lift 5FG 1989 01 - 0 0 0 5FG14
Toyota, Fork Lift 5FG 1989 01 - 0 0 0 5FG15
Toyota, Fork Lift 5FG 1989 01 - 0 0 0 5FG18
Toyota, Fork Lift 5FG 1986 01 - 0 0 0 5FGL15
Toyota, Fork Lift 5FG 1986 01 - 0 0 0 5FGL18
Toyota, Fork Lift 5FG 1986 01 - 0 0 0 5FGL10
Toyota, Fork Lift 5FG 1986 01 - 0 0 0 5FGL14
Komatsu, Fork Lift Various Models 1988 01 - 0 0 0 Various Models
Toyota, Fork Lift 5FG 1989 01 - 0 0 0 5FG10
Toyota, Fork Lift 5FG 1989 01 - 0 0 0 5FG14
Toyota, Fork Lift 5FG 1989 01 - 0 0 0 5FG15
Toyota, Fork Lift 5FG 1989 01 - 0 0 0 5FG18
