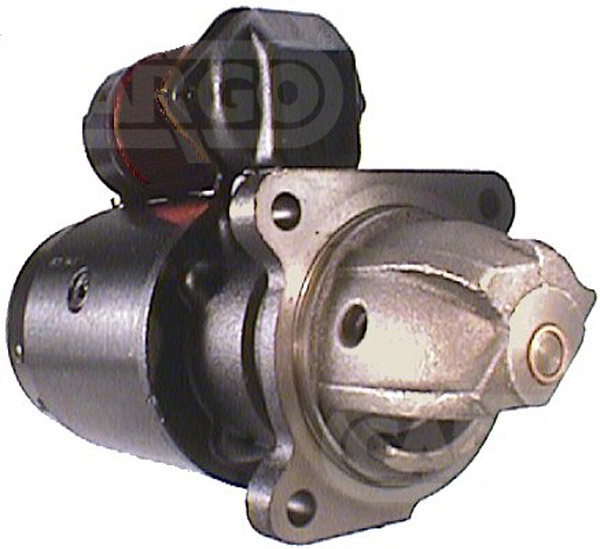

111190 - Starter (111190)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 12, Mount. flange 88.70, Drive dist. 21.00, Dist./back 244.10, Dist./front 61.00, No. of teeth 9, B+ 3/8" UNF, Terminal 15a M4, Gear type DD, Dist. 126.60, Dist. 2 90.10, Dist. 3 90.25,
Rotation: CR, No./mount. holes 3 (0), Clutch type Wet,
Drive Type: Steel, Remarks Replacing: 10MT.,
Total Length: 303.45, Oil sealed Yes, Waterproof No
Electrical specifications (Starter) | ||||
| Voltage | 12 | |||
Physical specifications (Starter) | ||||
| A | Mount. flange 88.70 | |||
| B | Drive dist. 21.00 | |||
| F | Dist./back 244.10 | |||
| G | Dist./front 61.00 | |||
| H | No. of teeth 9 | |||
| I | B+ 3/8" UNF | |||
| J | Terminal 15a M4 | |||
| N | Gear type DD | |||
| O | Dist. 126.60 | |||
| O | Dist. 2 90.10 | |||
| O | Dist. 3 90.25 | |||
| P | Rotation CR | |||
| R | Total length 303.45 | |||
Further information (Starter) | ||||
| No./mount. | holes 3 (0) | |||
| Clutch | type Wet | |||
| Drive | type Steel | |||
| Remarks | Replacing: 10MT. | |||
| Oil | sealed Yes | |||
| Waterproof | No | |||
Replacing | ||||
| 10455332 | REMY (DELCO) | |||
| 1107308 | REMY (DELCO) | |||
| 1107379 | REMY (DELCO) | |||
| 1108508 | REMY (DELCO) | |||
| 1109087 | REMY (DELCO) | |||
| 1109088 | REMY (DELCO) | |||
| 1109422 | REMY (DELCO) | |||
| 1998210 | REMY (DELCO) | |||
| 2200071-46 | YALE | |||
| 2355692 | CLARK | |||
UNISTART Price: £166.28
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Caterpillar, DIVERSE | Various Models | - | - | 0 | 0 | 0 | Various Models | |||||||
| Clark, Fork Lift | Various Models | - | - | 0 | 0 | 0 | Various Models |
