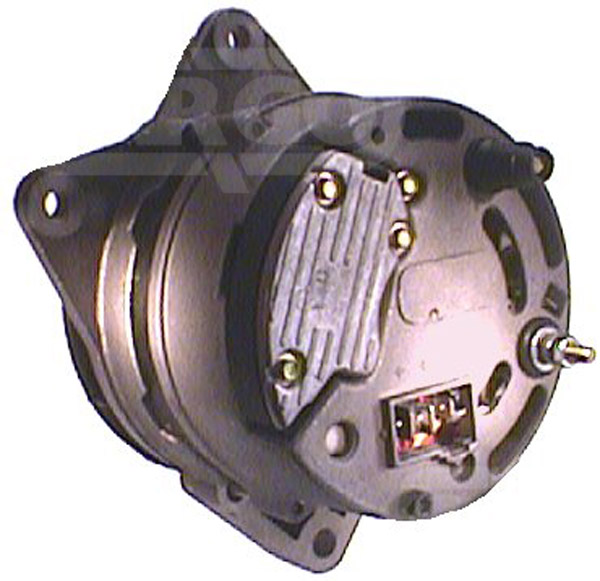

111204 - Alternator (111204)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 70,
Bracket Hole: 8.25, Belt. adj. bracket hole 8.30,
Width/Holder Arm: 27.00, Belt. adj. brackethole pos. 50, Belt. adj. brackethole pos. 60,
Pulley Dia.: 72.25,
Pulley Dist.: 54.15,
Grooves/Pulley: 1,
Radius: 83.85,
Radius: 85.50,
Radius: 85.50,
Radius: 85.50,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL22,
Blower: EF, Pulley P, Remarks w/ mounting bearing bracket for left and right engine side., Belt. adj. bracket hole 8.30,
Total Length: 166.00, Belt. adj. brackethole pos. 10, Belt. adj. bracket hole 8.30, Source Prestolite
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 70 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 8.25 | |||
| G | Belt. adj. bracket hole 8.30 | |||
| B | Width/holder arm 27.00 | |||
| E | Belt. adj. brackethole pos. 50 | |||
| E | Belt. adj. brackethole pos. 60 | |||
| H | Pulley dia. 72.25 | |||
| A | Pulley dist. 54.15 | |||
| i | Grooves/pulley 1 | |||
| j | Radius 83.85 | |||
| j | Radius 85.50 | |||
| j | Radius 85.50 | |||
| j | Radius 85.50 | |||
| k | B+ position M6 | |||
| n | Rotation CR | |||
| o | Regulator plug PL22 | |||
| G | Belt. adj. bracket hole 8.30 | |||
| R | Total length 166.00 | |||
| E | Belt. adj. brackethole pos. 10 | |||
| G | Belt. adj. bracket hole 8.30 | |||
| Source | Prestolite | |||
Further information (Alternator) | ||||
| Blower | EF | |||
| Pulley | P | |||
| Remarks | w/ mounting bearing bracket for left and right engine side. | |||
Replacing | ||||
| 110978 | CARGO | |||
| 23986 | LUCAS | |||
| 23986a | LUCAS | |||
| 23991 | LUCAS | |||
| 23991a | LUCAS | |||
| 23999 | LUCAS | |||
| 23999a | LUCAS | |||
| 23999b | LUCAS | |||
| 24014 | LUCAS | |||
| 24014a | LUCAS | |||
UNISTART Price: £102.11
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Jaguar, Passenger cars US | XJ | 5.3 | Gasoline | 1973 01 | 1974 01 | 0 | 0 | 5343 | V12 | XJ 12 | ||||
| Jaguar, Passenger cars US | XJ | 5.3 | Gasoline | 1981 01 | - | 0 | 0 | 5343 | V12 | XJ 12 | ||||
| Jaguar, Passenger cars US | XJ | 5.3 | Gasoline | 1979 01 | 1979 01 | 0 | 0 | 5343 | V12 | L | XJ 12 | |||
| Jaguar, Passenger cars US | XJ | 5.3 | Gasoline | 1976 01 | 1978 01 | 0 | 0 | 5343 | V12 | XJS | ||||
| Jaguar, Passenger cars US | XJ | 5.3 | Gasoline | 1979 01 | 1980 01 | 0 | 0 | 5343 | V12 | XJS | ||||
| Jaguar, Passenger cars US | XJ | 5.3 | Gasoline | 1979 01 | 1979 01 | 0 | 0 | 5343 | V12 | XJS | ||||
| Jaguar, Passenger cars US | XJ | 5.3 | Gasoline | 1981 01 | 1981 01 | 0 | 0 | 5343 | V12 | XJS | ||||
| Case, Agricultural | 1000 Series | 1984 01 | - | 0 | 0 | 0 | 1694 | |||||||
| Case, Agricultural | 1000 Series | 1984 01 | - | 0 | 0 | 0 | 1494 | |||||||
| Case, Agricultural | 1000 Series | 1984 01 | - | 0 | 0 | 0 | 1594 | |||||||
| Case, Agricultural | 1000 Series | - | - | 0 | 0 | 0 | 1394 |
