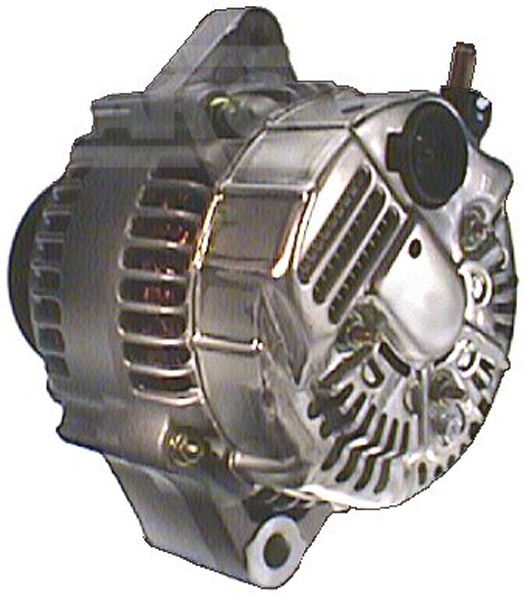

111215 - Alternator (111215)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 120,
Bracket Hole: 10.35, Belt. adj. bracket hole M8,
Width/Holder Arm: 57.65, Belt. adj. brackethole pos. 60,
Pulley Dia.: 81.25,
Pulley Dist.: 94.60,
Grooves/Pulley: 2,
Radius: 84.60,
Radius: 86.20,
B+ Position: M8,
Rotation: CR,
Regulator Plug: or plug PL12,
Blower: IF, Pulley DP,
Total Length: 179.75, Terminal type L-IG-S
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 120 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 10.35 | |||
| G | Belt. adj. bracket hole M8 | |||
| B | Width/holder arm 57.65 | |||
| E | Belt. adj. brackethole pos. 60 | |||
| H | Pulley dia. 81.25 | |||
| A | Pulley dist. 94.60 | |||
| i | Grooves/pulley 2 | |||
| j | Radius 84.60 | |||
| j | Radius 86.20 | |||
| k | B+ position M8 | |||
| n | Rotation CR | |||
| o | Regulator plug PL12 | |||
| R | Total length 179.75 | |||
| Terminal | type L-IG-S | |||
Further information (Alternator) | ||||
| Blower | IF | |||
| Pulley | DP | |||
Replacing | ||||
| 100211-6030 | DENSO | |||
| 100211-6031 | DENSO | |||
| 100211-6050 | DENSO | |||
| 100211-6051 | DENSO | |||
| AL78690 | JOHN DEERE | |||
| AZ38462 | JOHN DEERE | |||
| re36246 | JOHN DEERE | |||
| re37201 | JOHN DEERE | |||
| re42123 | JOHN DEERE | |||
| re44140 | JOHN DEERE | |||
UNISTART Price: £209.72
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| John Deere, Agricultural | 4000 Series | 7.6 | Diesel | 1989 01 | 1992 06 | 0 | 0 | 7636 | 6 | 6076 TRW-06 | 4055 | |||
| John Deere, Agricultural | 4000 Series | 7.6 | Diesel | 1987 09 | - | 203 | 276 | 7636 | 6 | 6076 A | 4955 | |||
| John Deere, Agricultural | Various Models | Diesel | - | - | 0 | 0 | 0 | Various Models | ||||||
| John Deere, Agricultural | 1000 Series | 5.9 | Diesel | 1981 10 | 1996 10 | 0 | 0 | 0 | 6 | 1072 | ||||
| John Deere, Agricultural | 1000 Series | 5.9 | Diesel | 1981 11 | 1996 11 | 0 | 0 | 0 | 6 | 1065 | ||||
| John Deere, Agricultural | 1000 Series | 5.9 | Diesel | 1981 10 | 1996 12 | 0 | 0 | 0 | 6 | 1075 | ||||
| John Deere, Agricultural | 1000 Series | 7.6 | Diesel | 1982 02 | 1997 02 | 0 | 0 | 0 | 6 | 1085 | ||||
| John Deere, Agricultural | 4000 Series | 7.6 | Diesel | 1989 01 | 1992 06 | 0 | 0 | 7636 | 6 | 6076 TRW.. | 4255 | |||
| John Deere, Agricultural | 4000 Series | 7.6 | Diesel | 1989 01 | 1994 05 | 145 | 197 | 7636 | 6 | 6076 TRW.. | 4755 | |||
| John Deere, Agricultural | 1000 Series | 5.9 | Diesel | 1981 10 | 1996 10 | 0 | 0 | 0 | 6 | 1068 | ||||
| John Deere, Agricultural | 4000 Series | 7.6 | Diesel | 1989 01 | 1992 06 | 0 | 0 | 7636 | 6 | 6076 TRW-06 | 4055 | |||
| John Deere, Agricultural | 4000 Series | 7.6 | Diesel | 1987 09 | - | 203 | 276 | 7636 | 6 | 6076 A | 4955 | |||
| John Deere, Agricultural | Various Models | Diesel | - | - | 0 | 0 | 0 | Various Models | ||||||
| John Deere, Agricultural | 1000 Series | 5.9 | Diesel | 1981 10 | 1996 10 | 0 | 0 | 0 | 6 | 1072 | ||||
| John Deere, Agricultural | 1000 Series | 5.9 | Diesel | 1981 11 | 1996 11 | 0 | 0 | 0 | 6 | 1065 | ||||
| John Deere, Agricultural | 1000 Series | 5.9 | Diesel | 1981 10 | 1996 12 | 0 | 0 | 0 | 6 | 1075 | ||||
| John Deere, Agricultural | 1000 Series | 7.6 | Diesel | 1982 02 | 1997 02 | 0 | 0 | 0 | 6 | 1085 | ||||
| John Deere, Agricultural | 4000 Series | 7.6 | Diesel | 1989 01 | 1992 06 | 0 | 0 | 7636 | 6 | 6076 TRW.. | 4255 | |||
| John Deere, Agricultural | 4000 Series | 7.6 | Diesel | 1989 01 | 1994 05 | 145 | 197 | 7636 | 6 | 6076 TRW.. | 4755 | |||
| John Deere, Agricultural | 1000 Series | 5.9 | Diesel | 1981 10 | 1996 10 | 0 | 0 | 0 | 6 | 1068 | ||||
| John Deere, Agricultural | 4000 Series | 7.6 | Diesel | 1989 01 | 1992 06 | 0 | 0 | 7636 | 6 | 6076 TRW-06 | 4055 | |||
| John Deere, Agricultural | Various Models | Diesel | - | - | 0 | 0 | 0 | Various Models | ||||||
| John Deere, Agricultural | 4000 Series | 7.6 | Diesel | 1989 01 | 1992 06 | 0 | 0 | 7636 | 6 | 6076 TRW.. | 4255 | |||
| John Deere, Agricultural | 4000 Series | 7.6 | Diesel | 1989 01 | 1994 05 | 145 | 197 | 7636 | 6 | 6076 TRW.. | 4755 |
