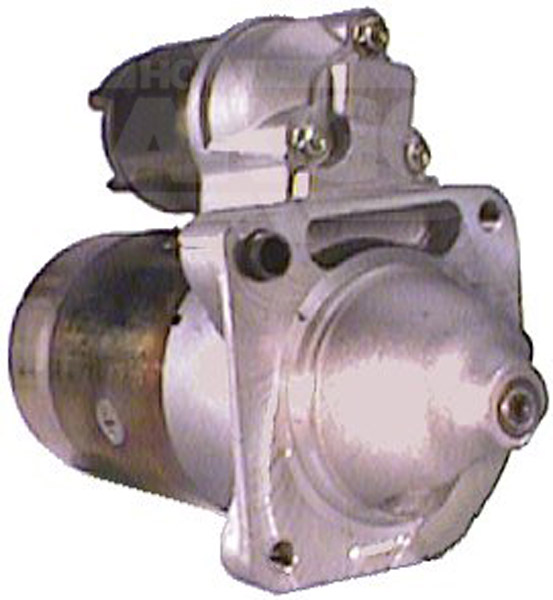

111228 - Starter (111228)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 12, kW 1.1, Mount. flange 64.00, Drive dist. 12.40, Dist./back 156.20, Dist./front 47.50, No. of teeth 9,11, B+ M8, Gear type DD, Dist. 105.40, Dist. 2 73.00, Dist. 3 73.00,
Rotation: CR, No./mount. holes 3 (3), Clutch type Dry,
Drive Type: Steel,
Total Length: 219.00, Oil sealed No, Waterproof No
Electrical specifications (Starter) | ||||
| Voltage | 12 | |||
| kW | 1.1 | |||
Physical specifications (Starter) | ||||
| A | Mount. flange 64.00 | |||
| B | Drive dist. 12.40 | |||
| F | Dist./back 156.20 | |||
| G | Dist./front 47.50 | |||
| H | No. of teeth 9,11 | |||
| I | B+ M8 | |||
| N | Gear type DD | |||
| O | Dist. 105.40 | |||
| O | Dist. 2 73.00 | |||
| O | Dist. 3 73.00 | |||
| P | Rotation CR | |||
| R | Total length 219.00 | |||
Further information (Starter) | ||||
| No./mount. | holes 3 (3) | |||
| Clutch | type Dry | |||
| Drive | type Steel | |||
| Oil | sealed No | |||
| Waterproof | No | |||
Replacing | ||||
| 11.130.392 | ISKRA | |||
| 50246532 | MAGNETI MARELLI | |||
| 63221637 | MAGNETI MARELLI | |||
| 63223035 | MAGNETI MARELLI | |||
| azf3547 | ISKRA | |||
| e80-1.1/12v | MAGNETI MARELLI | |||
UNISTART Price: £76.83
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Fiat, Passenger Car EU | Tipo | 1.4 | Gasoline | 1989 05 | 1995 04 | 51 | 70 | 1372 | 4 | i.e. | 160A1.046 | Hatchback | Tipo | |
| Fiat, Passenger Car EU | Tipo | 1.4 | Gasoline | 1989 05 | 1995 04 | 51 | 70 | 1372 | 4 | i.e. | 836A4.000 | Hatchback | Tipo | |
| Fiat, Passenger Car EU | Tempra | 1.4 | Gasoline | 1992 03 | 1996 08 | 51 | 69 | 1372 | 4 | i.e. | 160A1.046 | Tempra | ||
| Fiat, Passenger Car EU | Tempra | 1.6 | Gasoline | 1990 06 | 1992 07 | 57 | 78 | 1581 | 4 | i.e. | 159A3.046 | Tempra | ||
| Fiat, Passenger Car EU | Tempra | 1.6 | Gasoline | 1992 10 | 1996 08 | 55 | 75 | 1581 | 4 | i.e. | 835C1.000 | Estate | Tempra | |
| Fiat, Passenger Car EU | Tempra | 1.6 | Gasoline | 1990 03 | 1993 04 | 63 | 86 | 1581 | 4 | 159A3.000 | Tempra | |||
| Fiat, Passenger Car EU | Uno | 1.4 | Gasoline | 1989 09 | 1993 12 | 53 | 72 | 1372 | 4 | i.e. | 146C1.000 | Hatchback | Uno | |
| Fiat, Passenger Car EU | Tipo | 1.4 | Gasoline | 1987 07 | 1989 12 | 52 | 71 | 1372 | 4 | 160A1.000 | Hatchback | Selecta | Tipo | |
| Fiat, Passenger Car EU | Tipo | 1.6 | Gasoline | 1993 03 | 1995 04 | 55 | 75 | 1581 | 4 | i.e. | 159A3.048 | Hatchback | Tipo | |
| Fiat, Passenger Car EU | Tipo | 1.6 | Gasoline | 1993 03 | 1995 04 | 55 | 75 | 1581 | 4 | i.e. | 835C1.000 | Hatchback | Tipo | |
| Fiat, Passenger Car EU | Tipo | 1.6 | Gasoline | 1990 07 | 1993 01 | 57 | 78 | 1581 | 4 | i.e. | 159A3.046 | Hatchback | Tipo | |
| Fiat, Passenger Car EU | Uno | 1.4 | Gasoline | 1989 09 | 1993 12 | 51 | 70 | 1372 | 4 | i.e. | 160A1.046 | Hatchback | Uno | |
| Fiat, Passenger Car EU | Tempra | 1.6 | Gasoline | 1992 10 | 1996 08 | 55 | 75 | 1581 | 4 | i.e. | 159A3.048 | Estate | Tempra | |
| Fiat, Passenger Car EU | Tempra | 1.6 | Gasoline | 1990 06 | 1996 08 | 57 | 78 | 1581 | 4 | i.e. | 159A3.046 | Estate | Tempra | |
| Fiat, Passenger Car EU | Tipo | 1.6 | Gasoline | 1988 01 | 1991 10 | 61 | 83 | 1581 | 4 | 160A2.000 | Hatchback | Digit | Tipo | |
| Fiat, Passenger Car EU | Tipo | 1.4 | Gasoline | 1987 07 | 1989 12 | 52 | 71 | 1372 | 4 | 160A1.048 | Hatchback | Selecta | Tipo | |
| Fiat, Passenger Car EU | Tempra | 1.4 | Gasoline | 1992 03 | 1996 08 | 51 | 69 | 1372 | 4 | i.e. | 836A4.000 | Tempra | ||
| Fiat, Passenger Car EU | Tempra | 1.6 | Gasoline | 1992 06 | 1996 08 | 55 | 75 | 1581 | 4 | i.e. | 159A3.048 | Tempra | ||
| Fiat, Passenger Car EU | Tempra | 1.6 | Gasoline | 1990 12 | 1993 04 | 63 | 86 | 1581 | 4 | 159A3.000 | Estate | Tempra | ||
| Fiat, Passenger Car EU | Tempra | 1.6 | Gasoline | 1992 06 | 1996 08 | 55 | 75 | 1581 | 4 | i.e. | 835C1.000 | Tempra | ||
| Fiat, Passenger Car EU | Tempra | 1.4 | Gasoline | 1992 10 | 1996 08 | 51 | 69 | 1372 | 4 | i.e. | 836A4.000 | Estate | Tempra | |
| Fiat, Passenger Car EU | Tempra | 1.6 | Gasoline | 1990 06 | 1996 08 | 57 | 78 | 1581 | 4 | i.e. | 835C1.000 | Estate | Tempra | |
| Fiat, Passenger Car EU | Uno | 1.4 | Gasoline | 1989 12 | 1996 12 | 87 | 118 | 1372 | 4 | i.e. Turbo | 146A8.000 | Hatchback | Uno | |
| Fiat, Passenger Car EU | Tipo | 1.4 | Gasoline | 1989 05 | 1995 04 | 57 | 78 | 1372 | 4 | i.e. | 159A2.000 | Hatchback | Tipo | |
| Fiat, Passenger Car EU | Tempra | 1.4 | Gasoline | 1992 10 | 1996 08 | 51 | 69 | 1372 | 4 | i.e. | 160A1.046 | Estate | Tempra | |
| Lancia, Passenger Car EU | Dedra | 1.6 | Gasoline | 1989 08 | 1994 06 | 66 | 90 | 1581 | 4 | i.e. | 835A1.000 | Dedra | ||
| Lancia, Passenger Car EU | Dedra | 1.6 | Gasoline | 1989 08 | 1993 03 | 57 | 78 | 1581 | 4 | i.e. | 835A1.046 | Dedra | ||
| Lancia, Passenger Car EU | Dedra | 1.6 | Gasoline | 1993 04 | 1999 07 | 55 | 75 | 1581 | 4 | i.e. | 835C1.000 | Dedra |
