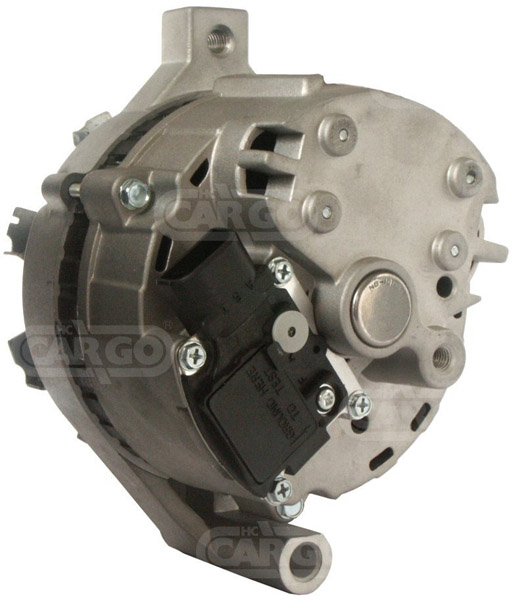

111252 - Alternator (111252)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 75,
Bracket Hole: 11.55, Belt. adj. bracket hole M10,
Width/Holder Arm: 76.10, Belt. adj. brackethole pos. 60,
Pulley Dia.: 57.00,
Pulley Dist.: 95.40,
Grooves/Pulley: 6,
Radius: 88.68,
Radius: 85.90,
B+ Position: Plug,
Rotation: CR,
Regulator Plug: or plug PL49,
Blower: IF, Pulley SP, Remarks Replacing: 2G series.,
Total Length: 157.00
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 75 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 11.55 | |||
| G | Belt. adj. bracket hole M10 | |||
| B | Width/holder arm 76.10 | |||
| E | Belt. adj. brackethole pos. 60 | |||
| H | Pulley dia. 57.00 | |||
| A | Pulley dist. 95.40 | |||
| i | Grooves/pulley 6 | |||
| j | Radius 88.68 | |||
| j | Radius 85.90 | |||
| k | B+ position Plug | |||
| n | Rotation CR | |||
| o | Regulator plug PL49 | |||
| R | Total length 157.00 | |||
Further information (Alternator) | ||||
| Blower | IF | |||
| Pulley | SP | |||
| Remarks | Replacing: 2G series. | |||
Replacing | ||||
| e79f10300ba | FORD | |||
| E7AF10300AD | FORD | |||
| e7pf10346la | FORD | |||
| e7pf10346ma | FORD | |||
| e7pf10346za | FORD | |||
| e7pz10346c | FORD | |||
| e7pz10346m | FORD | |||
| e7sf10300ha | FORD | |||
| e7sf10300ma | FORD | |||
| e7zf10300ba | FORD | |||
UNISTART Price: £93.92
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ford, Passenger cars US | E | 5.8 | Gasoline | 1988 01 | 1991 01 | 0 | 0 | 0 | V8 | E 150 | ||||
| Ford, Passenger cars US | E | 5.8 | Gasoline | 1988 01 | 1991 01 | 0 | 0 | 0 | V8 | E 250 | ||||
| Ford, Passenger cars US | E | 5.8 | Gasoline | 1988 01 | 1991 01 | 0 | 0 | 0 | V8 | Estate | Club | E 250 | ||
| Ford, Passenger cars US | E | 5.8 | Gasoline | 1988 01 | 1991 01 | 0 | 0 | 0 | V8 | Estate | Super | E 350 | ||
| Ford, Passenger cars US | E | 7.5 | Gasoline | 1988 01 | 1991 01 | 0 | 0 | 0 | V8 | Estate | Super | E 350 | ||
| Ford, Passenger cars US | F | 5.8 | Gasoline | 1988 01 | 1991 01 | 0 | 0 | 0 | V8 | Pick Up | F 350 | |||
| Ford, Passenger cars US | Mustang | 5 | Gasoline | 1992 01 | 1993 01 | 0 | 0 | 0 | V8 | GT | Mustang | |||
| Ford, Passenger cars US | Thunderbird | 3.8 | Gasoline | 1993 01 | 1993 01 | 0 | 0 | 0 | V6 | LX | Thunderbird | |||
| Ford, Passenger cars US | F | 7.5 | Gasoline | 1990 01 | - | 0 | 0 | 0 | V8 | Pick Up | Super Duty | F 450 | ||
| Ford, Passenger cars US | E | 5.8 | Gasoline | 1988 01 | 1991 01 | 0 | 0 | 0 | V8 | Estate | Club | E 150 | ||
| Ford, Passenger cars US | E | 5.8 | Gasoline | 1988 01 | 1991 01 | 0 | 0 | 0 | V8 | Super | E 150 | |||
| Ford, Passenger cars US | E | 7.5 | Gasoline | 1988 01 | 1991 01 | 0 | 0 | 0 | V8 | Estate | Club | E 250 | ||
| Ford, Passenger cars US | E | 7.5 | Gasoline | 1987 01 | 1991 01 | 0 | 0 | 0 | V8 | E 350 | ||||
| Ford, Passenger cars US | E | 5.8 | Gasoline | 1988 01 | 1991 01 | 0 | 0 | 0 | V8 | Super | E 350 | |||
| Ford, Passenger cars US | F | 5.8 | Gasoline | 1988 01 | 1991 01 | 0 | 0 | 0 | V8 | Pick Up | Super Cab | F 150 | ||
| Ford, Passenger cars US | F | 5 | Gasoline | 1992 01 | 1996 01 | 0 | 0 | 0 | V8 | Pick Up | F 250 | |||
| Ford, Passenger cars US | F | 5.8 | Gasoline | 1992 01 | 1997 01 | 0 | 0 | 0 | V8 | Pick Up | F 250 | |||
| Ford, Passenger cars US | F | 7.5 | Gasoline | 1988 01 | 1991 01 | 0 | 0 | 0 | V8 | Pick Up | F 350 | |||
| Ford, Passenger cars US | F | 7.5 | Gasoline | 1991 01 | 1994 01 | 0 | 0 | 0 | V8 | Pick Up | Super Duty | F 450 | ||
| Ford, Passenger cars US | F | 7.5 | Gasoline | 1988 01 | - | 0 | 0 | 0 | V8 | Cab w/engine | F 53 | |||
| Ford, Passenger cars US | Aerostar | 2.3 | Gasoline | 1986 01 | 1987 01 | 0 | 0 | 0 | L4 | Aerostar | ||||
| Ford, Passenger cars US | Aerostar | 3 | Gasoline | 1986 01 | 1991 01 | 0 | 0 | 0 | V6 | Aerostar | ||||
| Ford, Passenger cars US | F | 5.8 | Gasoline | 1988 01 | 1991 01 | 0 | 0 | 0 | V8 | Pick Up | F 150 | |||
| Ford, Passenger cars US | F | 5 | Gasoline | 1992 01 | 1996 01 | 0 | 0 | 0 | V8 | Pick Up | F 150 | |||
| Ford, Passenger cars US | F | 7.5 | Gasoline | 1992 01 | 1996 01 | 0 | 0 | 0 | V8 | Pick Up | F 250 | |||
| Ford, Passenger cars US | F | 7.5 | Gasoline | 1992 01 | 1996 01 | 0 | 0 | 0 | V8 | Pick Up | Super Cab | F 250 | ||
| Ford, Passenger cars US | F | 7.5 | Gasoline | 1988 01 | 1991 01 | 0 | 0 | 0 | V8 | Pick Up | Super Cab | F 350 | ||
| Ford, Passenger cars US | F | 7.5 | Gasoline | 1992 01 | 1996 01 | 0 | 0 | 0 | V8 | Pick Up | F 350 | |||
| Ford, Passenger cars US | Mustang | 5 | Gasoline | 1987 01 | 1991 01 | 0 | 0 | 0 | V8 | LX | Mustang | |||
| Ford, Passenger cars US | Mustang | 2.3 | Gasoline | 1991 01 | 1993 01 | 0 | 0 | 0 | L4 | LX | Mustang | |||
| Ford, Passenger cars US | Thunderbird | 2.3 | Gasoline | 1987 01 | 1987 01 | 0 | 0 | 0 | L4 | Turbo | Thunderbird | |||
| Ford, Passenger cars US | F | 7.5 | Gasoline | 1989 01 | 1991 01 | 0 | 0 | 0 | V8 | Cab w/engine | F 53 | |||
| Ford, Passenger cars US | Thunderbird | 2.3 | Gasoline | 1987 01 | - | 0 | 0 | 0 | L4 | Turbo | Sport | Thunderbird | ||
| Ford, Passenger cars US | E | 5.8 | Gasoline | 1988 01 | 1991 01 | 0 | 0 | 0 | V8 | E 350 | ||||
| Ford, Passenger cars US | F | 5.8 | Gasoline | 1992 01 | 1996 01 | 0 | 0 | 0 | V8 | Pick Up | F 150 | |||
| Ford, Passenger cars US | F | 5.8 | Gasoline | 1988 01 | 1991 01 | 0 | 0 | 0 | V8 | Pick Up | F 250 | |||
| Ford, Passenger cars US | F | 7.5 | Gasoline | 1988 01 | 1991 01 | 0 | 0 | 0 | V8 | Pick Up | F 250 | |||
| Ford, Passenger cars US | F | 5.8 | Gasoline | 1988 01 | 1991 01 | 0 | 0 | 0 | V8 | Pick Up | Super Cab | F 250 | ||
| Ford, Passenger cars US | F | 5.8 | Gasoline | 1992 01 | 1997 01 | 0 | 0 | 0 | V8 | Pick Up | F 350 | |||
| Ford, Passenger cars US | Mustang | 5 | Gasoline | 1987 01 | 1991 01 | 0 | 0 | 0 | V8 | GT | Mustang | |||
| Ford, Passenger cars US | Mustang | 2.3 | Gasoline | 1987 01 | 1990 01 | 0 | 0 | 0 | L4 | LX | Mustang | |||
| Ford, Passenger cars US | E | 5.8 | Gasoline | 1988 01 | 1991 01 | 0 | 0 | 0 | V8 | Super | E 250 | |||
| Ford, Passenger cars US | E | 7.5 | Gasoline | 1988 01 | 1991 01 | 0 | 0 | 0 | V8 | Super | E 350 | |||
| Ford, Passenger cars US | F | 5 | Gasoline | 1992 01 | 1996 01 | 0 | 0 | 0 | V8 | Pick Up | Super Cab | F 150 | ||
| Ford, Passenger cars US | F | 5.8 | Gasoline | 1992 01 | 1996 01 | 0 | 0 | 0 | V8 | Pick Up | Super Cab | F 150 | ||
| Ford, Passenger cars US | F | 7.5 | Gasoline | 1988 01 | 1991 01 | 0 | 0 | 0 | V8 | Pick Up | Super Cab | F 250 | ||
| Ford, Passenger cars US | F | 5 | Gasoline | 1992 01 | 1996 01 | 0 | 0 | 0 | V8 | Pick Up | Super Cab | F 250 | ||
| Ford, Passenger cars US | F | 5.8 | Gasoline | 1992 01 | 1997 01 | 0 | 0 | 0 | V8 | Pick Up | Super Cab | F 250 | ||
| Ford, Passenger cars US | F | 7.5 | Gasoline | 1992 01 | 1996 01 | 0 | 0 | 0 | V8 | Pick Up | Super Cab | F 350 | ||
| Ford, Passenger cars US | F | 7.5 | Gasoline | 1992 01 | 1996 01 | 0 | 0 | 0 | V8 | Cab w/engine | F 53 | |||
| Mercury, Passenger cars US | Cougar | 3.8 | Gasoline | 1991 01 | 1992 01 | 0 | 0 | 0 | V6 | LS | Cougar | |||
| Mercury, Passenger cars US | Cougar | 3.8 | Gasoline | 1987 01 | 1990 01 | 0 | 0 | 0 | V6 | LS | Cougar | |||
| Mercury, Passenger cars US | Cougar | 3.8 | Gasoline | 1993 01 | 1996 01 | 0 | 0 | 0 | V6 | XR-7 | Cougar |
