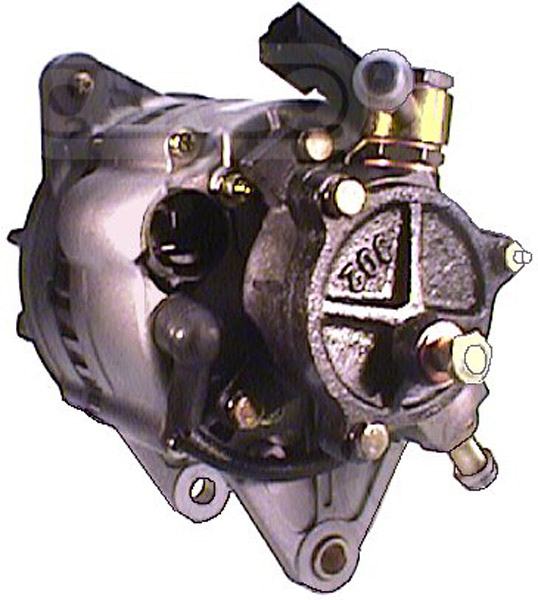

111267 - Alternator (111267)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 50,
Bracket Hole: 10.00, Belt. adj. bracket hole M8,
Width/Holder Arm: 13.00, Belt. adj. brackethole pos. 5,
Mount. Bracket Dist.: 81.50,
Pulley Dia.: 82.00,
Pulley Dist.: 48.00,
Grooves/Pulley: 1,
Radius: 89.00,
Radius: 84.00,
B+ Position: 9.30,
Rotation: CR,
Regulator Plug: or plug PL32,
Blower: IF, Pulley P,
Total Length: 238.00
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 50 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 10.00 | |||
| G | Belt. adj. bracket hole M8 | |||
| B | Width/holder arm 13.00 | |||
| E | Belt. adj. brackethole pos. 5 | |||
| C | Mount. bracket dist. 81.50 | |||
| H | Pulley dia. 82.00 | |||
| A | Pulley dist. 48.00 | |||
| i | Grooves/pulley 1 | |||
| j | Radius 89.00 | |||
| j | Radius 84.00 | |||
| k | B+ position 9.30 | |||
| n | Rotation CR | |||
| o | Regulator plug PL32 | |||
| R | Total length 238.00 | |||
Further information (Alternator) | ||||
| Blower | IF | |||
| Pulley | P | |||
Replacing | ||||
| 111234 | CARGO | |||
| 8941224884 | ISUZU | |||
| 8943820590 | ISUZU | |||
| 8943820591 | ISUZU | |||
| 8943820600 | ISUZU | |||
| 8944195191 | ISUZU | |||
| 8970377241 | ISUZU | |||
| 8-97073924-0 | ISUZU | |||
| 8970739241 | ISUZU | |||
| 8-97073924-1 | ISUZU | |||
UNISTART Price: £100.38
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Opel, Passenger Car EU | Campo | 2.5 | Diesel | 1991 08 | 1994 06 | 56 | 76 | 2499 | 4 | TD | 4JA1 | Pick Up | Campo | |
| Opel, Passenger Car EU | Campo | 3.1 | Diesel | 1992 12 | - | 80 | 109 | 3059 | 4 | TD | 4JG2T | Pick Up | 4x4 | Campo |
| Opel, Passenger Car EU | Campo | 2.5 | Diesel | 1991 09 | 1995 11 | 56 | 76 | 2499 | 4 | Diesel | 4JA1 | Campo | ||
| Opel, Passenger Car EU | Monterey | 3.1 | Diesel | 1991 09 | 1998 07 | 84 | 114 | 3059 | 4 | TD | 4JG2TC | Monterey A | ||
| Opel, Passenger Car EU | Campo | 3.1 | Diesel | 1992 12 | - | 80 | 109 | 3059 | 4 | TD | 4JG2T | Pick Up | Campo | |
| Opel, Passenger Car EU | Campo | 2.5 | Diesel | 1994 07 | - | 56 | 76 | 2499 | 4 | TD | 4JA1T | Pick Up | 4x4 | Campo |
| Opel, Passenger Car EU | Campo | 2.5 | Diesel | 1994 07 | - | 56 | 76 | 2499 | 4 | TD | 4JA1T | Pick Up | Campo | |
| Vauxhall, Passenger Car EU | Brava | 2.5 | Diesel | 1994 07 | - | 56 | 76 | 2499 | 4 | TD | 4JA1T | Pick Up | Brava | |
| Vauxhall, Passenger Car EU | Monterey | 3.1 | Diesel | 1991 09 | 1998 07 | 84 | 114 | 3059 | 4 | TD | 4JG2TC | 4x4 | Monterey A | |
| Vauxhall, Passenger Car EU | Brava | 2.5 | Diesel | 1994 07 | - | 56 | 76 | 2499 | 4 | TD | 4JA1T | Pick Up | 4x4 | Brava |
| Vauxhall, Passenger Car EU | Brava | 2.5 | Diesel | 1990 06 | 1994 06 | 56 | 76 | 2499 | 4 | Diesel | 4JA1T | Pick Up | 4x4 | Brava |
| Vauxhall, Passenger Car EU | Brava | 2.5 | Diesel | 1991 08 | 1994 06 | 56 | 76 | 2499 | 4 | Diesel | 4JA1 | Pick Up | Brava |
