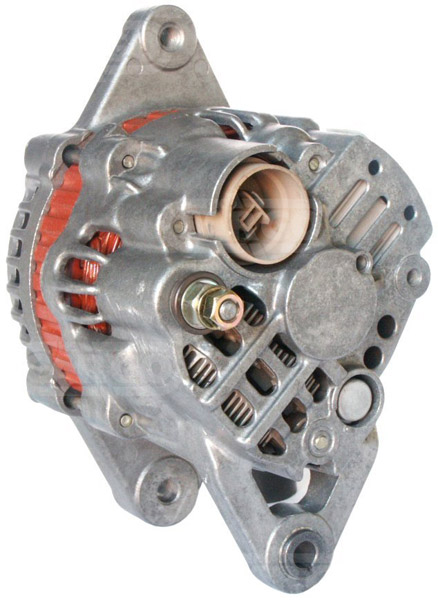

111279 - Alternator (111279)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 50,
Bracket Hole: 8.50, Belt. adj. bracket hole M8,
Width/Holder Arm: 20.00, Belt. adj. brackethole pos. 60,
Mount. Bracket Dist.: 66.00,
Pulley Dia.: 55.00,
Pulley Dist.: 37.50,
Grooves/Pulley: 4,
Radius: 78.00,
Radius: 76.00,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL11,
Blower: IF, Pulley SP,
Total Length: 160.00

Electrical specifications (Alternator)
Voltage 14
Amp 50

Physical specifications (Alternator)
D Bracket hole 8.50
G Belt. adj. bracket hole M8
B Width/holder arm 20.00
E Belt. adj. brackethole pos. 60
C Mount. bracket dist. 66.00
H Pulley dia. 55.00
A Pulley dist. 37.50
i Grooves/pulley 4
j Radius 78.00
j Radius 76.00
k B+ position M6
n Rotation CR
o Regulator plug PL11
R Total length 160.00

Further information (Alternator)
Blower IF
Pulley SP

Replacing
0123115013 BOSCH
100211-3800 DENSO
100211-3810 DENSO
31400-50G10 SUZUKI
31400-60a00 SUZUKI
31400-60a10 SUZUKI
31400-60a11 SUZUKI
31400-60a20 SUZUKI
31400-60a21 SUZUKI
31400-60ac0 SUZUKI

UNISTART Price: £102.93

Sorry, this item is out of stock.

The 111279 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Suzuki, Passenger cars US Swift 1.3 Gasoline 1991 01 1991 01 0 0 1298 L4 GL Swift
Suzuki, Passenger cars US Swift 1.3 Gasoline 2001 01 2001 01 0 0 1298 L4 Swift
Suzuki, Passenger cars US Sidekick 1.6 Gasoline 1989 01 1993 01 0 0 1590 L4 Sidekick
Suzuki, Passenger cars US Sidekick 1.6 Gasoline 1990 01 1993 01 0 0 1590 L4 JX Sidekick
Suzuki, Passenger cars US Sidekick 1.6 Gasoline 1995 01 1995 01 0 0 1590 L4 JLX Sidekick
Suzuki, Passenger cars US Sidekick 1.6 Gasoline 1995 01 1997 01 0 0 1590 L4 JX Sidekick
Suzuki, Passenger cars US Sidekick 1.6 Gasoline 1996 01 1997 01 0 0 1590 L4 JA Sidekick
Suzuki, Passenger cars US Swift 1.3 Gasoline 1990 01 1990 01 0 0 1298 L4 GL Swift
Suzuki, Passenger cars US Swift 1.3 Gasoline 1996 01 1997 01 0 0 1298 L4 GA Swift
Suzuki, Passenger cars US Sidekick 1.6 Gasoline 1998 01 1998 01 0 0 1590 L4 JX Sidekick
Suzuki, Passenger cars US Sidekick 1.6 Gasoline 1990 01 1993 01 0 0 1590 L4 JS Sidekick
Suzuki, Passenger cars US Swift 1.3 Gasoline 1990 01 1990 01 0 0 1298 L4 L Swift
Suzuki, Passenger cars US X-90 1.6 Gasoline 1996 01 1997 01 0 0 1590 L4 JLX X-90
Suzuki, Passenger cars US Sidekick 1.6 Gasoline 1998 01 1998 01 0 0 1590 L4 JA Sidekick
Suzuki, Passenger cars US Swift 1.3 Gasoline 1991 01 1991 01 0 0 1298 L4 GLX Swift
Suzuki, Passenger cars US Sidekick 1.6 Gasoline 1994 01 1994 01 0 0 1590 L4 JLX Sidekick
Suzuki, Passenger cars US Sidekick 1.6 Gasoline 1994 01 1994 01 0 0 1590 L4 JX Sidekick
Suzuki, Passenger cars US Swift 1.3 Gasoline 1992 01 1994 01 0 0 1298 L4 GS Swift
Suzuki, Passenger cars US Swift 1.3 Gasoline 1995 01 1997 01 0 0 1298 L4 DLX Swift
Suzuki, Passenger cars US Swift 1.3 Gasoline 1999 01 2000 01 0 0 1298 L4 Swift
Suzuki, Passenger cars US Swift 1.3 Gasoline 1998 01 1998 01 0 0 1298 L4 DLX Swift
Suzuki, Passenger cars US Swift 1.3 Gasoline 1998 01 1998 01 0 0 1298 L4 GA Swift
Suzuki, Passenger cars US Swift 1.3 Gasoline 1989 01 1994 01 0 0 1298 L4 GT Swift
Suzuki, Passenger cars US Swift 1.3 Gasoline 1990 01 1990 01 0 0 1298 L4 S Swift
Suzuki, Passenger cars US Swift 1.3 Gasoline 1991 01 1994 01 0 0 1298 L4 L Swift
Suzuki, Passenger cars US Swift 1 Gasoline 1993 01 - 0 0 993 L3 GA Swift
Suzuki, Passenger cars US Sidekick 1.6 Gasoline 1998 01 1998 01 0 0 1590 L4 JS Sidekick
Suzuki, Passenger cars US X-90 1.6 Gasoline 1998 01 1998 01 0 0 1590 L4 JLX X-90
Suzuki, Passenger cars US Sidekick 1.6 Gasoline 1990 01 1993 01 0 0 1590 L4 JLX Sidekick
Suzuki, Passenger cars US Sidekick 1.6 Gasoline 1991 01 1991 01 0 0 1590 L4 JL Sidekick
Suzuki, Passenger cars US Sidekick 1.6 Gasoline 1995 01 1997 01 0 0 1590 L4 JS Sidekick
Suzuki, Passenger cars US Swift 1.3 Gasoline 1989 01 1991 01 0 0 1298 L4 Swift
Suzuki, Passenger cars US Swift 1.3 Gasoline 1990 01 1994 01 0 0 1298 L4 GA Swift
Suzuki, Passenger cars US Swift 1 Gasoline 1992 01 - 0 0 993 L3 GA Swift
Suzuki, Passenger cars US Swift 1 Gasoline 1994 01 - 0 0 993 L3 GA Swift
Pontiac, Passenger cars US Firefly 1 Gasoline 1991 01 - 0 0 993 L3 LE Firefly
Pontiac, Passenger cars US Sunrunner 1.6 Gasoline 1997 01 - 0 0 1588 L4 Sunrunner
Pontiac, Passenger cars US Sunrunner 1.6 Gasoline 1995 01 - 0 0 1588 L4 Sunrunner
Pontiac, Passenger cars US Firefly 1 Gasoline 1989 01 - 0 0 993 L3 Turbo Firefly
Pontiac, Passenger cars US Firefly 1 Gasoline 1999 01 - 0 0 993 L3 Firefly
Pontiac, Passenger cars US Firefly 1 Gasoline 1998 01 - 0 0 993 L3 Firefly
Pontiac, Passenger cars US Firefly 1.3 Gasoline 1998 01 - 0 0 1295 L4 Firefly
Pontiac, Passenger cars US Firefly 1 Gasoline 1997 01 - 0 0 993 L3 Firefly
Pontiac, Passenger cars US Firefly 1 Gasoline 1996 01 - 0 0 993 L3 Firefly
Pontiac, Passenger cars US Sunrunner 1.6 Gasoline 1994 01 - 0 0 1588 L4 Sunrunner
Pontiac, Passenger cars US Firefly 1.3 Gasoline 1999 01 - 0 0 1295 L4 Firefly
Pontiac, Passenger cars US Firefly 1 Gasoline 1990 01 - 0 0 993 L3 Turbo Firefly
Pontiac, Passenger cars US Firefly 1 Gasoline 1994 01 - 0 0 993 L3 Firefly
Pontiac, Passenger cars US Firefly 1.3 Gasoline 1996 01 - 0 0 1295 L4 Firefly
Pontiac, Passenger cars US Firefly 1.3 Gasoline 1995 01 - 0 0 1295 L4 Firefly
Pontiac, Passenger cars US Firefly 1 Gasoline 1989 01 - 0 0 993 L3 Firefly
Pontiac, Passenger cars US Firefly 1 Gasoline 1990 01 - 0 0 993 L3 Firefly
Pontiac, Passenger cars US Firefly 1 Gasoline 1991 01 - 0 0 993 L3 Turbo Firefly
Pontiac, Passenger cars US Firefly 1 Gasoline 1991 01 - 0 0 993 L3 Firefly
Pontiac, Passenger cars US Firefly 1 Gasoline 1995 01 - 0 0 993 L3 Firefly
Pontiac, Passenger cars US Firefly 1.3 Gasoline 1997 01 - 0 0 1295 L4 Firefly
Pontiac, Passenger cars US Sunrunner 1.6 Gasoline 1996 01 - 0 0 1588 L4 Sunrunner
GEO, Passenger cars US Metro 1.3 Gasoline 1995 01 - 0 0 1295 L4 Metro
GEO, Passenger cars US Metro 1 Gasoline 1992 01 - 0 0 993 L3 Metro
GEO, Passenger cars US Metro 1 Gasoline 1990 01 1994 01 0 0 993 L3 XFI Metro
GEO, Passenger cars US Metro 1 Gasoline 1996 01 1996 01 0 0 993 L3 LSI Metro
GEO, Passenger cars US Tracker 1.6 Gasoline 1989 01 1995 01 0 0 1588 L4 Tracker
GEO, Passenger cars US Metro 1 Gasoline 1996 01 - 0 0 993 L3 Metro
GEO, Passenger cars US Metro 1 Gasoline 1990 01 - 0 0 993 L3 Metro
GEO, Passenger cars US Metro 1 Gasoline 1995 01 - 0 0 993 L3 Metro
GEO, Passenger cars US Metro 1 Gasoline 1991 01 - 0 0 993 L3 Metro
GEO, Passenger cars US Metro 1 Gasoline 1989 01 1994 01 0 0 993 L3 Metro
GEO, Passenger cars US Metro 1 Gasoline 1989 01 1995 01 0 0 993 L3 LSI Metro
GEO, Passenger cars US Metro 1.3 Gasoline 1995 01 1997 01 0 0 1295 L4 LSI Metro
GEO, Passenger cars US Metro 1 Gasoline 1997 01 1997 01 0 0 993 L3 Metro
GEO, Passenger cars US Tracker 1.6 Gasoline 1994 01 1997 01 0 0 1588 L4 Tracker
