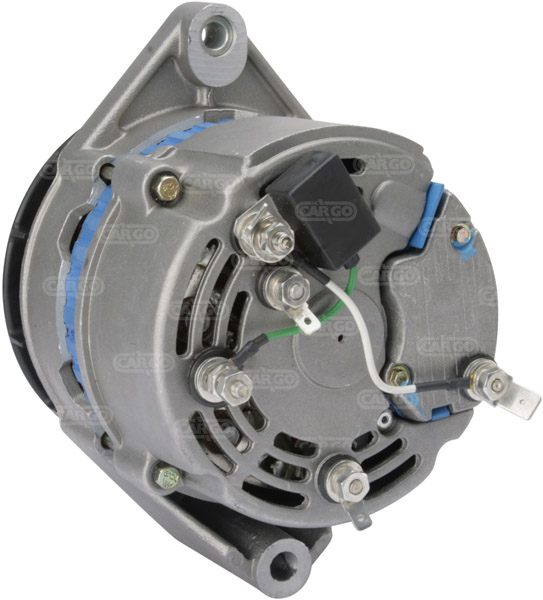

111295 - Alternator (111295)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 28,
Amp: 55, Insulator Insulated return, Terminal W,
Bracket Hole: 11.30, Belt. adj. bracket hole 10.30,
Width/Holder Arm: 76.25, Belt. adj. brackethole pos. 60,
Radius: 89.65,
Radius: 94.65,
B+ Position: M5,
Rotation: CR,
Regulator Plug: or plug PL_NA,
Blower: EF, Pulley w/o, Remarks Shaft dia. 19.00 mm.,
Total Length: 188.60, Source Prestolite
Electrical specifications (Alternator) | ||||
| Voltage | 28 | |||
| Amp | 55 | |||
| Insulator | Insulated return | |||
| Terminal | W | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 11.30 | |||
| G | Belt. adj. bracket hole 10.30 | |||
| B | Width/holder arm 76.25 | |||
| E | Belt. adj. brackethole pos. 60 | |||
| j | Radius 89.65 | |||
| j | Radius 94.65 | |||
| k | B+ position M5 | |||
| n | Rotation CR | |||
| o | Regulator plug PL_NA | |||
| R | Total length 188.60 | |||
| Source | Prestolite | |||
Further information (Alternator) | ||||
| Blower | EF | |||
| Pulley | w/o | |||
| Remarks | Shaft dia. 19.00 mm. | |||
Replacing | ||||
| 111744 | CARGO | |||
| 111745 | CARGO | |||
| 1266450 | CAV | |||
| 1266530 | CAV | |||
| 1266720 | CAV | |||
| 1268520 | CAV | |||
| 1268560 | CAV | |||
| 1268580 | CAV | |||
| 1268590 | CAV | |||
| 1268590C | CAV | |||
UNISTART Price: £237.42
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cummins, MOTOR | Various Models | 1987 01 | - | 0 | 0 | 0 | Various Models | |||||||
| Perkins, MOTOR | 4 | 3.9 | - | - | 0 | 0 | 3860 | 4-236 |
