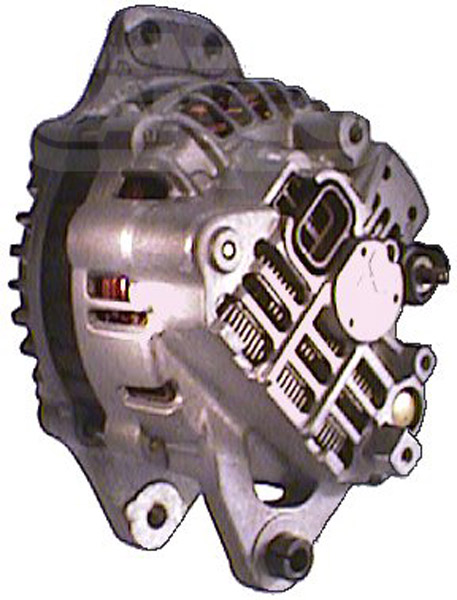

111314 - Alternator (111314)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 90,
Bracket Hole: 8.60, Belt. adj. bracket hole M8,
Width/Holder Arm: 13.15, Belt. adj. brackethole pos. 60, Belt. adj. brackethole pos. 3,
Mount. Bracket Dist.: 55.15,
Pulley Dia.: 62.00,
Pulley Dist.: 37.90,
Grooves/Pulley: 5,
Radius: 88.80,
Radius: 87.25,
Radius: 87.70,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL07,
Blower: IF, Pulley SP, Belt. adj. bracket hole M8,
Total Length: 158.90

Electrical specifications (Alternator)
Voltage 14
Amp 90

Physical specifications (Alternator)
D Bracket hole 8.60
G Belt. adj. bracket hole M8
B Width/holder arm 13.15
E Belt. adj. brackethole pos. 60
E Belt. adj. brackethole pos. 3
C Mount. bracket dist. 55.15
H Pulley dia. 62.00
A Pulley dist. 37.90
i Grooves/pulley 5
j Radius 88.80
j Radius 87.25
j Radius 87.70
k B+ position M6
n Rotation CR
o Regulator plug PL07
G Belt. adj. bracket hole M8
R Total length 158.90

Further information (Alternator)
Blower IF
Pulley SP

Replacing
37300-36030 KIA
37300-43850 KIA
37300-43860 KIA
A003T08293 MITSUBISHI
A003T08376 MITSUBISHI
A003T45794 MITSUBISHI
a3t08293 MITSUBISHI
a3t08376 MITSUBISHI
a3t45794 MITSUBISHI
a3ta1391 MITSUBISHI

UNISTART Price: £120.75

Sorry, this item is out of stock.

The 111314 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Hyundai, Passenger Car EU H-100 2.4 Gasoline 1993 07 2000 03 90 122 2351 4 G4CS Bus H-100 P
Hyundai, Passenger Car EU Satellite 2.4 Gasoline 1997 10 - 82 112 2351 4 i G4CS Satellite
Hyundai, Passenger Car EU H-100 2.4 Gasoline 1997 01 2000 03 84 114 2351 4 G4CS Bus H-100
Hyundai, Passenger Car EU H-1 2.4 Gasoline 2000 03 - 82 112 2351 4 G4CS Van H-1
Hyundai, Passenger Car EU Galloper 3 Gasoline 1998 08 - 104 141 2972 6 V6 G6AT Galloper
Hyundai, Passenger Car EU Starex 2.4 Gasoline 1997 06 - 82 112 2351 4 G4CS MPV Starex
Hyundai, Passenger Car EU H-1 Starex 2.4 Gasoline 2001 06 2006 12 99 135 2351 4 G4JS Bus H-1 Starex
Hyundai, Passenger Car EU Starex 2.4 Gasoline 1998 02 - 82 112 2351 4 G4CS MPV 4WD Starex
Mitsubishi, Passenger Car EU Pajero 3 Gasoline 1990 12 1995 12 110 150 2972 6 V6 6G72(SOHC12V) Convertible Pajero
Mitsubishi, Passenger Car EU L 300 2.4 Gasoline 1986 11 1990 12 80 109 2351 4 G64B Bus 4WD L 300
Mitsubishi, Passenger Car EU Pajero 3 Gasoline 1990 12 1995 12 110 150 2972 6 V6 6G72 Pajero
Mitsubishi, Passenger Car EU Galloper 3 Gasoline 1998 09 2003 12 104 141 2972 6 V6 G6AT Galloper
Hyundai, Passenger Car EU Satellite 2.4 Gasoline 1997 10 - 82 112 2351 4 i G4CS Satellite
Hyundai, Passenger Car EU H-100 2.4 Gasoline 1997 01 2000 03 84 114 2351 4 G4CS Bus H-100
Hyundai, Passenger Car EU Galloper 3 Gasoline 1998 08 - 104 141 2972 6 V6 G6AT Galloper
Hyundai, Passenger Car EU Starex 2.4 Gasoline 1998 02 - 82 112 2351 4 G4CS MPV 4WD Starex
Hyundai, Passenger Car EU Starex 2.4 Gasoline 1997 06 - 82 112 2351 4 G4CS MPV Starex
Hyundai, Passenger Car EU H-1 Starex 2.4 Gasoline 2001 06 2006 12 99 135 2351 4 G4JS Bus H-1 Starex
