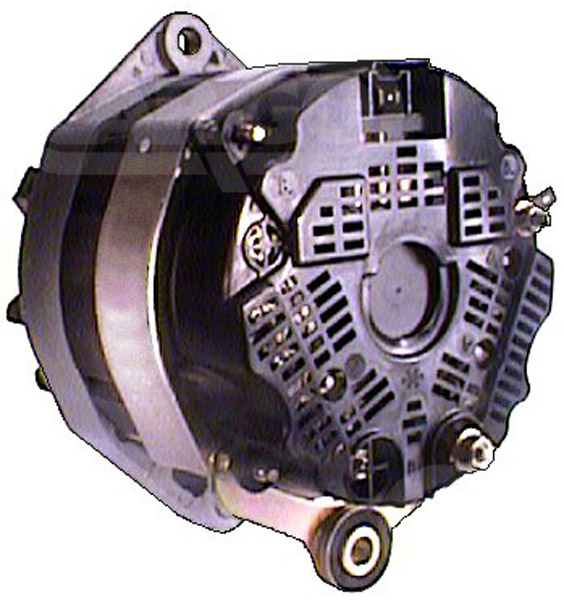

111319 - Alternator (111319)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 105, Terminal W,
Bracket Hole: 10.20, Belt. adj. bracket hole 8.20,
Width/Holder Arm: 26.90, Belt. adj. brackethole pos. 60,
Mount. Bracket Dist.: 66.00,
Pulley Dia.: 79.00,
Pulley Dist.: 48.50,
Grooves/Pulley: 1,
Radius: 87.50,
Radius: 84.00,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL27,
Blower: EF, Pulley P,
Total Length: 193.50

Electrical specifications (Alternator)
Voltage 14
Amp 105
Terminal W

Physical specifications (Alternator)
D Bracket hole 10.20
G Belt. adj. bracket hole 8.20
B Width/holder arm 26.90
E Belt. adj. brackethole pos. 60
C Mount. bracket dist. 66.00
H Pulley dia. 79.00
A Pulley dist. 48.50
i Grooves/pulley 1
j Radius 87.50
j Radius 84.00
k B+ position M6
n Rotation CR
o Regulator plug PL27
R Total length 193.50

Further information (Alternator)
Blower EF
Pulley P

Replacing
2541197 VALEO
2541307 VALEO
2541307C VALEO
2541307D VALEO
5002781 VOLVO
7700754850 RENAULT
7700754852 RENAULT
7700796914 RENAULT
7700808647 RENAULT
7701351764 RENAULT

UNISTART Price: £102.14

Sorry, this item is out of stock.

The 111319 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Renault, Passenger Car EU R21 2 Gasoline 1987 04 1990 03 129 175 1995 4 Turbo J7R752 R21
Renault, Passenger Car EU R21 2.1 Diesel 1986 03 1989 12 48 65 2068 4 Diesel J8S704 R21
Renault, Passenger Car EU R21 2.1 Diesel 1989 09 1994 06 65 88 2068 4 TD J8S786 Hatchback R21
Renault, Passenger Car EU R21 2 Gasoline 1990 02 1992 10 99 135 1995 4 J7R740 Hatchback R21
Renault, Passenger Car EU R21 2.2 Gasoline 1986 06 1993 11 79 108 2165 4 J7T755 Estate R21
Renault, Passenger Car EU R21 2.1 Diesel 1989 08 1992 12 53 72 2068 4 Diesel J8S740 Estate R21
Renault, Passenger Car EU R25 2 Gasoline 1984 04 1992 12 74 101 1995 4 J6R706 Hatchback R25
Renault, Passenger Car EU R25 2 Gasoline 1984 04 1992 12 74 101 1995 4 J6R760 Hatchback R25
Renault, Passenger Car EU R25 2.2 Gasoline 1984 04 1989 12 89 121 2165 4 J7T706 Hatchback R25
Renault, Passenger Car EU R21 2 Gasoline 1986 06 1988 12 85 116 1995 4 J7R750 Estate R21
Renault, Passenger Car EU R21 2 Gasoline 1986 06 1988 12 85 116 1995 4 J7R751 Estate R21
Renault, Passenger Car EU R21 2.1 Diesel 1992 02 1995 09 51 69 2068 4 Diesel J8S784 Estate R21
Renault, Passenger Car EU R21 2 Gasoline 1986 03 1993 12 88 120 1995 4 J7R746 R21
Renault, Passenger Car EU R21 2 Gasoline 1990 02 1994 06 99 135 1995 4 J7R740 R21
Renault, Passenger Car EU R21 2 Gasoline 1990 06 1994 02 99 135 1995 4 J7R740 Estate R21
Renault, Passenger Car EU R21 2.2 Gasoline 1986 06 1993 12 79 107 2165 4 J7T754 Estate 4x4 R21
Renault, Passenger Car EU R21 2.1 Diesel 1989 05 1994 06 53 72 2068 4 Diesel J8S600 R21
Renault, Passenger Car EU R21 2.1 Diesel 1989 09 1992 12 53 72 2068 4 Diesel J8S740 Hatchback R21
Renault, Passenger Car EU R25 2.2 Gasoline 1984 04 1989 12 91 124 2165 4 J7T731 Hatchback R25
Renault, Passenger Car EU R25 2.2 Gasoline 1985 11 1989 03 76 103 2165 4 J7T732 Hatchback R25
Renault, Passenger Car EU R21 2 Gasoline 1989 08 1993 10 129 175 1995 4 Turbo J7R752 4x4 R21
Renault, Passenger Car EU R21 2.1 Diesel 1989 09 1994 06 65 88 2068 4 TD J8S788 Hatchback R21
Renault, Passenger Car EU R21 2.1 Diesel 1986 03 1994 06 65 88 2068 4 TD J8S788 R21
Renault, Passenger Car EU R21 2.2 Gasoline 1989 09 1994 06 79 107 2165 4 J7T754 Hatchback R21
Renault, Passenger Car EU R21 2.2 Gasoline 1989 09 1994 06 79 107 2165 4 J7T755 Hatchback R21
Renault, Passenger Car EU R21 2.1 Diesel 1989 08 1992 12 53 72 2068 4 Diesel J8S600 Estate R21
Renault, Passenger Car EU R25 2.2 Gasoline 1984 04 1989 12 89 121 2165 4 J7T715 Hatchback R25
Renault, Passenger Car EU R25 2 Gasoline 1989 06 1992 12 99 135 1995 4 12V J7R726 Hatchback R25
Renault, Passenger Car EU Espace 2.1 Diesel 1991 01 1996 10 65 88 2068 4 TD J8S772 MPV Espace
Renault, Passenger Car EU Espace 2.1 Diesel 1991 01 1996 10 65 88 2068 4 TD J8S778 MPV Espace
Renault, Passenger Car EU Espace 2.2 Gasoline 1991 01 1996 10 79 108 2165 4 J7T773 MPV Espace
Renault, Passenger Car EU R21 2.2 Gasoline 1990 07 1994 02 79 107 2165 4 J7T755 4x4 R21
Renault, Passenger Car EU R21 2.2 Gasoline 1990 07 1994 06 79 107 2165 4 J7T755 Hatchback 4x4 R21
Renault, Passenger Car EU R21 2.1 Diesel 1989 09 1992 12 53 72 2068 4 Diesel J8S600 Hatchback R21
Renault, Passenger Car EU R25 2.2 Gasoline 1984 04 1989 12 91 124 2165 4 J7T730 Hatchback R25
Renault, Passenger Car EU R25 2.1 Diesel 1989 06 1992 12 51 69 2068 4 Diesel J8S736 Hatchback R25
Renault, Passenger Car EU R21 2 Gasoline 1989 09 1993 12 88 120 1995 4 J7R747 Hatchback R21
Renault, Passenger Car EU Espace 2.2 Gasoline 1991 03 1996 12 79 108 2165 4 J7T773 MPV 4x4 Espace
Renault, Passenger Car EU R21 2 Gasoline 1986 03 1993 12 88 120 1995 4 J7R747 R21
Renault, Passenger Car EU R21 2 Gasoline 1989 03 1993 12 88 120 1995 4 J7R746 Estate 4x4 R21
Renault, Passenger Car EU R21 2.1 Diesel 1989 09 1994 06 65 88 2068 4 TD J8S714 Hatchback R21
Renault, Passenger Car EU R21 2.2 Gasoline 1986 06 1993 11 79 108 2165 4 J7T754 Estate R21
Renault, Passenger Car EU R21 2.1 Diesel 1986 10 1990 09 48 65 2068 4 Diesel J8S704 Estate R21
Renault, Passenger Car EU Espace 2.2 Gasoline 1991 01 1996 10 79 108 2165 4 J7T772 MPV Espace
Renault, Passenger Car EU R21 2.1 Diesel 1986 03 1994 06 65 88 2068 4 TD J8S714 R21
Renault, Passenger Car EU R21 2.1 Diesel 1986 03 1994 06 65 88 2068 4 TD J8S786 R21
Renault, Passenger Car EU R21 2 Gasoline 1990 02 1992 10 119 162 1995 4 Turbo J7R756 R21
Renault, Passenger Car EU R21 2.2 Gasoline 1986 06 1993 12 79 107 2165 4 J7T755 Estate 4x4 R21
Renault, Passenger Car EU R21 2.1 Diesel 1992 10 1994 06 51 69 2068 4 Diesel J8S784 R21
Renault, Passenger Car EU R21 2.2 Gasoline 1990 07 1994 02 79 107 2165 4 J7T754 4x4 R21
Renault, Passenger Car EU R21 2 Gasoline 1986 03 1993 10 75 102 1995 4 J6R759 R21
Renault, Passenger Car EU R25 2 Gasoline 1988 06 1993 12 103 140 1995 4 12V J7R720 Hatchback R25
Renault, Passenger Car EU R21 2 Gasoline 1986 03 1988 12 85 116 1995 4 J7R751 R21
Renault, Passenger Car EU R21 2.1 Diesel 1986 10 1993 11 65 88 2068 4 TD J8S714 Estate R21
Renault, Passenger Car EU R25 2 Gasoline 1984 04 1992 12 74 101 1995 4 J6R762 Hatchback R25
Renault, Passenger Car EU R25 2.2 Gasoline 1986 09 1992 12 79 108 2165 4 J7T733 Hatchback R25
Renault, Passenger Car EU Espace 2.1 Diesel 1991 01 1996 10 65 88 2068 4 TD J8S776 MPV Espace
Renault, Passenger Car EU R21 2 Gasoline 1989 12 1994 02 99 135 1995 4 J7R740 4x4 R21
Renault, Passenger Car EU R21 2.1 Diesel 1988 10 1992 05 48 65 2068 4 Diesel J8S704 Estate 4x4 R21
Renault, Passenger Car EU R21 2.1 Diesel 1989 05 1994 06 53 72 2068 4 Diesel J8S740 R21
Renault, Passenger Car EU R21 2.1 Diesel 1992 04 1994 06 51 69 2068 4 Diesel J8S784 Hatchback R21
Renault, Passenger Car EU R21 2 Gasoline 1989 03 1993 12 88 120 1995 4 J7R747 Estate 4x4 R21
Renault, Passenger Car EU R21 2 Gasoline 1986 03 1993 10 75 102 1995 4 J6R758 R21
Renault, Passenger Car EU R21 2 Gasoline 1986 03 1993 10 75 102 1995 4 J6R792 R21
Renault, Passenger Car EU Espace 2.1 Diesel 1994 11 1996 10 66 90 2068 4 TD J8S612 MPV Espace
Renault, Passenger Car EU R21 2 Gasoline 1986 03 1988 12 85 116 1995 4 J7R750 R21
Renault, Passenger Car EU R21 2.2 Gasoline 1986 07 1994 02 79 107 2165 4 J7T754 R21
Renault, Passenger Car EU R21 2.2 Gasoline 1986 07 1994 02 79 107 2165 4 J7T755 R21
Renault, Passenger Car EU R21 2.1 Diesel 1986 10 1993 11 65 88 2068 4 TD J8S786 Estate R21
Renault, Passenger Car EU R25 2 Gasoline 1984 04 1992 12 74 101 1995 4 J6R707 Hatchback R25
Renault, Passenger Car EU R25 2 Gasoline 1984 04 1992 12 74 101 1995 4 J6R763 Hatchback R25
Renault, Passenger Car EU R25 2.2 Gasoline 1984 04 1989 12 89 121 2165 4 J7T707 Hatchback R25
Renault, Passenger Car EU R25 2.2 Gasoline 1984 04 1989 12 89 121 2165 4 J7T714 Hatchback R25
Renault, Passenger Car EU R25 2.1 Diesel 1984 04 1989 05 46 63 2068 4 Diesel J8S706 Hatchback R25
Renault, Passenger Car EU R25 2.1 Diesel 1984 04 1992 12 63 86 2068 4 TD J8S708 Hatchback R25
Renault, Passenger Car EU R25 2.1 Diesel 1984 04 1992 12 63 86 2068 4 TD J8S738 Hatchback R25
Renault, Passenger Car EU R25 2.2 Gasoline 1986 09 1992 12 79 108 2165 4 J7T708 Hatchback R25
Renault, Passenger Car EU R25 2.2 Gasoline 1986 09 1992 12 79 108 2165 4 J7T732 Hatchback R25
Renault, Passenger Car EU Espace 2.1 Diesel 1991 01 1996 10 65 88 2068 4 TD J8S610 MPV Espace
Renault, Passenger Car EU Espace 2.2 Gasoline 1991 01 1996 10 79 108 2165 4 J7T776 MPV Espace
Renault, Passenger Car EU R21 2 Gasoline 1989 09 1993 12 88 120 1995 4 J7R746 Hatchback R21
Renault, Passenger Car EU R21 2 Gasoline 1990 02 1992 10 119 162 1995 4 Turbo J7R756 4x4 R21
Renault, Passenger Car EU R21 2.2 Gasoline 1990 07 1994 06 79 107 2165 4 J7T754 Hatchback 4x4 R21
Renault, Passenger Car EU R21 2 Gasoline 1990 09 1992 10 99 135 1995 4 J7R740 Hatchback 4x4 R21
Renault, Passenger Car EU R21 2 Gasoline 1986 03 1993 10 75 102 1995 4 J6R793 R21
Renault V.I., Passenger Car EU Messenger 2.8 Diesel 1996 09 1999 06 90 122 2800 4 8140.43.2585 Platform / Chassis B 120.55
Renault V.I., Passenger Car EU Messenger 2.8 Diesel 1996 09 1999 06 90 122 2800 4 8140.43.2585 Semi-Trailer B 120.55
Renault V.I., Passenger Car EU Messenger 2.5 Diesel 1990 09 1999 06 55 75 2500 4 8140.67.2585 Twin Cab B 80.45
Renault V.I., Passenger Car EU Messenger 2.5 Diesel 1990 09 1999 06 55 75 2500 4 8140.07.2585 Twin Cab B 80.35
Renault V.I., Passenger Car EU Messenger 2.5 Diesel 1990 09 1999 06 55 75 2500 4 8140.67.2585 Platform / Chassis B 80.35
Renault V.I., Passenger Car EU Messenger 2.8 Diesel 1996 09 1999 06 90 122 2800 4 8140.43.2585 Dump Truck B 120.65
Renault V.I., Passenger Car EU Messenger 2.5 Diesel 1990 09 1999 06 55 75 2500 4 8140.07.2530ID Twin Cab B 80.45
Renault V.I., Passenger Car EU Messenger 2.5 Diesel 1990 09 1999 06 55 75 2500 4 8140.07.2530ID Twin Cab B 80.35
Renault V.I., Passenger Car EU Messenger 2.5 Diesel 1990 09 1999 06 55 75 2500 4 8140.07.2530ID Platform / Chassis B 80.45
Renault V.I., Passenger Car EU Messenger 2.5 Diesel 1994 01 1996 09 85 116 2500 4 8140.47.2585 Platform / Chassis B 120.55
Renault V.I., Passenger Car EU Messenger 2.8 Diesel 1996 09 1999 06 90 122 2800 4 8140.43.2585 Twin Cab B 120.35
Renault V.I., Passenger Car EU Messenger 2.5 Diesel 1996 02 1999 06 55 75 2500 4 8140.67.2585 Platform / Chassis B 80.45
Renault V.I., Passenger Car EU Messenger 2.8 Diesel 1996 09 1999 06 90 122 2800 4 8140.43.2585 Dump Truck B 120.55
Renault V.I., Passenger Car EU Messenger 2.8 Diesel 1996 09 1999 06 78 106 2800 4 8140.23.2585 Platform / Chassis B 110.45
Renault V.I., Passenger Car EU Messenger 2.8 Diesel 1996 09 1999 06 90 122 2800 4 8140.43.2585 Twin Cab B 120.55
Renault V.I., Passenger Car EU Messenger 2.8 Diesel 1996 09 1999 06 90 122 2800 4 8140.43.2585 Platform / Chassis B 120.65
Renault V.I., Passenger Car EU Messenger 2.5 Diesel 1994 01 1996 09 85 116 2500 4 8140.47.2585 Semi-Trailer B 120.55
Renault V.I., Passenger Car EU Messenger 2.8 Diesel 1996 09 1999 06 78 106 2800 4 8140.23.2565 Platform / Chassis B 110.45
Renault V.I., Passenger Car EU Messenger 2.8 Diesel 1996 09 1999 06 78 106 2800 4 8140.23.2585 Twin Cab B 110.45
Renault V.I., Passenger Car EU Messenger 2.5 Diesel 1990 09 1999 06 55 75 2500 4 8140.07.2585 Platform / Chassis B 80.35
Renault V.I., Passenger Car EU B Series 2.5 Diesel 1990 08 1992 01 71 97 2499 4 Diesel 8140.27.2530 IDS Platform / Chassis B 90
Renault V.I., Passenger Car EU Messenger 2.8 Diesel 1996 09 1999 06 90 122 2800 4 8140.43.2585 Platform / Chassis B 120.35
Renault V.I., Passenger Car EU Messenger 2.5 Diesel 1990 09 1999 06 55 75 2500 4 8140.67.2585 Twin Cab B 80.35
Renault V.I., Passenger Car EU Messenger 2.8 Diesel 1996 09 1999 06 90 122 2800 4 8140.43.2585 Dump Truck B 120.35
Renault V.I., Passenger Car EU Messenger 2.5 Diesel 1994 01 1996 09 85 116 2500 4 8140.47.2585 Twin Cab B 120.55
Renault V.I., Passenger Car EU Messenger 2.5 Diesel 1994 01 1996 09 85 116 2500 4 8140.47.2585 Platform / Chassis B 120.65
Renault V.I., Passenger Car EU Messenger 2.5 Diesel 1990 09 1999 06 55 75 2500 4 8140.07.2585 Twin Cab B 80.45
Renault V.I., Passenger Car EU Messenger 2.5 Diesel 1990 09 1999 06 55 75 2500 4 8140.07.2585 Platform / Chassis B 80.45
Renault V.I., Passenger Car EU B Series 2.5 Diesel 1990 08 1992 01 71 97 2499 4 Diesel 8140.27.2530 IDS Twin Cab B 90
Renault V.I., Passenger Car EU Messenger 2.5 Diesel 1990 09 1999 06 55 75 2500 4 8140.07.2530ID Platform / Chassis B 80.35
Renault, Passenger cars AO Espace 2.1 Diesel 1991 01 1992 05 65 88 2068 4 Diesel J8S772 MPV RTDT Quadra Espace
