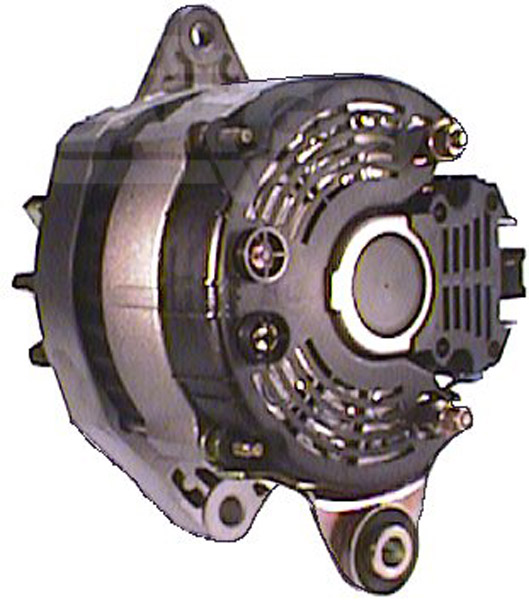

111321 - Alternator (111321)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 70,
Bracket Hole: 10.50, Belt. adj. bracket hole 8.50,
Width/Holder Arm: 27.00, Belt. adj. brackethole pos. 60,
Mount. Bracket Dist.: 69.50,
Pulley Dia.: 55.00,
Pulley Dist.: 46.50,
Grooves/Pulley: 6,
Radius: 84.00,
Radius: >85,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL26,
Blower: EF, Pulley SP,
Total Length: 166.00

Electrical specifications (Alternator)
Voltage 14
Amp 70

Physical specifications (Alternator)
D Bracket hole 10.50
G Belt. adj. bracket hole 8.50
B Width/holder arm 27.00
E Belt. adj. brackethole pos. 60
C Mount. bracket dist. 69.50
H Pulley dia. 55.00
A Pulley dist. 46.50
i Grooves/pulley 6
j Radius 84.00
j Radius >85
k B+ position M6
n Rotation CR
o Regulator plug PL26
R Total length 166.00

Further information (Alternator)
Blower EF
Pulley SP

Replacing
0120489491 BOSCH
11.201.523 ISKRA
2541173 VALEO
2541445 VALEO
2541490 VALEO
2541807 VALEO
9031146 VOLVO
a13n133 VALEO
a13n178 VALEO
a13n232 VALEO

UNISTART Price: £83.39

Sorry, this item is out of stock.

The 111321 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Volvo, Passenger Car EU 480 2 Gasoline 1992 08 1995 09 81 110 1998 4 B20F Coupe 480
Volvo, Passenger Car EU 440 1.7 Gasoline 1988 08 1989 07 70 95 1721 4 B18F Hatchback 440
Volvo, Passenger Car EU 460 1.8 Gasoline 1991 08 1996 07 66 90 1794 4 B18U 460
Volvo, Passenger Car EU 480 1.7 Gasoline 1987 08 1996 07 88 120 1721 4 Turbo B18FT Coupe 480
Volvo, Passenger Car EU 480 1.7 Gasoline 1989 08 1996 07 75 102 1721 4 B18EP Coupe 480
Volvo, Passenger Car EU 460 1.7 Gasoline 1989 08 1996 07 88 120 1721 4 Turbo B18FT 460
Volvo, Passenger Car EU 440 2 Gasoline 1993 08 1996 07 80 109 1998 4 B20F Hatchback 440
Volvo, Passenger Car EU 440 1.6 Gasoline 1988 09 1996 12 61 83 1596 4 B16F Hatchback 440
Volvo, Passenger Car EU 460 1.6 Gasoline 1992 07 1996 07 61 83 1596 4 B16F 460
Volvo, Passenger Car EU 440 1.7 Gasoline 1988 09 1996 12 78 106 1721 4 B18EP Hatchback 440
Volvo, Passenger Car EU 440 1.7 Gasoline 1988 08 1996 07 88 120 1721 4 Turbo B18FT Hatchback 440
Volvo, Passenger Car EU 440 1.7 Gasoline 1989 08 1996 12 75 102 1721 4 B18FP Hatchback 440
Volvo, Passenger Car EU 460 1.7 Gasoline 1989 08 1992 07 75 102 1721 4 B18EP 460
Volvo, Passenger Car EU 440 1.7 Gasoline 1991 01 1996 12 90 122 1721 4 Turbo B18FT Hatchback 440
Volvo, Passenger Car EU 440 1.8 Gasoline 1995 09 1996 12 66 90 1783 4 B18U Hatchback 440
Volvo, Passenger Car EU 480 1.7 Gasoline 1987 08 1989 07 70 95 1721 4 B18F Coupe 480
Volvo, Passenger Car EU 480 1.7 Gasoline 1986 08 1988 07 80 109 1721 4 B18E Coupe 480
Volvo, Passenger Car EU 480 1.7 Gasoline 1991 01 1996 07 90 122 1721 4 Turbo B18FT Coupe 480
Volvo, Passenger Car EU 440 1.7 Gasoline 1988 09 1996 12 64 87 1721 4 B18KP Hatchback 440
Volvo, Passenger Car EU 440 1.8 Gasoline 1991 08 1996 07 66 90 1794 4 B18U Hatchback 440
Volvo, Passenger Car EU 480 1.7 Gasoline 1986 04 1989 07 78 106 1721 4 B18E Coupe 480
Volvo, Passenger Car EU 440 1.9 Diesel 1994 07 1996 12 66 90 1870 4 TD D19T Hatchback 440
Volvo, Passenger Car EU 440 2 Gasoline 1992 08 1995 07 81 110 1998 4 B20F Hatchback 440
Volvo, Passenger Car EU 460 2 Gasoline 1992 08 1995 07 81 110 1998 4 B20F 460
Volvo, Passenger Car EU 460 2 Gasoline 1993 08 1996 07 80 109 1998 4 B20F 460
Volvo, Passenger Car EU 460 1.7 Gasoline 1991 01 1996 07 90 122 1721 4 Turbo B18FT 460
Volvo, Passenger Car EU 480 2 Gasoline 1992 08 1995 09 81 110 1998 4 B20F Coupe 480
Volvo, Passenger Car EU 440 1.7 Gasoline 1988 08 1989 07 70 95 1721 4 B18F Hatchback 440
Volvo, Passenger Car EU 460 1.8 Gasoline 1991 08 1996 07 66 90 1794 4 B18U 460
Volvo, Passenger Car EU 480 1.7 Gasoline 1987 08 1996 07 88 120 1721 4 Turbo B18FT Coupe 480
Volvo, Passenger Car EU 480 1.7 Gasoline 1989 08 1996 07 75 102 1721 4 B18EP Coupe 480
Volvo, Passenger Car EU 460 1.7 Gasoline 1989 08 1996 07 88 120 1721 4 Turbo B18FT 460
Volvo, Passenger Car EU 440 2 Gasoline 1993 08 1996 07 80 109 1998 4 B20F Hatchback 440
Volvo, Passenger Car EU 440 1.6 Gasoline 1988 09 1996 12 61 83 1596 4 B16F Hatchback 440
Volvo, Passenger Car EU 460 1.6 Gasoline 1992 07 1996 07 61 83 1596 4 B16F 460
Volvo, Passenger Car EU 440 1.7 Gasoline 1988 09 1996 12 78 106 1721 4 B18EP Hatchback 440
Volvo, Passenger Car EU 440 1.7 Gasoline 1988 08 1996 07 88 120 1721 4 Turbo B18FT Hatchback 440
Volvo, Passenger Car EU 440 1.7 Gasoline 1989 08 1996 12 75 102 1721 4 B18FP Hatchback 440
Volvo, Passenger Car EU 460 1.7 Gasoline 1989 08 1992 07 75 102 1721 4 B18EP 460
Volvo, Passenger Car EU 440 1.7 Gasoline 1991 01 1996 12 90 122 1721 4 Turbo B18FT Hatchback 440
Volvo, Passenger Car EU 440 1.8 Gasoline 1995 09 1996 12 66 90 1783 4 B18U Hatchback 440
Volvo, Passenger Car EU 480 1.7 Gasoline 1987 08 1989 07 70 95 1721 4 B18F Coupe 480
Volvo, Passenger Car EU 480 1.7 Gasoline 1986 08 1988 07 80 109 1721 4 B18E Coupe 480
Volvo, Passenger Car EU 480 1.7 Gasoline 1991 01 1996 07 90 122 1721 4 Turbo B18FT Coupe 480
Volvo, Passenger Car EU 440 1.7 Gasoline 1988 09 1996 12 64 87 1721 4 B18KP Hatchback 440
Volvo, Passenger Car EU 440 1.8 Gasoline 1991 08 1996 07 66 90 1794 4 B18U Hatchback 440
Volvo, Passenger Car EU 440 1.9 Diesel 1994 07 1996 12 66 90 1870 4 TD D19T Hatchback 440
Volvo, Passenger Car EU 440 2 Gasoline 1992 08 1995 07 81 110 1998 4 B20F Hatchback 440
Volvo, Passenger Car EU 460 2 Gasoline 1992 08 1995 07 81 110 1998 4 B20F 460
Volvo, Passenger Car EU 460 2 Gasoline 1993 08 1996 07 80 109 1998 4 B20F 460
Volvo, Passenger Car EU 460 1.7 Gasoline 1991 01 1996 07 90 122 1721 4 Turbo B18FT 460
Volvo, Passenger Car EU 480 2 Gasoline 1992 08 1995 09 81 110 1998 4 B20F Coupe 480
Volvo, Passenger Car EU 480 1.7 Gasoline 1987 08 1996 07 88 120 1721 4 Turbo B18FT Coupe 480
Volvo, Passenger Car EU 460 1.7 Gasoline 1989 08 1996 07 88 120 1721 4 Turbo B18FT 460
Volvo, Passenger Car EU 440 2 Gasoline 1993 08 1996 07 80 109 1998 4 B20F Hatchback 440
Volvo, Passenger Car EU 440 1.7 Gasoline 1988 08 1996 07 88 120 1721 4 Turbo B18FT Hatchback 440
Volvo, Passenger Car EU 460 1.7 Gasoline 1989 08 1992 07 75 102 1721 4 B18EP 460
Volvo, Passenger Car EU 480 1.7 Gasoline 1987 08 1989 07 70 95 1721 4 B18F Coupe 480
Volvo, Passenger Car EU 480 1.7 Gasoline 1986 08 1988 07 80 109 1721 4 B18E Coupe 480
Volvo, Passenger Car EU 440 1.8 Gasoline 1991 08 1996 07 66 90 1794 4 B18U Hatchback 440
Volvo, Passenger Car EU 440 1.9 Diesel 1994 07 1996 12 66 90 1870 4 TD D19T Hatchback 440
Volvo, Passenger Car EU 480 1.7 Gasoline 1986 04 1989 07 78 106 1721 4 B18E Coupe 480
Volvo, Passenger Car EU 440 2 Gasoline 1992 08 1995 07 81 110 1998 4 B20F Hatchback 440
Volvo, Passenger Car EU 460 2 Gasoline 1993 08 1996 07 80 109 1998 4 B20F 460
Volvo, Passenger Car EU 480 2 Gasoline 1992 08 1995 09 81 110 1998 4 B20F Coupe 480
Volvo, Passenger Car EU 440 1.7 Gasoline 1988 08 1989 07 70 95 1721 4 B18F Hatchback 440
Volvo, Passenger Car EU 460 1.8 Gasoline 1991 08 1996 07 66 90 1794 4 B18U 460
Volvo, Passenger Car EU 480 1.7 Gasoline 1987 08 1996 07 88 120 1721 4 Turbo B18FT Coupe 480
Volvo, Passenger Car EU 480 1.7 Gasoline 1989 08 1996 07 75 102 1721 4 B18EP Coupe 480
Volvo, Passenger Car EU 460 1.7 Gasoline 1989 08 1996 07 88 120 1721 4 Turbo B18FT 460
Volvo, Passenger Car EU 440 2 Gasoline 1993 08 1996 07 80 109 1998 4 B20F Hatchback 440
Volvo, Passenger Car EU 440 1.6 Gasoline 1988 09 1996 12 61 83 1596 4 B16F Hatchback 440
Volvo, Passenger Car EU 460 1.6 Gasoline 1992 07 1996 07 61 83 1596 4 B16F 460
Volvo, Passenger Car EU 440 1.7 Gasoline 1988 09 1996 12 78 106 1721 4 B18EP Hatchback 440
Volvo, Passenger Car EU 440 1.7 Gasoline 1988 08 1996 07 88 120 1721 4 Turbo B18FT Hatchback 440
Volvo, Passenger Car EU 440 1.7 Gasoline 1989 08 1996 12 75 102 1721 4 B18FP Hatchback 440
Volvo, Passenger Car EU 460 1.7 Gasoline 1989 08 1992 07 75 102 1721 4 B18EP 460
Volvo, Passenger Car EU 440 1.7 Gasoline 1991 01 1996 12 90 122 1721 4 Turbo B18FT Hatchback 440
Volvo, Passenger Car EU 440 1.8 Gasoline 1995 09 1996 12 66 90 1783 4 B18U Hatchback 440
Volvo, Passenger Car EU 480 1.7 Gasoline 1987 08 1989 07 70 95 1721 4 B18F Coupe 480
Volvo, Passenger Car EU 480 1.7 Gasoline 1986 08 1988 07 80 109 1721 4 B18E Coupe 480
Volvo, Passenger Car EU 480 1.7 Gasoline 1991 01 1996 07 90 122 1721 4 Turbo B18FT Coupe 480
Volvo, Passenger Car EU 440 1.7 Gasoline 1988 09 1996 12 64 87 1721 4 B18KP Hatchback 440
Volvo, Passenger Car EU 440 1.8 Gasoline 1991 08 1996 07 66 90 1794 4 B18U Hatchback 440
Volvo, Passenger Car EU 440 1.9 Diesel 1994 07 1996 12 66 90 1870 4 TD D19T Hatchback 440
Volvo, Passenger Car EU 480 1.7 Gasoline 1986 04 1989 07 78 106 1721 4 B18E Coupe 480
Volvo, Passenger Car EU 440 2 Gasoline 1992 08 1995 07 81 110 1998 4 B20F Hatchback 440
Volvo, Passenger Car EU 460 2 Gasoline 1992 08 1995 07 81 110 1998 4 B20F 460
Volvo, Passenger Car EU 460 2 Gasoline 1993 08 1996 07 80 109 1998 4 B20F 460
Volvo, Passenger Car EU 460 1.7 Gasoline 1991 01 1996 07 90 122 1721 4 Turbo B18FT 460
