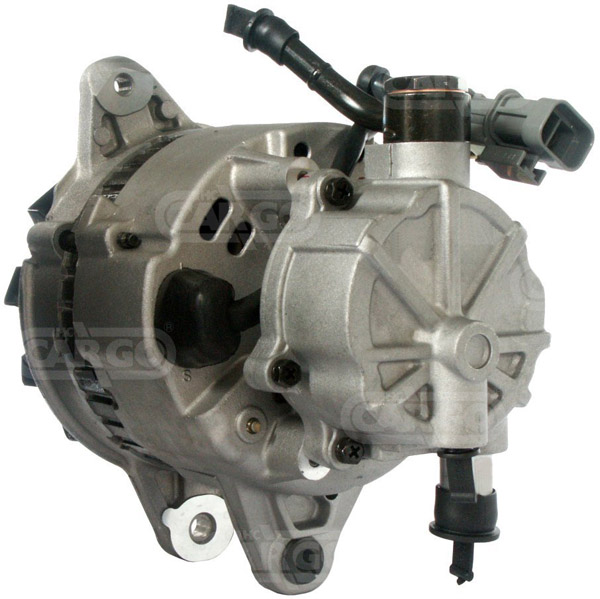

111339 - Alternator (111339)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 65,
Bracket Hole: 8.55, Belt. adj. bracket hole M8,
Width/Holder Arm: 13.15, Belt. adj. brackethole pos. 3,
Mount. Bracket Dist.: 54.50,
Pulley Dia.: 85.15,
Pulley Dist.: 44.70,
Grooves/Pulley: 1,
Radius: 88.85,
Radius: 86.95,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL07,
Blower: EF, Pulley P,
Total Length: 223.00

Electrical specifications (Alternator)
Voltage 14
Amp 65

Physical specifications (Alternator)
D Bracket hole 8.55
G Belt. adj. bracket hole M8
B Width/holder arm 13.15
E Belt. adj. brackethole pos. 3
C Mount. bracket dist. 54.50
H Pulley dia. 85.15
A Pulley dist. 44.70
i Grooves/pulley 1
j Radius 88.85
j Radius 86.95
k B+ position M6
n Rotation CR
o Regulator plug PL07
R Total length 223.00

Further information (Alternator)
Blower EF
Pulley P

Replacing
A002T17783 MITSUBISHI
A002T27883 MITSUBISHI
a2t17783 MITSUBISHI
a2t27883 MITSUBISHI
had165504 HALLA
md140189 MITSUBISHI
md147245 MITSUBISHI

UNISTART Price: £145.54

Sorry, this item is out of stock.

The 111339 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Mitsubishi, Passenger Car EU Pajero 2.5 Diesel 1986 05 1989 10 62 84 2477 4 TD 4D56T Convertible Pajero
Mitsubishi, Passenger Car EU Pajero 2.5 Diesel 1989 11 1990 11 70 95 2477 4 TD 4D56T Pajero
Mitsubishi, Passenger Car EU L 300 2.5 Diesel 1986 11 - 51 69 2477 4 Diesel V8 4D56 Bus L 300
Mitsubishi, Passenger Car EU Shogun 2.5 Diesel 1986 06 1996 12 62 84 2477 4 TD 4D56 Shogun
Mitsubishi, Passenger Car EU Pajero 2.5 Diesel 1990 01 1991 12 64 87 2477 4 TD 4D56T Pajero
Mitsubishi, Passenger Car EU Pajero 2.5 Diesel 1990 01 1991 12 64 87 2477 4 TD 4D56T Pajero
Mitsubishi, Passenger Car EU Pajero 2.5 Diesel 1986 05 1989 10 62 84 2477 4 TD 4D56T Convertible Pajero
Mitsubishi, Passenger Car EU Pajero 2.5 Diesel 1989 11 1990 11 70 95 2477 4 TD 4D56T Convertible Pajero
Mitsubishi, Passenger Car EU Galant 1.8 Diesel 1988 11 1992 10 55 75 1796 4 TD 4D65T Hatchback Galant
Mitsubishi, Passenger Car EU Pajero 2.5 Diesel 1989 11 1990 11 70 95 2477 4 TD 4D56T Pajero
Mitsubishi, Passenger Car EU Pajero 2.5 Diesel 1989 11 1990 11 70 95 2477 4 TD 4D56T Convertible Pajero
Mitsubishi, Passenger Car EU L 300 2.5 Diesel 1988 11 - 64 87 2477 4 TD 4D56T Bus 4WD L 300
Mitsubishi, Passenger Car EU L 300 2.5 Diesel 1986 11 1994 04 51 69 2477 4 Diesel 4D56 Platform / Chassis L 300
Mitsubishi, Passenger Car EU L 300 2.5 Diesel 1986 11 2006 02 51 69 2477 4 Diesel 4D56 Van L 300
Mitsubishi, Passenger Car EU Pajero 2.5 Diesel 1990 12 2000 04 73 99 2477 4 TD 4D56TD Convertible Pajero
Mitsubishi, Passenger Car EU Pajero 2.5 Diesel 1990 12 1999 10 73 99 2477 4 TD 4D56TD Pajero
Mitsubishi, Passenger Car EU Pajero 2.5 Diesel 1986 05 1989 10 62 84 2477 4 TD 4D56T Convertible Pajero
Mitsubishi, Passenger Car EU Pajero 2.5 Diesel 1989 11 1990 11 70 95 2477 4 TD 4D56T Pajero
Mitsubishi, Passenger Car EU L 300 2.5 Diesel 1986 11 - 51 69 2477 4 Diesel V8 4D56 Bus L 300
Mitsubishi, Passenger Car EU Shogun 2.5 Diesel 1986 06 1996 12 62 84 2477 4 TD 4D56 Shogun
Mitsubishi, Passenger Car EU Pajero 2.5 Diesel 1990 01 1991 12 64 87 2477 4 TD 4D56T Pajero
Mitsubishi, Passenger Car EU Pajero 2.5 Diesel 1990 01 1991 12 64 87 2477 4 TD 4D56T Pajero
Mitsubishi, Passenger Car EU Pajero 2.5 Diesel 1986 05 1989 10 62 84 2477 4 TD 4D56T Convertible Pajero
Mitsubishi, Passenger Car EU Pajero 2.5 Diesel 1989 11 1990 11 70 95 2477 4 TD 4D56T Convertible Pajero
Mitsubishi, Passenger Car EU Galant 1.8 Diesel 1988 11 1992 10 55 75 1796 4 TD 4D65T Hatchback Galant
Mitsubishi, Passenger Car EU Pajero 2.5 Diesel 1989 11 1990 11 70 95 2477 4 TD 4D56T Pajero
Mitsubishi, Passenger Car EU Pajero 2.5 Diesel 1989 11 1990 11 70 95 2477 4 TD 4D56T Convertible Pajero
Mitsubishi, Passenger Car EU L 300 2.5 Diesel 1988 11 - 64 87 2477 4 TD 4D56T Bus 4WD L 300
Mitsubishi, Passenger Car EU L 300 2.5 Diesel 1986 11 1994 04 51 69 2477 4 Diesel 4D56 Platform / Chassis L 300
Mitsubishi, Passenger Car EU L 300 2.5 Diesel 1986 11 2006 02 51 69 2477 4 Diesel 4D56 Van L 300
Mitsubishi, Passenger Car EU Pajero 2.5 Diesel 1990 12 2000 04 73 99 2477 4 TD 4D56TD Convertible Pajero
Mitsubishi, Passenger Car EU Pajero 2.5 Diesel 1990 12 1999 10 73 99 2477 4 TD 4D56TD Pajero
Mitsubishi, Passenger Car EU Pajero 2.5 Diesel 1986 05 1989 10 62 84 2477 4 TD 4D56T Convertible Pajero
Mitsubishi, Passenger Car EU Pajero 2.5 Diesel 1989 11 1990 11 70 95 2477 4 TD 4D56T Pajero
Mitsubishi, Passenger Car EU Pajero 2.5 Diesel 1990 01 1991 12 64 87 2477 4 TD 4D56T Pajero
Mitsubishi, Passenger Car EU Pajero 2.5 Diesel 1990 01 1991 12 64 87 2477 4 TD 4D56T Pajero
Mitsubishi, Passenger Car EU Pajero 2.5 Diesel 1986 05 1989 10 62 84 2477 4 TD 4D56T Convertible Pajero
Mitsubishi, Passenger Car EU Pajero 2.5 Diesel 1989 11 1990 11 70 95 2477 4 TD 4D56T Convertible Pajero
Mitsubishi, Passenger Car EU Galant 1.8 Diesel 1988 11 1992 10 55 75 1796 4 TD 4D65T Hatchback Galant
Mitsubishi, Passenger Car EU Pajero 2.5 Diesel 1989 11 1990 11 70 95 2477 4 TD 4D56T Pajero
Mitsubishi, Passenger Car EU Pajero 2.5 Diesel 1989 11 1990 11 70 95 2477 4 TD 4D56T Convertible Pajero
Mitsubishi, Passenger Car EU L 300 2.5 Diesel 1986 11 1994 04 51 69 2477 4 Diesel 4D56 Platform / Chassis L 300
Mitsubishi, Passenger Car EU Pajero 2.5 Diesel 1986 05 1989 10 62 84 2477 4 TD 4D56T Convertible Pajero
Mitsubishi, Passenger Car EU Pajero 2.5 Diesel 1989 11 1990 11 70 95 2477 4 TD 4D56T Pajero
Mitsubishi, Passenger Car EU L 300 2.5 Diesel 1986 11 - 51 69 2477 4 Diesel V8 4D56 Bus L 300
Mitsubishi, Passenger Car EU Shogun 2.5 Diesel 1986 06 1996 12 62 84 2477 4 TD 4D56 Shogun
Mitsubishi, Passenger Car EU Pajero 2.5 Diesel 1990 01 1991 12 64 87 2477 4 TD 4D56T Pajero
Mitsubishi, Passenger Car EU Pajero 2.5 Diesel 1990 01 1991 12 64 87 2477 4 TD 4D56T Pajero
Mitsubishi, Passenger Car EU Pajero 2.5 Diesel 1986 05 1989 10 62 84 2477 4 TD 4D56T Convertible Pajero
Mitsubishi, Passenger Car EU Pajero 2.5 Diesel 1989 11 1990 11 70 95 2477 4 TD 4D56T Convertible Pajero
Mitsubishi, Passenger Car EU Galant 1.8 Diesel 1988 11 1992 10 55 75 1796 4 TD 4D65T Hatchback Galant
Mitsubishi, Passenger Car EU Pajero 2.5 Diesel 1989 11 1990 11 70 95 2477 4 TD 4D56T Pajero
Mitsubishi, Passenger Car EU Pajero 2.5 Diesel 1989 11 1990 11 70 95 2477 4 TD 4D56T Convertible Pajero
Mitsubishi, Passenger Car EU L 300 2.5 Diesel 1988 11 - 64 87 2477 4 TD 4D56T Bus 4WD L 300
Mitsubishi, Passenger Car EU L 300 2.5 Diesel 1986 11 1994 04 51 69 2477 4 Diesel 4D56 Platform / Chassis L 300
Mitsubishi, Passenger Car EU L 300 2.5 Diesel 1986 11 2006 02 51 69 2477 4 Diesel 4D56 Van L 300
Mitsubishi, Passenger Car EU Pajero 2.5 Diesel 1990 12 2000 04 73 99 2477 4 TD 4D56TD Convertible Pajero
Mitsubishi, Passenger Car EU Pajero 2.5 Diesel 1990 12 1999 10 73 99 2477 4 TD 4D56TD Pajero
