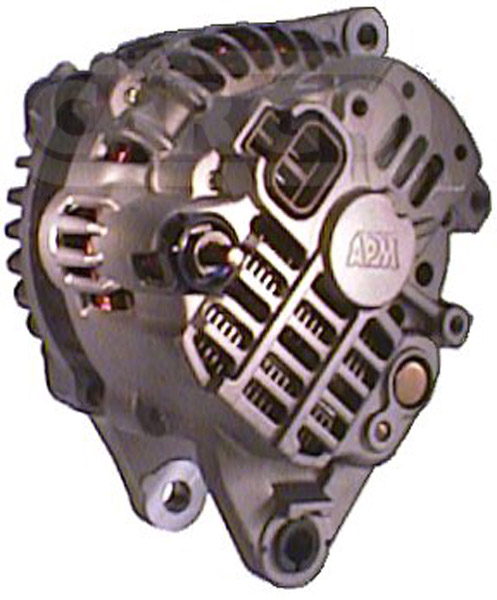

111375 - Alternator (111375)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 75,
Bracket Hole: 10.50, Belt. adj. bracket hole M8,
Width/Holder Arm: 13.00, Belt. adj. brackethole pos. 54,
Mount. Bracket Dist.: 55.30,
Pulley Dia.: 69.50,
Pulley Dist.: 36.85,
Grooves/Pulley: 4,
Radius: 89.80,
Radius: 96.00,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL07,
Blower: IF, Pulley SP,
Total Length: 164.00

Electrical specifications (Alternator)
Voltage 14
Amp 75

Physical specifications (Alternator)
D Bracket hole 10.50
G Belt. adj. bracket hole M8
B Width/holder arm 13.00
E Belt. adj. brackethole pos. 54
C Mount. bracket dist. 55.30
H Pulley dia. 69.50
A Pulley dist. 36.85
i Grooves/pulley 4
j Radius 89.80
j Radius 96.00
k B+ position M6
n Rotation CR
o Regulator plug PL07
R Total length 164.00

Further information (Alternator)
Blower IF
Pulley SP

Replacing
A002T38491 MITSUBISHI
A002T38891 MITSUBISHI
A002T38892 MITSUBISHI
A002T38892A MITSUBISHI
A002T40092 MITSUBISHI
A002T40092A MITSUBISHI
A002TA0091 MITSUBISHI
A002TA3491 MITSUBISHI
a2t38491 MITSUBISHI
a2t38891 MITSUBISHI

UNISTART Price: £109.81

Sorry, this item is out of stock.

The 111375 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Mitsubishi, Passenger Car EU Lancer 1.6 Gasoline 1994 02 1996 12 66 90 1597 4 4G92 Lancer
Mitsubishi, Passenger Car EU Lancer 1.6 Gasoline 1992 06 1994 05 83 113 1597 4 4G92 Hatchback Lancer
Mitsubishi, Passenger Car EU Galant 1.8 Gasoline 1992 11 1996 08 93 126 1834 4 4G93 Hatchback Galant
Mitsubishi, Passenger Car EU Lancer 1.6 Gasoline 1992 06 1996 12 83 113 1597 4 4G92 Lancer
Mitsubishi, Passenger Car EU Lancer 1.6 Gasoline 1992 12 2003 10 83 113 1597 4 16V 4G92 Estate 4WD GLXI Lancer
Mitsubishi, Passenger Car EU Lancer 1.6 Gasoline 1992 12 2003 10 83 113 1597 4 16V 4G92 Estate GLXi Lancer
Mitsubishi, Passenger Car EU Space Runner 1.8 Gasoline 1991 10 1999 08 90 122 1834 4 4G93 MPV 4WD Space Runner
Mitsubishi, Passenger Car EU Galant 1.8 Gasoline 1992 11 1996 08 93 126 1834 4 4G93 Galant
Mitsubishi, Passenger Car EU Galant 1.8 Gasoline 1994 02 1996 08 85 116 1834 4 4G93 Galant
Mitsubishi, Passenger Car EU Lancer 1.6 Gasoline 1992 06 1996 12 83 113 1597 4 16V 4G92 4WD Lancer
Mitsubishi, Passenger Car EU Space Runner 1.8 Gasoline 1996 06 1999 08 85 116 1834 4 4G93 MPV Space Runner
Mitsubishi, Passenger Car EU Colt 1.6 Gasoline 1992 04 1996 04 83 113 1597 4 16V 4G92 Hatchback Colt
Mitsubishi, Passenger Car EU Space Runner 1.8 Gasoline 1991 10 1999 08 90 122 1834 4 4G93 MPV Space Runner
Mitsubishi, Passenger Car EU Galant 1.8 Gasoline 1994 02 1996 08 85 116 1834 4 4G93 Hatchback Galant
Mitsubishi, Passenger Car EU Space Runner 1.8 Gasoline 1996 06 1999 08 85 116 1834 4 4G93 MPV 4WD Space Runner
Mitsubishi, Passenger Car EU Colt 1.8 Gasoline 1992 04 1996 04 103 140 1834 4 16V 4G93 Hatchback Colt
Proton, Passenger Car EU Persona 1.6 Gasoline 1994 01 - 83 113 1597 4 4G92 GLXi Persona 416
Proton, Passenger Car EU Persona 2 Diesel 1996 05 - 48 65 1998 4 Diesel 4D68 GLS Persona 420
Proton, Passenger Car EU Wira 1.5 Gasoline 2000 08 - 64 86 1468 4 4G15M Hatchback Wira
Proton, Passenger Car EU Persona 2 Diesel 1996 05 - 48 65 1998 4 Diesel 4D68 Hatchback GLS Persona 420
Proton, Passenger Car EU Persona 1.6 Gasoline 1995 12 - 70 95 1597 4 i 4G92 Hatchback Persona 416
Proton, Passenger Car EU Persona 1.8 Gasoline 1996 03 - 99 135 1834 4 GTi 16V 4G93 Hatchback Persona 318
Proton, Passenger Car EU Wira 1.5 Gasoline 2000 08 - 64 86 1468 4 4G15 Wira
Proton, Passenger Car EU Persona 1.6 Gasoline 1994 01 - 83 113 1597 4 4G92 Hatchback GLXi Persona 416
Proton, Passenger Car EU Persona 1.3 Gasoline 1996 03 - 55 75 1299 4 i G13B Hatchback Persona 313
Proton, Passenger Car EU Persona 1.8 Gasoline 1996 05 - 85 115 1834 4 4G93 Hatchback GLXI Persona 418
Proton, Passenger Car EU Wira 1.3 Gasoline 2000 08 - 55 74 1298 4 4G13 Wira
Proton, Passenger Car EU Satria 1.5 Gasoline 2000 07 - 64 86 1468 4 4G15 Hatchback Satria
Proton, Passenger Car EU Persona 1.8 Gasoline 1996 05 - 85 115 1834 4 4G93 (DOHC) Persona 418
Proton, Passenger Car EU Wira 1.3 Gasoline 2000 08 - 55 74 1298 4 4G13 Hatchback Wira
Mitsubishi, Passenger cars US Expo 1.8 Gasoline 1994 01 1994 01 0 0 1834 L4 LRV Expo
Mitsubishi, Passenger cars US Mirage 1.8 Gasoline 1993 01 1995 01 0 0 1834 L4 4G93 ES Mirage
Mitsubishi, Passenger cars US Mirage 1.8 Gasoline 1993 01 1996 01 0 0 1834 L4 4G93 LS Mirage
Hyundai, Passenger Car EU Accent 1.3 Gasoline 1994 10 2000 01 62 84 1341 4 i 12V G4EH Hatchback Accent
Hyundai, Passenger Car EU Scoupe 1.5 Gasoline 1992 04 1996 05 65 88 1495 4 i G4EK Coupe Scoupe
Hyundai, Passenger Car EU Accent 1.3 Gasoline 1994 10 2000 01 62 84 1341 4 i 12V G4EH Accent
