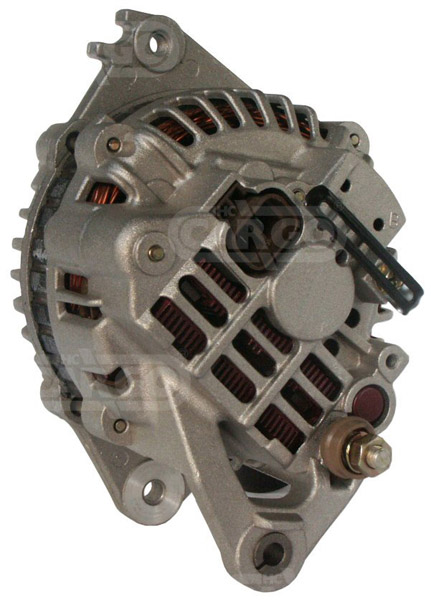

111376 - Alternator (111376)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 75,
Bracket Hole: 8.60, Belt. adj. bracket hole M8,
Width/Holder Arm: 13.25, Belt. adj. brackethole pos. 3,
Mount. Bracket Dist.: 77.50,
Pulley Dia.: 64.80,
Pulley Dist.: 34.90,
Grooves/Pulley: 4,
Radius: 88.00,
Radius: 88.50,
B+ Position: M8,
Rotation: CR,
Regulator Plug: or plug PL07,
Blower: IF, Pulley SP,
Total Length: 166.50
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 75 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 8.60 | |||
| G | Belt. adj. bracket hole M8 | |||
| B | Width/holder arm 13.25 | |||
| E | Belt. adj. brackethole pos. 3 | |||
| C | Mount. bracket dist. 77.50 | |||
| H | Pulley dia. 64.80 | |||
| A | Pulley dist. 34.90 | |||
| i | Grooves/pulley 4 | |||
| j | Radius 88.00 | |||
| j | Radius 88.50 | |||
| k | B+ position M8 | |||
| n | Rotation CR | |||
| o | Regulator plug PL07 | |||
| R | Total length 166.50 | |||
Further information (Alternator) | ||||
| Blower | IF | |||
| Pulley | SP | |||
Replacing | ||||
| A002T38391 | MITSUBISHI | |||
| A002T38391ZC | MITSUBISHI | |||
| A002T81791 | MITSUBISHI | |||
| A002T81791A | MITSUBISHI | |||
| a2t38391 | MITSUBISHI | |||
| a2t38391zc | MITSUBISHI | |||
| a2t81791 | MITSUBISHI | |||
| A2T81791A | MITSUBISHI | |||
| md190819 | MITSUBISHI | |||
| md198164 | MITSUBISHI | |||
UNISTART Price: £136.29
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mitsubishi, Passenger Car EU | Space Wagon | 2 | Gasoline | 1992 10 | 1998 10 | 98 | 133 | 1997 | 4 | 4G63 | MPV | Space Wagon | ||
| Mitsubishi, Passenger Car EU | Space Wagon | 2 | Gasoline | 1992 10 | 1998 10 | 98 | 133 | 1997 | 4 | 4G63 | MPV | 4WD | Space Wagon | |
| Mitsubishi, Passenger Car EU | Galant | 2 | Gasoline | 1992 11 | 1996 08 | 101 | 137 | 1997 | 4 | 4G63 | 4WD | Galant | ||
| Mitsubishi, Passenger Car EU | Galant | 2 | Gasoline | 1992 11 | 1996 08 | 101 | 137 | 1997 | 4 | 4G63 | Hatchback | Galant | ||
| Mitsubishi, Passenger Car EU | Eclipse | 2 | Gasoline | 1995 12 | 1999 04 | 107 | 146 | 1997 | 4 | 16V | 4G63 | Coupe | GS | Eclipse |
| Mitsubishi, Passenger Car EU | Space Gear | 2 | Gasoline | 1995 05 | 2000 05 | 85 | 115 | 1997 | 4 | 16V | 4G63 | MPV | L400 | Space Gear |
| Mitsubishi, Passenger Car EU | L 200 | 2 | Gasoline | 1996 06 | 2007 12 | 90 | 122 | 1997 | 4 | 4G63 | Pick Up | L 200 | ||
| Mitsubishi, Passenger Car EU | Galant | 2 | Gasoline | 1992 11 | 1996 08 | 101 | 137 | 1997 | 4 | 4G63 | Hatchback | 4WD | Galant | |
| Mitsubishi, Passenger Car EU | Eclipse | 2 | Gasoline | 1991 04 | 1995 11 | 110 | 150 | 1997 | 4 | i 16V | 4G63 | Coupe | Eclipse | |
| Mitsubishi, Passenger Car EU | Eclipse | 2 | Gasoline | 1991 04 | 1995 11 | 110 | 150 | 1997 | 4 | i 16V | 4G63 | Coupe | 4WD | Eclipse |
| Mitsubishi, Passenger Car EU | Galant | 2 | Gasoline | 1992 11 | 1996 08 | 101 | 137 | 1997 | 4 | 4G63 | Galant | |||
| Mitsubishi, Passenger cars US | Expo | 2.4 | Gasoline | 1993 01 | 1995 01 | 0 | 0 | 2351 | L4 | 4G64 | Expo | |||
| Mitsubishi, Passenger cars US | Galant | 2.4 | Gasoline | 1994 01 | 1997 01 | 0 | 0 | 2351 | L4 | 4G64 | LS | Galant | ||
| Mitsubishi, Passenger cars US | Galant | 2.4 | Gasoline | 1994 01 | 1996 01 | 0 | 0 | 2351 | L4 | 4G64 | S | Galant | ||
| Mitsubishi, Passenger cars US | Galant | 2.4 | Gasoline | 1994 01 | 1994 01 | 0 | 0 | 2351 | L4 | GS | Galant | |||
| Mitsubishi, Passenger cars US | Expo | 2.4 | Gasoline | 1992 01 | 1992 01 | 0 | 0 | 2351 | L4 | Expo | ||||
| Mitsubishi, Passenger cars US | Expo | 2.4 | Gasoline | 1992 01 | 1992 01 | 0 | 0 | 2351 | L4 | SP | Expo | |||
| Mitsubishi, Passenger cars US | Expo | 2.4 | Gasoline | 1993 01 | 1994 01 | 0 | 0 | 2351 | L4 | LRV | Expo | |||
| Mitsubishi, Passenger cars US | Expo | 2.4 | Gasoline | 1993 01 | 1993 01 | 0 | 0 | 2351 | L4 | 4G64 | SP | Expo | ||
| Mitsubishi, Passenger cars US | Expo | 2.4 | Gasoline | 1993 01 | 1994 01 | 0 | 0 | 2351 | L4 | LRV Sport | Expo | |||
| Mitsubishi, Passenger cars US | Galant | 2.4 | Gasoline | 1994 01 | 1997 01 | 0 | 0 | 2351 | L4 | 4G64 | ES | Galant | ||
| Dodge, Passenger cars US | Colt | 2.4 | Gasoline | 1993 01 | 1994 01 | 0 | 0 | 2351 | L4 | Colt | ||||
| Dodge, Passenger cars US | Colt | 2.4 | Gasoline | 1993 01 | 1994 01 | 0 | 0 | 2351 | L4 | 4x4 | Colt | |||
| Dodge, Passenger cars US | Colt | 2.4 | Gasoline | 1993 01 | 1994 01 | 0 | 0 | 2351 | L4 | SE | Colt | |||
| Dodge, Passenger cars US | Colt | 2.4 | Gasoline | 1993 01 | 1994 01 | 0 | 0 | 2351 | L4 | Colt | ||||
| Dodge, Passenger cars US | Colt | 2.4 | Gasoline | 1993 01 | 1994 01 | 0 | 0 | 2351 | L4 | 4x4 | Colt | |||
| Dodge, Passenger cars US | Colt | 2.4 | Gasoline | 1993 01 | 1994 01 | 0 | 0 | 2351 | L4 | SE | Colt |
