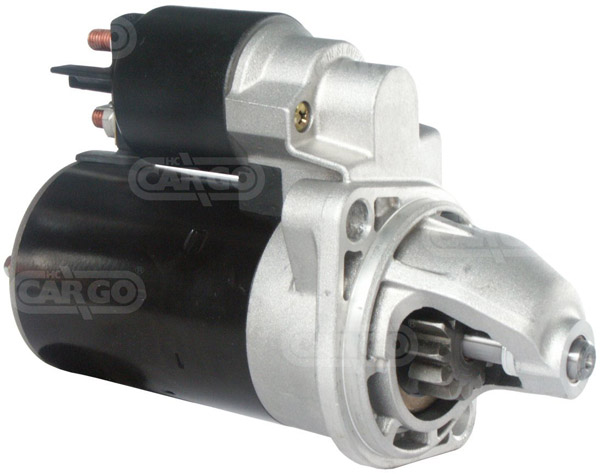

111398 - Starter (111398)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 12, kW 1.2, Mount. flange 82.00, Drive dist. 21.00, Dist./back 154.50, Dist./front 60.00, No. of teeth 13, B+ M8, Gear type DD, Dist. 104.00,
Rotation: ACR, No./mount. holes 2 (0),
Drive Type: Steel, Remarks Oe unit has an opening on opposite side. HC-CARGO 111398 should be mounted "upside down" (Solenoid downward).,
Total Length: 215.00, Oil sealed No, Waterproof No, Source Mahle Letrika
Electrical specifications (Starter) | ||||
| Voltage | 12 | |||
| kW | 1.2 | |||
Physical specifications (Starter) | ||||
| A | Mount. flange 82.00 | |||
| B | Drive dist. 21.00 | |||
| F | Dist./back 154.50 | |||
| G | Dist./front 60.00 | |||
| H | No. of teeth 13 | |||
| I | B+ M8 | |||
| N | Gear type DD | |||
| O | Dist. 104.00 | |||
| P | Rotation ACR | |||
| R | Total length 215.00 | |||
| Source | Mahle Letrika | |||
Further information (Starter) | ||||
| No./mount. | holes 2 (0) | |||
| Drive | type Steel | |||
| Remarks | Oe unit has an opening on opposite side. HC-CARGO 111398 should be mounted "upside down" (Solenoid downward). | |||
| Oil | sealed No | |||
| Waterproof | No | |||
Replacing | ||||
| 0001314031 | BOSCH | |||
| 0001315004 | BOSCH | |||
| 11.130.782 | ISKRA | |||
| 11.131.285 | ISKRA | |||
| 61201650 | BUKH | |||
| 612A1650 | BUKH | |||
| aze2160 | ISKRA | |||
| AZF3566 | ISKRA | |||
| d9e51 | VALEO | |||
UNISTART Price: £167.93
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BUKH, Marine | Engine | - | - | 0 | 0 | 0 | Various Models | |||||||
| BUKH, Marine | Engine | - | - | 0 | 0 | 0 | Various Models | |||||||
| BUKH, Marine | Engine | - | - | 0 | 0 | 0 | Various Models | |||||||
| BUKH, Marine | Engine | - | - | 0 | 0 | 0 | Various Models |
