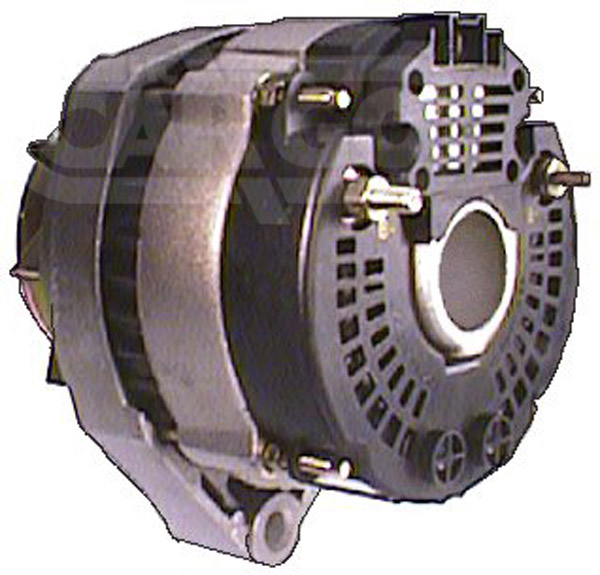

111402 - Alternator (111402)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 50,
Bracket Hole: 10.00, Belt. adj. bracket hole 7.40,
Width/Holder Arm: 40.00, Belt. adj. brackethole pos. 52,
Pulley Dia.: 86.80,
Pulley Dist.: 59.45,
Grooves/Pulley: 1,
Radius: 82.70,
Radius: 86.00,
B+ Position: M6,
Rotation: ACR,
Regulator Plug: or plug PL26,
Blower: EF, Pulley P,
Total Length: 164.50, Source Valeo
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 50 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 10.00 | |||
| G | Belt. adj. bracket hole 7.40 | |||
| B | Width/holder arm 40.00 | |||
| E | Belt. adj. brackethole pos. 52 | |||
| H | Pulley dia. 86.80 | |||
| A | Pulley dist. 59.45 | |||
| i | Grooves/pulley 1 | |||
| j | Radius 82.70 | |||
| j | Radius 86.00 | |||
| k | B+ position M6 | |||
| n | Rotation ACR | |||
| o | Regulator plug PL26 | |||
| R | Total length 164.50 | |||
| Source | Valeo | |||
Further information (Alternator) | ||||
| Blower | EF | |||
| Pulley | P | |||
Replacing | ||||
| a13n237 | VALEO | |||
UNISTART Price: £267.44
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Peugeot, Passenger Car EU | 205 | 1.4 | Gasoline | 1983 02 | 1987 10 | 44 | 60 | 1360 | 4 | 150G (XY7) | Hatchback | 205 | ||
| Peugeot, Passenger Car EU | 205 | 1.4 | Gasoline | 1985 10 | 1987 10 | 58 | 79 | 1360 | 4 | 150H (XY8) | Hatchback | 205 | ||
| Peugeot, Passenger Car EU | 205 | 1.4 | Gasoline | 1988 07 | 1989 05 | 58 | 79 | 1360 | 4 | 150B (XY8) | Hatchback | 205 | ||
| Peugeot, Passenger Car EU | 205 | 1.1 | Gasoline | 1983 02 | 1987 10 | 36 | 49 | 1124 | 4 | 109N (XW7) | Hatchback | 205 | ||
| Peugeot, Passenger Car EU | 205 | 1.4 | Gasoline | 1987 10 | 1989 05 | 44 | 60 | 1360 | 4 | 150G (XY7) | Hatchback | 205 | ||
| Peugeot, Passenger Car EU | 205 | 1.4 | Gasoline | 1986 04 | 1988 12 | 58 | 79 | 1360 | 4 | 150H (XY8) | Convertible | CT | 205 | |
| Peugeot, Passenger Car EU | 205 | 1.4 | Gasoline | 1983 02 | 1987 10 | 53 | 72 | 1360 | 4 | 150 (XY6B) | Hatchback | 205 | ||
| Peugeot, Passenger Car EU | 205 | 1 | Gasoline | 1983 02 | 1987 10 | 33 | 45 | 954 | 4 | 108C (XV8) | Hatchback | 205 | ||
| Peugeot, Passenger Car EU | 205 | 1.4 | Gasoline | 1986 04 | 1988 12 | 58 | 79 | 1360 | 4 | 150B (XY8) | Convertible | CT | 205 | |
| Peugeot, Passenger Car EU | 205 | 1.4 | Gasoline | 1988 07 | 1989 05 | 58 | 79 | 1360 | 4 | 150H (XY8) | Hatchback | 205 | ||
| Peugeot, Passenger Car EU | 205 | 1.4 | Gasoline | 1983 02 | 1987 10 | 59 | 80 | 1360 | 4 | 150B (XY8) | Hatchback | 205 | ||
| Citroen, Passenger Car EU | BX | 1.4 | Gasoline | 1985 09 | 1993 02 | 49 | 67 | 1360 | 4 | 150F | Hatchback | BX 14 | ||
| Citroen, Passenger Car EU | BX | 1.4 | Gasoline | 1983 04 | 1993 02 | 53 | 72 | 1360 | 4 | 150C | Hatchback | BX 14 | ||
| Citroen, Passenger Car EU | BX | 1.4 | Gasoline | 1982 10 | 1988 06 | 45 | 61 | 1360 | 4 | 150A | Hatchback | BX 14 |
