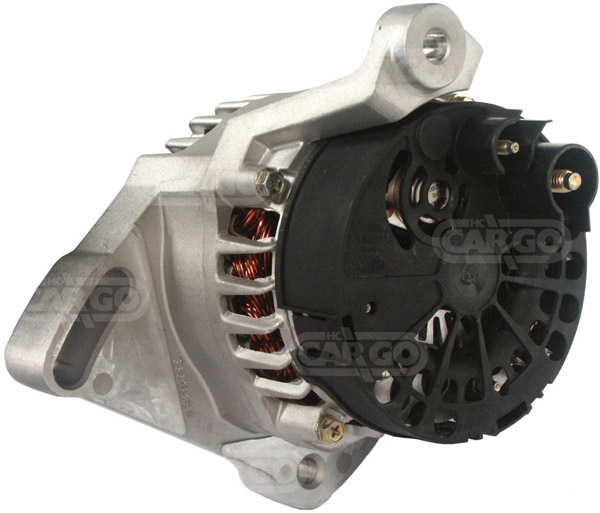

111411 - Alternator (111411)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 75,
Bracket Hole: 10.25, Belt. adj. bracket hole 12.00/45.00,
Width/Holder Arm: 32.00, Belt. adj. brackethole pos. 15,
Pulley Dia.: 60.00,
Pulley Dist.: 54.80,
Grooves/Pulley: 4,
Radius: >85,
Radius: 79.50/105.50,
B+ Position: M8,
Rotation: CR,
Regulator Plug: or plug PL_NA,
Blower: IF, Pulley SP,
Total Length: 189.50
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 75 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 10.25 | |||
| G | Belt. adj. bracket hole 12.00/45.00 | |||
| B | Width/holder arm 32.00 | |||
| E | Belt. adj. brackethole pos. 15 | |||
| H | Pulley dia. 60.00 | |||
| A | Pulley dist. 54.80 | |||
| i | Grooves/pulley 4 | |||
| j | Radius >85 | |||
| j | Radius 79.50/105.50 | |||
| k | B+ position M8 | |||
| n | Rotation CR | |||
| o | Regulator plug PL_NA | |||
| R | Total length 189.50 | |||
Further information (Alternator) | ||||
| Blower | IF | |||
| Pulley | SP | |||
Replacing | ||||
| 063321600020 | MAKO | |||
| 2541728 | VALEO | |||
| 2541728A | VALEO | |||
| 43420960 | FIAT | |||
| 46407644 | FIAT | |||
| 46407647 | FIAT | |||
| 46419297 | FIAT | |||
| 46420960 | FIAT | |||
| 46530060 | FIAT | |||
| 46758244 | FIAT | |||
UNISTART Price: £89.46
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Fiat, Passenger Car EU | Punto | 1.2 | Gasoline | 1994 04 | 2000 06 | 43 | 58 | 1242 | 4 | 176A7.000 | Convertible | Punto | ||
| Fiat, Passenger Car EU | Punto | 1.4 | Gasoline | 1996 09 | 1999 09 | 96 | 131 | 1372 | 4 | Turbo | 176B6.000 | Hatchback | GT | Punto |
| Fiat, Passenger Car EU | Palio | 1.2 | Gasoline | 1998 06 | - | 54 | 73 | 1242 | 4 | 178E2.000 | Hatchback | Palio | ||
| Fiat, Passenger Car EU | Seicento | 1.1 | Gasoline | 1998 01 | - | 40 | 54 | 1108 | 4 | 187A1.000 | Hatchback | Seicento | ||
| Fiat, Passenger Car EU | Strada | 1.2 | Gasoline | 1999 06 | 2005 03 | 54 | 73 | 1242 | 4 | 178B5.000 | Pick Up | Strada | ||
| Fiat, Passenger Car EU | Doblo | 1.2 | Gasoline | 2001 03 | - | 48 | 65 | 1242 | 4 | i.e. 8V | 223A5.000 | MPV | Doblo | |
| Fiat, Passenger Car EU | Punto | 1.2 | Gasoline | 1993 10 | 1999 09 | 54 | 73 | 1242 | 4 | 176A8.000 | Hatchback | Punto | ||
| Fiat, Passenger Car EU | Punto | 1.1 | Gasoline | 1996 04 | 2000 02 | 40 | 54 | 1108 | 4 | 176B2.000 | Van | Punto | ||
| Fiat, Passenger Car EU | Punto | 1.2 | Gasoline | 1997 04 | 1999 09 | 63 | 86 | 1242 | 4 | 16V | 176B9.000 | Hatchback | Punto | |
| Fiat, Passenger Car EU | Punto | 1.2 | Gasoline | 1997 04 | 2000 06 | 63 | 86 | 1242 | 4 | 16V | 176B9.000 | Convertible | Punto | |
| Fiat, Passenger Car EU | Seicento | 1.1 | Gasoline | 1998 01 | - | 40 | 54 | 1108 | 4 | 176B2.000 | Hatchback | Seicento | ||
| Fiat, Passenger Car EU | Punto | 1.2 | Gasoline | 1999 09 | - | 44 | 60 | 1242 | 4 | 188A4.000 | Hatchback | Punto | ||
| Fiat, Passenger Car EU | Doblo | 1.2 | Gasoline | 2001 03 | - | 48 | 65 | 1242 | 4 | i.e. 8V | 223A5.000 | Van | Doblo | |
| Fiat, Passenger Car EU | Panda | 1.1 | Gasoline | 2003 09 | - | 40 | 54 | 1108 | 4 | 187A.1000 | Hatchback | Panda | ||
| Fiat, Passenger Car EU | Punto | 1.1 | Gasoline | 1993 09 | 1999 09 | 40 | 54 | 1108 | 4 | i.e. | 176A6.000 | Hatchback | Punto | |
| Fiat, Passenger Car EU | Punto | 1.1 | Gasoline | 1993 09 | 1999 09 | 40 | 54 | 1108 | 4 | i.e. | 176B2.000 | Hatchback | Punto | |
| Fiat, Passenger Car EU | Punto | 1.2 | Gasoline | 1995 05 | 2000 06 | 44 | 60 | 1242 | 4 | 176B4.000 | Convertible | Punto | ||
| Fiat, Passenger Car EU | Panda | 1.2 | Gasoline | 2004 10 | - | 44 | 60 | 1242 | 4 | 188A4.000 | Hatchback | 4x4 | Panda | |
| Fiat, Passenger Car EU | Punto | 1.2 | Gasoline | 1995 05 | 2000 06 | 44 | 60 | 1242 | 4 | 176B1.000 | Convertible | Punto | ||
| Fiat, Passenger Car EU | Palio | 1.2 | Gasoline | 1996 04 | 2001 02 | 54 | 73 | 1242 | 4 | 178B5.000 | Estate | Palio | ||
| Fiat, Passenger Car EU | Siena | 1.6 | Gasoline | 1998 09 | - | 78 | 106 | 1581 | 4 | 16V | 178B3.000 | Siena | ||
| Fiat, Passenger Car EU | Punto | 1.2 | Gasoline | 2000 02 | - | 44 | 60 | 1242 | 4 | 188A4.000 | Van | Punto | ||
| Fiat, Passenger Car EU | Panda | 1.2 | Gasoline | 2003 09 | - | 44 | 60 | 1242 | 4 | 188A.4000 | Hatchback | Panda | ||
| Fiat, Passenger Car EU | Punto | 1.2 | Gasoline | 1994 01 | 1999 09 | 43 | 58 | 1242 | 4 | 176A7.000 | Hatchback | Punto | ||
| Fiat, Passenger Car EU | Punto | 1.2 | Gasoline | 1994 03 | 1999 09 | 44 | 60 | 1242 | 4 | 176B1.000 | Hatchback | Punto | ||
| Fiat, Passenger Car EU | Punto | 1.2 | Gasoline | 1994 03 | 1999 09 | 44 | 60 | 1242 | 4 | 176B4.000 | Hatchback | Punto | ||
| Fiat, Passenger Car EU | Siena | 1.2 | Gasoline | 1998 09 | - | 54 | 73 | 1242 | 4 | 178B5.000 | Siena | |||
| Ford, Passenger Car EU | Sierra | 1.6 | Gasoline | 1982 08 | 1986 12 | 55 | 75 | 1593 | 4 | LCS | Estate | Sierra | ||
| Ford, Passenger Car EU | Sierra | 1.6 | Gasoline | 1982 08 | 1986 12 | 55 | 75 | 1593 | 4 | LSD | Estate | Sierra | ||
| Ford, Passenger Car EU | Sierra | 1.6 | Gasoline | 1982 08 | 1986 12 | 55 | 75 | 1593 | 4 | LCT | Estate | Sierra | ||
| Citroen, Passenger Car EU | Jumpy | 1.6 | Gasoline | 1995 10 | - | 58 | 79 | 1581 | 4 | 1580SPI | MPV | Jumpy | ||
| Citroen, Passenger Car EU | Jumpy | 1.6 | Gasoline | 1995 10 | - | 58 | 79 | 1581 | 4 | 220A2.000 | MPV | Jumpy | ||
| Lancia, Passenger Car EU | Y | 1.2 | Gasoline | 1996 03 | 2003 09 | 44 | 60 | 1242 | 4 | 840A3.000 | Hatchback | Y | ||
| Lancia, Passenger Car EU | Y | 1.1 | Gasoline | 1995 11 | 2003 09 | 40 | 54 | 1108 | 4 | 176B2.000 | Hatchback | Y |
