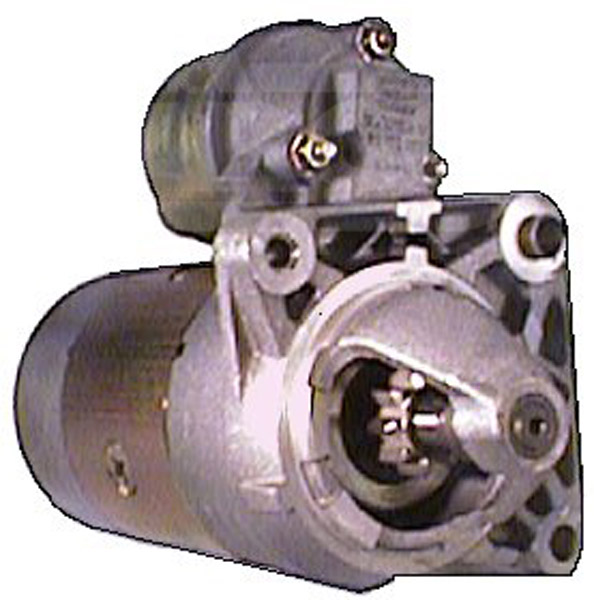

111422 - Starter (111422)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 12, kW 0.8, Mount. flange 64.00, Drive dist. 11.50, Dist./back 152.25, Dist./front 47.00, No. of teeth 9,10, B+ M8, Gear type DD, Dist. 74.50, Dist. 2 109.50, Dist. 3 73.00,
Rotation: CR, No./mount. holes 3 (1),
Drive Type: Steel,
Total Length: 206.00, Oil sealed No, Waterproof No

Electrical specifications (Starter)
Voltage 12
kW 0.8

Physical specifications (Starter)
A Mount. flange 64.00
B Drive dist. 11.50
F Dist./back 152.25
G Dist./front 47.00
H No. of teeth 9,10
I B+ M8
N Gear type DD
O Dist. 74.50
O Dist. 2 109.50
O Dist. 3 73.00
P Rotation CR
R Total length 206.00

Further information (Starter)
No./mount. holes 3 (1)
Drive type Steel
Oil sealed No
Waterproof No

Replacing
0001113006 BOSCH
0001116005 BOSCH
11.130.421 ISKRA
11.130.763 ISKRA
46476785 FIAT
46518059 FIAT
55196400 FIAT
63101002 MAGNETI MARELLI
63222888 MAGNETI MARELLI
63222889 MAGNETI MARELLI

UNISTART Price: £78.77

Sorry, this item is out of stock.

The 111422 - Starter is shown in: Starters & Alternators > Starters , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Fiat, Passenger Car EU Punto 1.2 Gasoline 1994 04 2000 06 43 58 1242 4 176A7.000 Convertible Punto
Fiat, Passenger Car EU Cinquecento 1.1 Gasoline 1994 10 1998 01 40 54 1108 4 176B2.000 Hatchback Sporting Cinquecento
Fiat, Passenger Car EU Seicento 1.1 Gasoline 1998 01 - 40 54 1108 4 187A1.000 Hatchback Seicento
Fiat, Passenger Car EU Marea 1.2 Gasoline 1998 10 - 60 82 1242 4 16V 182B2.000 Marea
Fiat, Passenger Car EU Punto 1.2 Gasoline 1993 10 1999 09 54 73 1242 4 176A8.000 Hatchback Punto
Fiat, Passenger Car EU Punto 1.2 Gasoline 1997 04 2000 06 63 86 1242 4 16V 176B9.000 Convertible Punto
Fiat, Passenger Car EU Seicento 1.1 Gasoline 1998 01 - 40 54 1108 4 176B2.000 Hatchback Seicento
Fiat, Passenger Car EU Punto 1.1 Gasoline 1996 04 2000 02 40 54 1108 4 176B2.000 Van Punto
Fiat, Passenger Car EU Punto 1.2 Gasoline 1997 04 1999 09 63 86 1242 4 16V 176B9.000 Hatchback Punto
Fiat, Passenger Car EU Brava 1.2 Gasoline 1998 12 2000 10 60 82 1242 4 16V 182B2.000 Hatchback Brava
Fiat, Passenger Car EU Punto 1.1 Gasoline 1993 09 1999 09 40 54 1108 4 i.e. 176A6.000 Hatchback Punto
Fiat, Passenger Car EU Punto 1.1 Gasoline 1993 09 1999 09 40 54 1108 4 i.e. 176B2.000 Hatchback Punto
Fiat, Passenger Car EU Punto 1.2 Gasoline 1995 05 2000 06 44 60 1242 4 176B4.000 Convertible Punto
Fiat, Passenger Car EU Bravo 1.2 Gasoline 2000 10 2001 10 59 80 1242 4 16V 188A5.000 Hatchback Bravo
Fiat, Passenger Car EU Punto 1.2 Gasoline 1995 05 2000 06 44 60 1242 4 176B1.000 Convertible Punto
Fiat, Passenger Car EU Bravo 1.2 Gasoline 1998 12 2000 10 60 82 1242 4 16V 182B2.000 Hatchback Bravo
Fiat, Passenger Car EU Seicento 1.1 Gasoline 1998 01 - 40 54 1108 4 176B2.000 Van Seicento
Fiat, Passenger Car EU Punto 1.2 Gasoline 2000 02 - 44 60 1242 4 188A4.000 Van Punto
Fiat, Passenger Car EU Punto 1.2 Gasoline 1994 01 1999 09 43 58 1242 4 176A7.000 Hatchback Punto
Fiat, Passenger Car EU Punto 1.2 Gasoline 1994 03 1999 09 44 60 1242 4 176B1.000 Hatchback Punto
Fiat, Passenger Car EU Punto 1.2 Gasoline 1994 03 1999 09 44 60 1242 4 176B4.000 Hatchback Punto
Fiat, Passenger Car EU Siena 1.2 Gasoline 1998 09 - 54 73 1242 4 178B5.000 Siena
Fiat, Passenger Car EU Brava 1.2 Gasoline 2000 10 2001 10 59 80 1242 4 16V 188A5.000 Hatchback Brava
Fiat, Passenger Car EU Marea 1.2 Gasoline 1998 10 - 60 82 1242 4 16V 182B2.000 Estate Marea
Fiat, Passenger Car EU Various Models - - 0 0 0 Various Models
Lancia, Passenger Car EU Y 1.1 Gasoline 1995 01 1995 12 40 54 1108 4 176B2.000 Hatchback Avenue Y10
Lancia, Passenger Car EU Y 1.2 Gasoline 1996 03 2003 09 44 60 1242 4 840A3.000 Hatchback Y
Lancia, Passenger Car EU Y 1.2 Gasoline 1997 04 2003 09 63 86 1242 4 16V 176B9.000 Hatchback Y
Lancia, Passenger Car EU Y 1.1 Gasoline 1992 09 1995 12 37 50 1108 4 i.e. 156C.046 Hatchback Fire 4WD Y10
Lancia, Passenger Car EU Y 1.1 Gasoline 1995 01 1995 12 40 54 1108 4 176B2.000 Hatchback Avenue 4WD Y10
Lancia, Passenger Car EU Y 1.1 Gasoline 1989 07 1995 09 37 50 1108 4 i.e. 156C.046 Hatchback Fire Y10
Lancia, Passenger Car EU Y 1.1 Gasoline 1995 11 2003 09 40 54 1108 4 176B2.000 Hatchback Y

TEST & REPAIR SERVICE

Unistart has its own workshops for remanufacturing with the latest testing equipment. This enables us to provide an excellent (and free) technical helpline and aftersales support and backup service.

You can speak to one of our friendly and knowledgeable technicians who will be glad to Help with any enquiries no matter how large or small. Call us on 020 8 983 9969.
