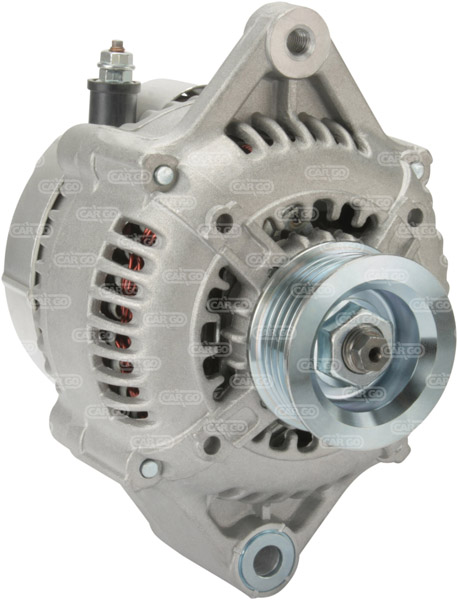

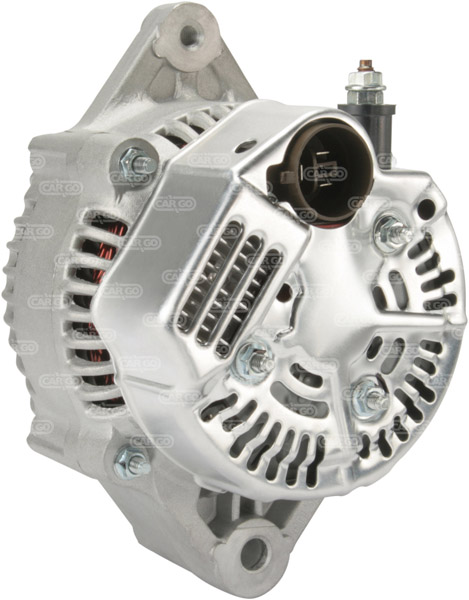

111428 - Alternator (111428)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 60,
Bracket Hole: 10.50, Belt. adj. bracket hole M8,
Width/Holder Arm: 58.50, Belt. adj. brackethole pos. 60,
Pulley Dia.: 54.50,
Pulley Dist.: 90.00,
Grooves/Pulley: 5,
Radius: 80.00,
Radius: 84.00,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL12,
Blower: IF, Pulley SP,
Total Length: 155.00

Electrical specifications (Alternator)
Voltage 14
Amp 60

Physical specifications (Alternator)
D Bracket hole 10.50
G Belt. adj. bracket hole M8
B Width/holder arm 58.50
E Belt. adj. brackethole pos. 60
H Pulley dia. 54.50
A Pulley dist. 90.00
i Grooves/pulley 5
j Radius 80.00
j Radius 84.00
k B+ position M6
n Rotation CR
o Regulator plug PL12
R Total length 155.00

Further information (Alternator)
Blower IF
Pulley SP

Replacing
100211-1030 DENSO
100211-1031 DENSO
100211-1090 DENSO
100211-1091 DENSO
100211-1150 DENSO
100211-1500 DENSO
100211-2000 DENSO
100211-2001 DENSO
100211-2060 DENSO
100211-2061 DENSO

UNISTART Price: £139.65

Sorry, this item is out of stock.

The 111428 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Toyota, Passenger Car EU Supra 2.8 Gasoline 1981 08 1985 12 125 170 2759 6 i 5M-GE Coupe Supra
Toyota, Passenger Car EU Model F 2 Gasoline 1988 08 1990 01 66 90 1998 4 3Y Bus Model F
Toyota, Passenger Car EU Hiace 2.4 Gasoline 1989 08 1995 08 88 120 2438 4 2RZ-E Bus Hiace
Toyota, Passenger Car EU Hiace 2 Gasoline 1990 02 1995 08 74 101 1998 4 1RZ Van Hiace
Toyota, Passenger Car EU Hiace 2.4 Gasoline 1989 08 1995 08 88 120 2438 4 2RZ-E Van Hiace
Toyota, Passenger Car EU Model F 2 Gasoline 1984 08 1988 08 65 88 1998 4 3Y-C Bus Model F
Toyota, Passenger Car EU Model F 2 Gasoline 1984 08 1988 08 65 88 1998 4 3Y Bus Model F
Toyota, Passenger Car EU Hiace 2.4 Gasoline 1989 08 1995 08 88 120 2438 4 2RZ-E Bus 4WD Hiace
Toyota, Passenger Car EU Hiace 2 Gasoline 1989 08 1995 08 74 101 1998 4 1RZ Bus Hiace
Toyota, Passenger Car EU Hiace 2.4 Gasoline 1989 08 1995 08 88 120 2438 4 2RZ-E Van 4WD Hiace
Toyota, Passenger cars US Van 2 Gasoline 1984 01 1985 01 0 0 1998 L4 3YEC Estate DX Van
Toyota, Passenger cars US Van 2.2 Gasoline 1986 01 1989 01 0 0 2237 L4 4Y-EC Estate DX Van
Toyota, Passenger cars US Van 2.2 Gasoline 1986 01 1989 01 0 0 2237 L4 4Y-EC Estate CRG Van
Toyota, Passenger cars US VAN 2.2 Gasoline 1986 01 1989 01 0 0 2237 L4 4Y-EC Estate LE Van
Toyota, Passenger cars US Van 2 Gasoline 1984 01 1985 01 0 0 1998 L4 3YEC Estate CRG Van
Toyota, Passenger cars US Van 2 Gasoline 1984 01 1985 01 0 0 1998 L4 3YEC Estate LE Van

TEST & REPAIR SERVICE

Unistart has its own workshops for remanufacturing with the latest testing equipment. This enables us to provide an excellent (and free) technical helpline and aftersales support and backup service.

You can speak to one of our friendly and knowledgeable technicians who will be glad to Help with any enquiries no matter how large or small. Call us on 020 8 983 9969.
