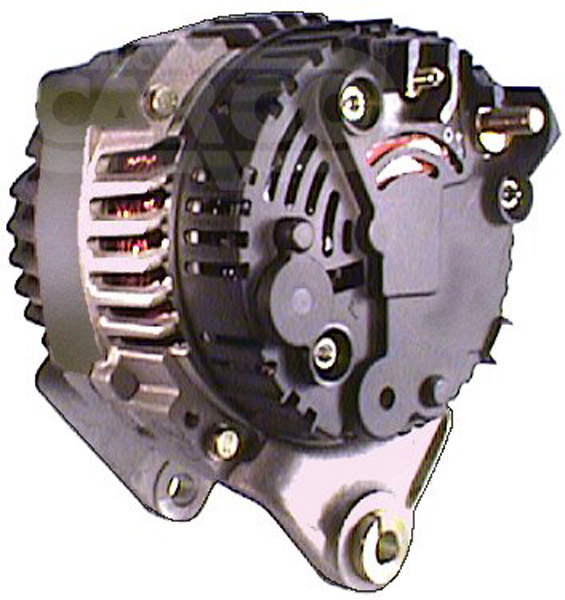

111478 - Alternator (111478)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 90,
Bracket Hole: 10.00, Belt. adj. bracket hole M10,
Width/Holder Arm: 14.00, Belt. adj. brackethole pos. 50,
Mount. Bracket Dist.: 82.00,
Pulley Dia.: 64.50,
Pulley Dist.: 35.00,
Grooves/Pulley: 5,
Radius: 91.00,
Radius: 95.50,
B+ Position: M8,
Rotation: CR,
Regulator Plug: or plug PL_NA,
Blower: IF, Pulley SP,
Total Length: 185.00, Source Valeo

Electrical specifications (Alternator)
Voltage 14
Amp 90

Physical specifications (Alternator)
D Bracket hole 10.00
G Belt. adj. bracket hole M10
B Width/holder arm 14.00
E Belt. adj. brackethole pos. 50
C Mount. bracket dist. 82.00
H Pulley dia. 64.50
A Pulley dist. 35.00
i Grooves/pulley 5
j Radius 91.00
j Radius 95.50
k B+ position M8
n Rotation CR
o Regulator plug PL_NA
R Total length 185.00
Source Valeo

Further information (Alternator)
Blower IF
Pulley SP

Replacing
0123320016 BOSCH
0123320052 BOSCH
0123320054 BOSCH
058903016a VOLKSWAGEN
058903016b VOLKSWAGEN
058903016BX VOLKSWAGEN
058903016e VOLKSWAGEN
058903018a VOLKSWAGEN
058903018b VOLKSWAGEN
071903016g VOLKSWAGEN

UNISTART Price: £293.20

Sorry, this item is out of stock.

The 111478 - Alternator is shown in: Brands > 5 Star , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Audi, Passenger Car EU A4 1.8 Gasoline 1994 11 1999 04 92 125 1781 4 ADR Quattro A4
Audi, Passenger Car EU A4 1.6 Gasoline 1994 11 1996 10 74 100 1595 4 ADP Estate A4
Audi, Passenger Car EU A4 1.8 Gasoline 1994 11 1998 07 110 150 1781 4 Turbo AEB Estate A4
Audi, Passenger Car EU A4 1.8 Gasoline 1994 11 1999 04 92 125 1781 4 ADR Estate Quattro A4
Audi, Passenger Car EU A4 1.8 Gasoline 1997 12 2001 09 132 180 1781 4 Turbo AJL Estate Quattro A4
Audi, Passenger Car EU A4 1.8 Gasoline 1995 07 2001 09 85 115 1781 4 AFY Estate Quattro A4
Audi, Passenger Car EU A4 1.6 Gasoline 1998 08 1999 07 74 100 1595 4 ARM A4
Audi, Passenger Car EU A4 1.6 Gasoline 1996 10 1999 07 74 100 1595 4 AHL Estate A4
Audi, Passenger Car EU A6 1.8 Gasoline 1995 12 1997 10 92 125 1781 4 ADR A6
Audi, Passenger Car EU A6 1.8 Gasoline 1995 12 1997 12 92 125 1781 4 ADR Estate A6
Audi, Passenger Car EU A6 1.8 Gasoline 1995 12 1997 10 92 125 1781 4 ADR Quattro A6
Audi, Passenger Car EU A6 1.8 Gasoline 1998 02 2005 01 85 116 1781 4 AFY A6
Audi, Passenger Car EU A4 1.8 Gasoline 1994 11 1999 04 92 125 1781 4 ADR Estate A4
Audi, Passenger Car EU A4 1.8 Gasoline 1997 12 2000 11 132 180 1781 4 Turbo AJL Quattro A4
Audi, Passenger Car EU A4 1.8 Gasoline 1997 12 2000 11 132 180 1781 4 Turbo AJL A4
Audi, Passenger Car EU A6 1.8 Gasoline 1995 12 1997 12 92 125 1781 4 ADR Estate Quattro A6
Audi, Passenger Car EU A4 1.8 Gasoline 1994 11 1999 04 92 125 1781 4 ADR A4
Audi, Passenger Car EU A4 1.8 Gasoline 1994 11 1998 07 110 150 1781 4 Turbo AEB A4
Audi, Passenger Car EU A4 1.8 Gasoline 1998 08 1999 07 110 150 1781 4 Turbo APU A4
Audi, Passenger Car EU A4 1.8 Gasoline 1999 02 2000 11 110 150 1781 4 Turbo APU Quattro A4
Audi, Passenger Car EU A6 2.8 Gasoline 1997 10 1998 07 132 180 2771 6 AGE A6
Audi, Passenger Car EU A4 1.8 Gasoline 1995 04 2000 11 85 115 1781 4 AFY A4
Audi, Passenger Car EU A4 1.8 Gasoline 1995 07 2000 11 85 115 1781 4 AFY Quattro A4
Audi, Passenger Car EU A4 1.6 Gasoline 1995 01 1996 10 74 100 1595 4 ADP A4
Audi, Passenger Car EU A4 1.6 Gasoline 1996 10 1999 07 74 100 1595 4 AHL A4
Audi, Passenger Car EU A4 1.6 Gasoline 1998 08 2000 07 74 100 1595 4 ANA A4
Audi, Passenger Car EU A4 1.8 Gasoline 1994 11 1998 12 110 150 1781 4 Turbo AEB Quattro A4
Audi, Passenger Car EU A4 1.8 Gasoline 1996 02 1998 12 110 150 1781 4 Turbo AEB Estate Quattro A4
Audi, Passenger Car EU A4 1.8 Gasoline 1997 12 2001 09 132 180 1781 4 Turbo AJL Estate A4
Audi, Passenger Car EU A4 1.8 Gasoline 1995 07 2001 09 85 115 1781 4 AFY Estate A4
Audi, Passenger Car EU A6 1.8 Gasoline 1998 02 2005 01 85 116 1781 4 AFY Estate A6
VW, Passenger Car EU Passat 1.8 Gasoline 1996 10 2000 11 92 125 1781 4 ADR Syncro 4 Motion Passat
VW, Passenger Car EU Passat 1.8 Gasoline 1997 06 2000 11 92 125 1781 4 ADR Estate Passat
VW, Passenger Car EU Passat 1.6 Gasoline 1997 06 2000 11 74 101 1595 4 AHL Estate Passat
VW, Passenger Car EU Passat 1.8 Gasoline 1996 10 2000 11 92 125 1781 4 ADR Passat
VW, Passenger Car EU Passat 1.8 Gasoline 1997 06 2000 11 110 150 1781 4 Turbo AEB Estate Passat
VW, Passenger Car EU Passat 1.8 Gasoline 1996 10 2000 11 110 150 1781 4 Turbo AEB Passat
VW, Passenger Car EU Passat 1.6 Gasoline 1997 06 2000 11 74 101 1595 4 ADP Estate Passat
VW, Passenger Car EU Passat 1.6 Gasoline 1996 10 2000 11 74 101 1595 4 AHL Passat
VW, Passenger Car EU Passat 1.8 Gasoline 1997 06 2000 11 92 125 1781 4 ADR Estate Syncro 4 Motion Passat
Audi, Passenger Car EU A4 1.6 Gasoline 1994 11 1996 10 74 100 1595 4 ADP Estate A4
Audi, Passenger Car EU A6 2.8 Gasoline 1997 10 1998 07 132 180 2771 6 AGE A6
VW, Passenger cars US Passat 1.8 Gasoline 1999 01 1999 01 0 0 1781 L4 Turbo AEB Passat
VW, Passenger cars US Passat 1.8 Gasoline 1998 01 1998 01 0 0 1781 L4 Turbo AEB GLS Passat
VW, Passenger cars US Passat 1.9 Diesel 1998 01 1998 01 0 0 1896 L4 TDi ALH Passat
