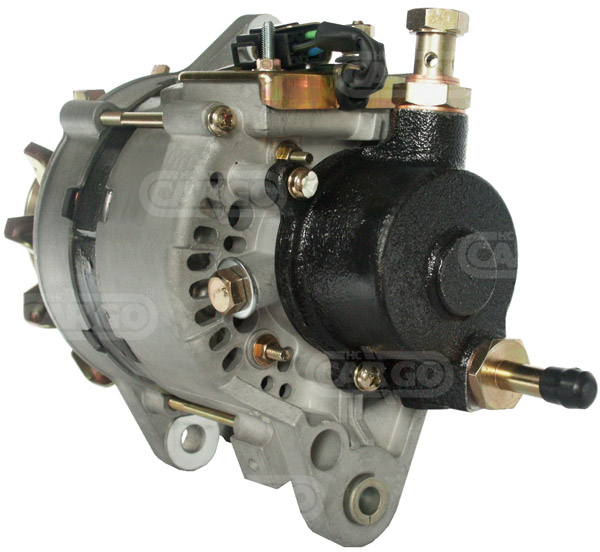

111484 - Alternator (111484)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 28,
Amp: 50,
Bracket Hole: 10.55, Belt. adj. bracket hole M8,
Width/Holder Arm: 14.20, Belt. adj. brackethole pos. 55,
Mount. Bracket Dist.: 97.00,
Pulley Dia.: 95.00,
Pulley Dist.: 63.00,
Grooves/Pulley: 1,
Radius: 89.00,
Radius: 90.00,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL15,
Blower: EF, Pulley P, Remarks
Regulator Plug: or: HC-CARGO 135376.,
Total Length: 276.00
Electrical specifications (Alternator) | ||||
| Voltage | 28 | |||
| Amp | 50 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 10.55 | |||
| G | Belt. adj. bracket hole M8 | |||
| B | Width/holder arm 14.20 | |||
| E | Belt. adj. brackethole pos. 55 | |||
| C | Mount. bracket dist. 97.00 | |||
| H | Pulley dia. 95.00 | |||
| A | Pulley dist. 63.00 | |||
| i | Grooves/pulley 1 | |||
| j | Radius 89.00 | |||
| j | Radius 90.00 | |||
| k | B+ position M6 | |||
| n | Rotation CR | |||
| o | Regulator plug PL15 | |||
| R | Total length 276.00 | |||
Further information (Alternator) | ||||
| Blower | EF | |||
| Pulley | P | |||
| Remarks | Regulator: HC-CARGO 135376. | |||
Replacing | ||||
| 021000-9980 | DENSO | |||
| 100210-2290 | DENSO | |||
| 27020-56180 | TOYOTA | |||
| 27030-56150 | TOYOTA | |||
UNISTART Price: £225.06
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Toyota, Passenger Car EU | Land Cruiser | 3.4 | Diesel | 1980 08 | 1984 10 | 66 | 90 | 3432 | 4 | Diesel | 3B | Land Cruiser | ||
| Toyota, Passenger Car EU | Land Cruiser | 3.4 | Diesel | 1980 08 | 1984 10 | 66 | 90 | 3432 | 4 | Diesel | 3B | Pick Up | Land Cruiser | |
| Toyota, Passenger Car EU | Land Cruiser | 3.4 | Diesel | 1981 10 | 1987 08 | 66 | 90 | 3432 | 4 | Diesel | 3B | Land Cruiser | ||
| Toyota, Passenger Car EU | Land Cruiser | 3.4 | Diesel | 1984 11 | 1996 12 | 70 | 95 | 3432 | 4 | Diesel | 3B | Land Cruiser | ||
| Toyota, Passenger Car EU | Land Cruiser | 3 | Diesel | 1974 02 | 1984 10 | 59 | 80 | 2977 | 4 | Diesel | B | Land Cruiser | ||
| Toyota, Passenger Car EU | Land Cruiser | 3.4 | Diesel | 1980 08 | 1984 10 | 66 | 90 | 3432 | 4 | Diesel | 3B | Land Cruiser | ||
| Toyota, Passenger Car EU | Land Cruiser | 3.4 | Diesel | 1980 08 | 1984 10 | 66 | 90 | 3432 | 4 | Diesel | 3B | Pick Up | Land Cruiser | |
| Toyota, Passenger Car EU | Land Cruiser | 3.4 | Diesel | 1981 10 | 1987 08 | 66 | 90 | 3432 | 4 | Diesel | 3B | Land Cruiser | ||
| Toyota, Passenger Car EU | Land Cruiser | 3.4 | Diesel | 1984 11 | 1996 12 | 70 | 95 | 3432 | 4 | Diesel | 3B | Land Cruiser | ||
| Toyota, Passenger Car EU | Land Cruiser | 3 | Diesel | 1974 02 | 1984 10 | 59 | 80 | 2977 | 4 | Diesel | B | Land Cruiser | ||
| Toyota, Passenger Car EU | Land Cruiser | 3.4 | Diesel | 1984 11 | 1996 12 | 70 | 95 | 3432 | 4 | Diesel | 3B | Land Cruiser |
