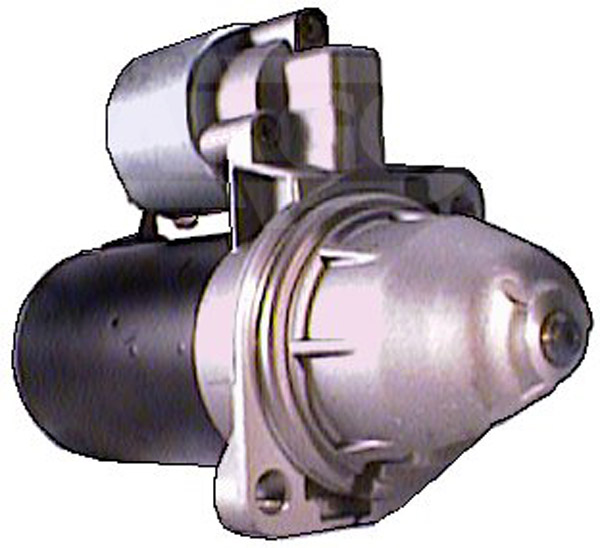

111489 - Starter (111489)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 12, kW 1.4, Mount. flange 82.50, Drive dist. 34.00, Dist./back 170.00, Dist./front 70.00, No. of teeth 9, B+ M8, Terminal 15a 4.70, Gear type GR, Dist. 103.70,
Rotation: CR, No./mount. holes 2 (2),
Drive Type: Steel,
Total Length: 242.00, Oil sealed No, Waterproof No

Electrical specifications (Starter)
Voltage 12
kW 1.4

Physical specifications (Starter)
A Mount. flange 82.50
B Drive dist. 34.00
F Dist./back 170.00
G Dist./front 70.00
H No. of teeth 9
I B+ M8
J Terminal 15a 4.70
N Gear type GR
O Dist. 103.70
P Rotation CR
R Total length 242.00

Further information (Starter)
No./mount. holes 2 (2)
Drive type Steel
Oil sealed No
Waterproof No

Replacing
0001108030 BOSCH
0001108088 BOSCH
0001311146 BOSCH
0001311147 BOSCH
1357199 VOLVO
3523301 VOLVO
5003564 VOLVO

UNISTART Price: £66.87

Sorry, this item is out of stock.

The 111489 - Starter is shown in: Starters & Alternators > Starters , Automotive > Starters & Alternators , Marine > Starters.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Volvo, Passenger Car EU 240 2.3 Gasoline 1984 08 1986 07 81 110 2315 4 B230A 240
Volvo, Passenger Car EU 240 2.3 Gasoline 1986 08 1987 07 83 113 2315 4 B230F 240
Volvo, Passenger Car EU 240 2.3 Gasoline 1986 08 1993 07 85 115 2316 4 B230K 240
Volvo, Passenger Car EU 240 2.3 Gasoline 1986 08 1993 07 85 115 2316 4 B230F Estate 240
Volvo, Passenger Car EU 740 2.3 Gasoline 1984 08 1990 07 84 114 2316 4 B230F 740
Volvo, Passenger Car EU 740 2.3 Gasoline 1988 08 1990 07 114 156 2316 4 16V B234F Estate 740
Volvo, Passenger Car EU 360 2 Gasoline 1986 08 1988 07 82 112 1986 4 B200E Hatchback 360
Volvo, Passenger Car EU 940 2.3 Gasoline 1990 08 1994 12 96 131 2316 4 B230FB 940
Volvo, Passenger Car EU 940 2.3 Gasoline 1990 08 1994 12 96 131 2316 4 B230G 940
Volvo, Passenger Car EU 940 2.3 Gasoline 1995 01 1998 10 99 135 2316 4 Turbo B230FK Estate 940
Volvo, Passenger Car EU 360 2 Gasoline 1986 08 1988 07 82 112 1986 4 B200EA 360
Volvo, Passenger Car EU 940 2.3 Gasoline 1991 08 1993 07 140 190 2316 4 Turbo B230FT Estate 940
Volvo, Passenger Car EU 740 2.3 Gasoline 1987 08 1989 07 117 159 2316 4 B234F Estate 740
Volvo, Passenger Car EU 740 2.3 Gasoline 1989 07 1992 08 111 151 2316 4 i B234F Estate 740
Volvo, Passenger Car EU 740 2.3 Gasoline 1988 01 1990 10 87 118 2316 4 B230F Estate 740
Volvo, Passenger Car EU 960 2 Gasoline 1990 09 1993 08 103 140 1986 4 B204E 960
Volvo, Passenger Car EU 760 2.3 Gasoline 1984 08 1990 08 134 182 2316 4 Turbo B230ET Estate 760
Volvo, Passenger Car EU 940 2 Gasoline 1996 04 1998 10 114 155 1986 4 Turbo B200FT 940
Volvo, Passenger Car EU 940 2 Gasoline 1990 08 1994 12 114 155 1986 4 Turbo B200FT 940
Volvo, Passenger Car EU 740 2.3 Gasoline 1985 08 1986 07 82 112 2316 4 B230A Estate 740
Volvo, Passenger Car EU 740 2.3 Gasoline 1984 08 1986 07 82 112 2316 4 B230A 740
Volvo, Passenger Car EU 240 2.3 Gasoline 1984 08 1986 07 81 110 2315 4 B230A Estate 240
Volvo, Passenger Car EU 240 2.3 Gasoline 1986 08 1987 07 83 113 2316 4 B230F Estate 240
Volvo, Passenger Car EU 740 2.3 Gasoline 1987 08 1992 07 85 115 2316 4 B230F Estate 740
Volvo, Passenger Car EU 740 2.3 Gasoline 1989 08 1990 07 121 165 2316 4 Turbo B230GT Estate 740
Volvo, Passenger Car EU 360 2 Gasoline 1986 08 1988 07 82 112 1986 4 B200F Hatchback 360
Volvo, Passenger Car EU 940 2 Gasoline 1992 01 1994 07 82 112 1986 4 B200F Estate 940
Volvo, Passenger Car EU 940 2.3 Gasoline 1994 08 1998 10 121 165 2316 4 Turbo B230FT Estate 940
Volvo, Passenger Car EU 360 2 Gasoline 1984 08 1987 07 77 105 1986 4 B200K 360
Volvo, Passenger Car EU 740 2 Gasoline 1988 09 1990 08 76 103 1986 4 B200K 740
Volvo, Passenger Car EU 740 2 Gasoline 1983 12 1984 07 110 150 1986 4 B19ET 740
Volvo, Passenger Car EU 240 2.3 Gasoline 1986 08 1988 12 85 115 2316 4 B230K 240
Volvo, Passenger Car EU 740 2.3 Gasoline 1984 08 1988 07 96 131 2316 4 B230E 740
Volvo, Passenger Car EU 940 2.3 Gasoline 1994 08 1995 07 85 116 2316 4 B230FD Estate 940
Volvo, Passenger Car EU 940 2.3 Gasoline 1992 08 1994 07 85 116 2316 4 B230FD Estate 940
Volvo, Passenger Car EU 940 2.3 Gasoline 1990 08 1991 07 114 155 2316 4 B234F Estate 940
Volvo, Passenger Car EU 360 2 Gasoline 1987 08 1988 07 81 110 1986 4 B200EA 360
Volvo, Passenger Car EU 740 2.3 Gasoline 1986 08 1989 07 115 156 2316 4 Turbo B230FT 740
Volvo, Passenger Car EU 740 2.3 Gasoline 1986 08 1988 07 86 117 2316 4 B230K 740
Volvo, Passenger Car EU 740 2 Gasoline 1988 09 1990 08 76 103 1986 4 B200K Estate 740
Volvo, Passenger Car EU 740 2 Gasoline 1985 01 1985 12 120 163 1986 4 B200ET 740
Volvo, Passenger Car EU 740 2 Gasoline 1987 01 1988 08 86 117 1986 4 B200E Estate 740
Volvo, Passenger Car EU 960 2 Gasoline 1990 09 1993 08 103 140 1986 4 B204E Estate 960
Volvo, Passenger Car EU 240 2.3 Gasoline 1984 08 1986 07 81 110 2315 4 B230K 240
Volvo, Passenger Car EU 240 2.3 Gasoline 1984 08 1988 12 98 133 2316 4 B23E Estate 240
Volvo, Passenger Car EU 740 2.3 Gasoline 1985 09 1990 07 84 114 2316 4 B230K Estate 740
Volvo, Passenger Car EU 740 2.3 Gasoline 1986 08 1989 07 115 156 2316 4 Turbo B230FT Estate 740
Volvo, Passenger Car EU 740 2 Gasoline 1989 08 1991 07 82 112 1986 4 B200F Estate 740
Volvo, Passenger Car EU 760 2.3 Gasoline 1984 08 1988 10 134 182 2316 4 Turbo B230ET 760
Volvo, Passenger Car EU 740 2.3 Gasoline 1989 08 1990 07 121 165 2316 4 Turbo B230FT Estate 740
Volvo, Passenger Car EU 360 2 Gasoline 1984 08 1990 07 75 102 1986 4 B200K 360
Volvo, Passenger Car EU 360 2 Gasoline 1988 08 1989 07 80 109 1986 4 B200F Hatchback 360
Volvo, Passenger Car EU 940 2.3 Gasoline 1990 08 1994 12 96 131 2316 4 B230FB Estate 940
Volvo, Passenger Car EU 480 1.7 Gasoline 1986 04 1989 07 78 106 1721 4 B18E Coupe 480
Volvo, Passenger Car EU 940 2.3 Gasoline 1995 01 1998 10 99 135 2316 4 Turbo B230FK 940
Volvo, Passenger Car EU 940 2.3 Gasoline 1991 08 1993 07 140 190 2316 4 Turbo B230FT 940
Volvo, Passenger Car EU 740 2.3 Gasoline 1987 08 1989 07 117 159 2316 4 B234F 740
Volvo, Passenger Car EU 740 2.3 Gasoline 1985 08 1988 07 134 182 2316 4 Turbo B230ET Estate 740
Volvo, Passenger Car EU 740 2.3 Gasoline 1989 08 1990 07 140 190 2316 4 Turbo B230FT Estate 740
Volvo, Passenger Car EU 360 2 Gasoline 1987 08 1988 07 81 110 1986 4 B200F Hatchback 360
Volvo, Passenger Car EU 360 2 Gasoline 1988 08 1989 07 80 109 1986 4 B200F 360
Volvo, Passenger Car EU 240 2 Gasoline 1982 10 1984 08 100 136 1986 4 B19ET 240
Volvo, Passenger Car EU 940 2 Gasoline 1996 04 1998 10 114 155 1986 4 Turbo B200FT Estate 940
Volvo, Passenger Car EU 760 2.3 Gasoline 1988 01 1992 07 119 165 2316 4 B230FT 760
Volvo, Passenger Car EU 240 2.3 Gasoline 1991 08 1992 07 100 136 2316 4 B230F Estate 240
Volvo, Passenger Car EU 240 2.3 Gasoline 1986 08 1993 07 85 115 2316 4 B230F 240
Volvo, Passenger Car EU 740 2.3 Gasoline 1985 09 1989 12 83 113 2315 4 B230F 740
Volvo, Passenger Car EU 740 2.3 Gasoline 1984 08 1990 07 84 114 2316 4 B23A 740
Volvo, Passenger Car EU 740 2.3 Gasoline 1988 08 1991 07 114 156 2316 4 16V B234F 740
Volvo, Passenger Car EU 740 2.3 Gasoline 1987 08 1992 07 85 115 2316 4 B230F 740
Volvo, Passenger Car EU 740 2.3 Gasoline 1985 08 1989 12 83 113 2315 4 B230F Estate 740
Volvo, Passenger Car EU 740 2.3 Gasoline 1985 08 1988 07 96 131 2316 4 B230E Estate 740
Volvo, Passenger Car EU 940 2 Gasoline 1992 01 1994 07 82 112 1986 4 B200F 940
Volvo, Passenger Car EU 940 2.3 Gasoline 1990 08 1994 07 121 165 2316 4 Turbo B230FT Estate 940
Volvo, Passenger Car EU 940 2.3 Gasoline 1990 08 1994 07 121 165 2316 4 Turbo B230FT 940
Volvo, Passenger Car EU 940 2.3 Gasoline 1994 08 1995 07 85 116 2316 4 B230FD 940
Volvo, Passenger Car EU 940 2.3 Gasoline 1992 08 1994 07 85 116 2316 4 B230FD 940
Volvo, Passenger Car EU 360 2 Gasoline 1984 08 1986 07 85 115 1986 4 B200E 360
Volvo, Passenger Car EU 240 2.3 Gasoline 1984 08 1989 12 98 133 2316 4 B23E 240
Volvo, Passenger Car EU 360 2 Gasoline 1984 08 1987 07 77 105 1986 4 B200K Hatchback 360
Volvo, Passenger Car EU 360 2 Gasoline 1984 08 1986 07 87 118 1986 4 B200E Hatchback 360
Volvo, Passenger Car EU 740 2.3 Gasoline 1989 08 1990 07 121 165 2316 4 Turbo B230FT 740
Volvo, Passenger Car EU 740 2.3 Gasoline 1989 08 1990 07 140 190 2316 4 Turbo B230FT 740
Volvo, Passenger Car EU 740 2.3 Gasoline 1988 08 1992 08 111 151 2316 4 B234F 740
Volvo, Passenger Car EU 940 2.3 Gasoline 1990 08 1991 07 114 156 2316 4 B234F 940
Volvo, Passenger Car EU 240 2.3 Gasoline 1986 08 1988 12 85 115 2316 4 B230K Estate 240
Volvo, Passenger Car EU 960 2 Gasoline 1990 08 1993 09 140 190 1986 4 B204FT 960
Volvo, Passenger Car EU 960 2 Gasoline 1990 08 1993 09 140 190 1986 4 B204FT Estate 960
Volvo, Passenger Car EU 240 2 Gasoline 1982 10 1984 08 100 136 1986 4 B19ET Estate 240
Volvo, Passenger cars US 240 2.3 Gasoline 1990 01 1990 01 0 0 2316 L4 B230F DL 240
Volvo, Passenger cars US 240 2.3 Gasoline 1991 01 1991 01 0 0 2316 L4 B230F SE 240
Volvo, Passenger cars US 760 2.3 Gasoline 1989 01 1990 01 0 0 2316 L4 Turbo B230FT 760
Volvo, Passenger cars US 940 2.3 Gasoline 1991 01 1995 01 0 0 2316 L4 Turbo B230FT 940
Volvo, Passenger cars US 240 2.3 Gasoline 1992 01 1992 01 0 0 2316 L4 B230F GL 240
Volvo, Passenger cars US 245 2.3 Gasoline 1986 01 1989 01 0 0 2316 L4 B230F DL 245
Volvo, Passenger cars US 740 2.3 Gasoline 1990 01 1992 01 0 0 2316 L4 B230F 740
Volvo, Passenger cars US 740 2.3 Gasoline 1991 01 1991 01 0 0 2316 L4 Turbo B230FT SE 740
Volvo, Passenger cars US 760 2.3 Gasoline 1988 01 1988 01 0 0 2316 L4 Turbo B230FT GLE 760
Volvo, Passenger cars US 940 2.3 Gasoline 1992 01 1992 01 0 0 2316 L4 Turbo 940
Volvo, Passenger cars US 245 2.3 Gasoline 1985 01 1985 01 0 0 2316 L4 B230F 245
Volvo, Passenger cars US 740 2.3 Gasoline 1986 01 1986 01 0 0 2316 L4 Turbo B230FT GLE 740
Volvo, Passenger cars US 740 2.3 Gasoline 1987 01 1988 01 0 0 2316 L4 Turbo B230FT GLE 740
Volvo, Passenger cars US 740 2.3 Gasoline 1987 01 1988 01 0 0 2316 L4 B230F GLE 740
Volvo, Passenger cars US 780 2.3 Gasoline 1989 01 1990 01 0 0 2316 L4 Turbo B230FT 780
Volvo, Passenger cars US 940 2.3 Gasoline 1991 01 1991 01 0 0 2316 L4 Turbo B230FT SE 940
Volvo, Passenger cars US 240 2.3 Gasoline 1990 01 1993 01 0 0 2316 L4 B230F 240
Volvo, Passenger cars US 244 2.3 Gasoline 1985 01 1989 01 0 0 2316 L4 B230F GL 244
Volvo, Passenger cars US 245 2.3 Gasoline 1986 01 1989 01 0 0 2316 L4 B230F GL 245
Volvo, Passenger cars US 940 2.3 Gasoline 1991 01 1991 01 0 0 2316 L4 B230F GLE 940
Volvo, Passenger cars US 740 2.3 Gasoline 1989 01 1990 01 0 0 2316 L4 Turbo B230FT 740
Volvo, Passenger cars US 740 2.3 Gasoline 1989 01 1990 01 0 0 2316 L4 B230F GL 740
Volvo, Passenger cars US 740 2.3 Gasoline 1989 01 1989 01 0 0 2316 L4 B230F GLE 740
Volvo, Passenger cars US 740 2.3 Gasoline 1992 01 1992 01 0 0 2316 L4 Turbo B230FT 740
Volvo, Passenger cars US 940 2.3 Gasoline 1994 01 1995 01 0 0 2316 L4 B230FD 940
Volvo, Passenger cars US 740 2.3 Gasoline 1990 01 1990 01 0 0 2316 L4 B234F GLE 740
Volvo, Passenger cars AO 960 2.3 Gasoline 1990 09 1993 08 121 165 2316 4 Turbo B230FT Estate 960
Volvo, Passenger cars AO 760 2.3 Gasoline 1987 09 1990 08 115 156 2316 4 Turbo B230FT Estate 760
Volvo, Passenger cars AO 740 2.3 Gasoline 1989 09 1991 08 125 170 2316 4 Turbo B230GT Estate 740
Volvo, Passenger cars AO 940 2 Gasoline 1990 09 1992 04 103 140 1986 4 B204E GL 940
Volvo, Passenger cars AO 940 2 Gasoline 1990 09 1993 09 89 121 1986 4 B200G 940
Volvo, Passenger cars AO 760 2.3 Gasoline 1987 09 1990 08 115 156 2316 4 Turbo B230FT 760
Volvo, Passenger cars AO 940 2.3 Gasoline 1994 10 1997 05 113 154 2316 4 B230GK Estate 940
Volvo, Passenger cars AO 940 2 Gasoline 1990 09 1993 09 89 121 1986 4 B200G Estate 940
Volvo, Passenger cars AO 740 2.3 Gasoline 1989 09 1991 08 125 170 2316 4 Turbo B230GT 740
