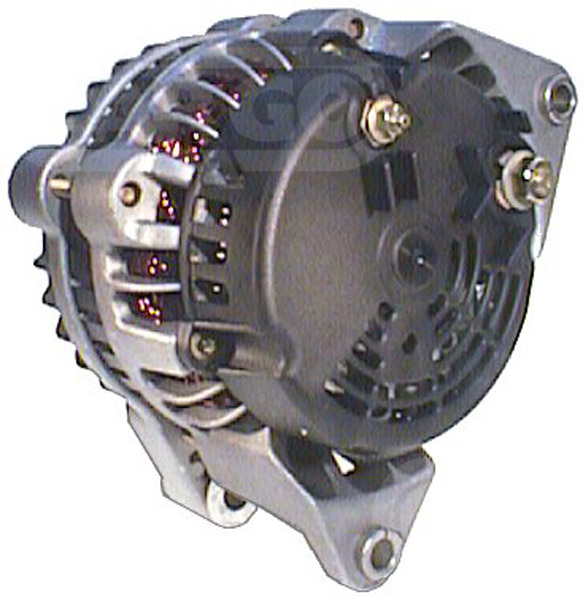

111514 - Alternator (111514)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 100,
Bracket Hole: 10.40, Belt. adj. bracket hole 10.40,
Width/Holder Arm: 34.00, Belt. adj. brackethole pos. 50,
Mount. Bracket Dist.: 56.00,
Pulley Dia.: 55.50,
Pulley Dist.: 52.00,
Grooves/Pulley: 6,
Radius: 92.00,
Radius: 92.00,
B+ Position: M8,
Rotation: CR,
Regulator Plug: or plug PL_NA,
Blower: IF, Pulley SP,
Total Length: 183.00

Electrical specifications (Alternator)
Voltage 14
Amp 100

Physical specifications (Alternator)
D Bracket hole 10.40
G Belt. adj. bracket hole 10.40
B Width/holder arm 34.00
E Belt. adj. brackethole pos. 50
C Mount. bracket dist. 56.00
H Pulley dia. 55.50
A Pulley dist. 52.00
i Grooves/pulley 6
j Radius 92.00
j Radius 92.00
k B+ position M8
n Rotation CR
o Regulator plug PL_NA
R Total length 183.00

Further information (Alternator)
Blower IF
Pulley SP

Replacing
0123505003 BOSCH
10479914 REMY (DELCO)
10479955 REMY (DELCO)
10480226 REMY (DELCO)
11.209.011 ISKRA
3493454 REMY (DELCO)
3493455 REMY (DELCO)
3493814 OPEL
3493814 REMY (DELCO)
3493815 OPEL

UNISTART Price: £77.11

Sorry, this item is out of stock.

The 111514 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Opel, Passenger Car EU Vectra 1.8 Gasoline 1990 03 1995 11 66 90 1796 4 i C18NZ Hatchback Vectra A
Opel, Passenger Car EU Calibra 2 Gasoline 1992 03 1997 07 150 204 1998 4 i Turbo C20LET Coupe 4x4 Calibra A
Opel, Passenger Car EU Astra 2 Gasoline 1993 03 1994 10 85 115 1998 4 i C20NE Convertible Astra F
Opel, Passenger Car EU Astra 2 Gasoline 1992 03 1998 09 85 115 1998 4 i C20NE Astra F
Opel, Passenger Car EU Astra 1.8 Gasoline 1993 06 1998 01 92 125 1799 4 i 16V C18XE Estate Astra F
Opel, Passenger Car EU Astra 2 Gasoline 1991 09 1994 07 85 115 1998 4 i C20NE Estate Astra F
Opel, Passenger Car EU Omega 2 Gasoline 1994 03 1999 09 85 116 1998 4 i X20SE Omega B
Opel, Passenger Car EU Omega 3 Gasoline 1994 04 2001 02 155 211 2962 6 i V6 X30XE Estate Omega B
Opel, Passenger Car EU Vectra 1.6 Gasoline 1995 09 2000 08 74 100 1598 4 i 16V X16XEL Vectra B
Opel, Passenger Car EU Vectra 1.6 Gasoline 2000 09 2002 09 74 100 1598 4 i 16V Z16XE Vectra B
Opel, Passenger Car EU Vectra 1.8 Gasoline 1995 10 2000 09 85 115 1796 4 i 16V X18XE1 Vectra B
Opel, Passenger Car EU Vectra 2 Gasoline 1997 05 2002 09 100 136 1998 4 i 16V C20SEL Vectra B
Opel, Passenger Car EU Vectra 2.5 Gasoline 1996 11 2000 09 125 170 2498 6 i V6 X25XE Estate Vectra B
Opel, Passenger Car EU Calibra 2 Gasoline 1990 06 1997 07 85 115 1998 4 i C20NE Coupe Calibra A
Opel, Passenger Car EU Calibra 2 Gasoline 1990 06 1994 02 110 150 1998 4 i 16V C20XE Coupe Calibra A
Opel, Passenger Car EU Astra 1.8 Gasoline 1991 09 1998 01 66 90 1796 4 i C18NZ Estate Astra F
Opel, Passenger Car EU Frontera 2 Gasoline 1992 03 1998 10 85 115 1998 4 i X20SE Convertible Sport Frontera A
Opel, Passenger Car EU Corsa 1.4 Gasoline 1993 03 2000 09 60 82 1389 4 Si C14SE Hatchback Corsa B
Opel, Passenger Car EU Tigra 1.6 Gasoline 1994 07 1998 08 78 106 1598 4 i 16V X16XE Coupe Tigra
Opel, Passenger Car EU Vectra 1.6 Gasoline 1995 10 2002 07 74 101 1598 4 i 16V Z16XE Hatchback Vectra B
Opel, Passenger Car EU Vectra 1.6 Gasoline 1995 10 2002 07 74 101 1598 4 i 16V Y16XE Hatchback Vectra B
Opel, Passenger Car EU Vectra 1.6 Gasoline 1995 10 2002 04 55 75 1598 4 i X16SZR Vectra B
Opel, Passenger Car EU Vectra 1.6 Gasoline 1999 09 2002 09 74 100 1598 4 i 16V Y16XE Vectra B
Opel, Passenger Car EU Vectra 1.6 Gasoline 1996 11 2002 07 74 100 1598 4 i 16V Z16XE Estate Vectra B
Opel, Passenger Car EU Vectra 1.8 Gasoline 1996 11 2000 09 85 115 1796 4 i 16V X18XE1 Estate Vectra B
Opel, Passenger Car EU Corsa 1.4 Gasoline 1999 08 2000 09 44 60 1389 4 i X14SZ Van Corsa B
Opel, Passenger Car EU Vectra 1.8 Gasoline 2000 09 2003 07 92 125 1796 4 i 16V Z18XE Hatchback Vectra B
Opel, Passenger Car EU Vectra 1.8 Gasoline 2000 09 2002 04 92 125 1796 4 i 16V Z18XE Vectra B
Opel, Passenger Car EU Omega 2.2 Gasoline 1999 09 2003 07 106 144 2198 4 i 16V Z22XE Omega B
Opel, Passenger Car EU Corsa 1.4 Gasoline 1993 03 2000 09 44 60 1389 4 i C14NZ Hatchback Corsa B
Opel, Passenger Car EU Vectra 2 Gasoline 1994 06 1995 11 100 136 1998 4 i 16V X20XEV Hatchback Vectra A
Opel, Passenger Car EU Astra 2 Gasoline 1995 02 1998 01 100 136 1998 4 i 16V X20XEV Hatchback Astra F
Opel, Passenger Car EU Tigra 1.4 Gasoline 1994 07 2000 12 66 90 1389 4 i 16V X14XE Coupe Tigra
Opel, Passenger Car EU Vectra 1.6 Gasoline 1995 10 2003 07 55 75 1598 4 i X16SZR Hatchback Vectra B
Opel, Passenger Car EU Vectra 1.6 Gasoline 1995 10 2002 07 74 101 1598 4 i 16V X16XEL Hatchback Vectra B
Opel, Passenger Car EU Vectra 1.6 Gasoline 1996 11 2000 06 55 75 1598 4 i X16SZR Estate Vectra B
Opel, Passenger Car EU Vectra 1.6 Gasoline 1996 11 2002 07 74 100 1598 4 i 16V Y16XE Estate Vectra B
Opel, Passenger Car EU Vectra 1.8 Gasoline 1990 03 1995 11 66 90 1796 4 i C18NZ Vectra A
Opel, Passenger Car EU Vectra 2 Gasoline 1988 09 1995 11 85 116 1998 4 i C20NE Hatchback Vectra A
Opel, Passenger Car EU Vectra 2.5 Gasoline 1998 05 2000 09 143 194 2498 6 i X25XE Vectra B
Opel, Passenger Car EU Calibra 2.5 Gasoline 1993 04 1997 07 125 170 2498 6 i V6 C25XE Coupe Calibra A
Opel, Passenger Car EU Astra 1.8 Gasoline 1991 09 1998 01 66 90 1796 4 i C18NZ Hatchback Astra F
Opel, Passenger Car EU Frontera 2 Gasoline 1992 03 1998 10 85 115 1998 4 i C20NE Convertible Sport Frontera A
Opel, Passenger Car EU Vectra 2.5 Gasoline 1993 02 1995 11 125 170 2498 6 i V6 C25XE Hatchback Vectra A
Opel, Passenger Car EU Vectra 2.5 Gasoline 1995 10 2000 09 125 170 2498 6 i V6 X25XE Hatchback Vectra B
Opel, Passenger Car EU Omega 3 Gasoline 1994 04 2001 02 155 211 2962 6 i V6 X30XE Omega B
Opel, Passenger Car EU Corsa 1.6 Gasoline 1994 09 2000 09 78 106 1598 4 i 16V X16XE Hatchback Corsa B
Opel, Passenger Car EU Frontera 2.2 Gasoline 1995 03 1998 10 100 136 2198 4 i X22XE Frontera A
Opel, Passenger Car EU Astra 2 Gasoline 1995 02 1998 09 100 136 1998 4 i 16V X20XEV Astra F
Opel, Passenger Car EU Astra 1.8 Gasoline 1994 07 1998 01 85 116 1799 4 i 16V C18XEL Estate Astra F
Opel, Passenger Car EU Omega 2.2 Gasoline 1999 09 2003 07 106 144 2198 4 i 16V Y22XE Estate Omega B
Opel, Passenger Car EU Astra 1.8 Gasoline 1992 03 1998 09 66 90 1796 4 i C18NZ Astra F
Opel, Passenger Car EU Astra 2 Gasoline 1991 09 1998 01 85 115 1998 4 i C20NE Hatchback Astra F
Opel, Passenger Car EU Corsa 1.4 Gasoline 1993 03 2000 09 44 60 1389 4 i X14SZ Hatchback Corsa B
Opel, Passenger Car EU Vectra 2 Gasoline 1994 06 1995 11 150 204 1998 4 i Turbo C20LET 4x4 Vectra A
Opel, Passenger Car EU Vectra 2.5 Gasoline 1993 02 1995 11 125 170 2498 6 i V6 C25XE Vectra A
Opel, Passenger Car EU Vectra 1.8 Gasoline 1995 10 2000 09 85 115 1796 4 i 16V X18XE Vectra B
Opel, Passenger Car EU Vectra 2 Gasoline 1995 09 2002 09 100 136 1998 4 i 16V X20XEV Vectra B
Opel, Passenger Car EU Vectra 2.5 Gasoline 1995 10 2000 09 125 170 2498 6 i V6 X25XE Vectra B
Opel, Passenger Car EU Astra 1.8 Gasoline 1994 07 1998 01 85 116 1799 4 i 16V X18XE Estate Astra F
Opel, Passenger Car EU Omega 2.5 Gasoline 1994 03 2000 09 125 170 2498 6 i V6 X25XE Omega B
Opel, Passenger Car EU Omega 2.5 Gasoline 1994 03 2000 09 125 170 2498 6 i V6 X25XE Estate Omega B
Opel, Passenger Car EU Vectra 2 Gasoline 1994 06 1995 11 100 136 1998 4 i 16V X20XEV Vectra A
Opel, Passenger Car EU Corsa 1.4 Gasoline 1994 09 2000 09 66 90 1389 4 i 16V X14XE Hatchback Corsa B
Opel, Passenger Car EU Vectra 2 Gasoline 1996 11 2000 09 100 136 1998 4 i 16V X20XEV Estate Vectra B
Opel, Passenger Car EU Vectra 2.5 Gasoline 1998 05 2000 09 143 194 2498 6 i X25XE Estate Vectra B
Opel, Passenger Car EU Vectra 1.8 Gasoline 2000 09 2003 07 92 125 1796 4 i 16V Z18XE Estate Vectra B
Opel, Passenger Car EU Omega 2.2 Gasoline 1999 09 2003 07 106 144 2198 4 i 16V Y22XE Omega B
Opel, Passenger Car EU Omega 2.2 Gasoline 1999 09 2003 07 106 144 2198 4 i 16V Z22XE Estate Omega B
Opel, Passenger Car EU Omega 2 Gasoline 1994 03 2000 12 85 115 1998 4 i 20SE Omega B
Vauxhall, Passenger Car EU Omega 2 Gasoline 1994 03 1999 09 85 116 1998 4 X20SE Estate Omega
Vauxhall, Passenger Car EU Omega 2 Gasoline 1994 03 1999 09 100 136 1998 4 16V X20XEV Estate Omega
Vauxhall, Passenger Car EU Vectra 1.6 Gasoline 1995 10 - 74 100 1598 4 i 16V X16XEL Vectra
Vauxhall, Passenger Car EU Vectra 1.6 Gasoline 1995 10 - 74 100 1598 4 i 16V Z16XE Vectra
Vauxhall, Passenger Car EU Vectra 2.5 Gasoline 1995 10 2000 09 125 170 2498 6 i V6 X25XE Vectra
Vauxhall, Passenger Car EU Vectra 1.6 Gasoline 1995 10 - 55 75 1598 4 i X16SZR Hatchback Vectra
Vauxhall, Passenger Car EU Vectra 2 Gasoline 1995 10 2000 09 100 136 1998 4 i 16V X20XEV Hatchback Vectra
Vauxhall, Passenger Car EU Vectra 2.5 Gasoline 1996 11 2000 09 125 170 2498 6 i V6 X25XE Estate Vectra
Vauxhall, Passenger Car EU Vectra 2 Diesel 1997 06 - 74 101 1995 4 DTi 16V X20DTH Hatchback Vectra
Vauxhall, Passenger Car EU Vectra 2 Diesel 1997 06 - 74 101 1995 4 DTi 16V Y20DTH Vectra
Vauxhall, Passenger Car EU Omega 2.2 Gasoline 1999 09 - 106 144 2198 4 i 16V Y22XE Omega
Vauxhall, Passenger Car EU Astra 2 Diesel 1999 08 2005 05 74 101 1995 4 DTi 16V X20DTH Hatchback Astra MK III
Vauxhall, Passenger Car EU Astravan 2 Diesel 2004 04 2006 08 74 100 1995 4 DTi Y20DTH Van Astravan MK IV
Vauxhall, Passenger Car EU Omega 3 Gasoline 1994 04 - 155 211 2962 6 V6 X30XE Estate Omega
Vauxhall, Passenger Car EU Omega 2 Gasoline 1994 03 1999 09 85 116 1998 4 i X20SE Omega
Vauxhall, Passenger Car EU Vectra 2 Gasoline 1995 10 2000 09 100 136 1998 4 i 16V X20XEV Vectra
Vauxhall, Passenger Car EU Vectra 1.6 Gasoline 1995 10 - 74 101 1598 4 i 16V Y16XE Hatchback Vectra
Vauxhall, Passenger Car EU Vectra 1.6 Gasoline 1996 11 2002 03 74 100 1598 4 i 16V Y16XE Estate Vectra
Vauxhall, Passenger Car EU Astra 1.8 Gasoline 1992 03 1998 09 66 90 1796 4 i C18NZ Astra F
Vauxhall, Passenger Car EU Vectra 1.8 Gasoline 2000 09 2002 03 92 125 1796 4 i 16V Z18XE Estate Vectra
Vauxhall, Passenger Car EU Cavalier 2.5 Gasoline 1993 02 1995 11 125 170 2498 6 V6 C25XE Hatchback Cavalier
Vauxhall, Passenger Car EU Omega 2.2 Gasoline 1999 09 - 106 144 2198 4 i 16V Y22XE Estate Omega
Vauxhall, Passenger Car EU Cavalier 1.8 Gasoline 1990 03 1995 11 66 90 1796 4 i C18NZ Hatchback Cavalier
Vauxhall, Passenger Car EU Astra 2 Diesel 2000 09 - 74 101 1995 4 DTi 16V Y20DTH Astra MK IV
Vauxhall, Passenger Car EU Vectra 1.8 Gasoline 1995 10 2000 09 85 116 1796 4 i 16V X18XE Vectra
Vauxhall, Passenger Car EU Vectra 2.5 Gasoline 1995 10 2000 09 125 170 2498 6 i V6 X25XE Hatchback Vectra
Vauxhall, Passenger Car EU Vectra 1.6 Gasoline 1996 11 2002 03 74 100 1598 4 i 16V X16XEL Estate Vectra
Vauxhall, Passenger Car EU Vectra 1.8 Gasoline 1996 11 2000 09 85 115 1796 4 i 16V X18XE Estate Vectra
Vauxhall, Passenger Car EU Omega 2.5 Gasoline 1994 03 2000 09 125 170 2498 6 V6 X25XE Omega
Vauxhall, Passenger Car EU Calibra 2 Gasoline 1992 03 1997 07 150 204 1998 4 i Turbo C20LET Coupe 4x4 Calibra A
Vauxhall, Passenger Car EU Astra 2 Diesel 1998 09 - 60 82 1995 4 Diesel X20DTL Astra G
Vauxhall, Passenger Car EU Astra 2 Diesel 1998 09 - 60 82 1995 4 Diesel Y20DTL Astra G
Vauxhall, Passenger Car EU Frontera 2.2 Gasoline 1998 10 2004 10 100 136 2198 4 i Y22SE Frontera B
Vauxhall, Passenger Car EU Zafira 2 Diesel 1999 10 - 60 82 1995 4 Diesel Di 16V X20DTL MPV Zafira
Vauxhall, Passenger Car EU Cavalier 2.5 Gasoline 1993 02 1995 11 125 170 2498 6 V6 C25XE Cavalier
Vauxhall, Passenger Car EU Omega 2.2 Gasoline 1999 09 - 106 144 2198 4 i 16V Z22XE Estate Omega
Vauxhall, Passenger Car EU Calibra 2.5 Gasoline 1993 04 1997 07 125 170 2498 6 i V6 X25XE Coupe Calibra A
Vauxhall, Passenger Car EU Vectra 1.6 Gasoline 1995 10 - 55 75 1598 4 i X16SZR Vectra
Vauxhall, Passenger Car EU Vectra 1.8 Gasoline 1995 10 2000 09 85 116 1796 4 i 16V X18XE1 Vectra
Vauxhall, Passenger Car EU Vectra 1.6 Gasoline 1995 10 - 74 101 1598 4 i 16V Z16XE Hatchback Vectra
Vauxhall, Passenger Car EU Vectra 1.8 Gasoline 1995 10 2000 09 85 116 1796 4 i 16V X18XE Hatchback Vectra
Vauxhall, Passenger Car EU Vectra 1.6 Gasoline 1996 11 2002 03 74 100 1598 4 i 16V Z16XE Estate Vectra
Vauxhall, Passenger Car EU Vectra 1.8 Gasoline 1996 11 2000 09 85 115 1796 4 i 16V X18XE1 Estate Vectra
Vauxhall, Passenger Car EU Astra 2 Diesel 1998 02 2005 05 60 82 1995 4 Diesel X20DTL Hatchback Astra G
Vauxhall, Passenger Car EU Astra 2 Diesel 1998 02 2005 05 60 82 1995 4 Diesel Y20DTL Hatchback Astra G
Vauxhall, Passenger Car EU Astra 2 Diesel 1999 08 - 74 101 1995 4 DTi 16V X20DTH Estate Astra MK IV
Vauxhall, Passenger Car EU Astra 2 Diesel 2000 09 - 74 101 1995 4 DTi 16V Y20DTH Estate Astra MK IV
Vauxhall, Passenger Car EU Vectra 1.8 Gasoline 2000 09 2003 07 92 125 1796 4 i 16V Z18XE Hatchback Vectra
Vauxhall, Passenger Car EU Vectra 1.8 Gasoline 2000 09 2002 03 92 125 1796 4 i 16V Z18XE Vectra
Vauxhall, Passenger Car EU Cavalier 2 Gasoline 1988 09 1990 10 85 115 1998 4 i 20NE Cavalier
Vauxhall, Passenger Car EU Omega 3 Gasoline 1994 04 - 155 211 2962 6 V6 X30XE Omega
Vauxhall, Passenger Car EU Omega 2.5 Gasoline 1994 03 2000 09 125 170 2498 6 V6 X25XE Estate Omega
Vauxhall, Passenger Car EU Omega 2 Gasoline 1994 03 1999 09 100 136 1998 4 16V X20XEV Omega
Vauxhall, Passenger Car EU Vectra 1.6 Gasoline 1995 10 - 74 100 1598 4 i 16V Y16XE Vectra
Vauxhall, Passenger Car EU Vectra 1.6 Gasoline 1995 10 - 74 101 1598 4 i 16V X16XEL Hatchback Vectra
Vauxhall, Passenger Car EU Vectra 1.8 Gasoline 1995 10 2000 09 85 116 1796 4 i 16V X18XE1 Hatchback Vectra
Vauxhall, Passenger Car EU Vectra 1.6 Gasoline 1996 11 2002 03 55 75 1598 4 i X16SZR Estate Vectra
Vauxhall, Passenger Car EU Vectra 2 Gasoline 1996 11 2000 09 100 136 1998 4 i 16V X20XEV Estate Vectra
Vauxhall, Passenger Car EU Astra 2 Diesel 1998 02 - 60 82 1995 4 Diesel X20DTL Estate Astra G
Vauxhall, Passenger Car EU Frontera 2.2 Gasoline 1998 10 2004 10 100 136 2198 4 i X22SE Frontera B
Vauxhall, Passenger Car EU Astra 2 Diesel 1999 08 - 74 101 1995 4 DTi 16V X20DTH Astra MK IV
Vauxhall, Passenger Car EU Omega 2.2 Gasoline 1999 09 - 106 144 2198 4 i 16V Z22XE Omega
Vauxhall, Passenger Car EU Omega 2 Gasoline 1994 03 2000 12 85 115 1998 4 i 20SE Omega
Saab, Passenger Car EU 9000 2 Gasoline 1993 09 1998 12 110 150 1985 4 Turbo B204E Hatchback ND 9000
Saab, Passenger Car EU 9000 2 Gasoline 1992 09 1998 12 108 147 1985 4 Turbo B202S 9000
Saab, Passenger Car EU 9000 2 Gasoline 1993 09 1998 12 110 150 1985 4 Turbo B202S Hatchback ND 9000
Saab, Passenger Car EU 9000 2 Gasoline 1992 09 1998 12 108 147 1985 4 Turbo B204E 9000
Opel, Passenger cars AO Vectra 2.5 Gasoline 1992 08 1995 08 125 170 2498 6 C25XE CD 4x4 Vectra A

TEST & REPAIR SERVICE

Unistart has its own workshops for remanufacturing with the latest testing equipment. This enables us to provide an excellent (and free) technical helpline and aftersales support and backup service.

You can speak to one of our friendly and knowledgeable technicians who will be glad to Help with any enquiries no matter how large or small. Call us on 020 8 983 9969.
