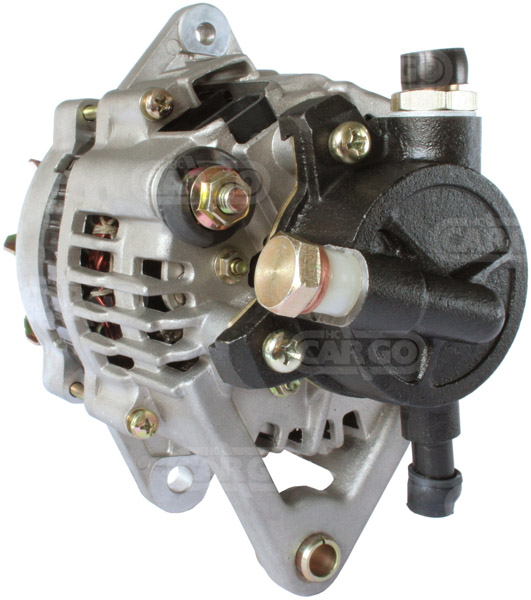

111515 - Alternator (111515)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 70,
Bracket Hole: 10.50, Belt. adj. bracket hole M8,
Width/Holder Arm: 13.00, Belt. adj. brackethole pos. 60,
Mount. Bracket Dist.: 78.50,
Pulley Dia.: 80.50,
Pulley Dist.: 42.50,
Grooves/Pulley: 1,
Radius: 90.50,
Radius: 84.50,
B+ Position: M8,
Rotation: CR,
Regulator Plug: or plug PL50,
Blower: IF, Pulley P,
Total Length: 215.00
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 70 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 10.50 | |||
| G | Belt. adj. bracket hole M8 | |||
| B | Width/holder arm 13.00 | |||
| E | Belt. adj. brackethole pos. 60 | |||
| C | Mount. bracket dist. 78.50 | |||
| H | Pulley dia. 80.50 | |||
| A | Pulley dist. 42.50 | |||
| i | Grooves/pulley 1 | |||
| j | Radius 90.50 | |||
| j | Radius 84.50 | |||
| k | B+ position M8 | |||
| n | Rotation CR | |||
| o | Regulator plug PL50 | |||
| R | Total length 215.00 | |||
Further information (Alternator) | ||||
| Blower | IF | |||
| Pulley | P | |||
Replacing | ||||
| 567051 | VALEO | |||
| 6204042 | OPEL | |||
| 6204046 | OPEL | |||
| 6204106 | OPEL | |||
| 8971502000 | ISUZU | |||
| 8971502001 | ISUZU | |||
| 8972410210 | ISUZU | |||
| 97150200 | OPEL | |||
| 97241021 | OPEL | |||
| F002G10951 | BOSCH | |||
UNISTART Price: £86.91
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Opel, Passenger Car EU | Astra | 1.7 | Diesel | 1991 12 | 1998 01 | 60 | 82 | 1686 | 4 | TDS | 17DT (TC4EE1) | Hatchback | Astra F | |
| Opel, Passenger Car EU | Astra | 1.7 | Diesel | 1992 03 | 1992 09 | 42 | 57 | 1700 | 4 | Diesel | 17D | Astra F | ||
| Opel, Passenger Car EU | Corsa | 1.5 | Diesel | 1993 03 | 2000 09 | 37 | 50 | 1488 | 4 | Diesel | 15D (4EC1) | Hatchback | Corsa B | |
| Opel, Passenger Car EU | Corsa | 1.5 | Diesel | 1993 03 | 2000 09 | 49 | 67 | 1488 | 4 | TD | X15DT (T4EC1) | Hatchback | Corsa B | |
| Opel, Passenger Car EU | Astra | 1.7 | Diesel | 1994 11 | 1998 01 | 50 | 68 | 1700 | 4 | TD | X17DTL | Hatchback | Astra F | |
| Opel, Passenger Car EU | Astra | 1.7 | Diesel | 1994 08 | 1999 01 | 50 | 68 | 1700 | 4 | TD | X17DTL | Van | Astra F | |
| Opel, Passenger Car EU | Astra | 1.7 | Diesel | 1991 12 | 1992 09 | 42 | 57 | 1700 | 4 | Diesel | 17D | Hatchback | Astra F | |
| Opel, Passenger Car EU | Corsa | 1.5 | Diesel | 1993 03 | 2000 09 | 49 | 67 | 1488 | 4 | TD | 15DT (T4EC1) | Hatchback | Corsa B | |
| Opel, Passenger Car EU | Combo | 1.7 | Diesel | 1994 07 | 2001 10 | 44 | 60 | 1686 | 4 | Diesel | X17D (4EE1) | Van | Combo | |
| Opel, Passenger Car EU | Corsa | 1.7 | Diesel | 1996 02 | 2000 09 | 44 | 60 | 1686 | 4 | Diesel | 17D (4EE1) | Hatchback | Corsa B | |
| Opel, Passenger Car EU | Corsa | 1.7 | Diesel | 1996 02 | 2000 09 | 44 | 60 | 1686 | 4 | Diesel | X17D (4EE1) | Hatchback | Corsa B | |
| Opel, Passenger Car EU | Astra | 1.7 | Diesel | 1994 11 | 1998 01 | 50 | 68 | 1700 | 4 | TD | X17DTL | Estate | Astra F | |
| Opel, Passenger Car EU | Astra | 1.7 | Diesel | 1992 07 | 1998 09 | 44 | 60 | 1700 | 4 | Diesel | 17DR | Astra F | ||
| Opel, Passenger Car EU | Astra | 1.7 | Diesel | 1992 07 | 1999 01 | 44 | 60 | 1700 | 4 | Diesel | 17DR | Van | Astra F | |
| Opel, Passenger Car EU | Astra | 1.7 | Diesel | 1991 12 | 1992 09 | 42 | 57 | 1700 | 4 | Diesel | 17D | Van | Astra F | |
| Opel, Passenger Car EU | Astra | 1.7 | Diesel | 1992 03 | 1998 09 | 60 | 82 | 1686 | 4 | TDS | 17DT (TC4EE1) | Astra F | ||
| Opel, Passenger Car EU | Astra | 1.7 | Diesel | 1991 12 | 1992 09 | 42 | 57 | 1700 | 4 | Diesel | 17D | Estate | Astra F | |
| Opel, Passenger Car EU | Astra | 1.7 | Diesel | 1992 07 | 1998 01 | 44 | 60 | 1700 | 4 | Diesel | 17DR | Estate | Astra F | |
| Opel, Passenger Car EU | Astra | 1.7 | Diesel | 1992 03 | 1998 09 | 60 | 82 | 1686 | 4 | TDS | X17DT (TC4EE1) | Astra F | ||
| Opel, Passenger Car EU | Astra | 1.7 | Diesel | 1991 12 | 1998 01 | 60 | 82 | 1686 | 4 | TDS | 17DT (TC4EE1) | Estate | Astra F | |
| Opel, Passenger Car EU | Astra | 1.7 | Diesel | 1994 11 | 1998 09 | 50 | 68 | 1700 | 4 | TD | X17DTL | Astra F | ||
| Opel, Passenger Car EU | Combo | 1.7 | Diesel | 1994 07 | 2001 10 | 44 | 60 | 1686 | 4 | Diesel | 17D (4EE1) | Van | Combo | |
| Opel, Passenger Car EU | Vectra | 1.7 | Diesel | 1995 10 | 1998 12 | 60 | 82 | 1686 | 4 | TD | X17DT (TC4EE1) | Vectra B | ||
| Opel, Passenger Car EU | Corsa | 1.7 | Diesel | 1999 08 | 2000 09 | 44 | 60 | 1686 | 4 | Diesel | X17D (4EE1) | Van | Corsa B | |
| Opel, Passenger Car EU | Astra | 1.7 | Diesel | 1995 03 | 1998 02 | 60 | 82 | 1686 | 4 | TD | X17DT (TC4EE1) | Van | Astra F | |
| Opel, Passenger Car EU | Astra | 1.7 | Diesel | 1992 07 | 1998 01 | 44 | 60 | 1700 | 4 | Diesel | 17DR | Hatchback | Astra F | |
| Opel, Passenger Car EU | Astra | 1.7 | Diesel | 1991 12 | 1998 01 | 60 | 82 | 1686 | 4 | TDS | X17DT (TC4EE1) | Estate | Astra F | |
| Opel, Passenger Car EU | Vectra | 1.7 | Diesel | 1995 10 | 1998 12 | 60 | 82 | 1686 | 4 | TD | X17DT (TC4EE1) | Hatchback | Vectra B | |
| Opel, Passenger Car EU | Astra | 1.7 | Diesel | 1991 12 | 1998 01 | 60 | 82 | 1686 | 4 | TDS | X17DT (TC4EE1) | Hatchback | Astra F | |
| Opel, Passenger Car EU | Corsa | 1.7 | Diesel | 1999 08 | 2000 09 | 44 | 60 | 1686 | 4 | Diesel | 17D (4EE1) | Van | Corsa B | |
| Vauxhall, Passenger Car EU | Combo | 1.7 | Diesel | 1994 07 | 2001 10 | 44 | 60 | 1686 | 4 | Diesel | X17D (4EE1) | Van | Combo | |
| Vauxhall, Passenger Car EU | Astra | 1.7 | Diesel | 1991 03 | 1994 12 | 44 | 60 | 1699 | 4 | Diesel | 17DR | Estate | Astra MK III | |
| Vauxhall, Passenger Car EU | Astra | 1.7 | Diesel | 1994 01 | 1998 02 | 50 | 68 | 1700 | 4 | TD | X17DTL | Estate | Astra MK III | |
| Vauxhall, Passenger Car EU | Astravan | 1.7 | Diesel | 1991 01 | 1994 08 | 44 | 60 | 1699 | 4 | Diesel | 17DR | Van | Astravan III | |
| Vauxhall, Passenger Car EU | Astravan | 1.7 | Diesel | 1994 01 | 1998 08 | 50 | 68 | 1700 | 4 | TD | X17DTL | Van | Astravan III | |
| Vauxhall, Passenger Car EU | Corsavan | 1.7 | Diesel | 1994 01 | 2000 09 | 44 | 60 | 1686 | 4 | Diesel | X17D (4EE1) | Van | Corsavan | |
| Vauxhall, Passenger Car EU | Astra | 1.7 | Diesel | 1994 11 | 1998 09 | 50 | 68 | 1700 | 4 | TD | X17DTL | Astra F | ||
| Vauxhall, Passenger Car EU | Astra | 1.7 | Diesel | 1991 12 | 1998 02 | 42 | 57 | 1699 | 4 | Diesel | 17D | Estate | Astra F | |
| Vauxhall, Passenger Car EU | Astra | 1.7 | Diesel | 1991 12 | 1998 02 | 60 | 82 | 1686 | 4 | TD | 17DT (TC4EE1) | Hatchback | Astra F | |
| Vauxhall, Passenger Car EU | Corsa | 1.5 | Diesel | 1993 03 | 1996 10 | 49 | 67 | 1488 | 4 | TD | X15DT (T4EC1) | Hatchback | Corsa B | |
| Vauxhall, Passenger Car EU | Astra | 1.7 | Diesel | 1994 11 | 1998 02 | 50 | 68 | 1700 | 4 | TD | X17DTL | Hatchback | Astra MK III | |
| Vauxhall, Passenger Car EU | Astra | 1.7 | Diesel | 1991 12 | 1998 09 | 60 | 82 | 1686 | 4 | TD | 17DT (TC4EE1) | Astra MK III | ||
| Vauxhall, Passenger Car EU | Astra | 1.7 | Diesel | 1991 12 | 1998 02 | 60 | 82 | 1686 | 4 | TD | 17DT (TC4EE1) | Estate | Astra F | |
| Vauxhall, Passenger Car EU | Combo | 1.7 | Diesel | 1994 07 | 2001 10 | 44 | 60 | 1686 | 4 | Diesel | 17D (4EE1) | Van | Combo | |
| Vauxhall, Passenger Car EU | Corsa | 1.7 | Diesel | 1996 02 | 2000 09 | 44 | 60 | 1686 | 4 | Diesel | 17D | Hatchback | Corsa B | |
| Vauxhall, Passenger Car EU | Vectra | 1.7 | Diesel | 1995 10 | 1996 11 | 60 | 82 | 1686 | 4 | TD | X17DT (TC4EE1) | Hatchback | Vectra | |
| Vauxhall, Passenger Car EU | Vectra | 1.7 | Diesel | 1996 11 | 1997 12 | 60 | 82 | 1686 | 4 | TD | X17DT (TC4EE1) | Estate | Vectra | |
| Vauxhall, Passenger Car EU | Astra | 1.7 | Diesel | 1991 09 | 1994 12 | 44 | 60 | 1699 | 4 | Diesel | 17DR | Hatchback | Astra MK III | |
| Vauxhall, Passenger Car EU | Corsavan | 1.7 | Diesel | 1994 01 | 2000 09 | 44 | 60 | 1686 | 4 | Diesel | 17D (4EE1) | Van | Corsavan | |
| Vauxhall, Passenger Car EU | Astra | 1.7 | Diesel | 1991 12 | 1998 02 | 42 | 57 | 1699 | 4 | Diesel | 17D | Hatchback | Astra F | |
| Vauxhall, Passenger Car EU | Corsa | 1.7 | Diesel | 1996 02 | 2000 09 | 44 | 60 | 1686 | 4 | Diesel | X17D | Hatchback | Corsa B | |
| Vauxhall, Passenger Car EU | Corsa | 1.5 | Diesel | 1993 03 | 2000 09 | 37 | 50 | 1488 | 4 | Diesel | 15D | Hatchback | Corsa B | |
| Vauxhall, Passenger Car EU | Astra | 1.7 | Diesel | 1992 03 | 1992 09 | 42 | 57 | 1700 | 4 | Diesel | 17D | Astra F | ||
| Vauxhall, Passenger Car EU | Corsa | 1.5 | Diesel | 1993 03 | 1996 10 | 49 | 67 | 1488 | 4 | TD | 15DT (T4EC1) | Hatchback | Corsa B | |
| Vauxhall, Passenger Car EU | Vectra | 1.7 | Diesel | 1995 10 | 1996 11 | 60 | 82 | 1686 | 4 | TD | X17DT (TC4EE1) | Vectra | ||
| Vauxhall, Passenger Car EU | Astra | 1.7 | Diesel | 1992 07 | 1998 09 | 44 | 60 | 1700 | 4 | Diesel | 17DR | Astra F |
