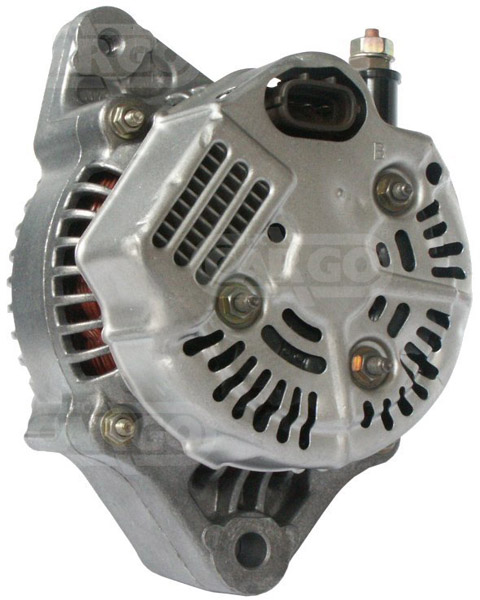

111518 - Alternator (111518)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 70,
Bracket Hole: 10.25, Belt. adj. bracket hole M8,
Width/Holder Arm: 58.00, Belt. adj. brackethole pos. 5,
Pulley Dia.: 59.50,
Pulley Dist.: 89.00,
Grooves/Pulley: 4,
Radius: 79.00,
Radius: 85.50,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL42,
Blower: IF, Pulley SP,
Total Length: 154.75, Terminal type L-IG-S

Electrical specifications (Alternator)
Voltage 14
Amp 70

Physical specifications (Alternator)
D Bracket hole 10.25
G Belt. adj. bracket hole M8
B Width/holder arm 58.00
E Belt. adj. brackethole pos. 5
H Pulley dia. 59.50
A Pulley dist. 89.00
i Grooves/pulley 4
j Radius 79.00
j Radius 85.50
k B+ position M6
n Rotation CR
o Regulator plug PL42
R Total length 154.75
Terminal type L-IG-S

Further information (Alternator)
Blower IF
Pulley SP

Replacing
101211-0050 DENSO
101211-0051 DENSO
101211-0052 DENSO
101211-0340 DENSO
101211-0341 DENSO
101211-0342 DENSO
101211-0430 DENSO
101211-0431 DENSO
101211-0432 DENSO
101211-0740 DENSO

UNISTART Price: £120.50

Sorry, this item is out of stock.

The 111518 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Toyota, Passenger Car EU Corolla 1.8 Gasoline 1995 09 1997 04 81 110 1762 4 16V 7A-FE Estate 4WD Corolla
Toyota, Passenger Car EU Corolla 1.4 Gasoline 1992 07 1995 09 65 88 1332 4 16V 4E-FE XLi Corolla
Toyota, Passenger Car EU Paseo 1.5 Gasoline 1995 08 1999 07 66 90 1497 4 16V 5E-FE Coupe Paseo
Toyota, Passenger Car EU Corolla 1.3 Gasoline 1995 09 1997 04 55 75 1332 4 4E-FE Estate XLi Corolla
Toyota, Passenger Car EU Corolla 1.4 Gasoline 1997 04 2000 02 63 86 1332 4 4E-FE Estate Corolla
Toyota, Passenger Car EU Corolla 1.4 Gasoline 1997 04 2000 02 63 86 1332 4 4E-FE Corolla
Toyota, Passenger Car EU Corolla 1.4 Gasoline 1997 04 2000 02 63 86 1332 4 4E-FE Hatchback Corolla
Toyota, Passenger Car EU Corolla 1.4 Gasoline 1992 07 1995 09 65 88 1332 4 16V 4E-FE Hatchback GLi Corolla
Toyota, Passenger Car EU Corolla 1.3 Gasoline 1992 07 1997 04 65 88 1332 4 4E-FE Hatchback XLi Corolla
Toyota, Passenger Car EU Corolla 1.3 Gasoline 1995 09 1997 04 55 75 1332 4 4E-FE XLi Corolla
Toyota, Passenger Car EU Corolla 1.3 Gasoline 1995 09 1997 04 55 75 1332 4 4E-FE Hatchback XLi Corolla
Toyota, Passenger Car EU Paseo 1.5 Gasoline 1996 10 1999 03 66 90 1497 4 16V 5E-FE Convertible Paseo
Toyota, Passenger Car EU Starlet 1.3 Gasoline 1996 04 1999 03 55 75 1332 4 4E-FE Hatchback Starlet
Toyota, Passenger Car EU Corolla 1.3 Gasoline 1992 07 1995 09 65 88 1332 4 16V 4E-FE Estate XLi Corolla
Toyota, Passenger Car EU Starlet 1.3 Gasoline 1989 12 1996 03 55 75 1296 4 12V 2E-E Hatchback Starlet
Toyota, Passenger Car EU Starlet 1.5 Diesel 1989 12 1996 03 40 54 1453 4 Diesel 1N Hatchback Starlet
Toyota, Passenger Car EU Corolla 1.4 Gasoline 1992 07 1995 09 65 88 1332 4 16V 4E-FE XLi Corolla
Toyota, Passenger Car EU Corolla 1.8 Gasoline 1995 09 1997 04 81 110 1762 4 16V 7A-FE Estate 4WD Corolla
Toyota, Passenger Car EU Paseo 1.5 Gasoline 1995 08 1999 07 66 90 1497 4 16V 5E-FE Coupe Paseo
Toyota, Passenger Car EU Corolla 1.3 Gasoline 1995 09 1997 04 55 75 1332 4 4E-FE Estate XLi Corolla
Toyota, Passenger Car EU Corolla 1.4 Gasoline 1997 04 2000 02 63 86 1332 4 4E-FE Estate Corolla
Toyota, Passenger Car EU Corolla 1.4 Gasoline 1997 04 2000 02 63 86 1332 4 4E-FE Corolla
Toyota, Passenger Car EU Corolla 1.4 Gasoline 1997 04 2000 02 63 86 1332 4 4E-FE Hatchback Corolla
Toyota, Passenger Car EU Corolla 1.3 Gasoline 1992 07 1997 04 65 88 1332 4 4E-FE Hatchback XLi Corolla
Toyota, Passenger Car EU Corolla 1.4 Gasoline 1992 07 1995 09 65 88 1332 4 16V 4E-FE Hatchback GLi Corolla
Toyota, Passenger Car EU Corolla 1.3 Gasoline 1995 09 1997 04 55 75 1332 4 4E-FE XLi Corolla
Toyota, Passenger Car EU Corolla 1.3 Gasoline 1995 09 1997 04 55 75 1332 4 4E-FE Hatchback XLi Corolla
Toyota, Passenger Car EU Paseo 1.5 Gasoline 1996 10 1999 03 66 90 1497 4 16V 5E-FE Convertible Paseo
Toyota, Passenger Car EU Corolla 1.3 Gasoline 1992 07 1995 09 65 88 1332 4 16V 4E-FE Estate XLi Corolla
Toyota, Passenger Car EU Starlet 1.3 Gasoline 1989 12 1996 03 55 75 1296 4 12V 2E-E Hatchback Starlet
Toyota, Passenger Car EU Starlet 1.3 Gasoline 1996 04 1999 03 55 75 1332 4 4E-FE Hatchback Starlet
Toyota, Passenger Car EU Starlet 1.5 Diesel 1989 12 1996 03 40 54 1453 4 Diesel 1N Hatchback Starlet
Toyota, Passenger Car EU Corolla 1.8 Gasoline 1995 09 1997 04 81 110 1762 4 16V 7A-FE Estate 4WD Corolla
Toyota, Passenger Car EU Corolla 1.3 Gasoline 1995 09 1997 04 55 75 1332 4 4E-FE XLi Corolla
Toyota, Passenger Car EU Corolla 1.3 Gasoline 1995 09 1997 04 55 75 1332 4 4E-FE Hatchback XLi Corolla
Toyota, Passenger Car EU Corolla 1.8 Gasoline 1995 09 1997 04 81 110 1762 4 16V 7A-FE Estate 4WD Corolla
Toyota, Passenger Car EU Corolla 1.4 Gasoline 1992 07 1995 09 65 88 1332 4 16V 4E-FE XLi Corolla
Toyota, Passenger Car EU Paseo 1.5 Gasoline 1995 08 1999 07 66 90 1497 4 16V 5E-FE Coupe Paseo
Toyota, Passenger Car EU Corolla 1.3 Gasoline 1995 09 1997 04 55 75 1332 4 4E-FE Estate XLi Corolla
Toyota, Passenger Car EU Corolla 1.4 Gasoline 1997 04 2000 02 63 86 1332 4 4E-FE Estate Corolla
Toyota, Passenger Car EU Corolla 1.4 Gasoline 1997 04 2000 02 63 86 1332 4 4E-FE Corolla
Toyota, Passenger Car EU Corolla 1.4 Gasoline 1997 04 2000 02 63 86 1332 4 4E-FE Hatchback Corolla
Toyota, Passenger Car EU Corolla 1.4 Gasoline 1992 07 1995 09 65 88 1332 4 16V 4E-FE Hatchback GLi Corolla
Toyota, Passenger Car EU Corolla 1.3 Gasoline 1992 07 1997 04 65 88 1332 4 4E-FE Hatchback XLi Corolla
Toyota, Passenger Car EU Corolla 1.3 Gasoline 1995 09 1997 04 55 75 1332 4 4E-FE XLi Corolla
Toyota, Passenger Car EU Corolla 1.3 Gasoline 1995 09 1997 04 55 75 1332 4 4E-FE Hatchback XLi Corolla
Toyota, Passenger Car EU Paseo 1.5 Gasoline 1996 10 1999 03 66 90 1497 4 16V 5E-FE Convertible Paseo
Toyota, Passenger Car EU Corolla 1.3 Gasoline 1992 07 1995 09 65 88 1332 4 16V 4E-FE Estate XLi Corolla
Toyota, Passenger Car EU Starlet 1.3 Gasoline 1989 12 1996 03 55 75 1296 4 12V 2E-E Hatchback Starlet
Toyota, Passenger Car EU Starlet 1.3 Gasoline 1996 04 1999 03 55 75 1332 4 4E-FE Hatchback Starlet
Toyota, Passenger Car EU Starlet 1.5 Diesel 1989 12 1996 03 40 54 1453 4 Diesel 1N Hatchback Starlet
