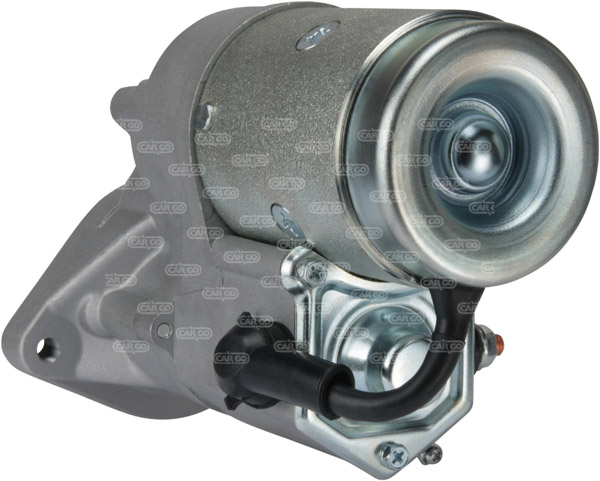

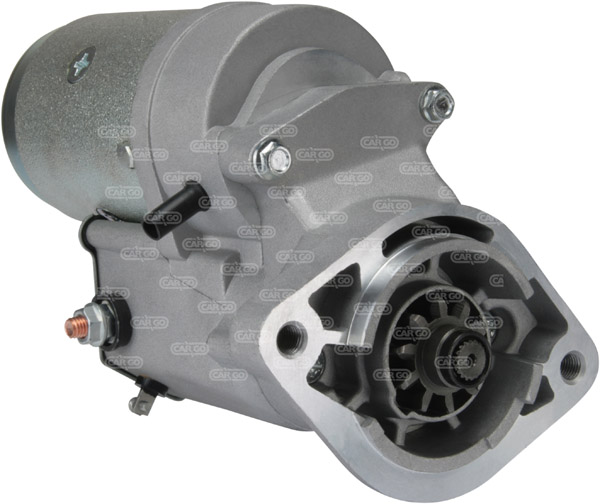

111564 - Starter (111564)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 12, kW 2.2, Mount. flange 74.00, Drive dist. 3.50, Dist./back 168.00, Dist./front 16.00, No. of teeth 10, B+ M8, Gear type GR, Dist. 115.00,
Rotation: CR, No./mount. holes 2 (2), Clutch type Wet,
Drive Type: Steel,
Total Length: 234.50, Oil sealed No, Waterproof No

Electrical specifications (Starter)
Voltage 12
kW 2.2

Physical specifications (Starter)
A Mount. flange 74.00
B Drive dist. 3.50
F Dist./back 168.00
G Dist./front 16.00
H No. of teeth 10
I B+ M8
N Gear type GR
O Dist. 115.00
P Rotation CR
R Total length 234.50

Further information (Starter)
No./mount. holes 2 (2)
Clutch type Wet
Drive type Steel
Oil sealed No
Waterproof No

Replacing
128000-5350 DENSO
228000-0200 DENSO
228000-0460 DENSO
228000-0880 DENSO
228000-3000 DENSO
28100-64040 TOYOTA
28100-64140 TOYOTA
28100-64190 TOYOTA
28100-64210 TOYOTA
28100-64290 TOYOTA

UNISTART Price: £129.36

Sorry, this item is out of stock.

The 111564 - Starter is shown in: Starters & Alternators > Starters , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Toyota, Passenger Car EU Corolla 1.8 Diesel 1989 08 1992 04 49 67 1840 4 Diesel 1C Hatchback Corolla
Toyota, Passenger Car EU Camry 2 Diesel 1986 11 1991 05 62 84 1975 4 TD 2C-T Estate Camry
Toyota, Passenger Car EU Carina 2 Diesel 1988 03 1993 06 54 73 1974 4 Diesel 2C-L Hatchback Carina
Toyota, Passenger Car EU Corolla 1.8 Diesel 1983 06 1988 05 43 58 1839 4 Diesel 1C Hatchback Corolla
Toyota, Passenger Car EU Liteace 2 Diesel 1988 08 1992 01 53 72 1975 4 Diesel 2C Bus Liteace
Toyota, Passenger Car EU Corolla 1.8 Diesel 1987 08 1992 04 47 64 1839 4 Diesel 1C Hatchback Corolla
Toyota, Passenger Car EU Carina 2 Diesel 1987 12 1992 01 54 73 1975 4 Diesel 2C-L Estate Carina
Toyota, Passenger Car EU Corolla 1.8 Diesel 1983 06 1989 06 47 64 1839 4 Diesel 1C-L Corolla
Toyota, Passenger Car EU Corolla 1.8 Diesel 1987 07 1993 06 47 64 1840 4 Diesel 1C Corolla
Toyota, Passenger Car EU Camry 2 Diesel 1988 11 1991 05 63 86 1975 4 TD 2C-T Estate Camry
Toyota, Passenger Car EU Corolla 1.8 Diesel 1989 11 1993 06 49 67 1840 4 Diesel 1C Corolla
Toyota, Passenger Car EU Camry 2 Diesel 1986 11 1991 05 62 84 1975 4 TD 2C-T Camry
Toyota, Passenger Car EU Camry 2 Diesel 1988 11 1991 05 63 86 1975 4 TD 2C-T Camry
Toyota, Passenger Car EU Carina 2 Diesel 1988 03 1993 06 54 73 1974 4 Diesel 2C Carina
Toyota, Passenger Car EU Liteace 2 Diesel 1988 08 1992 01 53 72 1975 4 Diesel 2C Van Liteace
Toyota, Passenger Car EU Corolla 1.8 Diesel 1987 08 1992 04 47 64 1840 4 Diesel 1C Hatchback Corolla
Toyota, Passenger Car EU Corolla 1.8 Diesel 1989 08 1992 06 49 67 1840 4 Diesel 1C Estate Corolla
Toyota, Passenger Car EU Corolla 1.8 Diesel 1987 12 1992 06 47 64 1839 4 Diesel 1C Estate Corolla
Toyota, Passenger Car EU Corolla 1.8 Diesel 1989 08 1992 04 49 67 1840 4 Diesel 1C Hatchback Corolla
Toyota, Passenger Car EU Camry 2 Diesel 1986 11 1991 05 62 84 1975 4 TD 2C-T Estate Camry
Toyota, Passenger Car EU Carina 2 Diesel 1988 03 1993 06 54 73 1974 4 Diesel 2C-L Hatchback Carina
Toyota, Passenger Car EU Corolla 1.8 Diesel 1983 06 1988 05 43 58 1839 4 Diesel 1C Hatchback Corolla
Toyota, Passenger Car EU Liteace 2 Diesel 1988 08 1992 01 53 72 1975 4 Diesel 2C Bus Liteace
Toyota, Passenger Car EU Corolla 1.8 Diesel 1987 08 1992 04 47 64 1839 4 Diesel 1C Hatchback Corolla
Toyota, Passenger Car EU Carina 2 Diesel 1987 12 1992 01 54 73 1975 4 Diesel 2C-L Estate Carina
Toyota, Passenger Car EU Corolla 1.8 Diesel 1983 06 1989 06 47 64 1839 4 Diesel 1C-L Corolla
Toyota, Passenger Car EU Corolla 1.8 Diesel 1987 07 1993 06 47 64 1840 4 Diesel 1C Corolla
Toyota, Passenger Car EU Camry 2 Diesel 1988 11 1991 05 63 86 1975 4 TD 2C-T Estate Camry
Toyota, Passenger Car EU Corolla 1.8 Diesel 1989 11 1993 06 49 67 1840 4 Diesel 1C Corolla
Toyota, Passenger Car EU Camry 2 Diesel 1986 11 1991 05 62 84 1975 4 TD 2C-T Camry
Toyota, Passenger Car EU Camry 2 Diesel 1988 11 1991 05 63 86 1975 4 TD 2C-T Camry
Toyota, Passenger Car EU Carina 2 Diesel 1988 03 1993 06 54 73 1974 4 Diesel 2C Carina
Toyota, Passenger Car EU Liteace 2 Diesel 1988 08 1992 01 53 72 1975 4 Diesel 2C Van Liteace
Toyota, Passenger Car EU Corolla 1.8 Diesel 1987 12 1992 06 47 64 1839 4 Diesel 1C Estate Corolla
Toyota, Passenger Car EU Corolla 1.8 Diesel 1989 08 1992 06 49 67 1840 4 Diesel 1C Estate Corolla
Toyota, Passenger Car EU Corolla 1.8 Diesel 1987 08 1992 04 47 64 1840 4 Diesel 1C Hatchback Corolla
Toyota, Passenger Car EU Corolla 1.8 Diesel 1989 08 1992 04 49 67 1840 4 Diesel 1C Hatchback Corolla
Toyota, Passenger Car EU Liteace 2 Diesel 1988 08 1992 01 53 72 1975 4 Diesel 2C Bus Liteace
Toyota, Passenger Car EU Liteace 2 Diesel 1988 08 1992 01 53 72 1975 4 Diesel 2C Van Liteace
Toyota, Passenger Car EU Corolla 1.8 Diesel 1987 08 1992 04 47 64 1840 4 Diesel 1C Hatchback Corolla
Toyota, Passenger Car EU Corolla 1.8 Diesel 1989 08 1992 04 49 67 1840 4 Diesel 1C Hatchback Corolla
Toyota, Passenger Car EU Camry 2 Diesel 1986 11 1991 05 62 84 1975 4 TD 2C-T Estate Camry
Toyota, Passenger Car EU Carina 2 Diesel 1988 03 1993 06 54 73 1974 4 Diesel 2C-L Hatchback Carina
Toyota, Passenger Car EU Corolla 1.8 Diesel 1983 06 1988 05 43 58 1839 4 Diesel 1C Hatchback Corolla
Toyota, Passenger Car EU Liteace 2 Diesel 1988 08 1992 01 53 72 1975 4 Diesel 2C Bus Liteace
Toyota, Passenger Car EU Corolla 1.8 Diesel 1987 08 1992 04 47 64 1839 4 Diesel 1C Hatchback Corolla
Toyota, Passenger Car EU Carina 2 Diesel 1987 12 1992 01 54 73 1975 4 Diesel 2C-L Estate Carina
Toyota, Passenger Car EU Corolla 1.8 Diesel 1983 06 1989 06 47 64 1839 4 Diesel 1C-L Corolla
Toyota, Passenger Car EU Corolla 1.8 Diesel 1987 07 1993 06 47 64 1840 4 Diesel 1C Corolla
Toyota, Passenger Car EU Camry 2 Diesel 1988 11 1991 05 63 86 1975 4 TD 2C-T Estate Camry
Toyota, Passenger Car EU Corolla 1.8 Diesel 1989 11 1993 06 49 67 1840 4 Diesel 1C Corolla
Toyota, Passenger Car EU Camry 2 Diesel 1986 11 1991 05 62 84 1975 4 TD 2C-T Camry
Toyota, Passenger Car EU Camry 2 Diesel 1988 11 1991 05 63 86 1975 4 TD 2C-T Camry
Toyota, Passenger Car EU Carina 2 Diesel 1988 03 1993 06 54 73 1974 4 Diesel 2C Carina
Toyota, Passenger Car EU Liteace 2 Diesel 1988 08 1992 01 53 72 1975 4 Diesel 2C Van Liteace
Toyota, Passenger Car EU Corolla 1.8 Diesel 1987 08 1992 04 47 64 1840 4 Diesel 1C Hatchback Corolla
Toyota, Passenger Car EU Corolla 1.8 Diesel 1987 12 1992 06 47 64 1839 4 Diesel 1C Estate Corolla
Toyota, Passenger Car EU Corolla 1.8 Diesel 1989 08 1992 06 49 67 1840 4 Diesel 1C Estate Corolla
