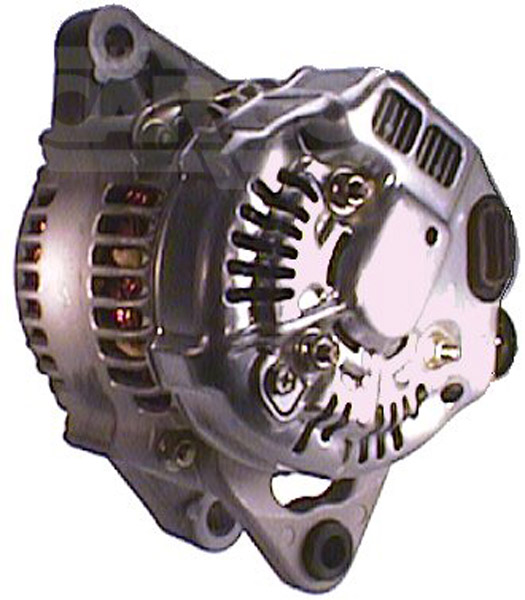

111579 - Alternator (111579)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 70,
Bracket Hole: 10.50, Belt. adj. bracket hole 8.00,
Width/Holder Arm: 28.00, Belt. adj. brackethole pos. 5,
Mount. Bracket Dist.: 44.00,
Pulley Dia.: 55.00,
Pulley Dist.: 53.00,
Grooves/Pulley: 5,
Radius: 84.80,
Radius: 84.80,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL42,
Blower: IF, Pulley SP,
Total Length: 156.00
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 70 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 10.50 | |||
| G | Belt. adj. bracket hole 8.00 | |||
| B | Width/holder arm 28.00 | |||
| E | Belt. adj. brackethole pos. 5 | |||
| C | Mount. bracket dist. 44.00 | |||
| H | Pulley dia. 55.00 | |||
| A | Pulley dist. 53.00 | |||
| i | Grooves/pulley 5 | |||
| j | Radius 84.80 | |||
| j | Radius 84.80 | |||
| k | B+ position M6 | |||
| n | Rotation CR | |||
| o | Regulator plug PL42 | |||
| R | Total length 156.00 | |||
Further information (Alternator) | ||||
| Blower | IF | |||
| Pulley | SP | |||
Replacing | ||||
| 100211-5020 | DENSO | |||
| 100211-5021 | DENSO | |||
| 100211-8991 | DENSO | |||
| 101211-0060 | DENSO | |||
| 101211-0061 | DENSO | |||
| 101211-0062 | DENSO | |||
| 101211-0120 | DENSO | |||
| 101211-0180 | DENSO | |||
| 101211-0181 | DENSO | |||
| 101211-0182 | DENSO | |||
UNISTART Price: £121.38
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1992 07 | 1997 04 | 84 | 114 | 1587 | 4 | Si | 4A-FE | Estate | Corolla | |
| Toyota, Passenger Car EU | Carina | 1.6 | Gasoline | 1993 01 | 1997 09 | 79 | 107 | 1587 | 4 | 4A-FE | Estate | GLi | Carina E | |
| Toyota, Passenger Car EU | Carina | 1.6 | Gasoline | 1995 01 | 1997 09 | 73 | 99 | 1587 | 4 | 4A-FE | Carina E | |||
| Toyota, Passenger Car EU | Carina | 1.6 | Gasoline | 1995 10 | 1997 09 | 78 | 106 | 1587 | 4 | 4A-FE | Carina E | |||
| Toyota, Passenger Car EU | Carina | 1.6 | Gasoline | 1993 12 | 1997 09 | 85 | 116 | 1587 | 4 | 4A-FE | Hatchback | Carina E | ||
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1997 04 | 2000 02 | 79 | 107 | 1587 | 4 | 4A-FE | Corolla | |||
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1997 04 | 2000 02 | 81 | 110 | 1587 | 4 | 4A-FE | Hatchback | Corolla | ||
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1997 04 | 2000 02 | 81 | 110 | 1587 | 4 | 4A-FE | Estate | Corolla | ||
| Toyota, Passenger Car EU | Carina | 1.8 | Gasoline | 1995 01 | 1997 09 | 79 | 107 | 1762 | 4 | 7A-FE | Carina E | |||
| Toyota, Passenger Car EU | Carina | 1.6 | Gasoline | 1995 02 | 1997 09 | 73 | 99 | 1587 | 4 | i | 4A-FE | Estate | Carina E | |
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1992 07 | 1997 04 | 84 | 114 | 1587 | 4 | 4A-FE | Hatchback | GLi | Corolla | |
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1997 04 | 2000 02 | 79 | 107 | 1587 | 4 | 4A-FE | Estate | Corolla | ||
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1992 07 | 1997 04 | 84 | 114 | 1587 | 4 | Si | 4A-FE | Hatchback | Corolla | |
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1997 04 | 2000 02 | 79 | 107 | 1587 | 4 | 4A-FE | Hatchback | Corolla | ||
| Toyota, Passenger Car EU | Carina | 1.6 | Gasoline | 1994 12 | 1997 09 | 85 | 116 | 1587 | 4 | 16V | 4A-FE | Carina E | ||
| Toyota, Passenger Car EU | Carina | 1.6 | Gasoline | 1995 10 | 1997 09 | 78 | 106 | 1587 | 4 | 16V | 4A-FE | Hatchback | Carina E | |
| Toyota, Passenger Car EU | Carina | 1.6 | Gasoline | 1993 01 | 1997 09 | 79 | 107 | 1587 | 4 | 4A-FE | Carina E | |||
| Toyota, Passenger Car EU | Carina | 1.6 | Gasoline | 1993 12 | 1997 09 | 73 | 99 | 1587 | 4 | 4A-FE | Hatchback | Carina E | ||
| Toyota, Passenger Car EU | Corolla | 1.8 | Gasoline | 1997 04 | 2001 10 | 81 | 110 | 1762 | 4 | 7A-FE | Estate | 4WD | Corolla | |
| Toyota, Passenger Car EU | Corolla | 1.8 | Gasoline | 1992 05 | 1995 07 | 92 | 125 | 1762 | 4 | GTi | 7A-FE | Hatchback | 4x4 | Corolla |
| Toyota, Passenger Car EU | Carina | 1.6 | Gasoline | 1992 04 | 1997 09 | 79 | 107 | 1587 | 4 | 4A-FE | Hatchback | GLi | Carina E | |
| Toyota, Passenger Car EU | Celica | 1.8 | Gasoline | 1993 11 | 1999 11 | 85 | 116 | 1762 | 4 | i 16V | 7A-FE | Coupe | Celica | |
| Toyota, Passenger Car EU | Carina | 1.8 | Gasoline | 1995 01 | 1997 09 | 79 | 107 | 1762 | 4 | 7A-FE | Hatchback | Carina E | ||
| Toyota, Passenger Car EU | Carina | 1.8 | Gasoline | 1995 02 | 1997 09 | 79 | 107 | 1762 | 4 | i | 7A-FE | Estate | Carina E | |
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1995 09 | 1997 04 | 84 | 114 | 1587 | 4 | Si | 4A-FE | Corolla | ||
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1997 04 | 2000 02 | 81 | 110 | 1587 | 4 | 4A-FE | Corolla | |||
| Toyota, Passenger cars US | Celica | 1.8 | Gasoline | 1994 01 | 1995 01 | 0 | 0 | 1762 | L4 | Celica | ||||
| Toyota, Passenger cars US | Corolla | 1.6 | Gasoline | 1995 01 | 1997 01 | 0 | 0 | 1587 | L4 | 4A-FE | Corolla | |||
| Toyota, Passenger cars US | Corolla | 1.8 | Gasoline | 1996 01 | 1997 01 | 0 | 0 | 1762 | L4 | 7A-FE | DX | Corolla | ||
| Toyota, Passenger cars US | Corolla | 1.8 | Gasoline | 1995 01 | 1995 01 | 0 | 0 | 1762 | L4 | 7A-FE | DX | Corolla | ||
| Toyota, Passenger cars US | Corolla | 1.8 | Gasoline | 1995 01 | 1995 01 | 0 | 0 | 1762 | L4 | 7A-FE | LE | Corolla | ||
| Toyota, Passenger cars US | Corolla | 1.6 | Gasoline | 1996 01 | 1996 01 | 0 | 0 | 1587 | L4 | 4A-FE | DX | Corolla | ||
| Toyota, Passenger cars US | Corolla | 1.8 | Gasoline | 1997 01 | 1997 01 | 0 | 0 | 1762 | L4 | 7A-FE | Corolla | |||
| Toyota, Passenger cars US | Celica | 1.8 | Gasoline | 1994 01 | 1995 01 | 0 | 0 | 1762 | L4 | 7A-FE | ST | Celica | ||
| Toyota, Passenger cars US | Celica | 1.8 | Gasoline | 1996 01 | 1997 01 | 0 | 0 | 1762 | L4 | 7A-FE | ST | Celica | ||
| Toyota, Passenger cars US | Corolla | 1.8 | Gasoline | 1993 01 | 1994 01 | 0 | 0 | 1762 | L4 | 7A-FE | LE | Corolla | ||
| Toyota, Passenger cars US | Corolla | 1.6 | Gasoline | 1993 01 | 1994 01 | 0 | 0 | 1587 | L4 | 4A-FE | Corolla | |||
| Toyota, Passenger cars US | Corolla | 1.8 | Gasoline | 1993 01 | 1993 01 | 0 | 0 | 1762 | L4 | Corolla | ||||
| Toyota, Passenger cars US | Corolla | 1.8 | Gasoline | 1993 01 | 1993 01 | 0 | 0 | 1762 | L4 | All Trac | Corolla | |||
| Toyota, Passenger cars US | Corolla | 1.8 | Gasoline | 1993 01 | 1994 01 | 0 | 0 | 1762 | L4 | 7A-FE | DX | Corolla | ||
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1992 07 | 1997 04 | 84 | 114 | 1587 | 4 | Si | 4A-FE | Estate | Corolla | |
| Toyota, Passenger Car EU | Corolla | 1.8 | Gasoline | 1992 05 | 1995 07 | 92 | 125 | 1762 | 4 | GTi | 7A-FE | Hatchback | 4x4 | Corolla |
| Toyota, Passenger Car EU | Corolla | 1.6 | Gasoline | 1995 09 | 1997 04 | 84 | 114 | 1587 | 4 | Si | 4A-FE | Corolla | ||
| Toyota, Passenger cars AO | Corolla | 1.5 | Gasoline | 1991 06 | 1997 08 | 105 | 143 | 1498 | 4 | 5A-FE | Coupe | Levin S | Corolla |
