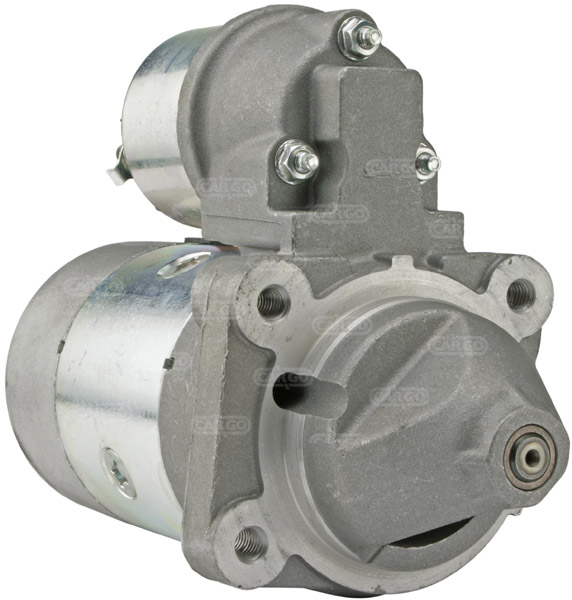

111585 - Starter (111585)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 12, kW 0.8, Mount. flange 61.90, Drive dist. 13.00, Dist./back 150.00, Dist./front 49.00, No. of teeth 9, B+ M8, Gear type DD, Dist. 89.50, Dist. 2 53.00, Dist. 3 67.00,
Rotation: CR, No./mount. holes 3 (3),
Drive Type: Steel,
Total Length: 206.00, Oil sealed No, Waterproof No

Electrical specifications (Starter)
Voltage 12
kW 0.8

Physical specifications (Starter)
A Mount. flange 61.90
B Drive dist. 13.00
F Dist./back 150.00
G Dist./front 49.00
H No. of teeth 9
I B+ M8
N Gear type DD
O Dist. 89.50
O Dist. 2 53.00
O Dist. 3 67.00
P Rotation CR
R Total length 206.00

Further information (Starter)
No./mount. holes 3 (3)
Drive type Steel
Oil sealed No
Waterproof No

Replacing
46231500 FIAT
46432301 FIAT
63222836 MAGNETI MARELLI
63222837 MAGNETI MARELLI
63222897 MAGNETI MARELLI
63222905 MAGNETI MARELLI
63222908 MAGNETI MARELLI
7668988 FIAT
7737262 FIAT
9000330929 BOSCH

UNISTART Price: £98.89

Sorry, this item is out of stock.

The 111585 - Starter is shown in: Starters & Alternators > Starters , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Fiat, Passenger Car EU Panda 0.9 Gasoline 1992 04 1996 12 29 40 899 4 1170A1.046 Hatchback Panda
Fiat, Passenger Car EU Uno 0.9 Gasoline 1983 03 1992 09 33 45 903 4 146A1.000 Hatchback ES Uno
Fiat, Passenger Car EU Cinquecento 0.9 Gasoline 1991 07 1999 07 29 40 899 4 i.e. 1170A1.046 Hatchback Cinquecento
Fiat, Passenger Car EU Cinquecento 0.9 Gasoline 1991 07 1999 07 29 40 899 4 i.e. 1170A1.000 Hatchback Cinquecento
Fiat, Passenger Car EU Uno 0.9 Gasoline 1983 03 1992 09 33 45 903 4 146A.000 Hatchback ES Uno
Fiat, Passenger Car EU Cinquecento 0.9 Gasoline 1991 07 1993 12 30 41 903 4 i.e. 170A1.046 Hatchback Cinquecento
Fiat, Passenger Car EU Seicento 0.9 Gasoline 1998 01 - 29 39 899 4 1170A1.046 Hatchback Seicento
Fiat, Passenger Car EU Cinquecento 0.9 Gasoline 1991 07 1993 12 30 41 903 4 170A1.000 Hatchback Cinquecento
Fiat, Passenger Car EU Seicento 0.9 Gasoline 1998 01 - 29 39 899 4 1170A1.046 Van Seicento
Fiat, Passenger Car EU Panda 0.9 Gasoline 1992 04 1996 12 29 40 899 4 1170A1.046 Hatchback Panda
Fiat, Passenger Car EU Uno 0.9 Gasoline 1983 03 1992 09 33 45 903 4 146A1.000 Hatchback ES Uno
Fiat, Passenger Car EU Cinquecento 0.9 Gasoline 1991 07 1999 07 29 40 899 4 i.e. 1170A1.046 Hatchback Cinquecento
Fiat, Passenger Car EU Cinquecento 0.9 Gasoline 1991 07 1999 07 29 40 899 4 i.e. 1170A1.000 Hatchback Cinquecento
Fiat, Passenger Car EU Uno 0.9 Gasoline 1983 03 1992 09 33 45 903 4 146A.000 Hatchback ES Uno
Fiat, Passenger Car EU Cinquecento 0.9 Gasoline 1991 07 1993 12 30 41 903 4 i.e. 170A1.046 Hatchback Cinquecento
Fiat, Passenger Car EU Seicento 0.9 Gasoline 1998 01 - 29 39 899 4 1170A1.046 Hatchback Seicento
Fiat, Passenger Car EU Cinquecento 0.9 Gasoline 1991 07 1993 12 30 41 903 4 170A1.000 Hatchback Cinquecento
Fiat, Passenger Car EU Seicento 0.9 Gasoline 1998 01 - 29 39 899 4 1170A1.046 Van Seicento
Fiat, Passenger Car EU Uno 0.9 Gasoline 1983 03 1992 09 33 45 903 4 146A1.000 Hatchback ES Uno
Fiat, Passenger Car EU Uno 0.9 Gasoline 1983 03 1992 09 33 45 903 4 146A.000 Hatchback ES Uno
Fiat, Passenger Car EU Cinquecento 0.9 Gasoline 1991 07 1993 12 30 41 903 4 i.e. 170A1.046 Hatchback Cinquecento
Fiat, Passenger Car EU Seicento 0.9 Gasoline 1998 01 - 29 39 899 4 1170A1.046 Hatchback Seicento
Fiat, Passenger Car EU Cinquecento 0.9 Gasoline 1991 07 1993 12 30 41 903 4 170A1.000 Hatchback Cinquecento
Fiat, Passenger Car EU Seicento 0.9 Gasoline 1998 01 - 29 39 899 4 1170A1.046 Van Seicento
Fiat, Passenger Car EU Panda 0.9 Gasoline 1992 04 1996 12 29 40 899 4 1170A1.046 Hatchback Panda
Fiat, Passenger Car EU Uno 0.9 Gasoline 1983 03 1992 09 33 45 903 4 146A1.000 Hatchback ES Uno
Fiat, Passenger Car EU Cinquecento 0.9 Gasoline 1991 07 1999 07 29 40 899 4 i.e. 1170A1.046 Hatchback Cinquecento
Fiat, Passenger Car EU Cinquecento 0.9 Gasoline 1991 07 1999 07 29 40 899 4 i.e. 1170A1.000 Hatchback Cinquecento
Fiat, Passenger Car EU Uno 0.9 Gasoline 1983 03 1992 09 33 45 903 4 146A.000 Hatchback ES Uno
Fiat, Passenger Car EU Cinquecento 0.9 Gasoline 1991 07 1993 12 30 41 903 4 i.e. 170A1.046 Hatchback Cinquecento
Fiat, Passenger Car EU Seicento 0.9 Gasoline 1998 01 - 29 39 899 4 1170A1.046 Hatchback Seicento
Fiat, Passenger Car EU Cinquecento 0.9 Gasoline 1991 07 1993 12 30 41 903 4 170A1.000 Hatchback Cinquecento
Fiat, Passenger Car EU Seicento 0.9 Gasoline 1998 01 - 29 39 899 4 1170A1.046 Van Seicento
