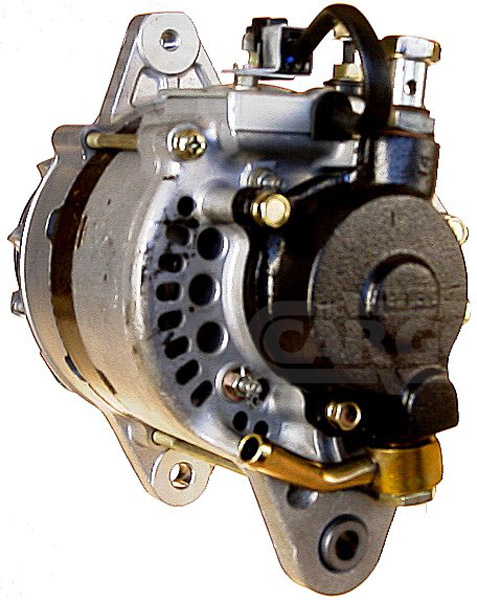

111613 - Alternator (111613)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.

Voltage: 28,
Amp: 50,
Bracket Hole: 10.00, Belt. adj. bracket hole M8,
Width/Holder Arm: 13.00, Belt. adj. brackethole pos. 5,
Mount. Bracket Dist.: 96.50,
Pulley Dia.: 95.50,
Pulley Dist.: 63.50,
Grooves/Pulley: 1,
Radius: 88.00,
Radius: 90.50,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL15,
Blower: EF, Pulley P, Remarks
Regulator Plug: or: HC-CARGO 135376.,
Total Length: 274.00

Electrical specifications (Alternator)
Voltage	28
Amp	50

Physical specifications (Alternator)
D	Bracket hole 10.00
G	Belt. adj. bracket hole M8
B	Width/holder arm 13.00
E	Belt. adj. brackethole pos. 5
C	Mount. bracket dist. 96.50
H	Pulley dia. 95.50
A	Pulley dist. 63.50
i	Grooves/pulley 1
j	Radius 88.00
j	Radius 90.50
k	B+ position M6
n	Rotation CR
o	Regulator plug PL15
R	Total length 274.00

Further information (Alternator)
Blower	EF
Pulley	P
Remarks	Regulator: HC-CARGO 135376.

Replacing
021000-9850	DENSO
021000-9851	DENSO
021000-9930	DENSO
021000-9931	DENSO
100210-2210	DENSO
100210-2211	DENSO
100210-2250	DENSO
100210-2251	DENSO
100210-2570	DENSO
100210-2860	DENSO

UNISTART Price: £168.79
