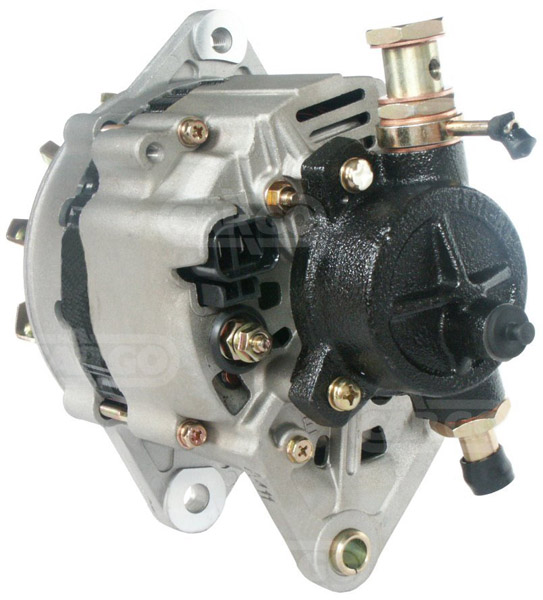

111614 - Alternator (111614)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 28,
Amp: 35,
Bracket Hole: 10.50, Belt. adj. bracket hole M8,
Width/Holder Arm: 13.50, Belt. adj. brackethole pos. 60,
Mount. Bracket Dist.: 80.50,
Pulley Dia.: 83.00,
Pulley Dist.: 42.00,
Grooves/Pulley: 2,
Radius: 89.50,
Radius: 83.00,
B+ Position: M5,
Rotation: CR,
Regulator Plug: or plug PL07,
Blower: EF, Pulley DP,
Total Length: 249.00

Electrical specifications (Alternator)
Voltage 28
Amp 35

Physical specifications (Alternator)
D Bracket hole 10.50
G Belt. adj. bracket hole M8
B Width/holder arm 13.50
E Belt. adj. brackethole pos. 60
C Mount. bracket dist. 80.50
H Pulley dia. 83.00
A Pulley dist. 42.00
i Grooves/pulley 2
j Radius 89.50
j Radius 83.00
k B+ position M5
n Rotation CR
o Regulator plug PL07
R Total length 249.00

Further information (Alternator)
Blower EF
Pulley DP

Replacing
23100-c8604 NISSAN
lr235-402 HITACHI
lr235-404 HITACHI
lr235-404c HITACHI
lr235-404s HITACHI
lr235-404t HITACHI
lr235-405 HITACHI
lr235-405s HITACHI
lr235-405t HITACHI

UNISTART Price: £136.41

Sorry, this item is out of stock.

The 111614 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Nissan, Passenger Car EU Patrol 3.3 Diesel 1979 11 1988 08 70 95 3246 6 Diesel SD33 Patrol
Nissan, Passenger Car EU Patrol 2.8 Gasoline 1986 05 1990 06 88 120 2753 6 L28 Patrol
Nissan, Passenger Car EU Patrol 3.2 Diesel 1983 07 1988 08 81 110 3246 6 TD SD33T Patrol
Nissan, Passenger Car EU Patrol 3.2 Diesel 1988 08 1990 06 81 110 3224 6 Diesel SD33T Patrol
Nissan, Passenger Car EU Patrol 3.2 Diesel 1988 08 1990 06 81 110 3224 6 Diesel SD33T Patrol
Nissan, Passenger Car EU Patrol 3.3 Diesel 1979 11 1988 08 70 95 3246 6 Diesel SD33 Patrol
Nissan, Passenger Car EU Patrol 2.8 Gasoline 1986 05 1990 06 88 120 2753 6 L28 Patrol
Nissan, Passenger Car EU Patrol 3.2 Diesel 1983 07 1988 08 81 110 3246 6 TD SD33T Patrol
Nissan, Passenger Car EU Patrol 3.2 Diesel 1988 08 1990 06 81 110 3224 6 Diesel SD33T Patrol
Nissan, Passenger Car EU Patrol 3.2 Diesel 1988 08 1990 06 81 110 3224 6 Diesel SD33T Patrol
Nissan, Passenger Car EU Patrol 3.3 Diesel 1979 11 1988 08 70 95 3246 6 Diesel SD33 Patrol
Nissan, Passenger Car EU Patrol 2.8 Gasoline 1986 05 1990 06 88 120 2753 6 L28 Patrol
Nissan, Passenger Car EU Patrol 3.2 Diesel 1983 07 1988 08 81 110 3246 6 TD SD33T Patrol
Nissan, Passenger Car EU Patrol 3.2 Diesel 1988 08 1990 06 81 110 3224 6 Diesel SD33T Patrol
Nissan, Passenger Car EU Patrol 3.2 Diesel 1988 08 1990 06 81 110 3224 6 Diesel SD33T Patrol
Nissan, Passenger Car EU Patrol 3.3 Diesel 1979 11 1988 08 70 95 3246 6 Diesel SD33 Patrol
Nissan, Passenger Car EU Patrol 2.8 Gasoline 1986 05 1990 06 88 120 2753 6 L28 Patrol
Nissan, Passenger Car EU Patrol 3.2 Diesel 1983 07 1988 08 81 110 3246 6 TD SD33T Patrol
Nissan, Passenger Car EU Patrol 3.2 Diesel 1988 08 1990 06 81 110 3224 6 Diesel SD33T Patrol
Nissan, Passenger Car EU Patrol 3.2 Diesel 1988 08 1990 06 81 110 3224 6 Diesel SD33T Patrol
