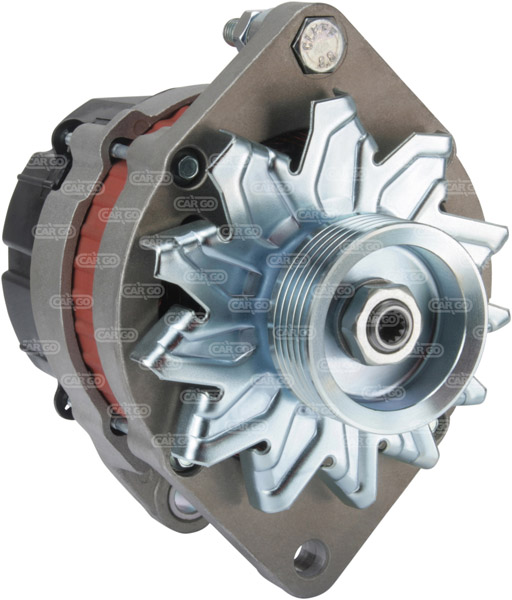

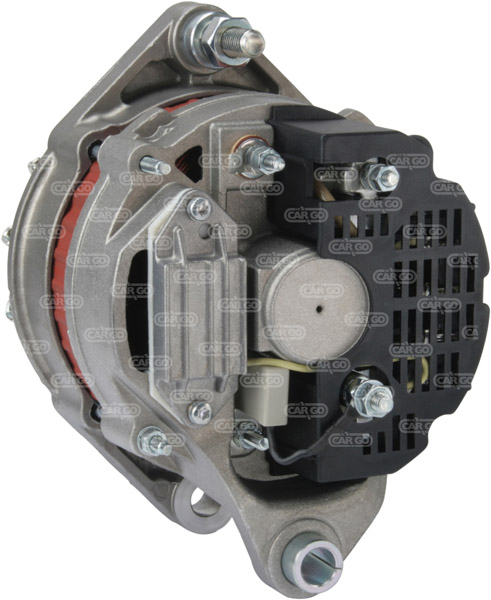

111620 - Alternator (111620)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 65,
Bracket Hole: 12.30, Belt. adj. bracket hole 10.90,
Width/Holder Arm: 16.30, Belt. adj. brackethole pos. 60,
Mount. Bracket Dist.: 63.00,
Pulley Dia.: 64.45,
Pulley Dist.: 47.75,
Grooves/Pulley: 5,
Radius: 85.50,
Radius: 81.30,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL_NA,
Blower: EF, Pulley SP,
Total Length: 172.00, Source Mahle Letrika

Electrical specifications (Alternator)
Voltage 14
Amp 65

Physical specifications (Alternator)
D Bracket hole 12.30
G Belt. adj. bracket hole 10.90
B Width/holder arm 16.30
E Belt. adj. brackethole pos. 60
C Mount. bracket dist. 63.00
H Pulley dia. 64.45
A Pulley dist. 47.75
i Grooves/pulley 5
j Radius 85.50
j Radius 81.30
k B+ position M6
n Rotation CR
o Regulator plug PL_NA
R Total length 172.00
Source Mahle Letrika

Further information (Alternator)
Blower EF
Pulley SP

Replacing
0120488254 BOSCH
0120489272 BOSCH
0120489273 BOSCH
0120489307 BOSCH
0120489318 BOSCH
0120489319 BOSCH
0120489823 BOSCH
0120489824 BOSCH
11.201.701 ISKRA
13850 EFEL

UNISTART Price: £123.44

Sorry, this item is out of stock.

The 111620 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators , Agriculture > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Fiat, Passenger Car EU Tipo 1.6 Gasoline 1988 02 1991 05 66 90 1595 4 i.e. 149C2.046 Hatchback Tipo
Fiat, Passenger Car EU Tipo 2 Gasoline 1993 03 1995 04 102 139 1995 4 i.e. 16V 836A3.000 Hatchback Sport Tipo
Fiat, Passenger Car EU Tipo 2 Gasoline 1991 07 1995 04 107 146 1995 4 16V 160A8.046 Hatchback Tipo
Fiat, Passenger Car EU Regata 1.9 Diesel 1984 04 1989 07 48 65 1929 4 Diesel 149A1.000 Regata
Fiat, Passenger Car EU Croma 2 Gasoline 1987 03 1992 09 88 120 1995 4 i.e. 834B.000 Hatchback 2000 Croma
Fiat, Passenger Car EU Croma 2 Gasoline 1985 12 1990 06 114 155 1995 4 i.e. Turbo 154A2.000 Hatchback 2000 Croma
Fiat, Passenger Car EU Croma 2 Gasoline 1987 10 1996 08 85 116 1995 4 i.e. 154C3.046 Hatchback 2000 Croma
Fiat, Passenger Car EU Croma 2 Gasoline 1987 06 1996 08 110 150 1995 4 i.e. Turbo 154C4.046 Hatchback 2000 Croma
Fiat, Passenger Car EU Coupe 2 Gasoline 1993 11 1996 08 102 139 1995 4 16V 836A3.000 Coupe Coupe
Fiat, Passenger Car EU Croma 2 Gasoline 1991 01 1992 09 74 100 1995 4 154C5.000 Hatchback 2000 CHT Croma
Fiat, Passenger Car EU Tipo 1.8 Gasoline 1990 10 1993 06 81 110 1756 4 i.e. 159A4.000 Hatchback Tipo
Fiat, Passenger Car EU Croma 2 Gasoline 1986 03 1990 09 83 113 1995 4 i.e. 834B.048 Hatchback 2000 Croma
Fiat, Passenger Car EU Tempra 1.8 Gasoline 1992 03 1996 08 77 105 1756 4 i.e. 159A4.046 Tempra
Fiat, Passenger Car EU Tempra 2 Gasoline 1990 10 1996 08 83 113 1995 4 i.e. 159A6.046 Tempra
Fiat, Passenger Car EU Tempra 1.8 Gasoline 1992 03 1993 12 77 105 1756 4 i.e. 159A4.046 Estate Tempra
Fiat, Passenger Car EU Tempra 2 Gasoline 1991 01 1995 03 83 113 1995 4 i.e. 159A6.046 Estate Tempra
Fiat, Passenger Car EU Tempra 1.8 Gasoline 1994 10 1996 08 74 101 1756 4 i.e. 836A5.000 Tempra
Fiat, Passenger Car EU Tempra 1.8 Gasoline 1993 09 1996 08 66 90 1756 4 i.e. 835C4.000 Tempra
Fiat, Passenger Car EU Tempra 1.8 Gasoline 1993 09 1996 08 66 90 1756 4 i.e. 835C4.000 Estate Tempra
Fiat, Passenger Car EU Coupe 2 Gasoline 1993 11 1996 08 140 190 1995 4 Turbo 16V 175A1.000 Coupe Coupe
Fiat, Passenger Car EU Croma 2 Gasoline 1986 11 1988 11 111 151 1995 4 i.e. Turbo 834C.146 Hatchback Croma
Fiat, Passenger Car EU Tempra 1.8 Gasoline 1993 09 1996 08 76 103 1756 4 i.e. 835C2.000 Tempra
Fiat, Passenger Car EU Tempra 1.8 Gasoline 1994 10 1996 08 74 101 1756 4 i.e. 836A5.000 Estate Tempra
Fiat, Passenger Car EU Tipo 2 Gasoline 1990 06 1992 03 80 109 1995 4 i.e. 159A5.046 Hatchback Tipo
Fiat, Passenger Car EU Tipo 2 Gasoline 1990 03 1995 04 83 113 1995 4 i.e. 159A6.046 Hatchback Tipo
Fiat, Passenger Car EU Regata 1.9 Diesel 1984 04 1989 07 48 65 1929 4 Diesel 149A1.000 Estate Regata
Fiat, Passenger Car EU Argenta 2 Gasoline 1981 06 1986 07 90 122 1995 4 i.e. 132C3.000 2000 Argenta
Fiat, Passenger Car EU Croma 2 Gasoline 1985 12 1989 02 66 90 1995 4 154A1.000 Hatchback 2000 CHT Croma
Fiat, Passenger Car EU Croma 2 Gasoline 1987 06 1996 08 110 150 1995 4 i.e. Turbo 834C.146 Hatchback 2000 Croma
Fiat, Passenger Car EU Tempra 2 Gasoline 1992 03 1995 03 83 113 1995 4 i.e. 159A6.046 Estate 4x4 Tempra
Fiat, Passenger Car EU Argenta 1.6 Gasoline 1981 04 1985 12 72 98 1585 4 132D.000 1600 Argenta
Fiat, Passenger Car EU Tempra 1.8 Gasoline 1990 03 1996 08 81 110 1756 4 i.e. 159A4.000 Estate Tempra
Fiat, Passenger Car EU Croma 1.9 Diesel 1989 05 1992 10 66 90 1929 4 TD 154C6.000 Hatchback Croma
Fiat, Passenger Car EU Argenta 2 Gasoline 1978 06 1985 12 83 113 1995 4 132C2.000 2000 Argenta
Fiat, Passenger Car EU Croma 1.9 Diesel 1992 11 1996 12 69 94 1929 4 TDDi 154D1.000 Hatchback Croma
Fiat, Passenger Car EU Regata 1.6 Gasoline 1983 10 1990 12 74 101 1585 4 149A2.000 Regata
Fiat, Passenger Car EU Croma 2 Gasoline 1987 10 1996 08 85 116 1995 4 i.e. 834B.146 Hatchback 2000 Croma
Fiat, Passenger Car EU Ritmo 1.6 Gasoline 1983 01 1987 12 77 105 1585 4 138AR.000 Hatchback Ritmo
Fiat, Passenger Car EU Tempra 1.8 Gasoline 1993 09 1996 08 76 103 1756 4 i.e. 835C2.000 Estate Tempra
Fiat, Passenger Car EU Tipo 1.8 Gasoline 1990 10 1993 06 77 105 1756 4 i.e. 159A4.046 Hatchback GT Tipo
Fiat, Passenger Car EU Croma 1.6 Gasoline 1985 12 1990 12 61 83 1585 4 154A.048 Hatchback Croma
Lancia, Passenger Car EU Delta 1.6 Gasoline 1982 11 1986 04 77 105 1585 4 831A4.000 Hatchback GT Delta
Lancia, Passenger Car EU Dedra 1.9 Diesel 1989 04 1999 07 66 90 1929 4 TDS 835A4.046 Dedra
Lancia, Passenger Car EU Dedra 2 Gasoline 1989 09 1999 07 83 113 1995 4 i.e. 835A5.046 Dedra
Lancia, Passenger Car EU Dedra 2 Gasoline 1994 07 1999 07 102 139 1995 4 16V 836A3.000 Estate Dedra
Lancia, Passenger Car EU Dedra 2 Gasoline 1994 07 1999 07 102 139 1995 4 836A3.000 Estate 4WD Integrale Dedra
Lancia, Passenger Car EU Thema 2 Gasoline 1984 11 1988 09 88 120 1995 4 i.e. 834B.000 Thema
Lancia, Passenger Car EU Dedra 2 Gasoline 1989 09 1992 07 86 117 1995 4 i.e. 835A5.000 Dedra
Lancia, Passenger Car EU Thema 2 Gasoline 1986 03 1988 09 83 113 1995 4 i.e. 834B.048 Thema
Lancia, Passenger Car EU Thema 2 Gasoline 1986 07 1990 05 110 150 1995 4 i.e. Turbo 834C.146 Thema
Lancia, Passenger Car EU Dedra 2 Gasoline 1990 11 1994 07 124 169 1995 4 835A7.000 HF Integrale Dedra
Lancia, Passenger Car EU Delta 2 Gasoline 1993 06 1999 08 102 139 1995 4 16V 836A3.000 Hatchback Delta
Lancia, Passenger Car EU Thema 2 Gasoline 1988 12 1990 06 133 181 1995 4 Turbo 16V 834C.1000 Thema
Lancia, Passenger Car EU Prisma 1.9 Diesel 1983 01 1992 02 48 65 1911 4 Diesel 831D.000 Prisma
Lancia, Passenger Car EU Thema 2 Gasoline 1988 12 1990 06 133 181 1995 4 i.e. Turbo 16V 834C1.000 Estate Thema
Lancia, Passenger Car EU Thema 2 Gasoline 1988 05 1992 08 108 147 1995 4 i.e. 16V 834B2.000 Thema
Lancia, Passenger Car EU Dedra 2 Gasoline 1990 11 1994 06 130 177 1995 4 Turbo 835A8.000 Dedra
Lancia, Passenger Car EU Delta 1.8 Gasoline 1994 07 1999 08 66 90 1756 4 i.e. 836C4.000 Hatchback Delta
Lancia, Passenger Car EU Dedra 2 Gasoline 1994 07 1999 07 102 139 1995 4 16V 836A3.000 Dedra
Lancia, Passenger Car EU Dedra 1.8 Gasoline 1993 08 1999 07 66 90 1756 4 i.e. 835C5.000 LE Dedra
Lancia, Passenger Car EU Delta 2 Gasoline 1993 06 1994 01 155 211 1995 4 16V 831E5.000 Hatchback HF Integrale 4WD Delta
Lancia, Passenger Car EU Delta 2 Gasoline 1996 07 1999 08 142 193 1995 4 Turbo 16V 175A4.000 Hatchback HPE Delta
Lancia, Passenger Car EU Delta 1.8 Gasoline 1994 07 1999 08 66 90 1756 4 i.e. 836A6.000 Hatchback Delta
Lancia, Passenger Car EU Delta 2 Gasoline 1993 06 1994 01 155 211 1995 4 16V 831E5.046 Hatchback HF Integrale 4WD Delta
Lancia, Passenger Car EU Thema 2 Gasoline 1987 09 1992 05 85 115 1995 4 i.e. 834B.146 Thema
Lancia, Passenger Car EU Thema 2 Gasoline 1989 02 1992 05 104 141 1995 4 i.e. 16V 834B2.246 Thema
Lancia, Passenger Car EU Thema 2 Gasoline 1984 11 1987 12 122 166 1995 4 i.e. Turbo 834C.000 Thema
Lancia, Passenger Car EU Dedra 2 Gasoline 1990 05 1994 07 121 165 1995 4 i.e. 835A7.000 Integrale Dedra
Lancia, Passenger Car EU Dedra 1.8 Gasoline 1989 09 1994 06 80 109 1756 4 i.e. 835A2.000 Dedra
Lancia, Passenger Car EU Dedra 2 Gasoline 1991 04 1999 07 119 162 1995 4 i.e. Turbo 835A8.046 Dedra
Lancia, Passenger Car EU Delta 2 Gasoline 1986 12 1992 12 130 177 1995 4 831C5.046 Hatchback HF Integrale 4WD Delta
Lancia, Passenger Car EU Thema 2 Gasoline 1989 04 1992 05 130 177 1995 4 i.e. Turbo 16V 834C1.246 Thema
Lancia, Passenger Car EU Dedra 1.8 Gasoline 1989 09 1999 07 77 105 1756 4 i.e. 835A2.046 Dedra
Lancia, Passenger Car EU Delta 1.8 Gasoline 1993 06 1999 08 76 103 1756 4 i.e. 835C2.000 Hatchback Delta
Lancia, Passenger Car EU Delta 2 Gasoline 1993 06 1999 08 137 186 1995 4 Turbo 16V 836A2.000 Hatchback Delta
Lancia, Passenger Car EU Delta 1.8 Gasoline 1994 07 1999 08 66 90 1756 4 i.e. 835C4.000 Hatchback Delta
Lancia, Passenger Car EU Dedra 1.8 Gasoline 1994 07 1999 07 74 101 1756 4 i.e. 836A5.000 Dedra
Lancia, Passenger Car EU Thema 2 Gasoline 1988 09 1992 05 86 117 1995 4 i.e. 834B1.000 Thema
Lancia, Passenger Car EU Thema 2 Gasoline 1989 05 1992 08 108 147 1995 4 i.e. 16V 834B2.000 Estate Thema
Ferrari, Passenger Car EU Mondial 2.9 Gasoline 1980 07 1983 09 158 214 2927 8 F106B.. Coupe Mondial
Ferrari, Passenger Car EU 40 Series 3 Gasoline 1988 02 1992 06 352 478 2936 8 F120A Coupe F 40
Ferrari, Passenger Car EU 200 Series 2 Gasoline 1982 06 1989 10 162 220 1991 8 Turbo F106D.. Coupe 208
Ferrari, Passenger Car EU 400 Series 4.9 Gasoline 1985 04 1988 12 250 340 4943 12 F101E.. Coupe I 412
Alfa Romeo, Passenger Car EU Alfa 155 1.9 Diesel 1993 04 1997 12 66 90 1929 4 TD AR67501 Alfa 155
Alfa Romeo, Passenger Car EU Alfa 33 1.8 Diesel 1990 07 1994 09 62 84 1779 3 TD VM96A Hatchback Alfa 33
