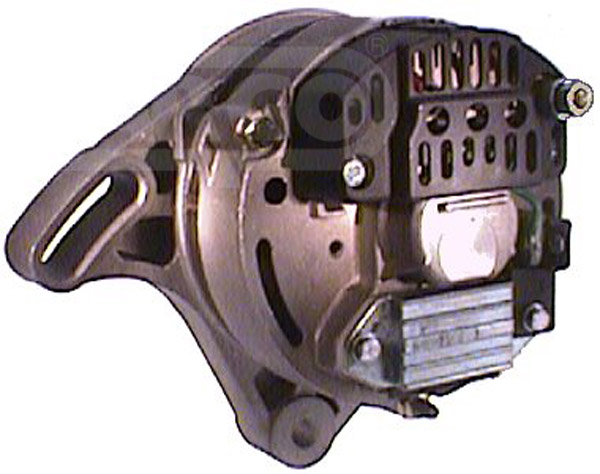

111621 - Alternator (111621)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 55,
Bracket Hole: 10.50, Belt. adj. bracket hole 11.00,
Width/Holder Arm: 32.30, Belt. adj. brackethole pos. 18,
Pulley Dia.: 68.50,
Pulley Dist.: 57.50,
Grooves/Pulley: 1,
Radius: >85,
Radius: 124.00,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL_NA,
Blower: EF, Pulley P,
Total Length: 162.00
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 55 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 10.50 | |||
| G | Belt. adj. bracket hole 11.00 | |||
| B | Width/holder arm 32.30 | |||
| E | Belt. adj. brackethole pos. 18 | |||
| H | Pulley dia. 68.50 | |||
| A | Pulley dist. 57.50 | |||
| i | Grooves/pulley 1 | |||
| j | Radius >85 | |||
| j | Radius 124.00 | |||
| k | B+ position M6 | |||
| n | Rotation CR | |||
| o | Regulator plug PL_NA | |||
| R | Total length 162.00 | |||
Further information (Alternator) | ||||
| Blower | EF | |||
| Pulley | P | |||
Replacing | ||||
| 19025076 | REMY (DELCO) | |||
| 2541399 | VALEO | |||
| 274020.0 | ELMOT | |||
| 63320034 | MAGNETI MARELLI | |||
| 63321067 | MAGNETI MARELLI | |||
| 7565832 | FIAT | |||
| a125-55g | ELMOT | |||
| a13e50 | VALEO | |||
UNISTART Price: £90.21
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Fiat, Passenger Car EU | Panda | 1.1 | Gasoline | 1991 10 | 2004 07 | 37 | 50 | 1108 | 4 | 156C.046 | Hatchback | 4x4 trekking | Panda | |
| Fiat, Passenger Car EU | Panda | 1.1 | Gasoline | 1995 02 | 2003 09 | 40 | 54 | 1108 | 4 | 176B2.000 | Hatchback | Selecta | Panda | |
| Fiat, Passenger Car EU | Panda | 1 | Gasoline | 1985 01 | 1992 12 | 37 | 50 | 999 | 4 | 156A.3000 | Hatchback | Panda | ||
| Fiat, Passenger Car EU | Uno | 1 | Gasoline | 1984 04 | 1995 10 | 33 | 45 | 999 | 4 | i.e. | 156A2.246 | Hatchback | Uno | |
| Fiat, Passenger Car EU | Panda | 0.8 | Gasoline | 1995 01 | 1997 12 | 25 | 34 | 770 | 4 | 156A4.000 | Hatchback | Panda | ||
| Fiat, Passenger Car EU | Panda | 0.8 | Gasoline | 1995 01 | 1997 12 | 25 | 34 | 770 | 4 | 156A4.048 | Hatchback | Panda | ||
| Fiat, Passenger Car EU | Panda | 0.8 | Gasoline | 1986 01 | 1995 01 | 25 | 34 | 770 | 4 | 141B.000 | Hatchback | Panda | ||
| Fiat, Passenger Car EU | Panda | 1.1 | Gasoline | 1991 05 | 1999 12 | 37 | 50 | 1108 | 4 | 156C.046 | Hatchback | Selecta | Panda | |
| Fiat, Passenger Car EU | Uno | 1.1 | Gasoline | 1992 06 | 1993 12 | 36 | 49 | 1116 | 4 | i.e. | 146C3.000 | Hatchback | Uno | |
| Fiat, Passenger Car EU | Uno | 1.1 | Gasoline | 1990 01 | 1993 12 | 37 | 50 | 1108 | 4 | 156C.046 | Hatchback | Uno | ||
| Fiat, Passenger Car EU | Panda | 1 | Gasoline | 1987 10 | 1998 08 | 33 | 45 | 999 | 4 | i.e. | 156A2.246 | Hatchback | Panda | |
| Fiat, Passenger Car EU | Uno | 1 | Gasoline | 1986 06 | 1993 12 | 32 | 44 | 999 | 4 | 156A2.048 | Hatchback | Uno | ||
| Fiat, Passenger Car EU | Uno | 1 | Gasoline | 1986 06 | 1993 12 | 32 | 44 | 999 | 4 | 156A2.100 | Hatchback | Uno | ||
| Fiat, Passenger Car EU | Tipo | 1.1 | Gasoline | 1988 01 | 1991 10 | 41 | 56 | 1108 | 4 | 160A3.000 | Hatchback | Digit | Tipo | |
| Fiat, Passenger Car EU | Uno | 1.1 | Gasoline | 1989 04 | 1992 12 | 42 | 57 | 1108 | 4 | 160A3.000 | Hatchback | Uno | ||
| Fiat, Passenger Car EU | Panda | 1 | Gasoline | 1986 01 | 1992 12 | 37 | 50 | 999 | 4 | 156A3.000 | Hatchback | 4x4 | Panda | |
| Fiat, Passenger Car EU | Uno | 1.1 | Gasoline | 1986 01 | 1989 12 | 37 | 50 | 1116 | 4 | 146A4.044 | Hatchback | Uno | ||
| Fiat, Passenger Car EU | Panda | 1 | Gasoline | 1995 02 | 2004 07 | 40 | 54 | 1108 | 4 | i.e. | 176B2.000 | Hatchback | 4x4 | Panda |
| Fiat, Passenger Car EU | Panda | 1 | Gasoline | 1986 01 | 1992 04 | 32 | 44 | 999 | 4 | 156A2.100 | Hatchback | Panda | ||
| Fiat, Passenger Car EU | Panda | 1 | Gasoline | 1986 05 | 1994 12 | 33 | 45 | 999 | 4 | i.e. | 156A2.246 | Hatchback | 4x4 | Panda |
| Fiat, Passenger Car EU | Panda | 1 | Gasoline | 1987 10 | 1998 08 | 33 | 45 | 999 | 4 | i.e. | 141C2.000 | Hatchback | Panda | |
| Autobianchi, Passenger Car EU | Y | 1 | Gasoline | 1985 03 | 1995 10 | 63 | 85 | 1049 | 4 | Turbo | 156A1.000 | Hatchback | Y10 | |
| Autobianchi, Passenger Car EU | Y | 1 | Gasoline | 1985 03 | 1995 10 | 33 | 45 | 999 | 4 | 156A2.000 | Hatchback | Y10 | ||
| Autobianchi, Passenger Car EU | Y | 1.1 | Gasoline | 1989 06 | 1995 10 | 42 | 57 | 1108 | 4 | 156C.000 | Hatchback | 4WD | Y10 | |
| Autobianchi, Passenger Car EU | Y | 1.1 | Gasoline | 1990 09 | 1995 10 | 42 | 57 | 1108 | 4 | i.e. | 156C.046 | Hatchback | Y10 | |
| Autobianchi, Passenger Car EU | Y | 1.1 | Gasoline | 1989 06 | 1995 10 | 42 | 57 | 1108 | 4 | 156C.000 | Hatchback | Y10 | ||
| Fiat, Passenger Car EU | Panda | 0.8 | Gasoline | 1986 01 | 1995 01 | 25 | 34 | 770 | 4 | 141B.000 | Hatchback | Panda | ||
| Fiat, Passenger Car EU | Panda | 0.8 | Gasoline | 1995 01 | 1997 12 | 25 | 34 | 770 | 4 | 156A4.048 | Hatchback | Panda | ||
| Fiat, Passenger Car EU | Panda | 0.8 | Gasoline | 1995 01 | 1997 12 | 25 | 34 | 770 | 4 | 156A4.000 | Hatchback | Panda | ||
| Fiat, Passenger Car EU | Uno | 1.1 | Gasoline | 1990 01 | 1993 12 | 37 | 50 | 1108 | 4 | 156C.046 | Hatchback | Uno | ||
| Fiat, Passenger Car EU | Uno | 1.1 | Gasoline | 1989 04 | 1992 12 | 42 | 57 | 1108 | 4 | 160A3.000 | Hatchback | Uno | ||
| Fiat, Passenger Car EU | Uno | 1.1 | Gasoline | 1986 01 | 1989 12 | 37 | 50 | 1116 | 4 | 146A4.044 | Hatchback | Uno |
