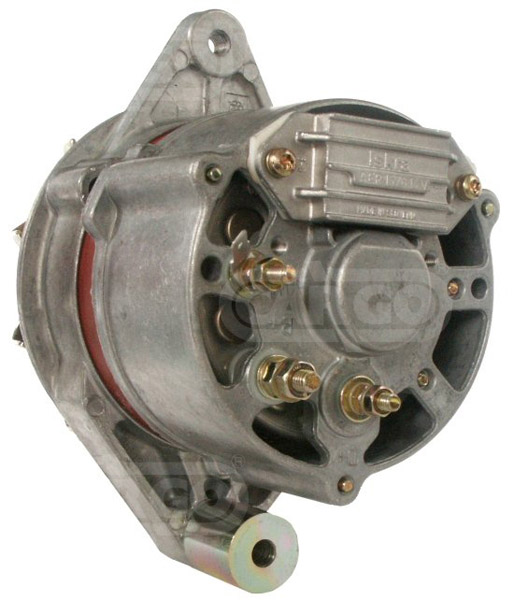

111649 - Alternator (111649)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 33,
Bracket Hole: 8.25, Belt. adj. bracket hole 8.20,
Width/Holder Arm: 56.00, Belt. adj. brackethole pos. 60,
Pulley Dia.: 73.50,
Pulley Dist.: 76.00,
Grooves/Pulley: 1,
Radius: >85,
Radius: 88.00,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL_NA,
Blower: EF, Pulley P,
Total Length: 168.50
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 33 | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 8.25 | |||
| G | Belt. adj. bracket hole 8.20 | |||
| B | Width/holder arm 56.00 | |||
| E | Belt. adj. brackethole pos. 60 | |||
| H | Pulley dia. 73.50 | |||
| A | Pulley dist. 76.00 | |||
| i | Grooves/pulley 1 | |||
| j | Radius >85 | |||
| j | Radius 88.00 | |||
| k | B+ position M6 | |||
| n | Rotation CR | |||
| o | Regulator plug PL_NA | |||
| R | Total length 168.50 | |||
Further information (Alternator) | ||||
| Blower | EF | |||
| Pulley | P | |||
Replacing | ||||
| 0061542902 | MERCEDES BENZ | |||
| 0120300517 | BOSCH | |||
| 0120300562 | BOSCH | |||
| 0120339511 | BOSCH | |||
| 0120339512 | BOSCH | |||
| 0120339513 | BOSCH | |||
| 0120339543 | BOSCH | |||
| 0120339544 | BOSCH | |||
| 0120339545 | BOSCH | |||
| 0120400775 | BOSCH | |||
UNISTART Price: £68.36
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Eicher, Agricultural | 600 | 2.9 | Diesel | 1986 01 | - | 31 | 42 | 2945 | 3 | Diesel | EDL 3-6 | 645 K, KA | ||
| Eicher, Agricultural | 3000 | 3 | Diesel | 1982 03 | 1987 12 | 35 | 48 | 2950 | 3 | Diesel | EDL 3-7 | 3257, S | ||
| Eicher, Agricultural | 3000 | 3 | Diesel | 1982 03 | 1987 12 | 41 | 56 | 2950 | 3 | Diesel | EDL 3-8 | 3358 | ||
| Eicher, Agricultural | 3000 | 3 | Diesel | 1982 03 | 1987 12 | 49 | 67 | 2950 | 3 | Diesel | EDL 3-9 | 3458 | ||
| Eicher, Agricultural | 3000 | 3.9 | Diesel | 1984 01 | - | 53 | 72 | 3927 | 4 | Diesel | EDL 4-4 | 3559 | ||
| Eicher, Agricultural | 3000 | 5.9 | Diesel | 1982 03 | - | 79 | 107 | 5890 | 6 | Diesel | EDL 6-1 | 3026 | ||
| Eicher, Agricultural | 600 | - | - | 0 | 0 | 0 | Various Models | |||||||
| Eicher, Agricultural | 600 | 1.9 | Diesel | 1986 01 | - | 31 | 42 | 1963 | 2 | Diesel | EDL 2-4 | 642 K, KA | ||
| Eicher, Agricultural | 3000 | 3 | Diesel | 1982 03 | 1987 12 | 35 | 48 | 2950 | 3 | Diesel | EDL 3-7 | 3258 A, AS | ||
| Eicher, Agricultural | 3000 | 3 | Diesel | 1982 03 | 1987 12 | 41 | 56 | 2950 | 3 | Diesel | EDL 3-8 | 3357 | ||
| Eicher, Agricultural | 500 | - | - | 0 | 0 | 0 | Various Models | |||||||
| Eicher, Agricultural | 300 | 2 | Diesel | 1977 10 | 1980 12 | 22 | 30 | 1960 | Diesel | EDK 2-9 | 330 | |||
| Eicher, Agricultural | 600 | 2.9 | Diesel | 1987 01 | - | 35 | 48 | 2945 | 3 | Diesel | EDL 3-7.2 | 648 V, VA | ||
| Eicher, Agricultural | 600 | 2.9 | Diesel | 1987 01 | - | 49 | 67 | 2945 | 3 | Diesel | EDL 3-9.1 | 666 P,PA | ||
| Eicher, Agricultural | 600 | 2.9 | Diesel | 1986 01 | - | 49 | 67 | 2945 | 3 | Diesel | EDL 3-9.1 | 666 V, VA | ||
| Eicher, Agricultural | 600 | 3.9 | Diesel | 1987 01 | - | 59 | 80 | 3927 | 4 | Diesel | EDL 4-5.1 | 680 P, PA | ||
| Eicher, Agricultural | 600 | 1.9 | Diesel | 1986 01 | - | 26 | 35 | 1963 | 2 | Diesel | EDL 2-2 | 635 K, KA | ||
| Eicher, Agricultural | 3000 | 3 | Diesel | 1982 03 | 1987 12 | 49 | 67 | 2950 | 3 | Diesel | EDL 3-9 | 3457 | ||
| Eicher, Agricultural | 3000 | 3.9 | Diesel | 1984 01 | - | 53 | 72 | 3927 | 4 | Diesel | EDL 4-4 | 3560 | ||
| Eicher, Agricultural | 3000 | 3.9 | Diesel | 1984 01 | - | 59 | 80 | 3927 | 4 | Diesel | EDL 4-5 | 3659 | ||
| Eicher, Agricultural | 3000 | 3.9 | Diesel | 1984 01 | - | 65 | 88 | 3927 | 4 | Diesel | EDL 4-6 | 3660 | ||
| Eicher, Agricultural | 3000 | - | - | 0 | 0 | 0 | Various Models | |||||||
| Lamborghini, Agricultural | R | 1.8 | Diesel | 1983 01 | 1990 09 | 0 | 0 | 1810 | 2 | Diesel | R 235 S | |||
| Lamborghini, Agricultural | 400 Series | - | - | 0 | 0 | 0 | Various Models | |||||||
| Lamborghini, Agricultural | R Series | - | - | 0 | 0 | 0 | Various Models | |||||||
| Lamborghini, Agricultural | C Series | - | - | 0 | 0 | 0 | Various Models | |||||||
| John Deere, Agricultural | Various Models | Diesel | - | - | 0 | 0 | 0 | Various Models |
