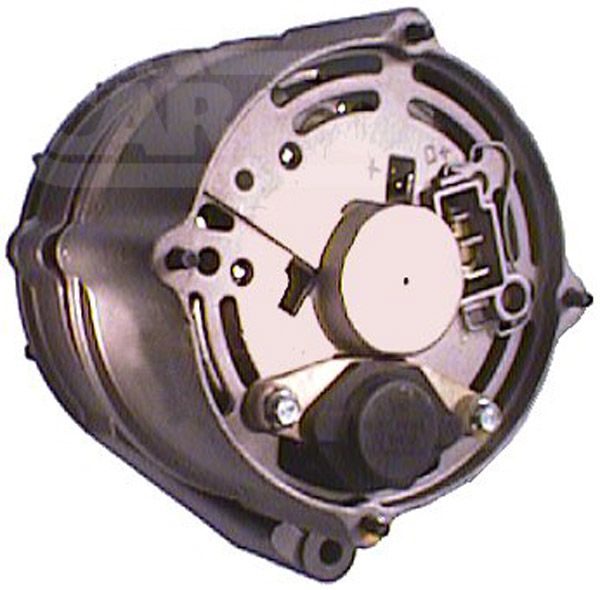

111653 - Alternator (111653)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 45,
Bracket Hole: 8.00, Belt. adj. bracket hole 8.00,
Width/Holder Arm: 56.00, Belt. adj. brackethole pos. 50,
Pulley Dia.: 70.00,
Pulley Dist.: 109.50,
Grooves/Pulley: 1,
Radius: 81.00,
Radius: >85,
B+ Position: 9.70,
Rotation: CR,
Regulator Plug: or plug PL22,
Blower: EF, Pulley P,
Total Length: 188.00, Source Mahle Letrika

Electrical specifications (Alternator)
Voltage 14
Amp 45

Physical specifications (Alternator)
D Bracket hole 8.00
G Belt. adj. bracket hole 8.00
B Width/holder arm 56.00
E Belt. adj. brackethole pos. 50
H Pulley dia. 70.00
A Pulley dist. 109.50
i Grooves/pulley 1
j Radius 81.00
j Radius >85
k B+ position 9.70
n Rotation CR
o Regulator plug PL22
R Total length 188.00
Source Mahle Letrika

Further information (Alternator)
Blower EF
Pulley P

Replacing
0120489014 BOSCH
0120489015 BOSCH
0120489062 BOSCH
0120489858 BOSCH
0120489859 BOSCH
0120489860 BOSCH
0120489892 BOSCH
0120489893 BOSCH
0120489986 BOSCH
0120489987 BOSCH

UNISTART Price: £115.47

Sorry, this item is out of stock.

The 111653 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
VW, Passenger Car EU Scirocco 1.8 Gasoline 1982 08 1989 12 82 112 1781 4 EV Coupe Scirocco
VW, Passenger Car EU LT 2.4 Gasoline 1982 12 1992 07 66 90 2383 6 DL Bus LT 28-35
VW, Passenger Car EU Passat 1.6 Gasoline 1981 01 1983 02 63 85 1588 4 YP Estate Passat
VW, Passenger Car EU Passat 1.6 Gasoline 1980 08 1988 03 55 75 1588 4 YN Hatchback Passat
VW, Passenger Car EU Scirocco 1.6 Gasoline 1975 08 1980 07 63 85 1588 4 FR Coupe Scirocco
VW, Passenger Car EU Scirocco 1.8 Gasoline 1982 08 1989 12 82 112 1781 4 DX Coupe Scirocco
VW, Passenger Car EU Iltis 1.7 Gasoline 1979 03 1988 12 55 75 1714 4 YX Convertible Iltis
VW, Passenger Car EU Golf 1.5 Gasoline 1979 01 1983 11 51 70 1457 4 JB Convertible Golf I
VW, Passenger Car EU Golf 1.5 Gasoline 1977 08 1983 07 51 70 1457 4 JB Hatchback Golf I
VW, Passenger Car EU Golf 1.8 Gasoline 1982 08 1983 12 82 112 1781 4 GTi DX Hatchback Golf I
VW, Passenger Car EU Transporter 1.9 Gasoline 1984 12 1992 07 57 78 1913 4 DG Platform / Chassis T3 Syncro Transporter
VW, Passenger Car EU LT 2 Gasoline 1975 04 1983 09 55 75 1984 4 CH Van LT 28-35
VW, Passenger Car EU LT 2.4 Diesel 1979 01 1992 07 55 75 2383 6 Diesel DW Van LT 28-35
VW, Passenger Car EU Passat 1.6 Gasoline 1978 06 1980 07 81 110 1588 4 i YS Estate Passat
VW, Passenger Car EU LT 2.4 Gasoline 1982 12 1992 07 66 90 2383 6 DL Platform / Chassis LT 28-35
VW, Passenger Car EU LT 2.4 Diesel 1986 02 1992 08 75 102 2383 6 TD DV Van LT 40-55
VW, Passenger Car EU LT 2.4 Diesel 1982 12 1993 09 75 102 2383 6 TD DV Platform / Chassis LT 40-55
VW, Passenger Car EU Passat 1.6 Gasoline 1979 09 1980 07 55 75 1588 4 WY,WZ Hatchback Passat
VW, Passenger Car EU Passat 1.6 Gasoline 1981 01 1983 02 63 85 1588 4 YP Hatchback Passat
VW, Passenger Car EU Santana 1.6 Gasoline 1981 08 1984 12 55 75 1588 4 WV Santana
VW, Passenger Car EU Scirocco 1.5 Gasoline 1977 08 1980 07 51 70 1457 4 JB Coupe Scirocco
VW, Passenger Car EU Scirocco 1.6 Gasoline 1983 01 1989 12 55 75 1595 4 EW Coupe Scirocco
VW, Passenger Car EU Scirocco 1.6 Gasoline 1980 08 1982 07 81 110 1588 4 EG Coupe Scirocco
VW, Passenger Car EU Transporter 1.9 Gasoline 1983 08 1985 07 66 90 1913 4 GW Bus T3 Transporter
VW, Passenger Car EU Transporter 1.9 Gasoline 1985 02 1992 07 57 78 1913 4 DG Bus T3 Syncro Transporter
VW, Passenger Car EU LT 2.4 Diesel 1979 01 1992 07 55 75 2383 6 Diesel DW Bus LT 28-35
VW, Passenger Car EU LT 2 Gasoline 1975 04 1983 09 55 75 1984 4 CH Bus LT 28-35
VW, Passenger Car EU Passat 1.6 Gasoline 1980 08 1988 03 55 75 1588 4 WV Estate Passat
VW, Passenger Car EU Passat 1.5 Diesel 1977 02 1980 07 37 50 1471 4 Diesel CK Estate Passat
VW, Passenger Car EU Golf 1.6 Gasoline 1976 08 1982 07 81 110 1588 4 GTi EG Hatchback Golf I
VW, Passenger Car EU Golf 1.8 Gasoline 1982 08 1983 12 82 112 1781 4 GTi JJ Hatchback Golf I
VW, Passenger Car EU Jetta 1.6 Gasoline 1978 08 1984 02 63 85 1588 4 FR Jetta
VW, Passenger Car EU Passat 1.6 Gasoline 1975 08 1980 07 63 85 1588 4 YP Hatchback Passat
VW, Passenger Car EU Transporter 1.9 Gasoline 1984 11 1992 07 57 78 1913 4 DG Van T3 Syncro Transporter
VW, Passenger Car EU LT 2.4 Diesel 1979 01 1992 07 55 75 2383 6 Diesel DW Van LT 40-55
VW, Passenger Car EU Santana 1.6 Diesel 1981 08 1984 12 40 54 1588 4 Diesel CR Santana
VW, Passenger Car EU Scirocco 1.6 Gasoline 1976 06 1980 07 81 110 1588 4 EG Coupe Scirocco
VW, Passenger Car EU LT 2.4 Diesel 1982 12 1989 07 75 102 2383 6 TD DV Bus LT 28-35
VW, Passenger Car EU Passat 1.6 Gasoline 1980 08 1988 03 55 75 1588 4 YN Estate Passat
VW, Passenger Car EU Golf 1.8 Gasoline 1982 08 1989 12 82 112 1781 4 DX Convertible Golf I
VW, Passenger Car EU Passat 1.9 Gasoline 1981 01 1983 07 85 115 1921 5 WN Estate Passat
VW, Passenger Car EU Passat 1.6 Gasoline 1975 08 1980 07 63 85 1588 4 YP Estate Passat
VW, Passenger Car EU Jetta 1.5 Gasoline 1978 08 1984 02 51 70 1457 4 JB Jetta
VW, Passenger Car EU LT 2 Gasoline 1975 04 1983 09 55 75 1984 4 CH Platform / Chassis LT 28-35
VW, Passenger Car EU LT 2.4 Diesel 1978 12 1991 02 55 75 2383 6 Diesel CP Platform / Chassis LT 28-35
VW, Passenger Car EU Transporter 1.9 Gasoline 1982 09 1992 07 44 60 1913 4 DF Platform / Chassis T3 Transporter
VW, Passenger Car EU LT 2.4 Diesel 1979 01 1992 07 55 75 2383 6 Diesel CP Van LT 40-55
VW, Passenger Car EU LT 2.4 Diesel 1978 12 1991 02 55 75 2383 6 Diesel CP Platform / Chassis LT 40-55
VW, Passenger Car EU LT 2.4 Diesel 1978 12 1991 02 55 75 2383 6 Diesel DW Platform / Chassis LT 40-55
VW, Passenger Car EU LT 2.4 Diesel 1979 01 1986 03 55 75 2383 6 Diesel DW Van 4x4 LT 40-55
VW, Passenger Car EU Passat 2.1 Gasoline 1981 01 1983 07 85 115 2144 5 WE Hatchback Passat
VW, Passenger Car EU Caddy 1.6 Gasoline 1982 10 1983 10 55 75 1588 4 EM Pick Up Caddy
VW, Passenger Car EU Passat 1.6 Gasoline 1980 08 1988 03 55 75 1588 4 WV Hatchback Passat
VW, Passenger Car EU Santana 1.6 Diesel 1981 12 1984 12 51 70 1588 4 TD CY Santana
VW, Passenger Car EU Transporter 1.9 Gasoline 1982 08 1992 07 44 60 1913 4 DF Bus T3 Transporter
VW, Passenger Car EU LT 2.4 Diesel 1986 02 1992 08 75 102 2383 6 TD DV Van LT 28-35
VW, Passenger Car EU Transporter 1.9 Gasoline 1983 01 1985 07 61 83 1913 4 DH Bus T3 Transporter
VW, Passenger Car EU Transporter 1.9 Gasoline 1982 10 1992 07 44 60 1913 4 DF Van T3 Transporter
VW, Passenger Car EU Passat 1.9 Gasoline 1981 01 1983 07 85 115 1921 5 WN Hatchback Passat
VW, Passenger Car EU LT 2.4 Diesel 1978 12 1991 02 55 75 2383 6 Diesel DW Platform / Chassis LT 28-35
VW, Passenger Car EU Transporter 1.9 Gasoline 1982 08 1992 07 57 78 1913 4 DG Platform / Chassis T3 Transporter
VW, Passenger Car EU Santana 2.1 Gasoline 1982 08 1983 12 85 115 2144 5 WE Santana
VW, Passenger Car EU Scirocco 1.6 Gasoline 1983 08 1984 07 51 70 1595 4 EWA Coupe Scirocco
VW, Passenger Car EU Scirocco 1.5 Gasoline 1980 08 1983 12 51 70 1457 4 JB Coupe Scirocco
VW, Passenger Car EU Scirocco 1.6 Gasoline 1980 08 1984 04 63 85 1588 4 FR Coupe Scirocco
VW, Passenger Car EU Santana 1.9 Gasoline 1981 08 1983 07 85 115 1921 5 WN Santana
VW, Passenger Car EU Scirocco 1.8 Gasoline 1982 08 1989 12 82 112 1781 4 PB Coupe Scirocco
VW, Passenger Car EU Transporter 1.9 Gasoline 1982 08 1992 07 57 78 1913 4 DG Bus T3 Transporter
VW, Passenger Car EU Jetta 1.6 Gasoline 1978 08 1982 07 81 110 1588 4 GTi EG 4x4 Jetta
VW, Passenger Car EU LT 2.4 Diesel 1979 01 1992 07 55 75 2383 6 Diesel CP Bus LT 28-35
VW, Passenger Car EU Passat 1.6 Gasoline 1976 02 1980 07 55 75 1588 4 YN Estate Passat
VW, Passenger Car EU Golf 1.6 Gasoline 1979 08 1982 07 81 110 1588 4 EG Convertible Golf I
VW, Passenger Car EU Transporter 1.9 Gasoline 1982 10 1992 07 57 78 1913 4 DG Van T3 Transporter
VW, Passenger Car EU Transporter 1.9 Gasoline 1983 08 1989 02 66 90 1913 4 GW Van T3 Transporter
VW, Passenger Car EU Passat 2.1 Gasoline 1981 01 1983 07 85 115 2144 5 WE Estate Passat
VW, Passenger Car EU Golf 1.6 Gasoline 1979 08 1983 07 55 75 1588 4 EM Convertible Golf I
VW, Passenger cars US Rabbit 1.7 Gasoline 1982 01 - 0 0 1715 L4 EN LS Deluxe Rabbit
VW, Passenger cars US Rabbit 1.7 Gasoline 1983 01 1983 01 0 0 1715 L4 EN LS Custom Rabbit
VW, Passenger cars US Rabbit 1.7 Gasoline 1983 01 - 0 0 1715 L4 JF LS Custom Rabbit
VW, Passenger cars US Rabbit 1.7 Gasoline 1983 01 - 0 0 1715 L4 JF GL DLX Rabbit
VW, Passenger cars US Rabbit 1.7 Gasoline 1982 01 - 0 0 1715 L4 EN L Custom Rabbit
VW, Passenger cars US Rabbit 1.7 Gasoline 1984 01 1984 01 0 0 1715 L4 EN L Rabbit
VW, Passenger cars US Rabbit 1.7 Gasoline 1981 01 1983 01 0 0 1715 L4 EN Convertible Rabbit
VW, Passenger cars US Rabbit 1.7 Gasoline 1983 01 1983 01 0 0 1715 L4 EN GL DLX Rabbit
VW, Passenger cars US Rabbit 1.7 Gasoline 1983 01 1984 01 0 0 1715 L4 JF L Rabbit
VW, Passenger cars US Rabbit 1.7 Gasoline 1983 01 1983 01 0 0 1715 L4 JF L Rabbit
VW, Passenger cars US Rabbit 1.7 Gasoline 1981 01 1982 01 0 0 1715 L4 EN Convertible Rabbit
VW, Passenger cars US Rabbit 1.7 Gasoline 1981 01 1982 01 0 0 1715 L4 EN Rabbit
VW, Passenger cars US Rabbit 1.7 Gasoline 1981 01 1982 01 0 0 1715 L4 EN Pick Up Rabbit
VW, Passenger cars US Rabbit 1.7 Gasoline 1981 01 1983 01 0 0 1715 L4 EN Pick Up Rabbit

TEST & REPAIR SERVICE

Unistart has its own workshops for remanufacturing with the latest testing equipment. This enables us to provide an excellent (and free) technical helpline and aftersales support and backup service.

You can speak to one of our friendly and knowledgeable technicians who will be glad to Help with any enquiries no matter how large or small. Call us on 020 8 983 9969.
