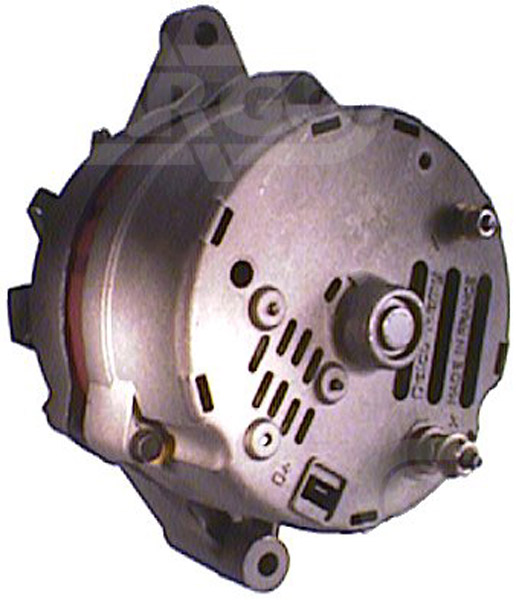

111656 - Alternator (111656)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 45,
Bracket Hole: 8.70, Belt. adj. bracket hole 8.65,
Width/Holder Arm: 56.00, Belt. adj. brackethole pos. 60,
Pulley Dia.: 72.85,
Pulley Dist.: 77.00,
Grooves/Pulley: 1,
Radius: >85,
Radius: 90.50,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL_NA,
Blower: EF, Pulley P,
Total Length: 165.50

Electrical specifications (Alternator)
Voltage 14
Amp 45

Physical specifications (Alternator)
D Bracket hole 8.70
G Belt. adj. bracket hole 8.65
B Width/holder arm 56.00
E Belt. adj. brackethole pos. 60
H Pulley dia. 72.85
A Pulley dist. 77.00
i Grooves/pulley 1
j Radius >85
j Radius 90.50
k B+ position M6
n Rotation CR
o Regulator plug PL_NA
R Total length 165.50

Further information (Alternator)
Blower EF
Pulley P

Replacing
0120489116 BOSCH
0120489117 BOSCH
0120489766 BOSCH
0120489767 BOSCH
023 REMY (DELCO)
026 REMY (DELCO)
037 REMY (DELCO)
048 REMY (DELCO)
059 REMY (DELCO)
1204006 OPEL

UNISTART Price: £81.47

Sorry, this item is out of stock.

The 111656 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Opel, Passenger Car EU Corsa 1.3 Gasoline 1982 09 1989 10 51 70 1297 4 S 13SB Hatchback Corsa A
Opel, Passenger Car EU Corsa 1.3 Gasoline 1986 09 1990 09 44 60 1297 4 i C13N Hatchback Corsa A
Opel, Passenger Car EU Kadett 1.3 Gasoline 1979 08 1984 08 44 60 1297 4 13N Hatchback Kadett D
Opel, Passenger Car EU Kadett 1.3 Gasoline 1979 08 1984 08 55 75 1297 4 S 13S Estate Kadett D
Opel, Passenger Car EU Kadett 1.3 Gasoline 1984 09 1987 08 55 75 1297 4 S 13S Kadett E
Opel, Passenger Car EU Kadett 1.6 Gasoline 1986 09 1991 08 55 75 1598 4 i E16NZ Estate Kadett E
Opel, Passenger Car EU Rekord 2 Diesel 1977 09 1982 10 43 58 1998 4 Diesel 20D Rekord E
Opel, Passenger Car EU Manta 1.3 Gasoline 1979 08 1986 08 55 75 1297 4 S 13S Coupe Manta B
Opel, Passenger Car EU Corsa 1 Gasoline 1986 02 1989 04 33 45 993 4 S 10S Van Corsa A
Opel, Passenger Car EU Kadett 1.6 Gasoline 1987 10 1993 02 55 75 1598 4 i C16NZ Convertible Kadett E
Opel, Passenger Car EU Kadett 1.6 Gasoline 1986 09 1991 08 55 75 1598 4 i C16NZ Estate Kadett E
Opel, Passenger Car EU Kadett 1.3 Gasoline 1979 08 1984 08 44 60 1297 4 N C13N Kadett D
Opel, Passenger Car EU Corsa 1.2 Gasoline 1982 09 1990 08 44 60 1196 4 12 S Hatchback Corsa A
Opel, Passenger Car EU Rekord 2 Diesel 1974 08 1977 08 40 54 1998 4 Diesel 20D Rekord D
Opel, Passenger Car EU Rekord 2 Diesel 1974 08 1977 08 40 54 1998 4 Diesel 20D Estate Rekord D
Opel, Passenger Car EU Rekord 2.3 Diesel 1978 08 1983 08 48 65 2260 4 Diesel 23D Rekord E
Opel, Passenger Car EU Manta 1.3 Gasoline 1979 03 1980 12 44 60 1297 4 13N Manta B
Opel, Passenger Car EU Ascona 1.3 Gasoline 1981 09 1986 08 44 60 1297 4 13N Ascona C
Opel, Passenger Car EU Corsa 1 Gasoline 1982 09 1992 09 33 45 993 4 10S Corsa A
Opel, Passenger Car EU Kadett 1.3 Gasoline 1979 08 1984 08 55 75 1297 4 S 13S Hatchback Kadett D
Opel, Passenger Car EU Kadett 1.3 Gasoline 1984 09 1991 08 40 60 1297 4 13NB Hatchback Kadett E
Opel, Passenger Car EU Kadett 1.6 Gasoline 1986 09 1991 08 55 75 1598 4 i E16NZ Hatchback Kadett E
Opel, Passenger Car EU Kadett 1.3 Gasoline 1984 09 1989 08 44 60 1297 4 13N Kadett E
Opel, Passenger Car EU Kadett 1.3 Gasoline 1984 09 1989 08 44 60 1297 4 13NB Kadett E
Opel, Passenger Car EU Ascona 1.3 Gasoline 1979 08 1981 08 55 75 1297 4 S 13S Ascona B
Opel, Passenger Car EU Ascona 2 Diesel 1978 08 1981 08 43 58 1998 4 Diesel 20D Ascona B
Opel, Passenger Car EU Kadett 1.6 Gasoline 1986 09 1991 08 55 75 1598 4 i C16LZ Hatchback Kadett E
Opel, Passenger Car EU Kadett 1.6 Gasoline 1986 09 1991 08 55 75 1598 4 i C16NZ Hatchback Kadett E
Opel, Passenger Car EU Kadett 1.6 Gasoline 1986 09 1991 08 55 75 1598 4 i C16LZ Estate Kadett E
Opel, Passenger Car EU Kadett 1.3 Gasoline 1986 01 1989 12 55 75 1297 4 S 13S Van Combo Kadett E
Opel, Passenger Car EU Corsa 1.2 Gasoline 1982 09 1987 10 43 58 1196 4 S 12S Corsa A
Opel, Passenger Car EU Rekord 2 Diesel 1977 09 1982 10 43 58 1998 4 Diesel 20D Estate Rekord E
Opel, Passenger Car EU Rekord 2.3 Diesel 1982 11 1986 08 52 71 2260 4 Diesel 23D Estate Rekord E
Opel, Passenger Car EU Ascona 1.3 Gasoline 1981 09 1986 08 44 60 1297 4 13N Hatchback Ascona C
Opel, Passenger Car EU Ascona 1.3 Gasoline 1981 09 1988 08 55 75 1297 4 S 13S Hatchback Ascona C
Opel, Passenger Car EU Kadett 1.6 Gasoline 1986 10 1993 02 55 75 1598 4 i E16NZ Convertible Kadett E
Opel, Passenger Car EU Ascona 1.3 Gasoline 1979 03 1981 08 44 60 1297 4 13N Ascona B
Opel, Passenger Car EU Corsa 1.3 Gasoline 1986 02 1989 04 44 60 1297 4 13NB Van Corsa A
Opel, Passenger Car EU Kadett 1.3 Gasoline 1985 09 1991 08 44 60 1297 4 i C13N Hatchback Kadett E
Opel, Passenger Car EU Kadett 1.6 Gasoline 1987 10 1993 02 55 75 1598 4 i C16LZ Convertible Kadett E
Opel, Passenger Car EU Kadett 1.3 Gasoline 1979 08 1984 08 55 75 1297 4 S 13S Kadett D
Opel, Passenger Car EU Corsa 1.3 Gasoline 1985 09 1989 10 44 60 1297 4 i 13NB Hatchback Corsa A
Opel, Passenger Car EU Corsa 1.2 Gasoline 1986 02 1989 04 33 45 1196 4 12NC Van Corsa A
Opel, Passenger Car EU Kadett 1.6 Gasoline 1986 09 1991 08 55 75 1598 4 i C16NZ Kadett E
Opel, Passenger Car EU Rekord 2.1 Diesel 1977 09 1978 07 44 60 2068 4 Diesel 21D Rekord E
Opel, Passenger Car EU Rekord 2.3 Diesel 1978 08 1983 08 48 65 2260 4 Diesel 23D Estate Rekord E
Opel, Passenger Car EU Manta 1.3 Gasoline 1979 03 1980 12 44 60 1297 4 13N Coupe Manta B
Opel, Passenger Car EU Manta 1.3 Gasoline 1981 08 1986 08 55 75 1297 4 S 13S Manta B
Opel, Passenger Car EU Corsa 1 Gasoline 1982 09 1993 03 33 45 993 4 10S Hatchback Corsa A
Opel, Passenger Car EU Corsa 1.2 Gasoline 1985 01 1987 10 33 45 1196 4 N 12NC Corsa A
Opel, Passenger Car EU Corsa 1.2 Gasoline 1985 01 1987 10 33 45 1196 4 E12GV Corsa A
Opel, Passenger Car EU Corsa 1.2 Gasoline 1982 09 1990 02 40 55 1196 4 S 12ST Hatchback Corsa A
Opel, Passenger Car EU Corsa 1.3 Gasoline 1985 09 1987 10 44 60 1297 4 13NB Corsa A
Opel, Passenger Car EU Corsa 1.3 Gasoline 1982 09 1987 10 51 70 1297 4 S 13SB Corsa A
Opel, Passenger Car EU Corsa 1.2 Gasoline 1982 09 1990 08 33 45 1196 4 i 12NC Hatchback Corsa A
Opel, Passenger Car EU Kadett 1.3 Gasoline 1979 08 1984 08 44 60 1297 4 13N Estate Kadett D
Opel, Passenger Car EU Kadett 1.3 Gasoline 1984 09 1991 08 44 60 1297 4 13N Hatchback Kadett E
Opel, Passenger Car EU Kadett 1.4 Gasoline 1990 01 1991 08 44 60 1389 4 i C14NZ Kadett E
Opel, Passenger Car EU Kadett 1.3 Gasoline 1984 09 1989 07 44 60 1297 4 13N Van Kadett E
Opel, Passenger Car EU Ascona 1.3 Gasoline 1981 09 1988 08 55 75 1297 4 S 13S Ascona C
Opel, Passenger Car EU Rekord 2.3 Diesel 1982 11 1986 08 52 71 2260 4 Diesel 23D Rekord E
Opel, Passenger Car EU Rekord 2.1 Diesel 1977 09 1978 07 44 60 2068 4 Diesel 21D Estate Rekord E
Opel, Passenger Car EU Kadett 1.2 Gasoline 1982 08 1984 08 40 55 1196 4 S 12ST Hatchback Kadett D
Opel, Passenger Car EU Kadett 1.3 Gasoline 1984 09 1987 08 55 75 1297 4 S 13S Hatchback Kadett E
Opel, Passenger Car EU Kadett 1.6 Gasoline 1986 09 1991 08 55 75 1598 4 i E16NZ Kadett E
Opel, Passenger Car EU Kadett 1.3 Gasoline 1984 09 1991 08 44 60 1297 4 13N Estate Kadett E
Opel, Passenger Car EU Kadett 1.3 Gasoline 1984 09 1987 08 55 75 1297 4 S 13S Estate Kadett E
Opel, Passenger Car EU Corsa 1.2 Gasoline 1986 02 1989 04 40 54 1196 4 12ST Van Corsa A
Opel, Passenger Car EU Corsa 1.3 Gasoline 1986 02 1989 04 51 69 1297 4 13SB Van Corsa A
Opel, Passenger Car EU Kadett 1.3 Gasoline 1985 09 1991 08 44 60 1297 4 i C13N Kadett E
Opel, Passenger Car EU Kadett 1.6 Gasoline 1986 09 1991 08 55 75 1598 4 i C16LZ Kadett E
Opel, Passenger Car EU Kadett 1.3 Gasoline 1985 09 1991 08 44 60 1297 4 i C13N Estate Kadett E
Opel, Passenger Car EU Kadett 1.3 Gasoline 1984 09 1989 07 44 60 1297 4 13NB Van Kadett E
Opel, Passenger Car EU Corsa 1.2 Gasoline 1986 02 1990 07 44 60 1196 4 12 S Van Corsa A
Vauxhall, Passenger Car EU Cavalier 1.3 Gasoline 1981 09 1988 08 55 75 1297 4 S 13S Cavalier
Vauxhall, Passenger Car EU Nova 1 Gasoline 1983 05 1993 03 33 45 993 4 10S Hatchback Nova A
Vauxhall, Passenger Car EU Cavalier 1.3 Gasoline 1981 09 1988 08 44 60 1297 4 13N Cavalier
Vauxhall, Passenger Car EU Astra 1.3 Gasoline 1979 09 1984 08 55 75 1297 4 S 13S Hatchback Astra D
Vauxhall, Passenger Car EU Nova 1.2 Gasoline 1985 01 1989 10 33 45 1196 4 i 12NC Hatchback Nova A
Vauxhall, Passenger Car EU Astra 1.3 Gasoline 1985 09 1991 08 44 60 1297 4 C13N Astra MK II
Vauxhall, Passenger Car EU Astra 1.3 Gasoline 1979 09 1984 08 55 75 1297 4 S 13S Estate Astra D
Vauxhall, Passenger Car EU Nova 1.3 Gasoline 1983 05 1989 10 51 70 1297 4 S 13SB Hatchback Nova A
Vauxhall, Passenger Car EU Nova 1.2 Gasoline 1982 09 1987 10 40 55 1196 4 S 12ST Nova A
Vauxhall, Passenger Car EU Belmont 1.3 Gasoline 1985 09 1991 08 55 75 1297 4 13S Belmont
Vauxhall, Passenger Car EU Nova 1.2 Gasoline 1983 05 1990 02 40 55 1196 4 12ST Hatchback Nova A
Vauxhall, Passenger Car EU Nova 1.2 Gasoline 1985 01 1989 10 33 45 1196 4 i E12GV Hatchback Nova A
Vauxhall, Passenger Car EU Nova 1.2 Gasoline 1985 01 1987 10 33 45 1196 4 N 12NC Nova A
Vauxhall, Passenger Car EU Nova 1.3 Gasoline 1985 09 1987 10 44 60 1297 4 i 13NB Nova A
Vauxhall, Passenger Car EU Nova 1.3 Gasoline 1982 09 1987 10 51 70 1297 4 S 13SB Nova A
Vauxhall, Passenger Car EU Cavalier 1.3 Gasoline 1981 09 1988 08 55 75 1297 4 S 13S Hatchback Cavalier
Vauxhall, Passenger Car EU Cavalier 1.3 Gasoline 1981 09 1988 08 55 75 1297 4 S 13S Estate Cavalier
Vauxhall, Passenger Car EU Nova 1.3 Gasoline 1985 09 1989 10 44 60 1297 4 i 13NB Hatchback Nova A
Vauxhall, Passenger Car EU Nova 1.2 Gasoline 1988 01 1990 02 43 58 1196 4 S 12ST Hatchback Nova A
Vauxhall, Passenger Car EU Nova 1 Gasoline 1982 09 1987 10 33 45 993 4 10S Nova A
Vauxhall, Passenger Car EU Nova 1.2 Gasoline 1985 01 1987 10 33 45 1196 4 N E12GV Nova A
Bedford, Passenger Car EU Blitz 2.3 Gasoline 1980 02 1983 10 58 79 2278 4 23L Van Blitz
