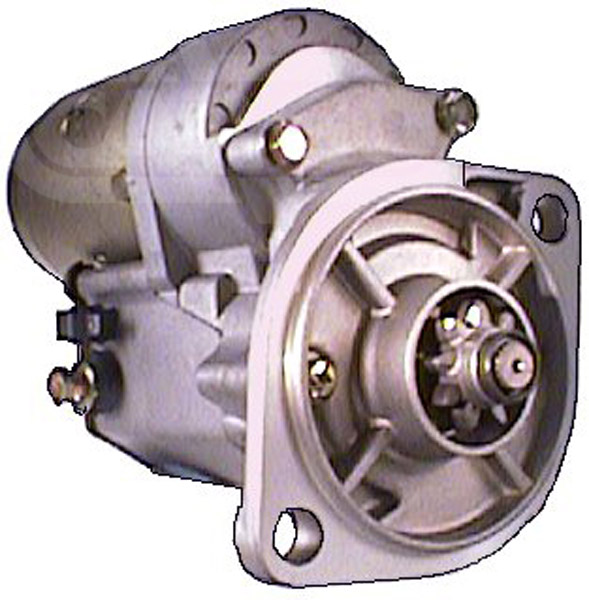

111683 - Starter (111683)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 12, kW 2.0, Mount. flange 95.00, Drive dist. 19.50, Dist./back 201.00, Dist./front 31.00, No. of teeth 9, B+ M8, Gear type GR, Dist. 120.00,
Rotation: CR, No./mount. holes 2 (0), Clutch type Dry,
Drive Type: Steel,
Total Length: 232.50, Oil sealed No, Waterproof No

Electrical specifications (Starter)
Voltage 12
kW 2.0

Physical specifications (Starter)
A Mount. flange 95.00
B Drive dist. 19.50
F Dist./back 201.00
G Dist./front 31.00
H No. of teeth 9
I B+ M8
N Gear type GR
O Dist. 120.00
P Rotation CR
R Total length 232.50

Further information (Starter)
No./mount. holes 2 (0)
Clutch type Dry
Drive type Steel
Oil sealed No
Waterproof No

Replacing
028000-7000 DENSO
028000-7001 DENSO
028000-7002 DENSO
028000-7003 DENSO
028000-7004 DENSO
028000-7790 DENSO
028000-7791 DENSO
028000-7792 DENSO
03101-3030 POONG SUNG
03101-3031 POONG SUNG

UNISTART Price: £85.05

Sorry, this item is out of stock.

The 111683 - Starter is shown in: Starters & Alternators > Starters , Automotive > Starters & Alternators , Agriculture > Starters & Alternators , Industrial > Starters.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Isuzu, Passenger Car EU Trooper 2.2 Diesel 1984 03 1991 12 53 72 2238 4 TD C223T Convertible Trooper
Isuzu, Passenger Car EU Campo 2.2 Diesel 1986 04 1990 12 39 53 2238 4 Diesel C223 Pick Up Campo
Isuzu, Passenger Car EU Campo 2.2 Diesel 1983 01 1991 12 45 61 2238 4 Diesel C223 Pick Up Campo
Isuzu, Passenger Car EU Trooper 2.2 Diesel 1984 05 1989 12 39 53 2238 4 Diesel C223 4WD Trooper
Isuzu, Passenger Car EU Campo 2.2 Diesel 1983 01 1990 12 39 53 2238 4 Diesel C223 Pick Up 4WD Campo
Isuzu, Passenger Car EU Trooper 2.2 Diesel 1983 01 1983 12 45 61 2238 4 Diesel C223T Convertible Trooper
Isuzu, Passenger Car EU KBD 2.2 Diesel 1985 01 1988 01 0 0 0 Diesel 27
Isuzu, Passenger Car EU Trooper 2.2 Diesel 1984 05 1989 07 39 53 2238 4 C223 Convertible 4WD Trooper
Isuzu, Passenger Car EU KBD 2.2 Diesel 1985 01 1988 01 0 0 0 Diesel 47
Isuzu, Passenger Car EU N Series 2.8 Diesel 1985 01 1996 12 0 0 0 Diesel 4JB1 NKR
Clark, Fork Lift C35 - - 0 0 0 Isuzu engine
Clark, Fork Lift C20 - - 0 0 0 Isuzu engine
Clark, Fork Lift C30 - - 0 0 0 Isuzu engine
Clark, Fork Lift C25 - - 0 0 0 Isuzu engine
Isuzu, Passenger cars US Pick Up 2.2 Diesel 1986 01 1987 01 0 0 2238 L4 Turbo Pick Up Pick Up
Isuzu, Passenger cars US Pick Up 2.2 Diesel 1987 01 1987 01 0 0 2238 L4 Pick Up Normal cab Pick Up
Isuzu, Passenger cars US Pick Up 2.2 Diesel 1981 01 1987 01 0 0 2238 L4 Pick Up Pick Up
Isuzu, Passenger cars US Trooper 2.2 Diesel 1986 01 1987 01 0 0 2238 L4 Turbo Trooper
Chevrolet, Passenger cars US Luv 2.2 Diesel 1981 01 - 0 0 0 L4 Diesel Pick Up Luv
Chevrolet, Passenger cars US S10 2.2 Diesel 1984 01 - 0 0 0 L4 Blazer S10
Chevrolet, Passenger cars US S10 2.2 Diesel 1984 01 1985 01 0 0 0 L4 Pick Up S10
