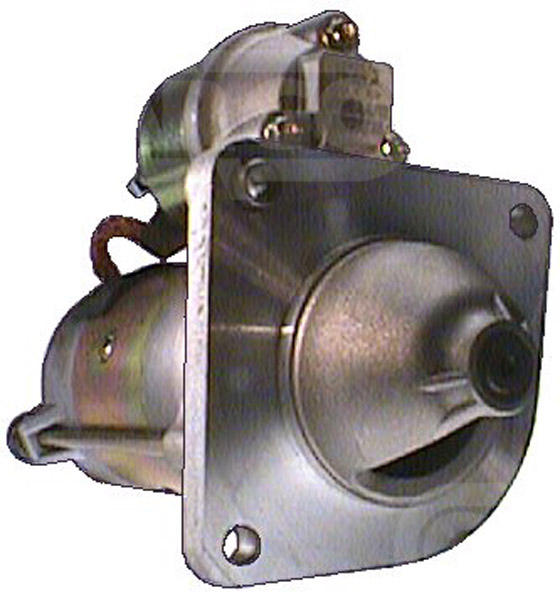

111685 - Starter (111685)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 12, kW 1.4, Mount. flange 65.90, Drive dist. 10.80, Dist./back 152.80, Dist./front 43.00, No. of teeth 9, B+ M8, Gear type GR, Dist. 115.50, Dist. 2 82.00, Dist. 3 81.00,
Rotation: CR, No./mount. holes 3 (0), Clutch type Dry,
Drive Type: Steel,
Total Length: 211.80, Oil sealed No, Waterproof No

Electrical specifications (Starter)
Voltage 12
kW 1.4

Physical specifications (Starter)
A Mount. flange 65.90
B Drive dist. 10.80
F Dist./back 152.80
G Dist./front 43.00
H No. of teeth 9
I B+ M8
N Gear type GR
O Dist. 115.50
O Dist. 2 82.00
O Dist. 3 81.00
P Rotation CR
R Total length 211.80

Further information (Starter)
No./mount. holes 3 (0)
Clutch type Dry
Drive type Steel
Oil sealed No
Waterproof No

Replacing
0001107066 BOSCH
0001107411 BOSCH
0001107490 BOSCH
0001107491 BOSCH
11.139.433 ISKRA
46406973 FIAT
46454211 FIAT
46468696 FIAT
46791692 ALFA ROMEO
46791692 FIAT

UNISTART Price: £52.80

Sorry, this item is out of stock.

The 111685 - Starter is shown in: Starters & Alternators > Starters , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Alfa Romeo, Passenger Car EU GTV 2 Gasoline 1995 06 - 110 150 1970 4 Twin Spark 16V AR16201 Coupe GTV
Alfa Romeo, Passenger Car EU Alfa 155 2 Gasoline 1995 03 1997 12 110 150 1970 4 Twin Spark 16V AR67299 Alfa 155
Alfa Romeo, Passenger Car EU Alfa 145 1.4 Gasoline 1996 12 2001 01 76 103 1370 4 i.e. 16V AR33503 Hatchback Alfa 145
Alfa Romeo, Passenger Car EU Alfa 146 1.4 Gasoline 1996 11 2001 01 76 103 1370 4 i.e. 16V AR33503 Hatchback Alfa 146
Alfa Romeo, Passenger Car EU Alfa 145 1.6 Gasoline 1996 12 2001 01 88 120 1598 4 i.e. 16V AR67601 Hatchback Alfa 145
Alfa Romeo, Passenger Car EU Alfa 156 1.6 Gasoline 1997 09 2005 09 88 120 1598 4 Twin Spark 16V AR32102 Alfa 156
Alfa Romeo, Passenger Car EU Alfa 156 2 Gasoline 1997 09 2000 10 114 155 1970 4 Twin Spark 16V AR32301 Alfa 156
Alfa Romeo, Passenger Car EU GTV 1.8 Gasoline 1998 05 - 106 144 1747 4 16V AR32201 Coupe GTV
Alfa Romeo, Passenger Car EU Spider 2 Gasoline 1998 05 2000 08 114 155 1970 4 16V AR32301 Convertible Spider
Alfa Romeo, Passenger Car EU GT 2 Gasoline 2006 12 - 119 162 1970 4 JTS 932A2.000 Coupe GT
Alfa Romeo, Passenger Car EU Alfa 156 1.8 Gasoline 2000 10 2006 05 103 140 1747 4 Twin Spark 16V AR32205 Estate Alfa 156
Alfa Romeo, Passenger Car EU Alfa 156 2 Gasoline 2000 10 2002 03 110 150 1970 4 Twin Spark 16V AR32310 Alfa 156
Alfa Romeo, Passenger Car EU Alfa 156 1.6 Gasoline 2000 05 - 88 120 1598 4 Twin Spark 16V AR32102 Estate Alfa 156
Alfa Romeo, Passenger Car EU Alfa 156 2 Gasoline 2000 05 2002 06 114 155 1970 4 Twin Spark 16V AR32301 Estate Alfa 156
Alfa Romeo, Passenger Car EU Alfa 156 1.6 Gasoline 1997 09 2005 09 82 112 1598 4 16V AR 32102 T-Spark Alfa 156
Alfa Romeo, Passenger Car EU Alfa 156 1.6 Gasoline 1997 09 2005 09 82 112 1598 4 16V AR 32102 Estate T-Spark Sportwagon Alfa 156
Alfa Romeo, Passenger Car EU Alfa 146 1.8 Gasoline 1998 03 2001 01 106 144 1747 4 Twin Spark i.e. 16V AR32201 Hatchback Alfa 146
Alfa Romeo, Passenger Car EU Alfa 156 1.6 Gasoline 2000 05 2006 05 88 120 1598 4 Twin Spark 16V AR32104 Estate Alfa 156
Alfa Romeo, Passenger Car EU Alfa 156 1.6 Gasoline 2000 05 - 88 120 1598 4 Twin Spark 16V AR32103 Estate Alfa 156
Alfa Romeo, Passenger Car EU Alfa 156 2 Gasoline 2002 03 2005 09 122 166 1970 4 JTS 937A1.000 Alfa 156
Alfa Romeo, Passenger Car EU Alfa 145 1.8 Gasoline 1996 12 1998 12 103 140 1747 4 i.e. 16V AR67106 Hatchback Alfa 145
Alfa Romeo, Passenger Car EU Alfa 145 1.8 Gasoline 1996 12 1998 12 103 140 1747 4 i.e. 16V AR38401 Hatchback Alfa 145
Alfa Romeo, Passenger Car EU Alfa 156 1.6 Gasoline 1997 09 2005 09 88 120 1598 4 Twin Spark 16V AR67601 Alfa 156
Alfa Romeo, Passenger Car EU Alfa 145 1.8 Gasoline 1998 03 2001 01 106 144 1747 4 i.e. 16V AR32201 Hatchback Alfa 145
Alfa Romeo, Passenger Car EU Alfa 147 1.6 Gasoline 2001 01 2010 03 77 105 1598 4 Twin Spark 16V AR37203 Hatchback Alfa 147
Alfa Romeo, Passenger Car EU Alfa 156 1.8 Gasoline 2000 10 2005 09 103 140 1747 4 Twin Spark 16V AR32205 Alfa 156
Alfa Romeo, Passenger Car EU Alfa 166 2 Gasoline 2000 10 - 110 150 1970 4 Twin Spark AR36301 Alfa 166
Alfa Romeo, Passenger Car EU GTV 2 Gasoline 1995 06 - 110 150 1970 4 Twin Spark 16V AR32310 Coupe GTV
Alfa Romeo, Passenger Car EU Alfa 155 1.6 Gasoline 1996 05 1998 01 88 120 1598 4 Twin Spark AR67601 Alfa 155
Alfa Romeo, Passenger Car EU Alfa 146 1.4 Gasoline 1996 11 2001 01 76 103 1370 4 i.e. 16V AR38501 Hatchback Alfa 146
Alfa Romeo, Passenger Car EU Alfa 146 1.6 Gasoline 1996 11 2001 01 88 120 1598 4 i.e. 16V AR38201 Hatchback Alfa 146
Alfa Romeo, Passenger Car EU Alfa 146 1.8 Gasoline 1996 11 2001 01 103 140 1747 4 i.e. 16V AR67106 Hatchback Alfa 146
Alfa Romeo, Passenger Car EU Alfa 145 1.6 Gasoline 1996 12 2001 01 88 120 1598 4 i.e. 16V AR38201 Hatchback Alfa 145
Alfa Romeo, Passenger Car EU Alfa 156 1.6 Gasoline 1997 09 2005 09 88 120 1598 4 Twin Spark 16V AR32104 Alfa 156
Alfa Romeo, Passenger Car EU GTV 2 Gasoline 1998 05 2000 08 114 155 1970 4 16V AR32301 Coupe GTV
Alfa Romeo, Passenger Car EU Alfa 156 1.6 Gasoline 2000 05 - 88 120 1598 4 Twin Spark 16V AR67601 Estate Alfa 156
Alfa Romeo, Passenger Car EU GT 1.8 Gasoline 2003 11 - 103 140 1747 4 TS AR32205 Coupe GT
Alfa Romeo, Passenger Car EU GT 2 Gasoline 2003 11 - 121 165 1970 4 JTS 937A1.000 Coupe GT
Alfa Romeo, Passenger Car EU Alfa 147 2 Gasoline 2001 01 2010 03 110 150 1970 4 Twin Spark 16V AR32310 Hatchback Alfa 147
Alfa Romeo, Passenger Car EU Alfa 147 1.6 Gasoline 2001 01 2010 03 88 120 1598 4 Twin Spark 16V AR32104 Hatchback Alfa 147
Lancia, Passenger Car EU Kappa 2.4 Gasoline 1994 08 2001 10 129 175 2446 5 20V 838A2.027 Kappa
Lancia, Passenger Car EU Kappa 2.4 Gasoline 1994 08 2001 10 129 175 2446 5 20V 838A2.000 Kappa
Lancia, Passenger Car EU Kappa 2.4 Gasoline 1996 07 2001 10 129 175 2446 5 20V 838A2.000 Estate Kappa
Lancia, Passenger Car EU Kappa 2.4 Gasoline 1996 11 2001 03 129 175 2446 5 20V 838A2.000 Coupe Kappa
Lancia, Passenger Car EU Lybra 2 Gasoline 1999 07 2000 09 113 154 1998 5 20V 182B7.000 Lybra
Lancia, Passenger Car EU Delta 1.8 Gasoline 1996 03 1999 08 83 113 1747 4 i.e. 182A2.000 Hatchback LE Delta
Lancia, Passenger Car EU Dedra 1.8 Gasoline 1996 03 1999 07 83 113 1747 4 16V 182A2.000 LE Dedra
Lancia, Passenger Car EU Lybra 1.8 Gasoline 1999 07 - 96 131 1747 4 16V 839A4.000 Estate Lybra
Lancia, Passenger Car EU Lybra 2 Gasoline 2000 09 - 110 150 1998 4 20V 185A8.000 Lybra
Lancia, Passenger Car EU Thesis 2.4 Diesel 2006 04 - 136 185 2387 5 Multijet 841P.000 Thesis
Lancia, Passenger Car EU Thesis 2.4 Gasoline 2002 07 - 125 170 2446 5 841D.000 Thesis
Lancia, Passenger Car EU Kappa 2 Gasoline 1994 10 2001 10 107 146 1998 5 20V 838A1.000 Kappa
Lancia, Passenger Car EU Delta 1.8 Gasoline 1996 03 1999 08 96 131 1747 4 i.e. 183A1.000 Hatchback GT Delta
Lancia, Passenger Car EU Dedra 1.8 Gasoline 1996 03 1999 07 96 131 1747 4 16V 183A1.000 GT Dedra
Lancia, Passenger Car EU Dedra 1.8 Gasoline 1996 03 1999 07 83 113 1747 4 16V 182A2.000 Estate LE Dedra
Lancia, Passenger Car EU Dedra 1.8 Gasoline 1996 03 1999 07 96 131 1747 4 16V 183A1.000 Estate GT Dedra
Lancia, Passenger Car EU Kappa 2 Gasoline 1996 07 2001 10 114 155 1998 5 20V 838A6.000 Estate Kappa
Lancia, Passenger Car EU Kappa 2 Gasoline 1998 06 2001 03 162 220 1998 5 Turbo 20V 175A3.000 Coupe Kappa
Lancia, Passenger Car EU Kappa 2 Gasoline 1996 07 2001 10 114 155 1998 5 20V 838A6.000 LE Kappa
Lancia, Passenger Car EU Kappa 2 Gasoline 1998 06 2001 10 162 220 1998 5 Turbo 20V 175A3.000 Estate Kappa
Lancia, Passenger Car EU Kappa 2 Gasoline 1996 07 2001 03 114 155 1998 5 20V 838A6.000 Coupe Kappa
Lancia, Passenger Car EU Lybra 1.8 Gasoline 1999 07 - 96 131 1747 4 16V 839A7.000 Lybra
Lancia, Passenger Car EU Lybra 2 Gasoline 2000 09 - 110 150 1998 4 20V 185A8.000 Estate SW Lybra
Lancia, Passenger Car EU Kappa 2 Gasoline 1998 06 2001 10 162 220 1998 5 Turbo 20V 175A3.000 Kappa
Lancia, Passenger Car EU Lybra 1.8 Gasoline 1999 07 - 96 131 1747 4 16V 839A9.000 Lybra
Lancia, Passenger Car EU Lybra 1.8 Gasoline 1999 07 - 96 131 1747 4 16V 839A4.000 Lybra
Lancia, Passenger Car EU Lybra 1.8 Gasoline 1999 07 - 96 131 1747 4 16V 839A7.000 Estate Lybra
Lancia, Passenger Car EU Lybra 2 Gasoline 1999 07 2000 09 113 154 1998 5 20V 182B7.000 Estate Lybra
Lancia, Passenger Car EU Thesis 2 Gasoline 2002 07 - 136 185 1998 4 Turbo 841E.000 Thesis
Fiat, Passenger Car EU Marea 1.8 Gasoline 1996 09 - 83 113 1747 4 i 16V 182A2.000 Estate Marea
Fiat, Passenger Car EU Stilo 1.8 Gasoline 2001 10 - 98 133 1747 4 16V 192A4.000 Hatchback Stilo
Fiat, Passenger Car EU Marea 1.8 Gasoline 1996 09 - 83 113 1747 4 i 16V 182A2.000 Marea
Fiat, Passenger Car EU Punto 1.8 Gasoline 1999 09 - 96 130 1747 4 183A1.000 Hatchback HGT Punto
Fiat, Passenger Car EU Coupe 2 Gasoline 1996 08 1998 04 108 147 1998 5 20V 182A1.000 Coupe Coupe
Fiat, Passenger Car EU Punto 1.8 Gasoline 1999 09 - 96 130 1747 4 188A6.000 Hatchback HGT Punto
Fiat, Passenger Car EU Marea 2 Gasoline 2001 01 - 110 150 1998 5 20V 185A8.000 Estate Marea
Fiat, Passenger Car EU Stilo 2.4 Gasoline 2004 01 - 123 167 2446 5 20V 192A7.011 Hatchback Stilo
Fiat, Passenger Car EU Marea 2 Gasoline 2001 01 - 110 150 1998 5 20V 185A8.000 Marea
Fiat, Passenger Car EU Stilo 2.4 Gasoline 2001 10 - 125 170 2446 5 20V 192A2.000 Hatchback Stilo
