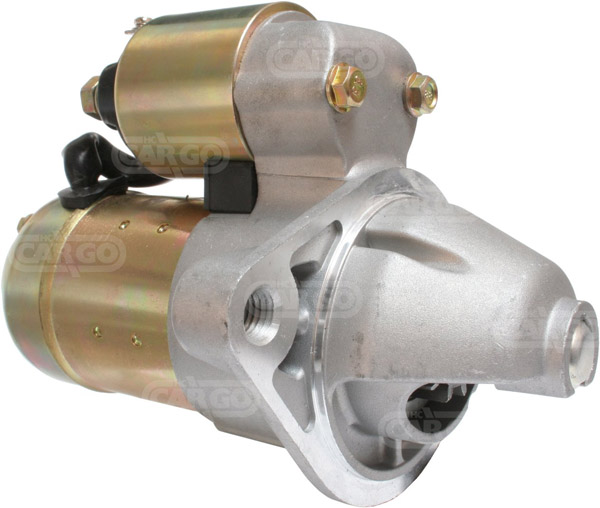

111690 - Starter (111690)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 12, kW 1.1, Mount. flange 78.00, Drive dist. 19.50, Dist./back 139.50, Dist./front 53.75, No. of teeth 11, B+ M8, Gear type GR, Dist. 118.00,
Rotation: CR, No./mount. holes 2 (1), Clutch type Wet,
Drive Type: Steel,
Total Length: 193.50, Oil sealed No, Waterproof No
Electrical specifications (Starter) | ||||
| Voltage | 12 | |||
| kW | 1.1 | |||
Physical specifications (Starter) | ||||
| A | Mount. flange 78.00 | |||
| B | Drive dist. 19.50 | |||
| F | Dist./back 139.50 | |||
| G | Dist./front 53.75 | |||
| H | No. of teeth 11 | |||
| I | B+ M8 | |||
| N | Gear type GR | |||
| O | Dist. 118.00 | |||
| P | Rotation CR | |||
| R | Total length 193.50 | |||
Further information (Starter) | ||||
| No./mount. | holes 2 (1) | |||
| Clutch | type Wet | |||
| Drive | type Steel | |||
| Oil | sealed No | |||
| Waterproof | No | |||
Replacing | ||||
| 11.139.409 | ISKRA | |||
| 1202157 | OPEL | |||
| 8971502040 | ISUZU | |||
| 8971502041 | ISUZU | |||
| 8971502042 | ISUZU | |||
| 97150204 | OPEL | |||
| AZD3517 | ISKRA | |||
| s114-808 | HITACHI | |||
| s114-808a | HITACHI | |||
| S114-808B | HITACHI | |||
UNISTART Price: £60.93
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Opel, Passenger Car EU | Astra | 1.7 | Diesel | 1991 12 | 1998 01 | 60 | 82 | 1686 | 4 | TDS | 17DT (TC4EE1) | Hatchback | Astra F | |
| Opel, Passenger Car EU | Astra | 1.7 | Diesel | 1992 03 | 1998 09 | 60 | 82 | 1686 | 4 | TDS | 17DT (TC4EE1) | Astra F | ||
| Opel, Passenger Car EU | Astra | 1.7 | Diesel | 1992 03 | 1998 09 | 60 | 82 | 1686 | 4 | TDS | X17DT (TC4EE1) | Astra F | ||
| Opel, Passenger Car EU | Astra | 1.7 | Diesel | 1991 12 | 1998 01 | 60 | 82 | 1686 | 4 | TDS | 17DT (TC4EE1) | Estate | Astra F | |
| Opel, Passenger Car EU | Vectra | 1.7 | Diesel | 1995 10 | 1998 12 | 60 | 82 | 1686 | 4 | TD | X17DT (TC4EE1) | Vectra B | ||
| Opel, Passenger Car EU | Astra | 1.7 | Diesel | 1995 03 | 1998 02 | 60 | 82 | 1686 | 4 | TD | X17DT (TC4EE1) | Van | Astra F | |
| Opel, Passenger Car EU | Astra | 1.7 | Diesel | 1991 12 | 1998 01 | 60 | 82 | 1686 | 4 | TDS | X17DT (TC4EE1) | Estate | Astra F | |
| Opel, Passenger Car EU | Astra | 1.7 | Diesel | 1991 12 | 1998 01 | 60 | 82 | 1686 | 4 | TDS | X17DT (TC4EE1) | Hatchback | Astra F | |
| Opel, Passenger Car EU | Vectra | 1.7 | Diesel | 1995 10 | 1998 12 | 60 | 82 | 1686 | 4 | TD | X17DT (TC4EE1) | Hatchback | Vectra B | |
| Vauxhall, Passenger Car EU | Astra | 1.7 | Diesel | 1991 12 | 1998 02 | 60 | 82 | 1686 | 4 | TD | 17DT (TC4EE1) | Hatchback | Astra F | |
| Vauxhall, Passenger Car EU | Astra | 1.7 | Diesel | 1991 12 | 1998 02 | 60 | 82 | 1686 | 4 | TD | 17DT (TC4EE1) | Estate | Astra F | |
| Vauxhall, Passenger Car EU | Vectra | 1.7 | Diesel | 1995 10 | 1996 11 | 60 | 82 | 1686 | 4 | TD | X17DT (TC4EE1) | Hatchback | Vectra | |
| Vauxhall, Passenger Car EU | Vectra | 1.7 | Diesel | 1996 11 | 1997 12 | 60 | 82 | 1686 | 4 | TD | X17DT (TC4EE1) | Estate | Vectra | |
| Vauxhall, Passenger Car EU | Vectra | 1.7 | Diesel | 1995 10 | 1996 11 | 60 | 82 | 1686 | 4 | TD | X17DT (TC4EE1) | Vectra |
