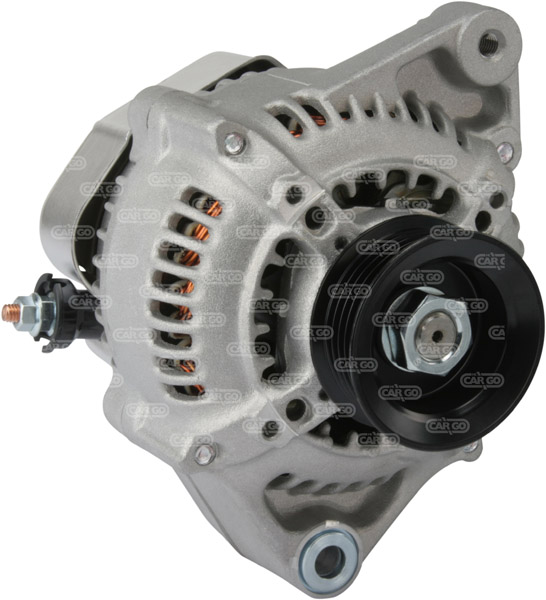

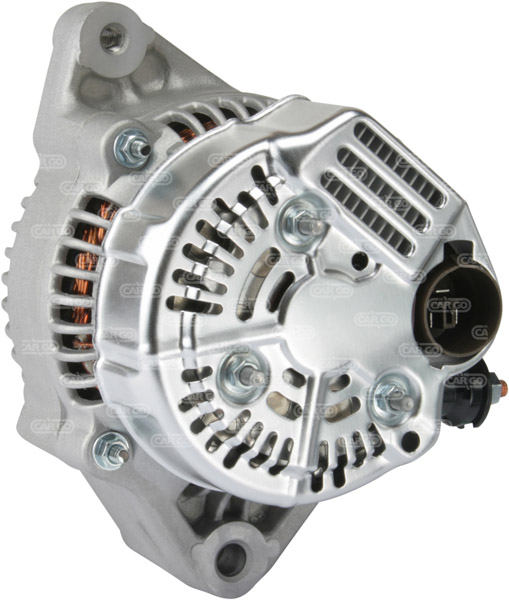

111705 - Alternator (111705)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 70,
Bracket Hole: 10.30, Belt. adj. bracket hole M8,
Width/Holder Arm: 58.00, Belt. adj. brackethole pos. 5,
Pulley Dia.: 55.00,
Pulley Dist.: 90.00,
Grooves/Pulley: 5,
Radius: 79.95,
Radius: 83.50,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL12,
Blower: IF, Pulley SP,
Total Length: 158.50

Electrical specifications (Alternator)
Voltage 14
Amp 70

Physical specifications (Alternator)
D Bracket hole 10.30
G Belt. adj. bracket hole M8
B Width/holder arm 58.00
E Belt. adj. brackethole pos. 5
H Pulley dia. 55.00
A Pulley dist. 90.00
i Grooves/pulley 5
j Radius 79.95
j Radius 83.50
k B+ position M6
n Rotation CR
o Regulator plug PL12
R Total length 158.50

Further information (Alternator)
Blower IF
Pulley SP

Replacing
100211-1000 DENSO
100211-1001 DENSO
100211-1008 DENSO
100211-1010 DENSO
100211-1011 DENSO
100211-1170 DENSO
100211-1171 DENSO
100211-2020 DENSO
100211-2021 DENSO
100211-2022 DENSO

UNISTART Price: £111.97

Sorry, this item is out of stock.

The 111705 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
Toyota, Passenger Car EU Camry 2 Gasoline 1986 11 1991 05 89 121 1998 4 16V 3S-FE Estate GLi Camry
Toyota, Passenger Car EU Carina 1.8 Gasoline 1983 10 1987 11 74 101 1832 4 1S-L Hatchback Carina
Toyota, Passenger Car EU Camry 2 Gasoline 1983 03 1986 10 79 107 1995 4 2S-EL Camry
Toyota, Passenger Car EU Celica 2 Gasoline 1985 08 1989 08 110 150 1998 4 3S-GEL Hatchback GT Celica
Toyota, Passenger Car EU Celica 2 Gasoline 1985 09 1989 08 103 140 1998 4 3S-GELC Hatchback GT Celica
Toyota, Passenger Car EU Celica 2 Gasoline 1987 01 1989 08 110 150 1998 4 3S-GEL Celica
Toyota, Passenger Car EU Celica 2 Gasoline 1989 10 1993 11 150 204 1998 4 Turbo 3S-GTE Coupe 4WD Celica
Toyota, Passenger Car EU Camry 2 Gasoline 1986 04 1988 01 73 99 1995 4 2S-E Camry
Toyota, Passenger Car EU Camry 2 Gasoline 1986 04 1988 01 73 99 1995 4 2S-ELC Hatchback Camry
Toyota, Passenger Car EU Camry 1.8 Gasoline 1986 11 1988 08 66 90 1832 4 1S Estate Camry
Toyota, Passenger Car EU Carina 2 Gasoline 1987 12 1992 03 89 121 1998 4 3S-FE Hatchback Carina
Toyota, Passenger Car EU Camry 1.8 Gasoline 1983 02 1986 10 66 90 1832 4 1S-L Hatchback Camry
Toyota, Passenger Car EU Carina 2 Gasoline 1987 12 1992 04 89 121 1998 4 3S-FE Estate Carina
Toyota, Passenger Car EU Carina 1.6 Gasoline 1983 10 1987 11 74 101 1832 4 1S-EL Carina
Toyota, Passenger Car EU Camry 1.8 Gasoline 1983 02 1986 10 66 90 1832 4 1S-L Camry
Toyota, Passenger Car EU Camry 2.2 Gasoline 1991 06 1996 08 100 136 2164 4 5S-FE Camry
Toyota, Passenger Car EU Camry 2 Gasoline 1986 11 1991 05 94 128 1998 4 3S-FE Estate Camry
Toyota, Passenger Car EU Camry 2.2 Gasoline 1992 03 1996 07 100 136 2164 4 5S-FE Estate Camry
Toyota, Passenger Car EU Celica 2 Gasoline 1988 03 1989 08 136 185 1998 4 Turbo 3S-GTE Coupe GT 4WD Celica
Toyota, Passenger Car EU Celica 2 Gasoline 1986 10 1989 08 110 150 1998 4 3S-GEL Convertible GT Celica
Toyota, Passenger Car EU Celica 2 Gasoline 1989 10 1993 11 153 208 1998 4 Turbo 3S-GTE Coupe 4WD Celica
Toyota, Passenger Car EU Carina 2 Gasoline 1987 12 1992 03 89 121 1998 4 3S-FE Carina
Toyota, Passenger Car EU Camry 2 Gasoline 1986 11 1991 05 94 128 1998 4 3S-FE Camry
Toyota, Passenger Car EU Camry 2 Gasoline 1986 11 1991 05 89 121 1998 4 16V 3S-FE GLi Camry
Toyota, Passenger Car EU Celica 2 Gasoline 1985 08 1989 08 103 140 1998 4 3S-GELC Convertible GT Celica
Toyota, Passenger Car EU Supra 3 Gasoline 1986 01 1988 08 150 204 2954 6 24V 7M-GE Coupe Supra
Toyota, Passenger Car EU Camry 1.8 Gasoline 1986 10 1988 08 66 90 1832 4 i 1S-L Camry
Toyota, Passenger cars US Camry 2 Gasoline 1987 01 1991 01 0 0 1998 L4 3S-FE LE Camry
Toyota, Passenger cars US Camry 2 Gasoline 1988 01 1991 01 0 0 1998 L4 3S-FE DLX All Trac Camry
Toyota, Passenger cars US Camry 2 Gasoline 1988 01 1991 01 0 0 1998 L4 3S-FE LE All Trac Camry
Toyota, Passenger cars US Celica 2 Gasoline 1988 01 1992 01 0 0 1998 L4 Turbo 3S-GTE All Trac Celica
Toyota, Passenger cars US Cressida 3 Gasoline 1989 01 1992 01 0 0 2954 L6 7M-GE Luxury Cressida
Toyota, Passenger cars US Celica 2 Gasoline 1986 01 1986 01 0 0 1998 L4 2S-ELC GT Celica
Toyota, Passenger cars US Camry 2 Gasoline 1987 01 1991 01 0 0 1998 L4 3S-FE DLX Camry
Toyota, Passenger cars US Camry 2.2 Gasoline 1992 01 1994 01 0 0 2164 L4 5S-FE LE Camry
Toyota, Passenger cars US Camry 2.2 Gasoline 1992 01 1994 01 0 0 2164 L4 5S-FE XLE Camry
Toyota, Passenger cars US Celica 2 Gasoline 1987 01 1989 01 0 0 1998 L4 3S-FE ST Celica
Toyota, Passenger cars US Supra 3 Gasoline 1986 01 1990 01 0 0 2954 L6 7M-GE Supra
Toyota, Passenger cars US Camry 2 Gasoline 1989 01 1991 01 0 0 1998 L4 All Trac Camry
Toyota, Passenger cars US Celica 2 Gasoline 1986 01 1986 01 0 0 1995 L4 2S-ELC ST Sport Celica
Toyota, Passenger cars US Supra 3 Gasoline 1987 01 1990 01 0 0 2954 L6 Turbo 7M-GTE Supra
Toyota, Passenger cars US Camry 2.2 Gasoline 1992 01 1992 01 0 0 2164 L4 5S-FE DLX Camry
Toyota, Passenger cars US Celica 2 Gasoline 1986 01 1989 01 0 0 1998 L4 3S-GELC GTS Sport Celica
Toyota, Passenger cars US Celica 2 Gasoline 1987 01 1989 01 0 0 1998 L4 3S-FE GT Celica
Toyota, Passenger cars US Camry 2 Gasoline 1983 01 1986 01 0 0 1995 L4 2S-ELC DLX Camry
Toyota, Passenger cars US Camry 2 Gasoline 1983 01 1986 01 0 0 1995 L4 2S-ELC LE Camry
Toyota, Passenger cars US Camry 2 Gasoline 1988 01 1991 01 0 0 1998 L4 3S-FE Camry
Toyota, Passenger cars US Supra 3 Gasoline 1991 01 1992 01 0 0 2954 L6 Turbo 7M-GTE Supra
Toyota, Passenger cars US Supra 3 Gasoline 1991 01 1992 01 0 0 2954 L6 7M-GE Supra
Toyota, Passenger cars US Supra 3 Gasoline 1986 01 1986 01 0 0 2954 L6 7M-GE Supra
Toyota, Passenger cars AO Camry 2 Gasoline 1988 08 1991 05 94 128 1998 4 3S-FE 4WD Camry
