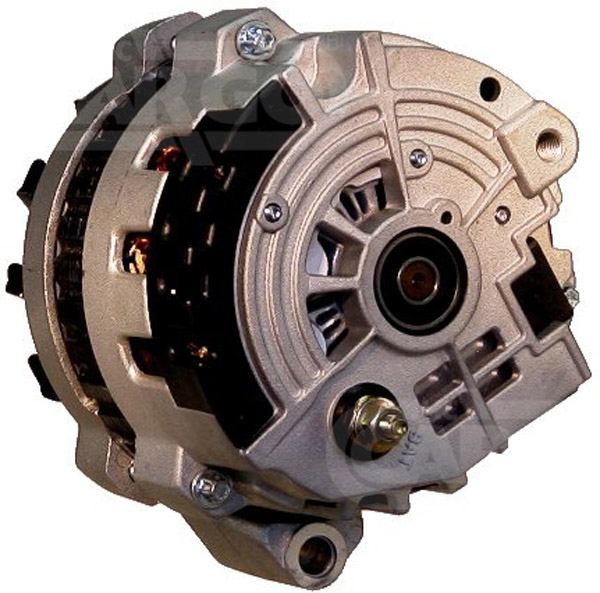

111711 - Alternator (111711)

Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.


Voltage: 14,
Amp: 105,
Bracket Hole: 10.00, Belt. adj. bracket hole M8,
Width/Holder Arm: 51.00, Belt. adj. brackethole pos. 50,
Pulley Dia.: 55.35,
Pulley Dist.: 73.00,
Grooves/Pulley: 6,
Radius: 78.00,
Radius: 78.00,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL24,
Blower: EF, Pulley SP, Remarks Replacing: CS130.,
Total Length: 171.00

Electrical specifications (Alternator)
Voltage 14
Amp 105

Physical specifications (Alternator)
D Bracket hole 10.00
G Belt. adj. bracket hole M8
B Width/holder arm 51.00
E Belt. adj. brackethole pos. 50
H Pulley dia. 55.35
A Pulley dist. 73.00
i Grooves/pulley 6
j Radius 78.00
j Radius 78.00
k B+ position M6
n Rotation CR
o Regulator plug PL24
R Total length 171.00

Further information (Alternator)
Blower EF
Pulley SP
Remarks Replacing: CS130.

Replacing
10463389 REMY (DELCO)
10463413 REMY (DELCO)
10463418 REMY (DELCO)
10480069 REMY (DELCO)
10480082 REMY (DELCO)
10480087 REMY (DELCO)

UNISTART Price: £69.99

Sorry, this item is out of stock.

The 111711 - Alternator is shown in: Starters & Alternators > Alternators , Automotive > Starters & Alternators.

Fast Delivery - UK & Europe

We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.

You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us.  Replacements & refunds will be dispatched / issued on receipt of the returned items only.

Mfg. Model Engine Size Fuel From To KW HP Volume Cylinders Engine Type Brand Chassis Model Type Series
GMC, Passenger cars US G15/G1500 5.7 Gasoline 1994 01 1995 01 0 0 0 V8 Van G15/G1500
GMC, Passenger cars US G25/G2500 5 Gasoline 1992 01 1992 01 0 0 0 V8 Van Vandura G25/G2500
GMC, Passenger cars US G35/G3500 4.3 Gasoline 1995 01 1996 01 0 0 0 V6 Van Rally G35/G3500
GMC, Passenger cars US Safari 4.3 Gasoline 1990 01 1992 01 0 0 0 V6 Safari
GMC, Passenger cars US Safari 4.3 Gasoline 1993 01 1993 01 0 0 0 V6 XT Safari
GMC, Passenger cars US Safari 4.3 Gasoline 1990 01 1991 01 0 0 0 V6 Safari
GMC, Passenger cars US G35/G3500 4.3 Gasoline 1996 01 - 0 0 0 V6 Van G35/G3500
GMC, Passenger cars US G25/G2500 5 Gasoline 1992 01 1992 01 0 0 0 V8 Van Rally G25/G2500
GMC, Passenger cars US G35/G3500 7.4 Gasoline 1996 01 1996 01 0 0 0 V8 Van Vandura G35/G3500
GMC, Passenger cars US Safari 4.3 Gasoline 1992 01 1994 01 0 0 0 V6 Safari
GMC, Passenger cars US Safari 4.3 Gasoline 1992 01 1996 01 0 0 0 V6 XT Safari
GMC, Passenger cars US Safari 4.3 Gasoline 1990 01 1992 01 0 0 0 V6 XT Safari
GMC, Passenger cars US Safari 4.3 Gasoline 1993 01 1993 01 0 0 0 V6 Safari
GMC, Passenger cars US G35/G3500 4.3 Gasoline 1996 01 1996 01 0 0 0 V6 Van Special G35/G3500
GMC, Passenger cars US G15/G1500 5 Gasoline 1993 01 1993 01 0 0 0 V8 Van Rally G15/G1500
GMC, Passenger cars US G15/G1500 5 Gasoline 1994 01 - 0 0 0 V8 Van G15/G1500
GMC, Passenger cars US G15/G1500 5 Gasoline 1992 01 1992 01 0 0 0 V8 Van Vandura G15/G1500
GMC, Passenger cars US G35/G3500 5.7 Gasoline 1994 01 1994 01 0 0 0 V8 Van Rally G35/G3500
GMC, Passenger cars US G35/G3500 5.7 Gasoline 1995 01 1996 01 0 0 0 V8 Van G35/G3500
GMC, Passenger cars US G35/G3500 7.4 Gasoline 1995 01 1995 01 0 0 0 V8 Van Rally G35/G3500
GMC, Passenger cars US G15/G1500 5 Gasoline 1993 01 1995 01 0 0 0 V8 Van Vandura G15/G1500
GMC, Passenger cars US G25/G2500 5 Gasoline 1993 01 1995 01 0 0 0 V8 Van Rally G25/G2500
GMC, Passenger cars US G25/G2500 5.7 Gasoline 1994 01 1994 01 0 0 0 V8 Van Vandura G25/G2500
GMC, Passenger cars US G25/G2500 5.7 Gasoline 1995 01 1995 01 0 0 0 V8 Van Vandura G25/G2500
GMC, Passenger cars US G35/G3500 5.7 Gasoline 1994 01 1994 01 0 0 0 V8 Van G35/G3500
GMC, Passenger cars US G35/G3500 7.4 Gasoline 1996 01 1996 01 0 0 0 V8 Van G35/G3500
GMC, Passenger cars US G35/G3500 7.4 Gasoline 1996 01 1996 01 0 0 0 V8 Van Rally G35/G3500
GMC, Passenger cars US G35/G3500 7.4 Gasoline 1994 01 1994 01 0 0 0 V8 Van Vandura G35/G3500
GMC, Passenger cars US G35/G3500 5.7 Gasoline 1994 01 1994 01 0 0 0 V8 Van Vandura G35/G3500
GMC, Passenger cars US G35/G3500 5.7 Gasoline 1995 01 1996 01 0 0 0 V8 Van Vandura G35/G3500
GMC, Passenger cars US G15/G1500 5 Gasoline 1992 01 1992 01 0 0 0 V8 Van Rally G15/G1500
GMC, Passenger cars US G25/G2500 5.7 Gasoline 1994 01 1994 01 0 0 0 V8 Van Rally G25/G2500
GMC, Passenger cars US G25/G2500 5.7 Gasoline 1995 01 1995 01 0 0 0 V8 Van Rally G25/G2500
GMC, Passenger cars US G25/G2500 5 Gasoline 1993 01 1995 01 0 0 0 V8 Van Vandura G25/G2500
GMC, Passenger cars US G35/G3500 4.3 Gasoline 1992 01 1995 01 0 0 0 V6 Van G35/G3500
GMC, Passenger cars US G35/G3500 5.7 Gasoline 1995 01 1996 01 0 0 0 V8 Van Rally G35/G3500
GMC, Passenger cars US Safari 4.3 Gasoline 1991 01 1991 01 0 0 0 V6 XT Safari
Chevrolet, Passenger cars US Astro 4.3 Gasoline 1990 01 1991 01 0 0 0 V6 Astre
Chevrolet, Passenger cars US Astro 4.3 Gasoline 1990 01 1994 01 0 0 0 V6 Astre
Chevrolet, Passenger cars US G30 4.3 Gasoline 1996 01 - 0 0 0 V6 Van G30
Chevrolet, Passenger cars US Astro 4.3 Gasoline 1992 01 1998 01 0 0 0 V6 Astre
Chevrolet, Passenger cars US G30 7.4 Gasoline 1996 01 - 0 0 0 V8 Van Sportvan G30
Chevrolet, Passenger cars US G30 7.4 Gasoline 1996 01 - 0 0 0 V8 Van G30
Chevrolet, Passenger cars US G10 5.7 Gasoline 1994 01 1995 01 0 0 0 V8 Van G10
