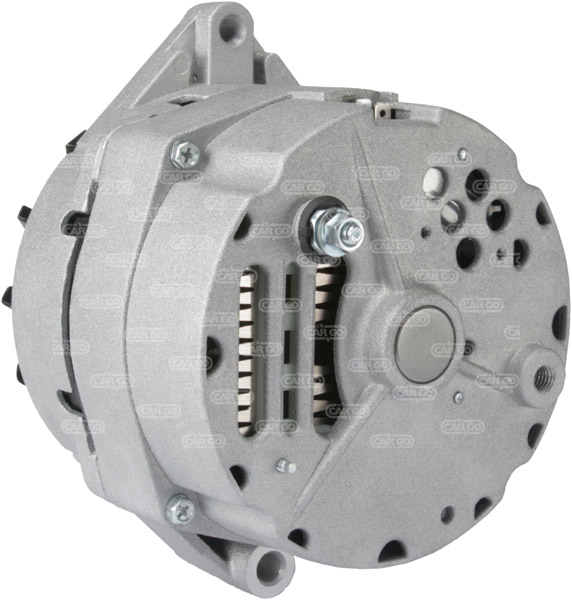

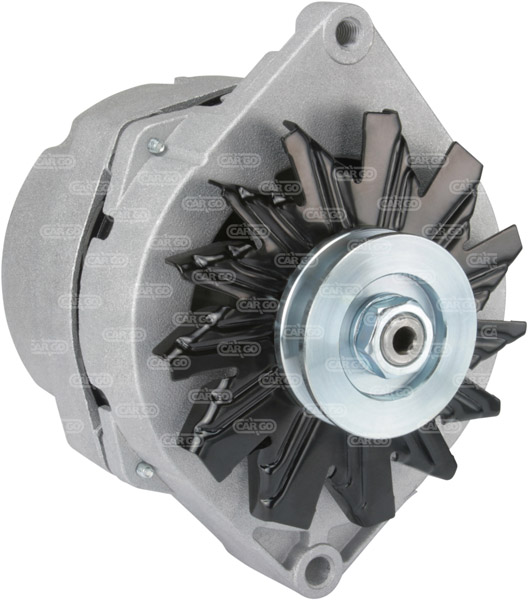

111713 - Alternator (111713)
Not what you're looking for? Click Here to return to the category page. For detailed Servicing data, click on the Servicing tab at the foot of the page.
Voltage: 14,
Amp: 105, Terminal W,
Bracket Hole: 10.25, Belt. adj. bracket hole 3/8" UNC,
Width/Holder Arm: 50.70, Belt. adj. brackethole pos. 60,
Pulley Dia.: 69.00,
Pulley Dist.: 77.00,
Grooves/Pulley: 1,
Radius: 89.00,
Radius: 95.00,
B+ Position: M6,
Rotation: CR,
Regulator Plug: or plug PL123,
Blower: EF, Pulley P, Remarks Replacing: 15SI.,
Total Length: 183.00
Electrical specifications (Alternator) | ||||
| Voltage | 14 | |||
| Amp | 105 | |||
| Terminal | W | |||
Physical specifications (Alternator) | ||||
| D | Bracket hole 10.25 | |||
| G | Belt. adj. bracket hole 3/8" UNC | |||
| B | Width/holder arm 50.70 | |||
| E | Belt. adj. brackethole pos. 60 | |||
| H | Pulley dia. 69.00 | |||
| A | Pulley dist. 77.00 | |||
| i | Grooves/pulley 1 | |||
| j | Radius 89.00 | |||
| j | Radius 95.00 | |||
| k | B+ position M6 | |||
| n | Rotation CR | |||
| o | Regulator plug PL123 | |||
| R | Total length 183.00 | |||
Further information (Alternator) | ||||
| Blower | EF | |||
| Pulley | P | |||
| Remarks | Replacing: 15SI. | |||
Replacing | ||||
| 10479924 | REMY (DELCO) | |||
| 10479925 | REMY (DELCO) | |||
| 10479926 | REMY (DELCO) | |||
| 10479927 | REMY (DELCO) | |||
| 10479929 | REMY (DELCO) | |||
| 10479930 | REMY (DELCO) | |||
| 10497083 | REMY (DELCO) | |||
| 1101194 | REMY (DELCO) | |||
| 1101205 | REMY (DELCO) | |||
| 1101439 | REMY (DELCO) | |||
UNISTART Price: £149.22
Fast Delivery - UK & Europe
We happily accept returns within 14 days from date of delivery. All returns must be received in the same condition and packaging we sent them. Postage charges will not be refunded on unwanted products.
You are solely responsible for ensuring the goods are returned to us. We will not be liable for returns that are lost in the post or lost for any other reason. If a product arrives damaged we will advise the customer how to return the item with all return costs covered by us. Replacements & refunds will be dispatched / issued on receipt of the returned items only.
| Mfg. | Model | Engine Size | Fuel | From | To | KW | HP | Volume | Cylinders | Engine Type | Brand | Chassis | Model Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Allis Chalmers, Agricultural | Various Models | - | - | 0 | 0 | 0 | Various Models | |||||||
| Case, Agricultural | 400 Series | Gasoline | 1982 01 | - | 0 | 0 | 0 | 485 | ||||||
| New Holland, Agricultural | 9000 | Diesel | 1990 01 | 1997 01 | 0 | 0 | 0 | 9030 | ||||||
| John Deere, Agricultural | Various Models | Diesel | - | - | 0 | 0 | 0 | Various Models |
